Component Location

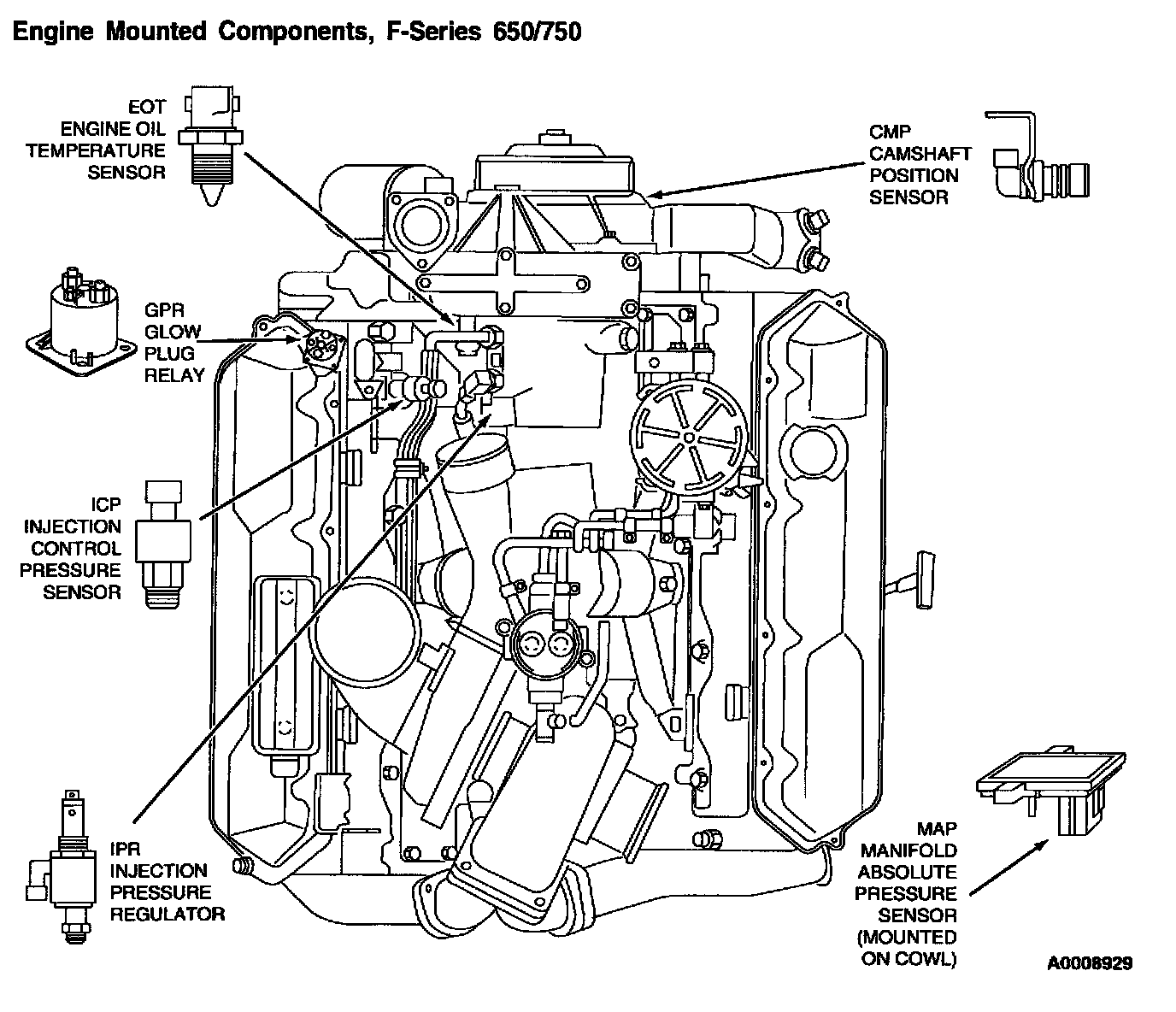

Engine Mounted Components:

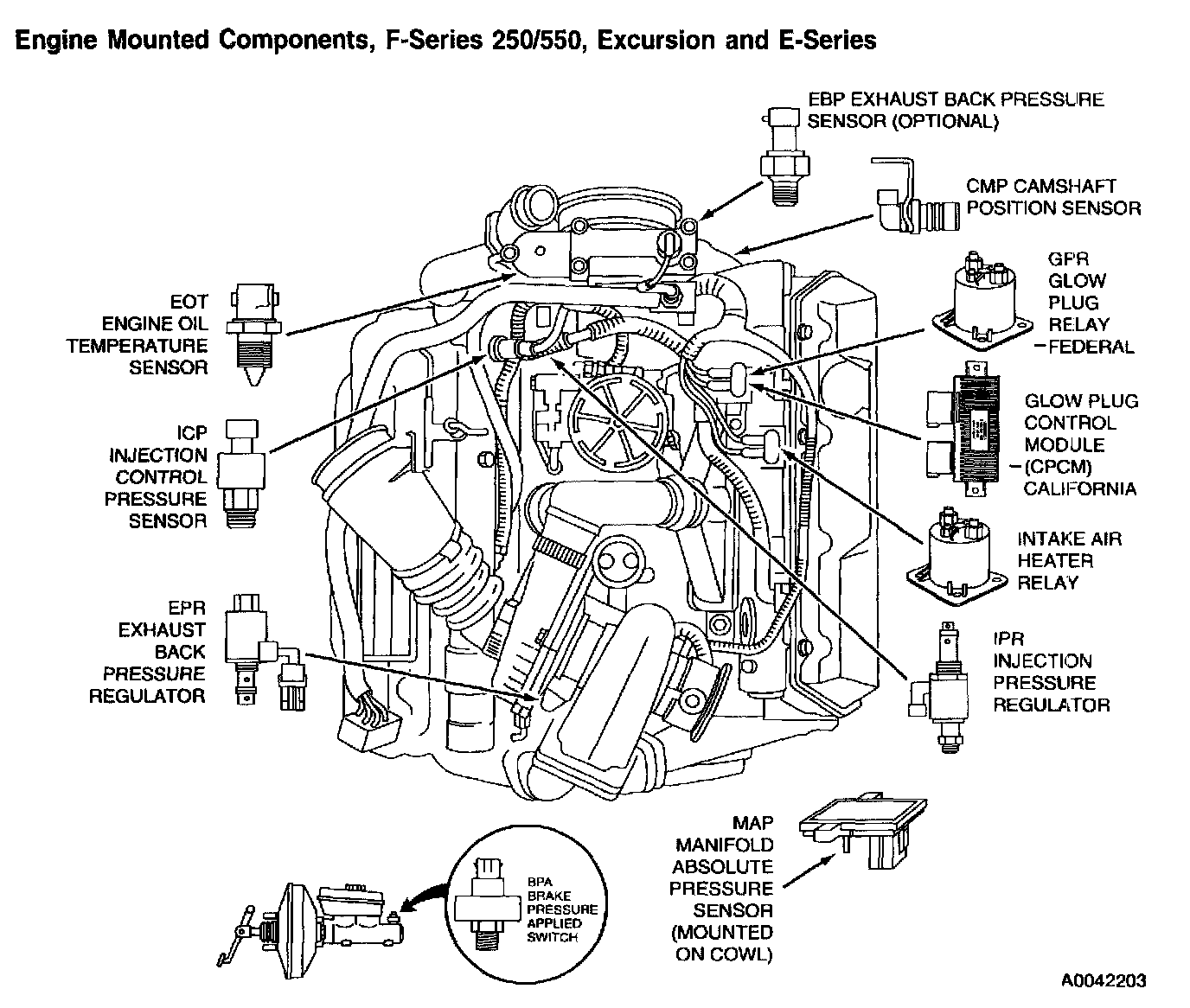

Engine Mounted Components:

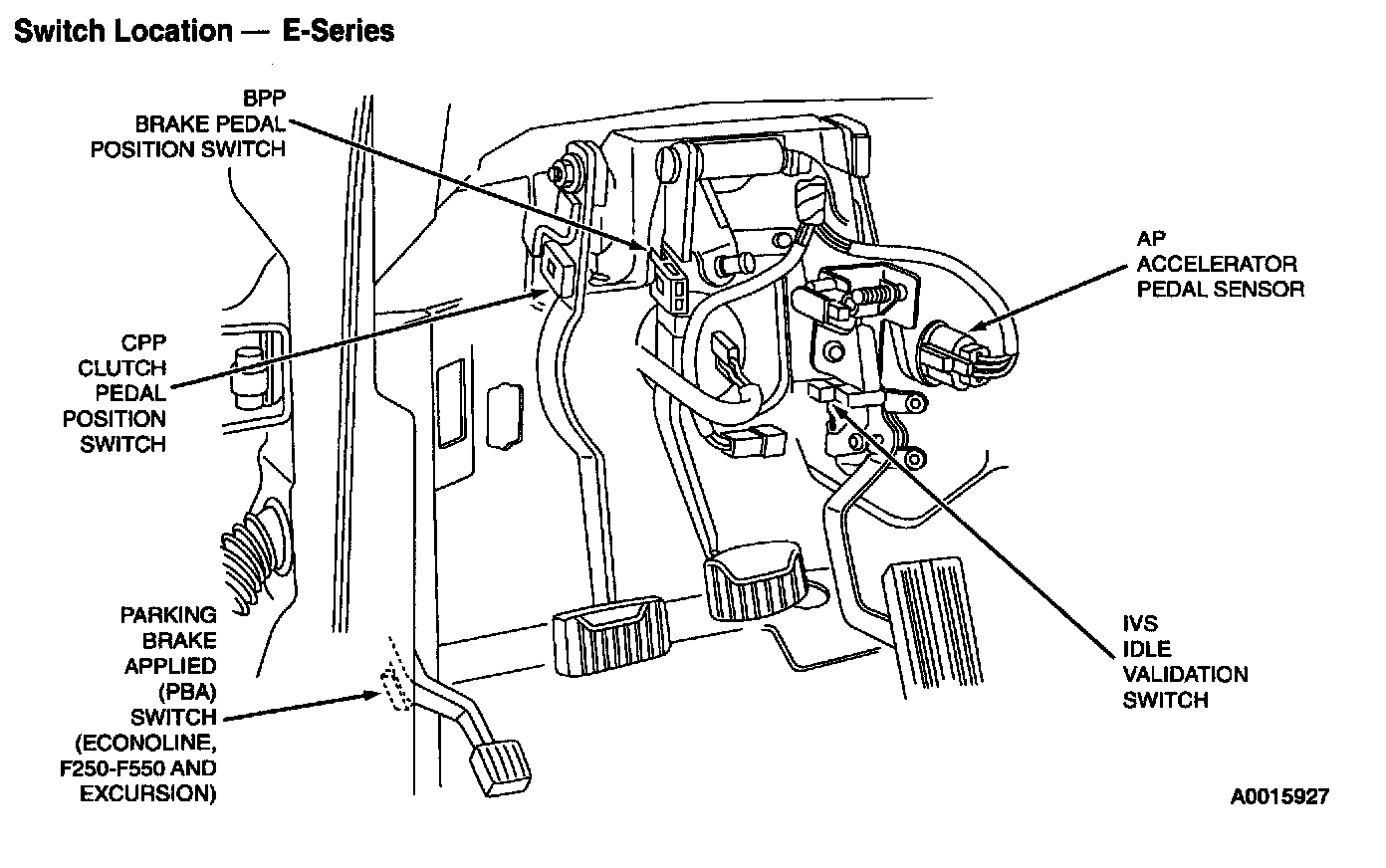

Switch Location:
Barometric Pressure (BARO) Sensor:

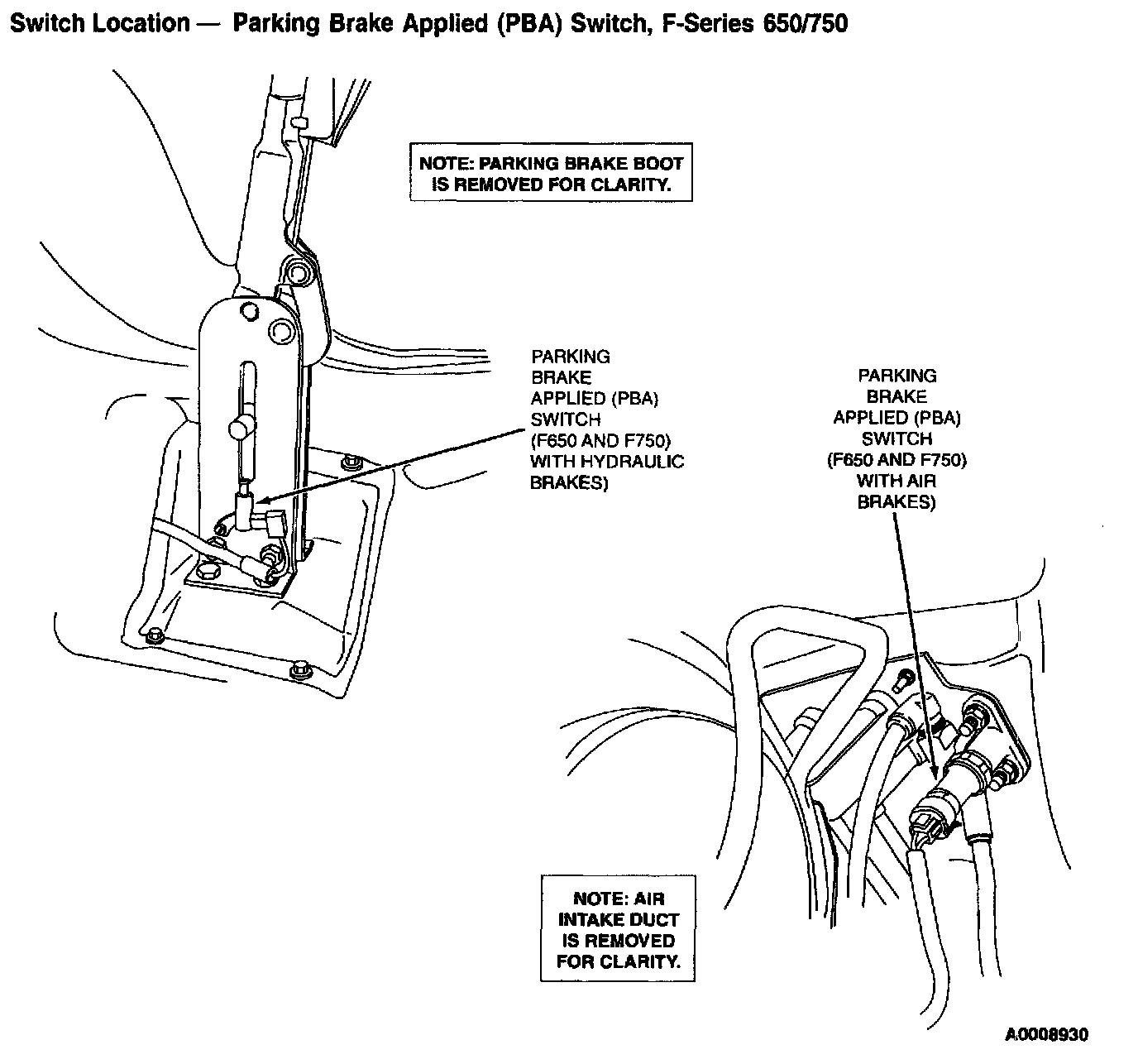

Switch Location:
Switch Location:
Downshift Solenoid:

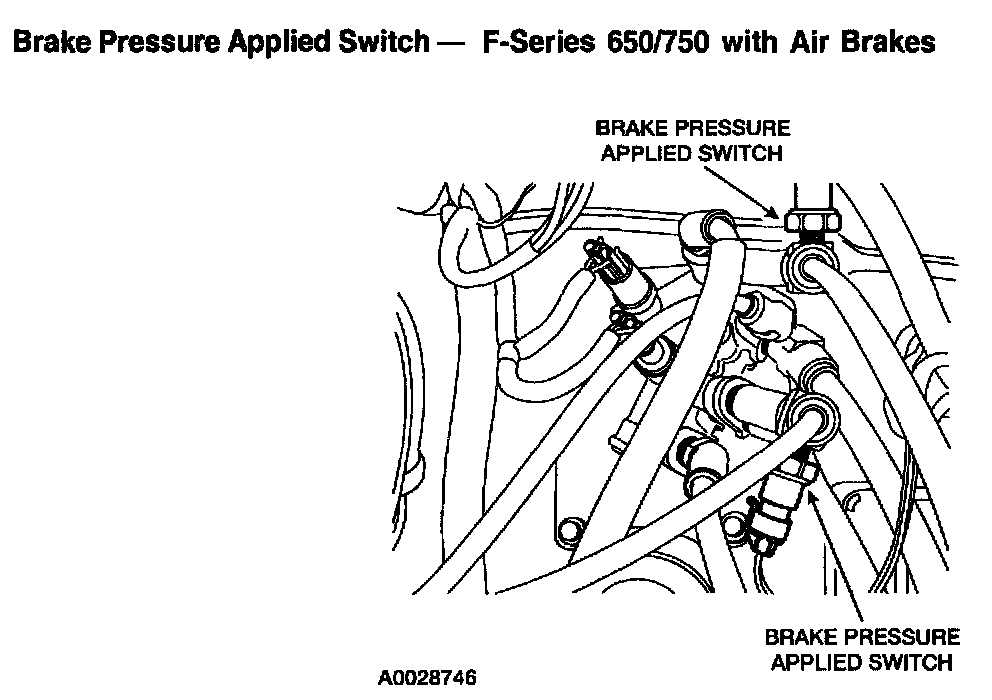

Brake Pressure Applied Switch:
Brake Pressure Applied Switch:

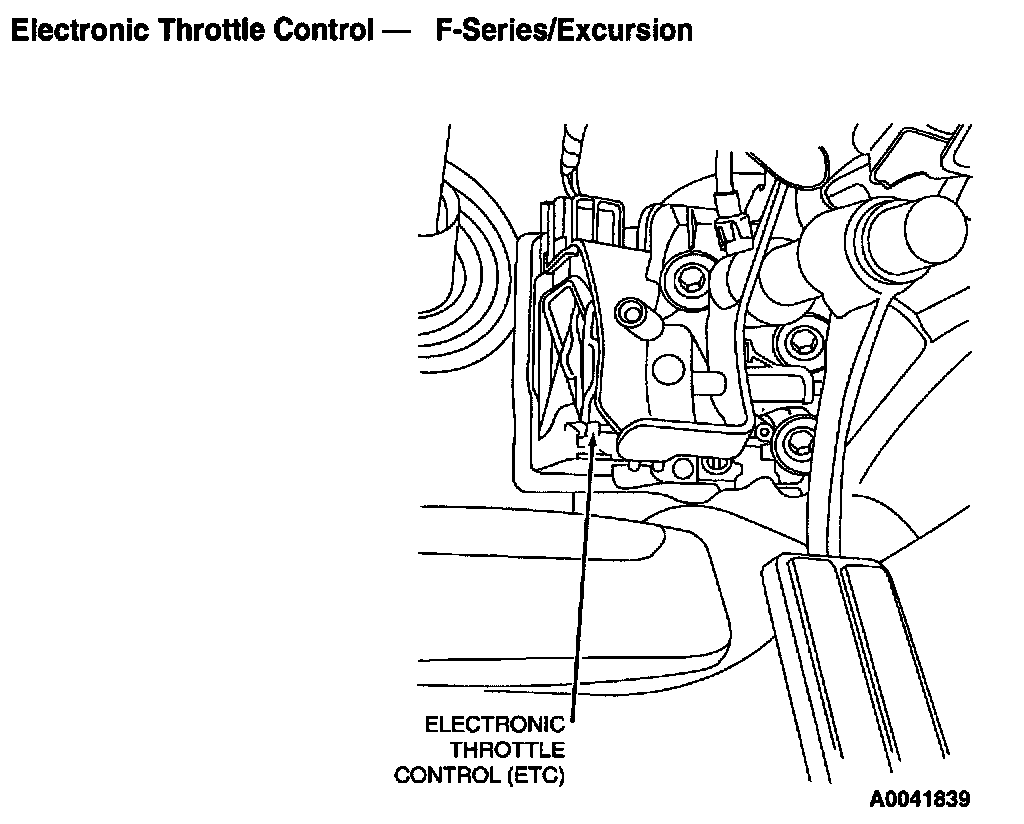

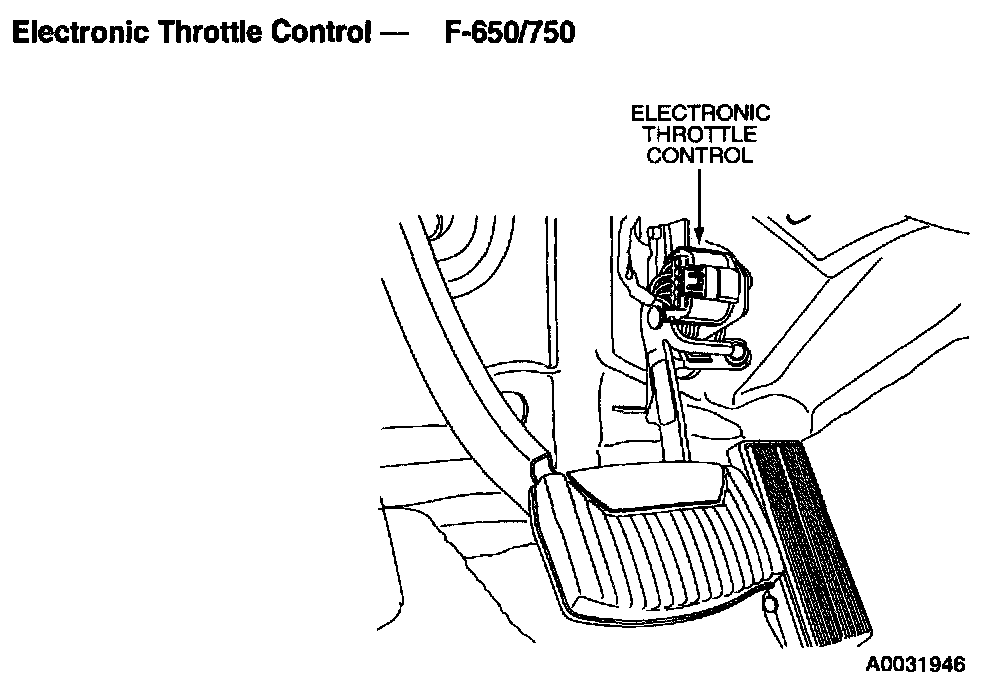

Electronic Throttle Control:
Electronic Throttle Control:

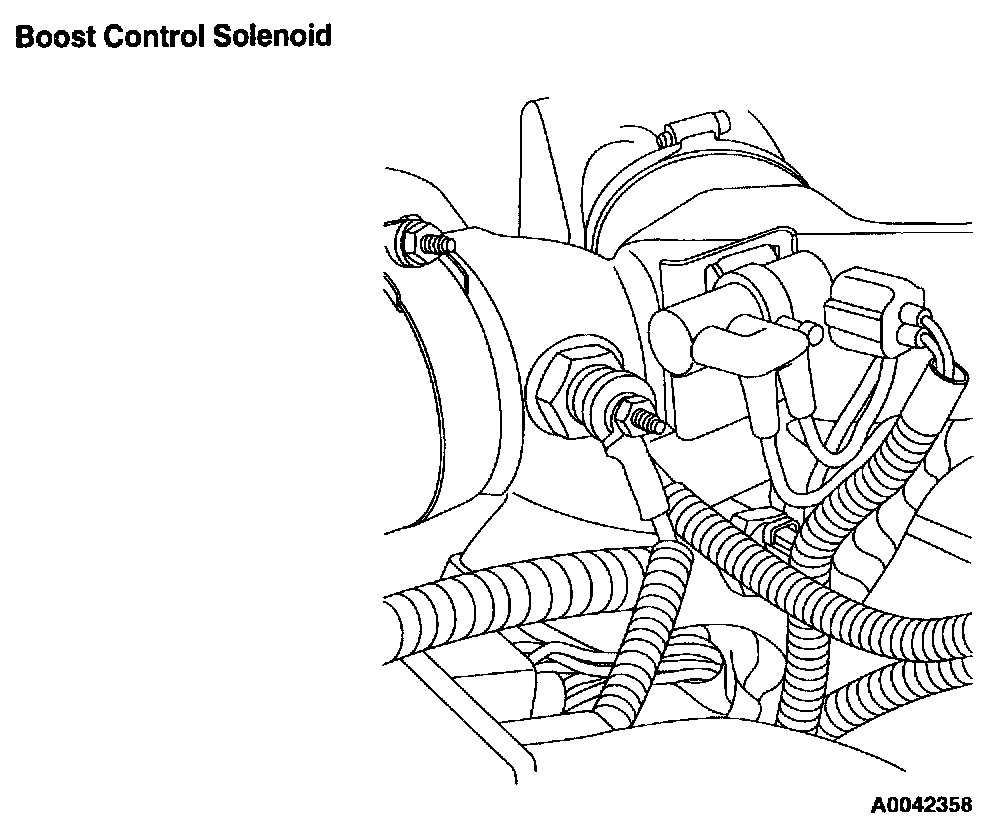

Boost Control Solenoid:

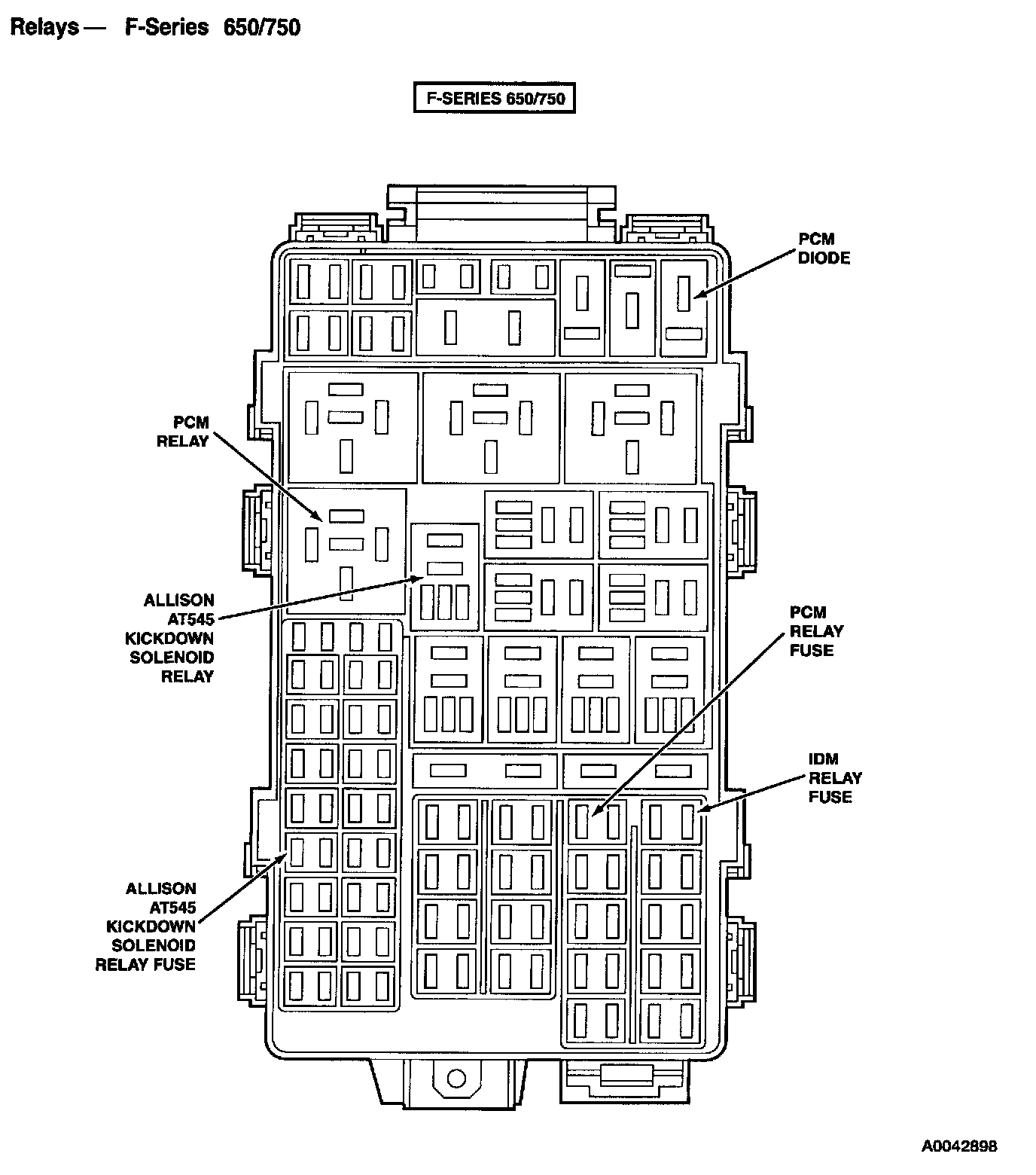

Relays:
Neutral Switch:

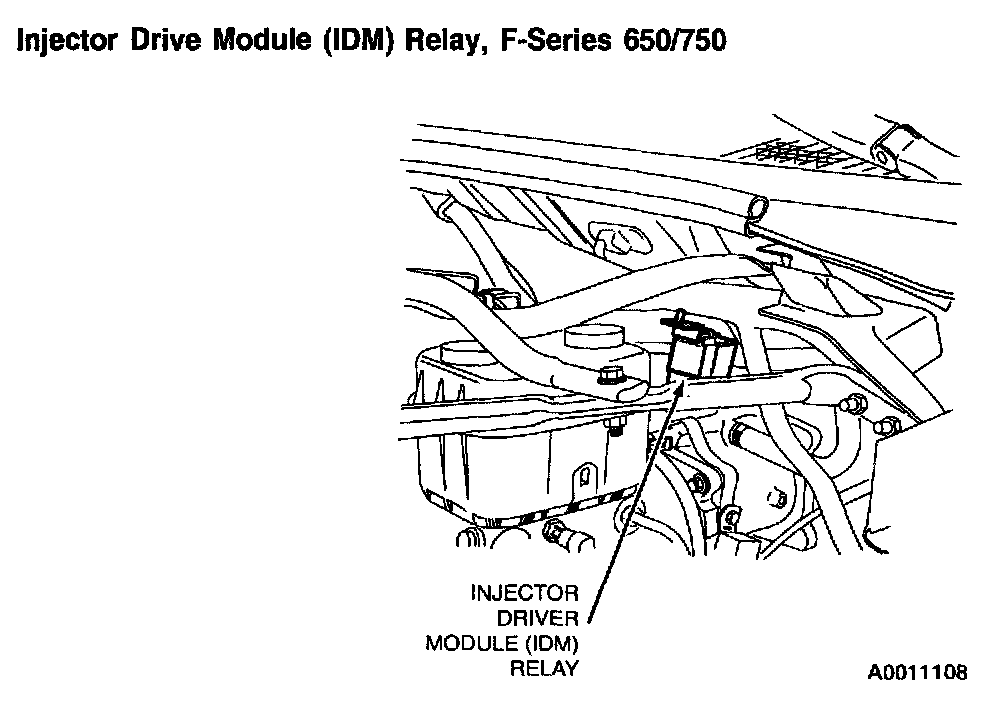

Injector Drive Module (IDM) Relay:
