Diesel Intake Air Systems

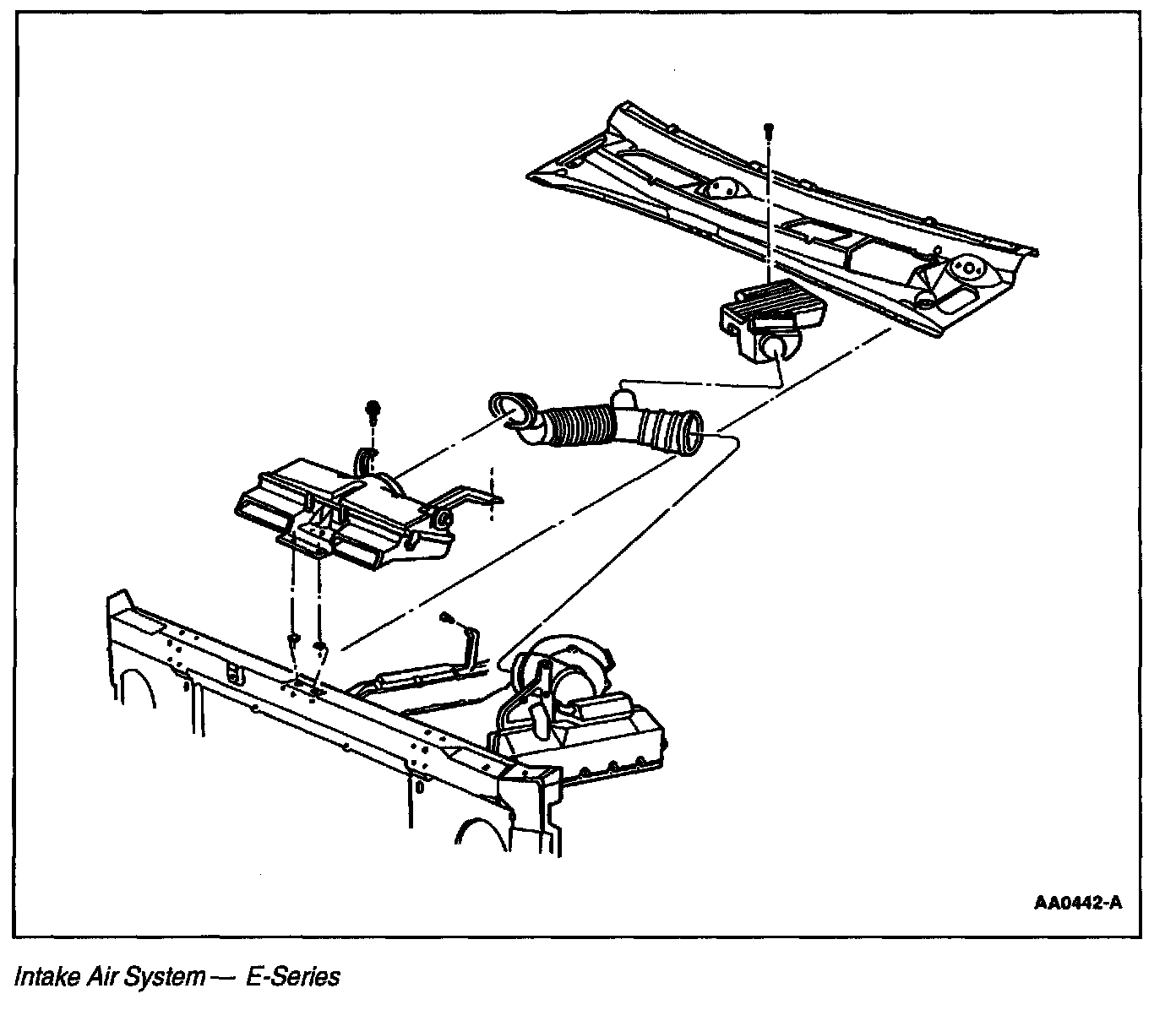

Intake Air System - E-Series:

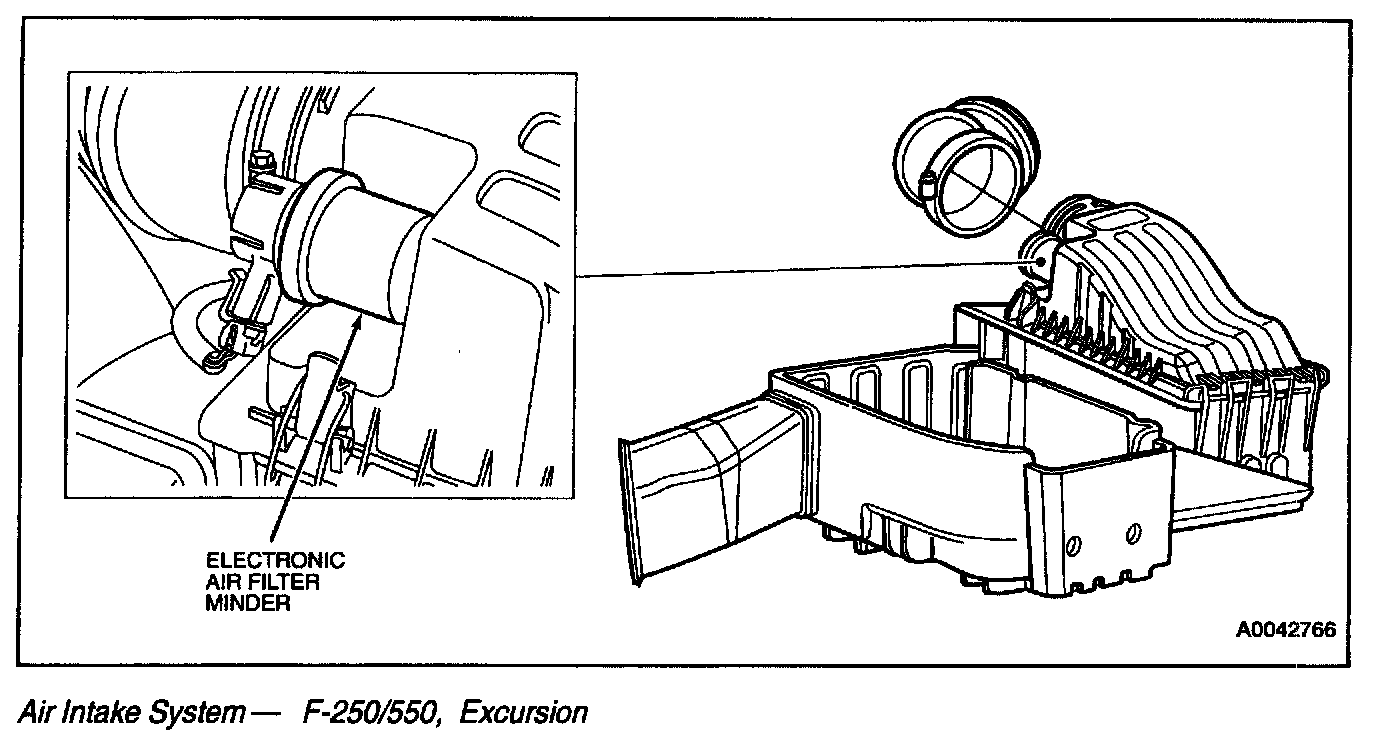

Air Intake System - F-250/550, Excursion:






Charge Air Cooler System - F250-F550, Excursion:

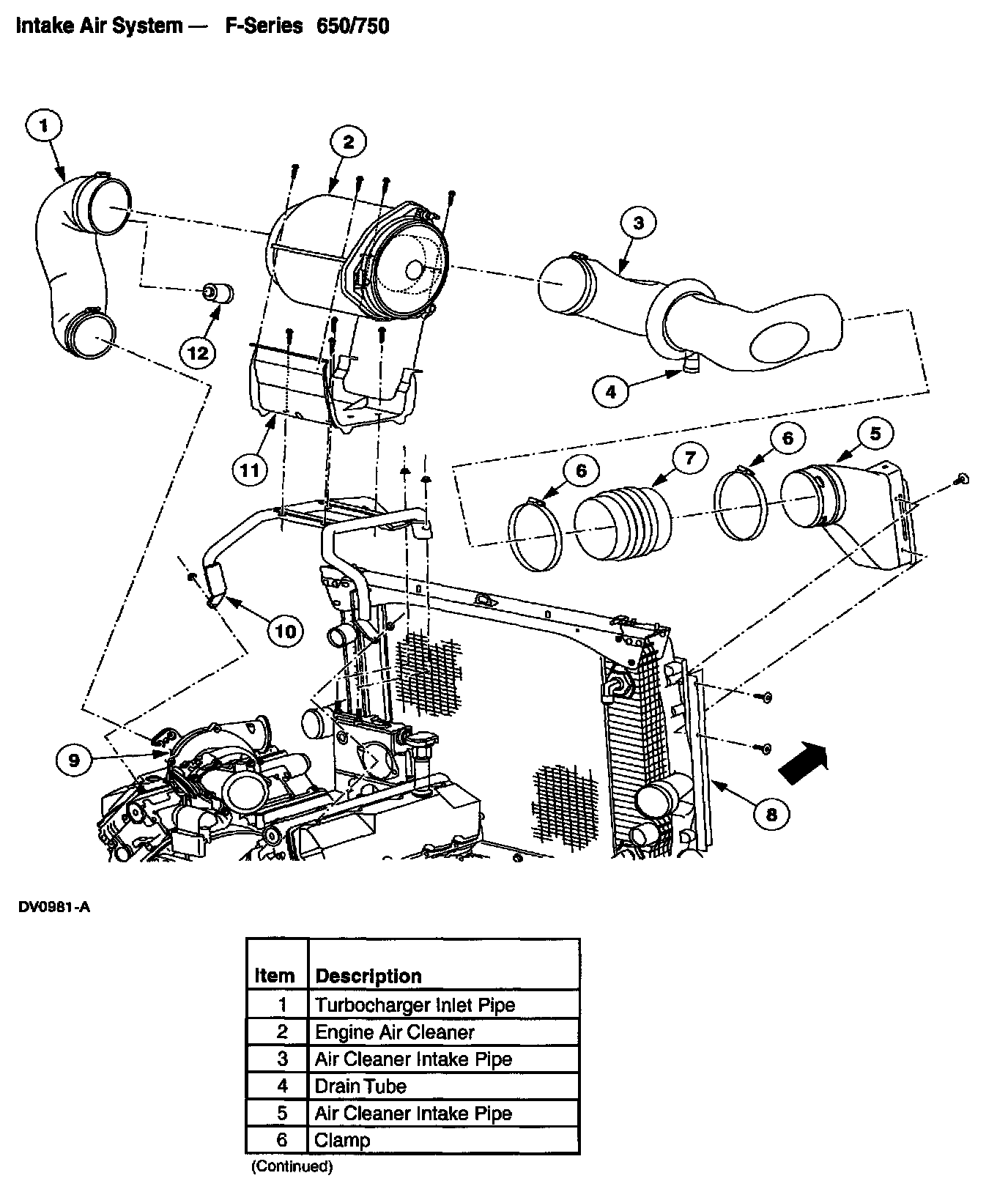

Intake Air System - F-Series 650/750, Part 1:






Intake Air System - F-Series 650/750, Part 2:
