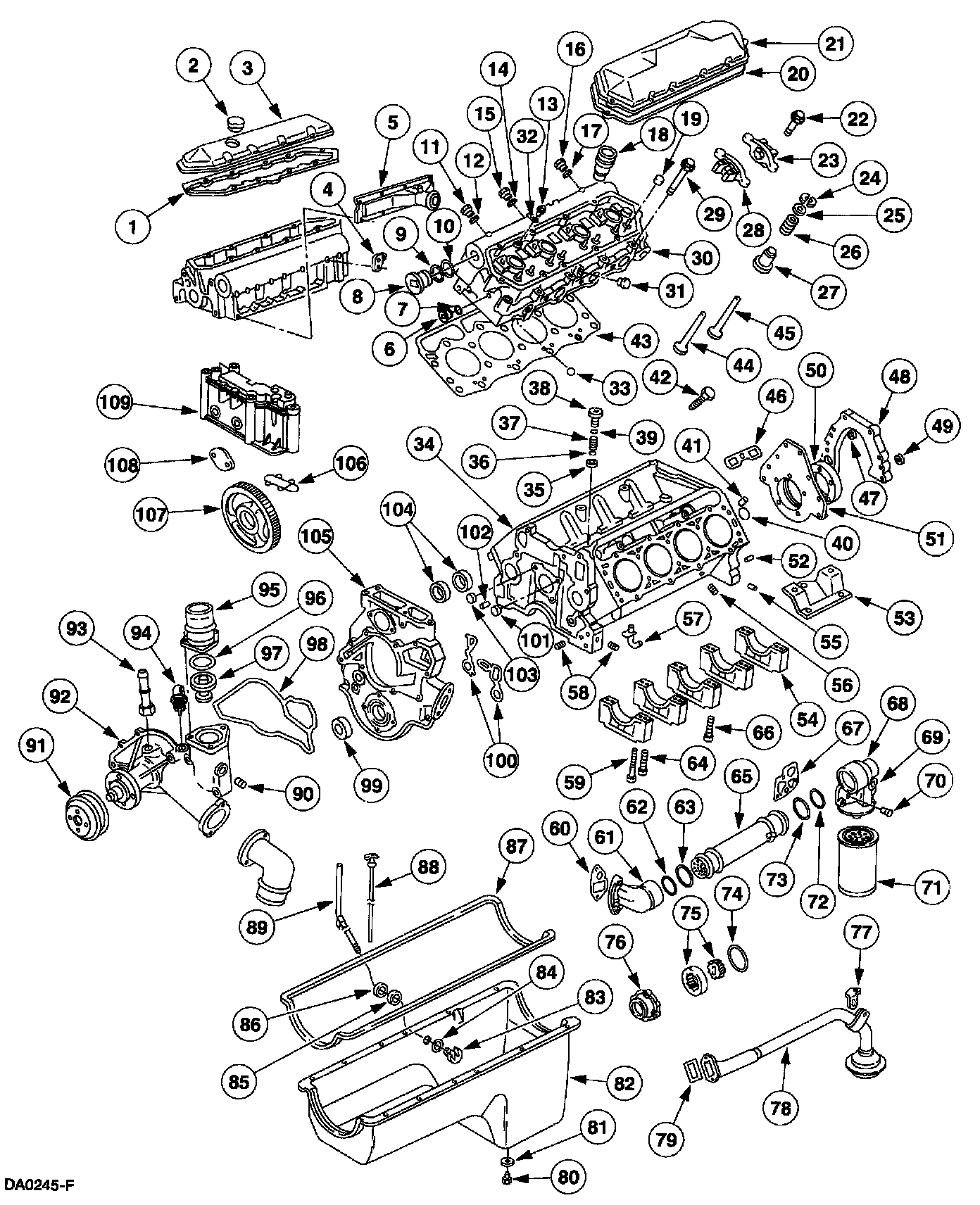

7.3L (DIT) Engine

7.3L (DIT) Engine

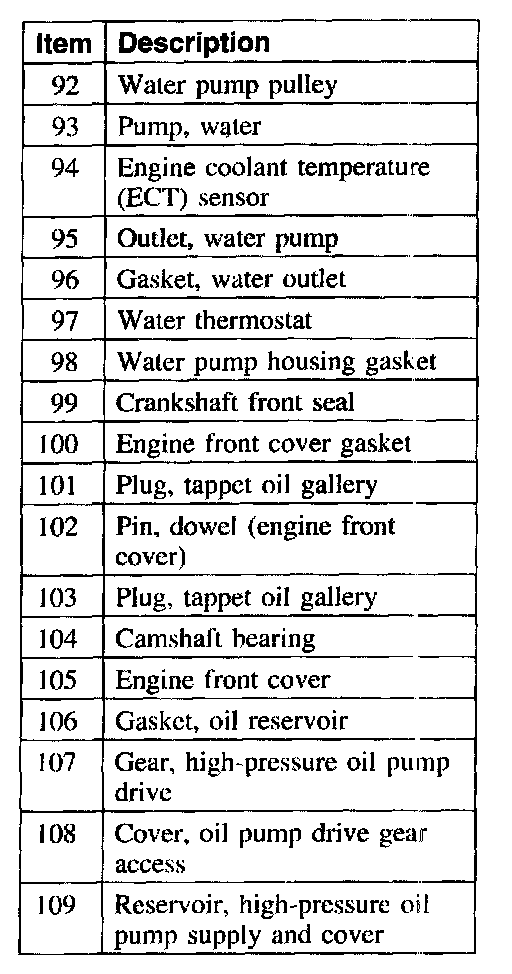

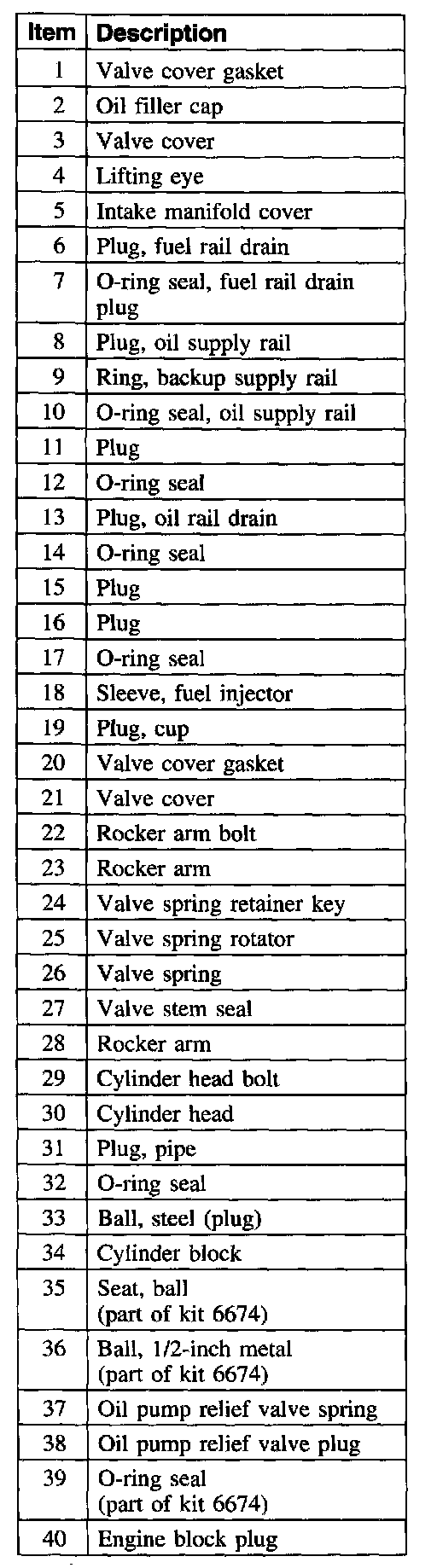

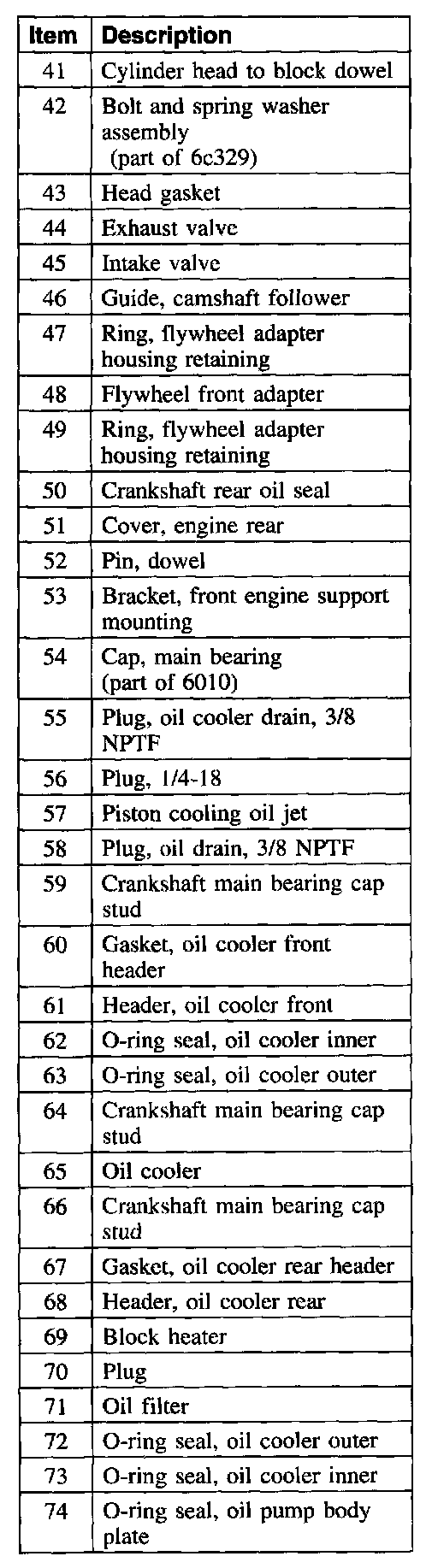

Part 1 Of 5:




Part 2 Of 5:




Part 3 Of 5:




Part 4 Of 5:




Part 5 Of 5:
