Test L

PINPOINT TEST L: THE WINDSHIELD WIPER SPEED DEPENDENT INTERVAL MODE DOES NOT OPERATE CORRECTLY

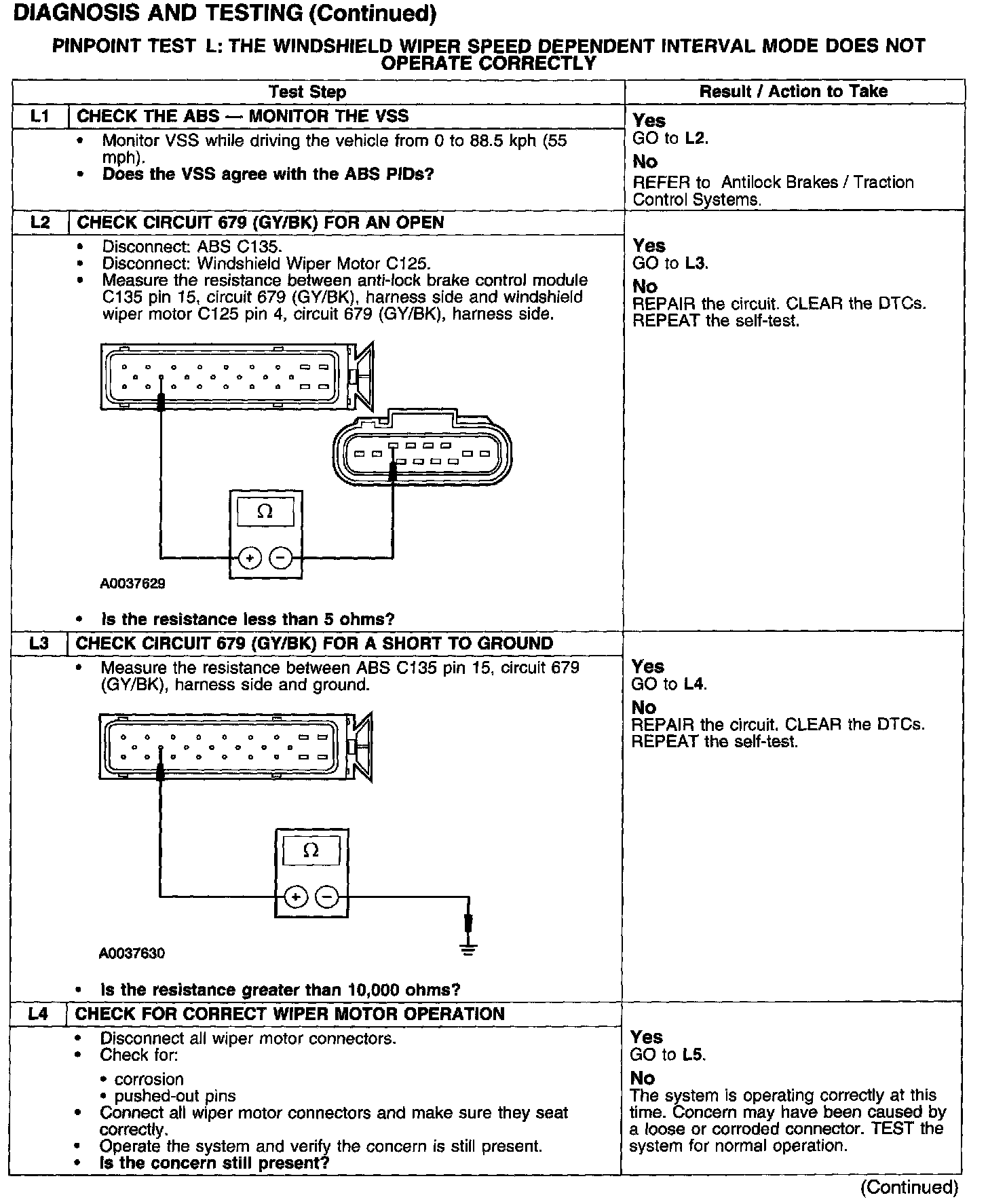

Test L1-L4:

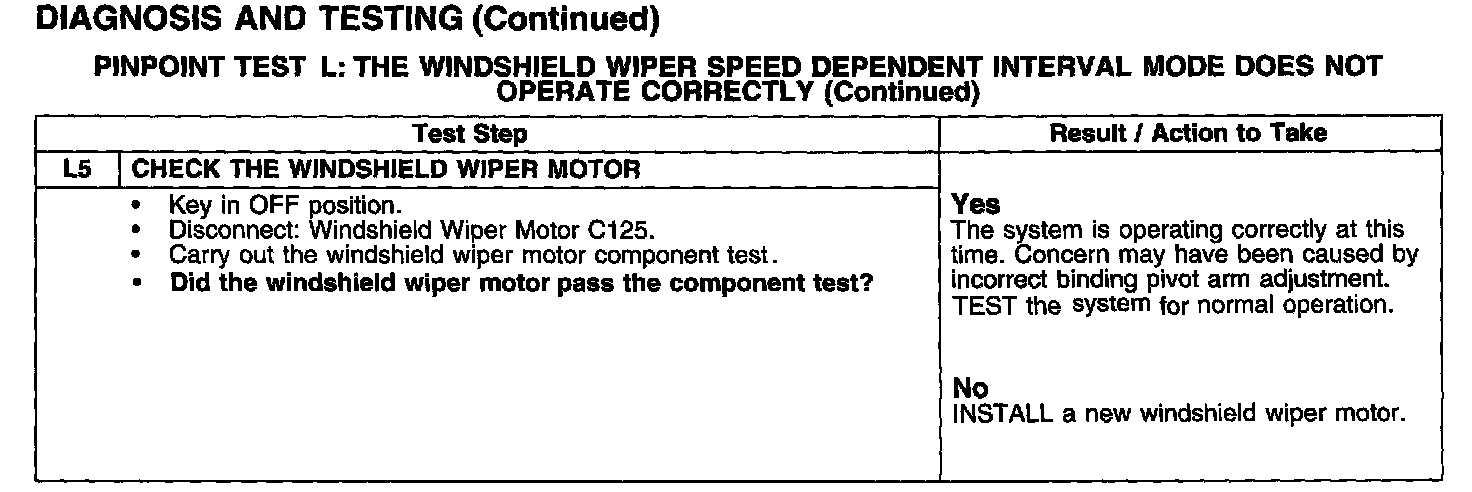

Test L5:
