Manual Transmission/Transaxle: Testing and Inspection

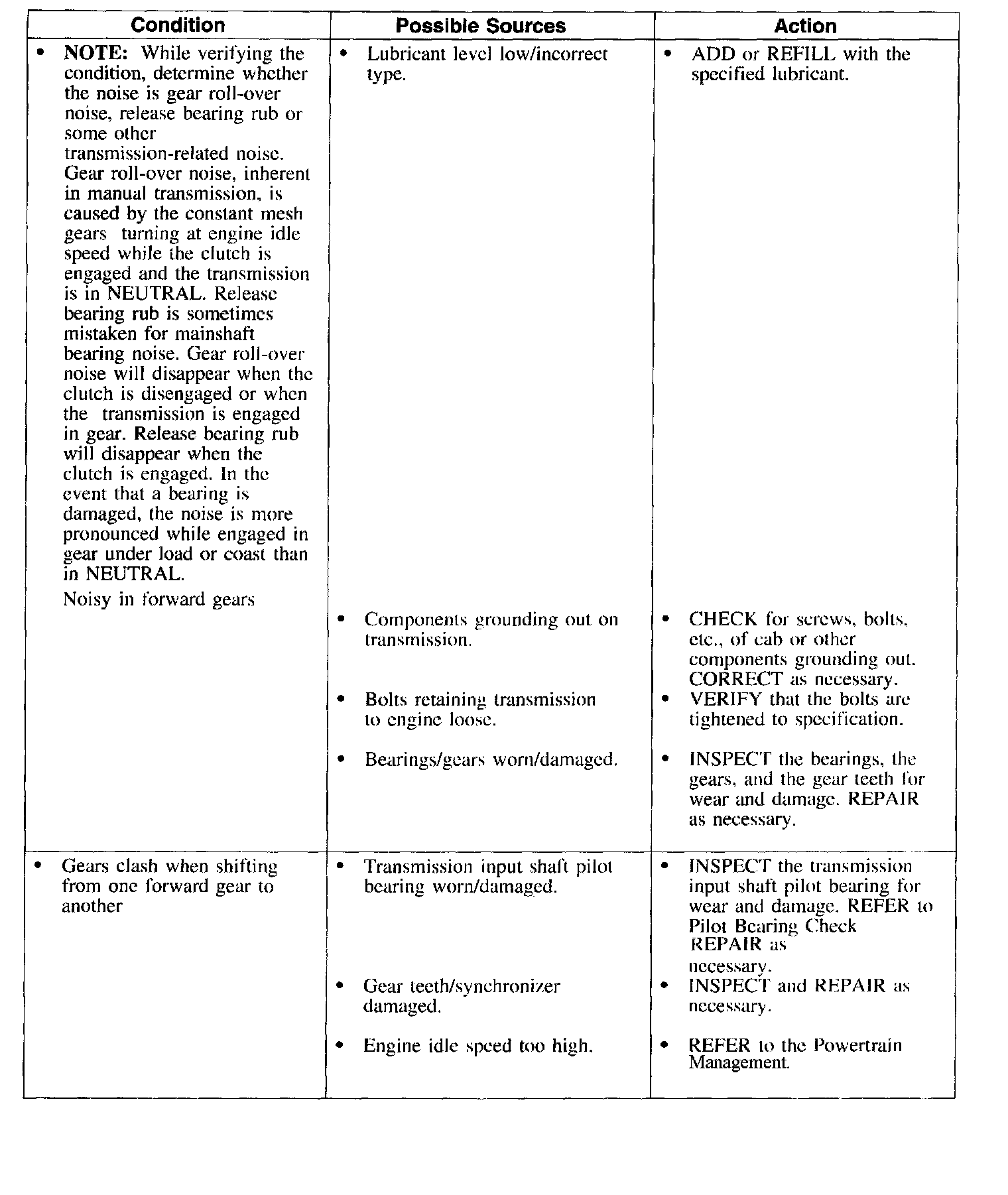

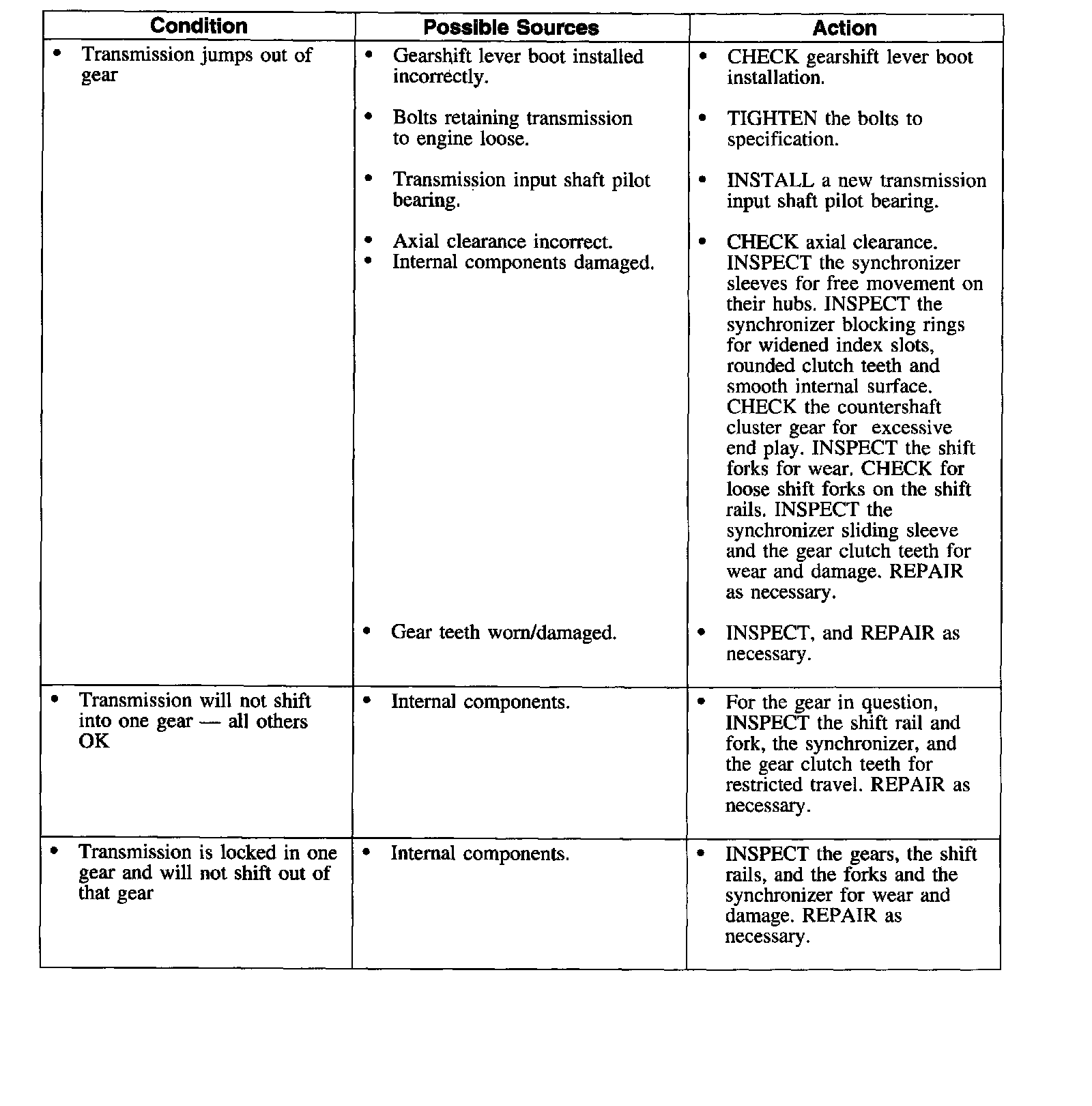

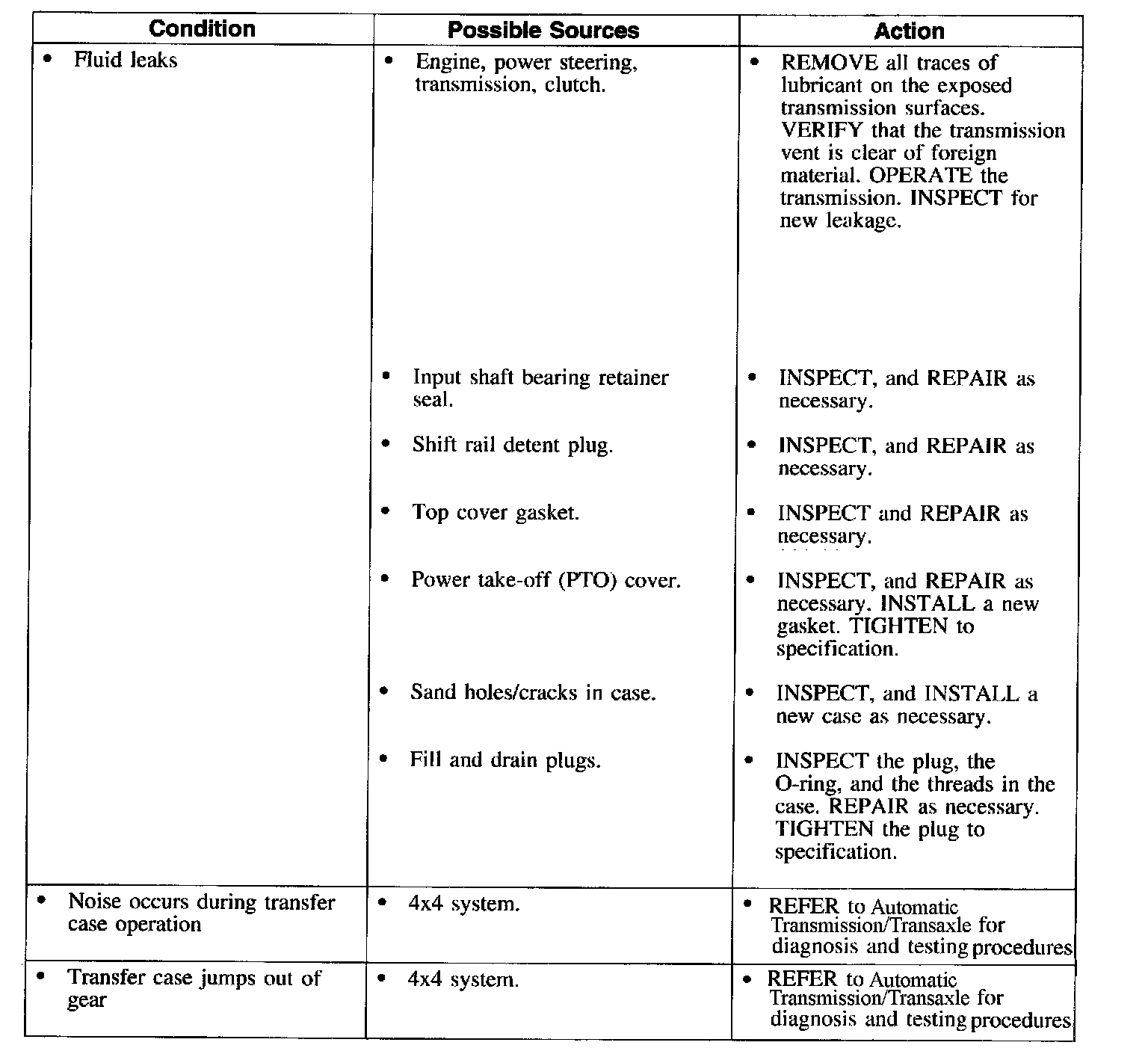

Symptom Chart

Part 2 Of 6:

Part 3 Of 6:

Part 4 Of 6:

Part 5 Of 6:

Part 6 Of 6:

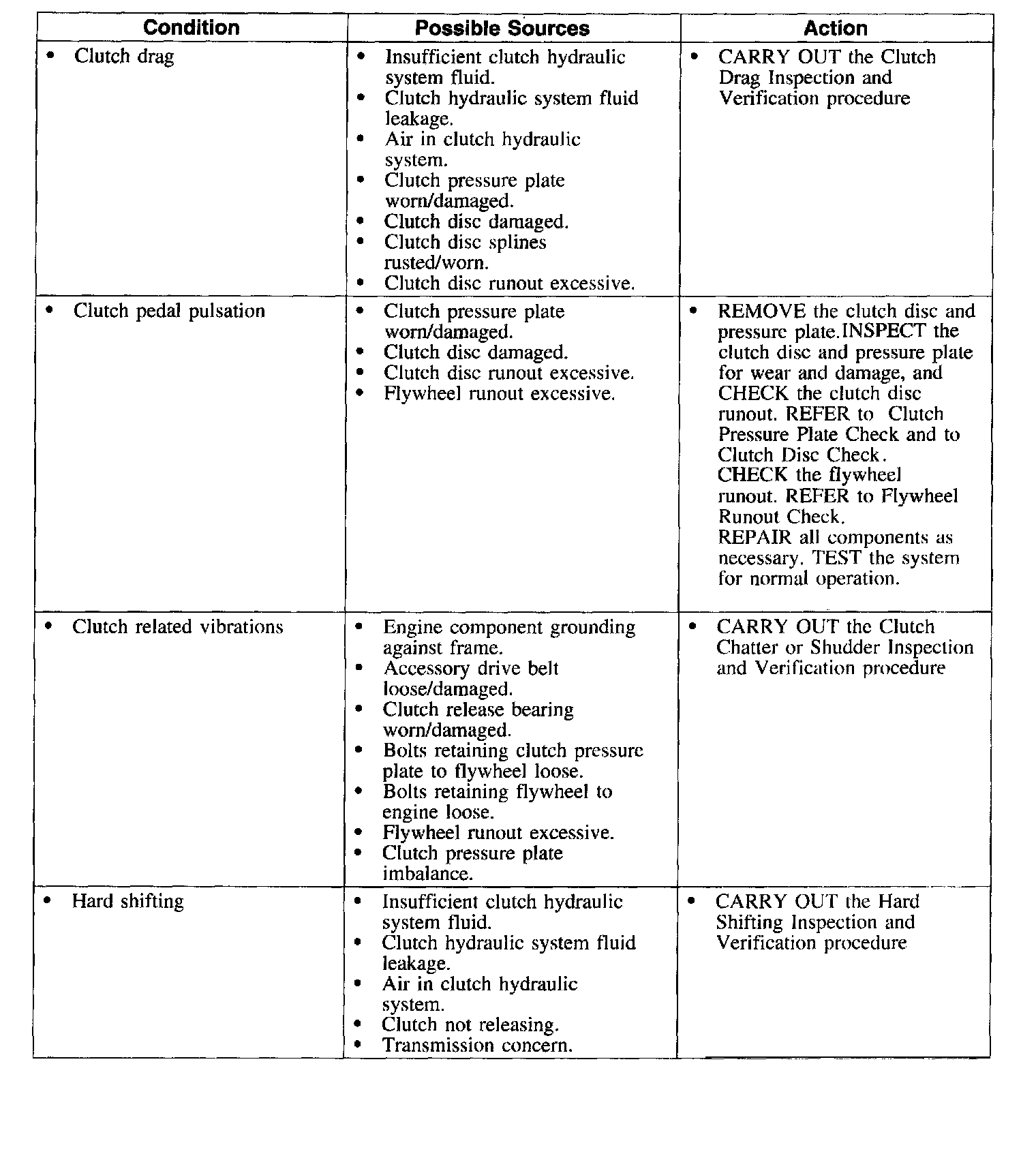

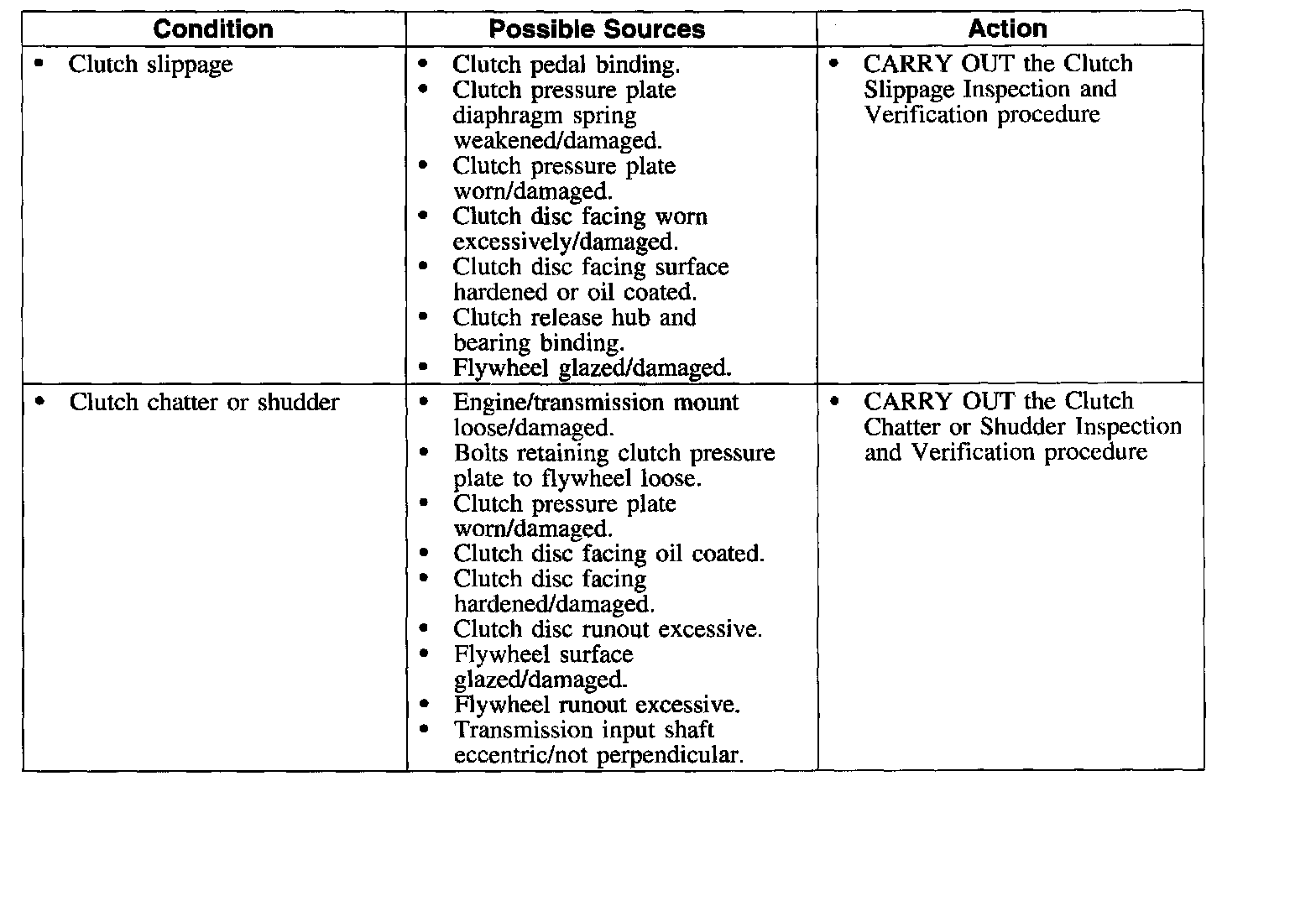

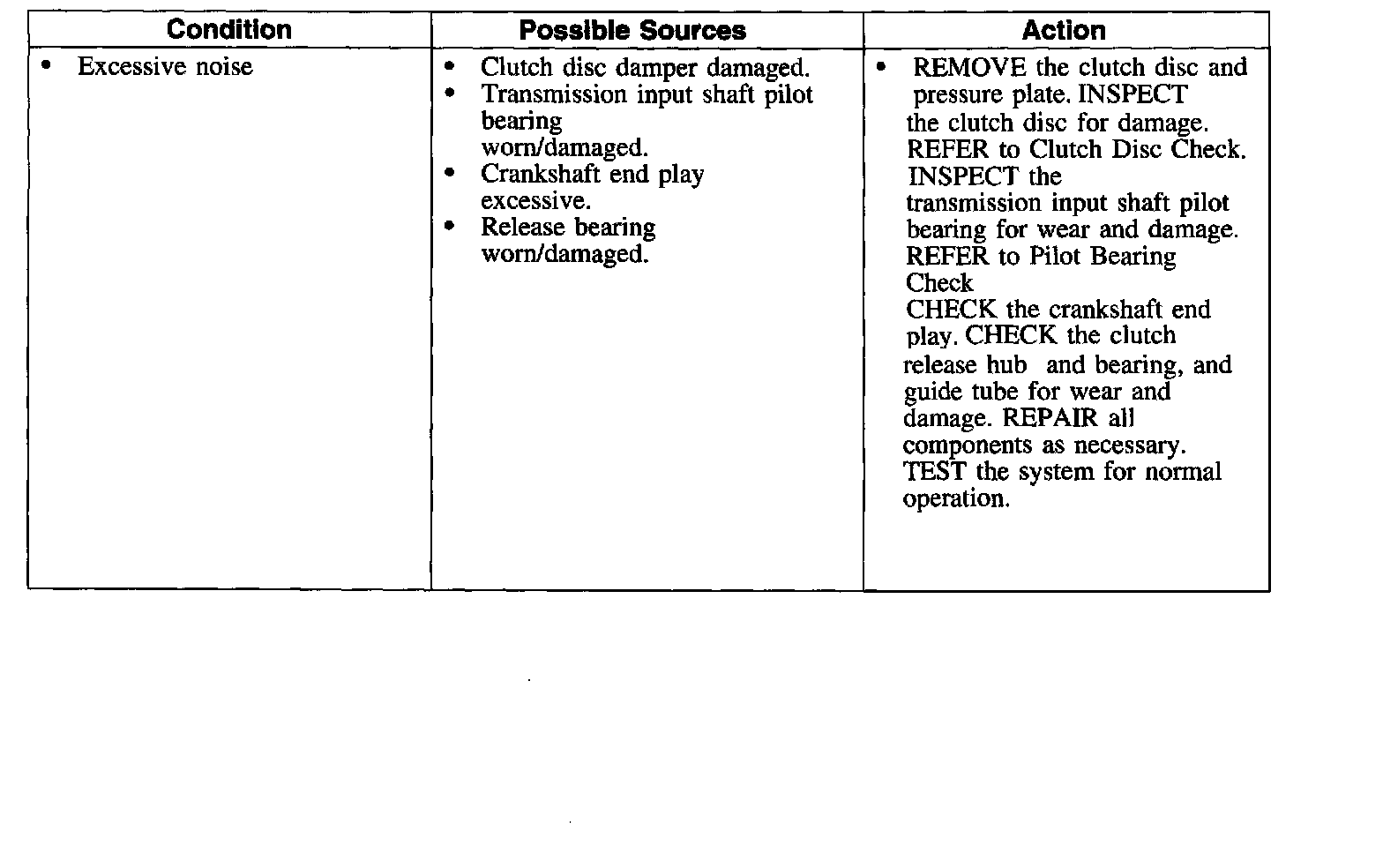

Symptom Chart-Clutch Transmission and Operation

Part 1 Of 8:

Part 2 Of 8:

Part 3 Of 8:

Part 4 Of 8:

Part 5 Of 8:

Part 6 Of 8:

Part 7 Of 8:

Part 8 Of 8:

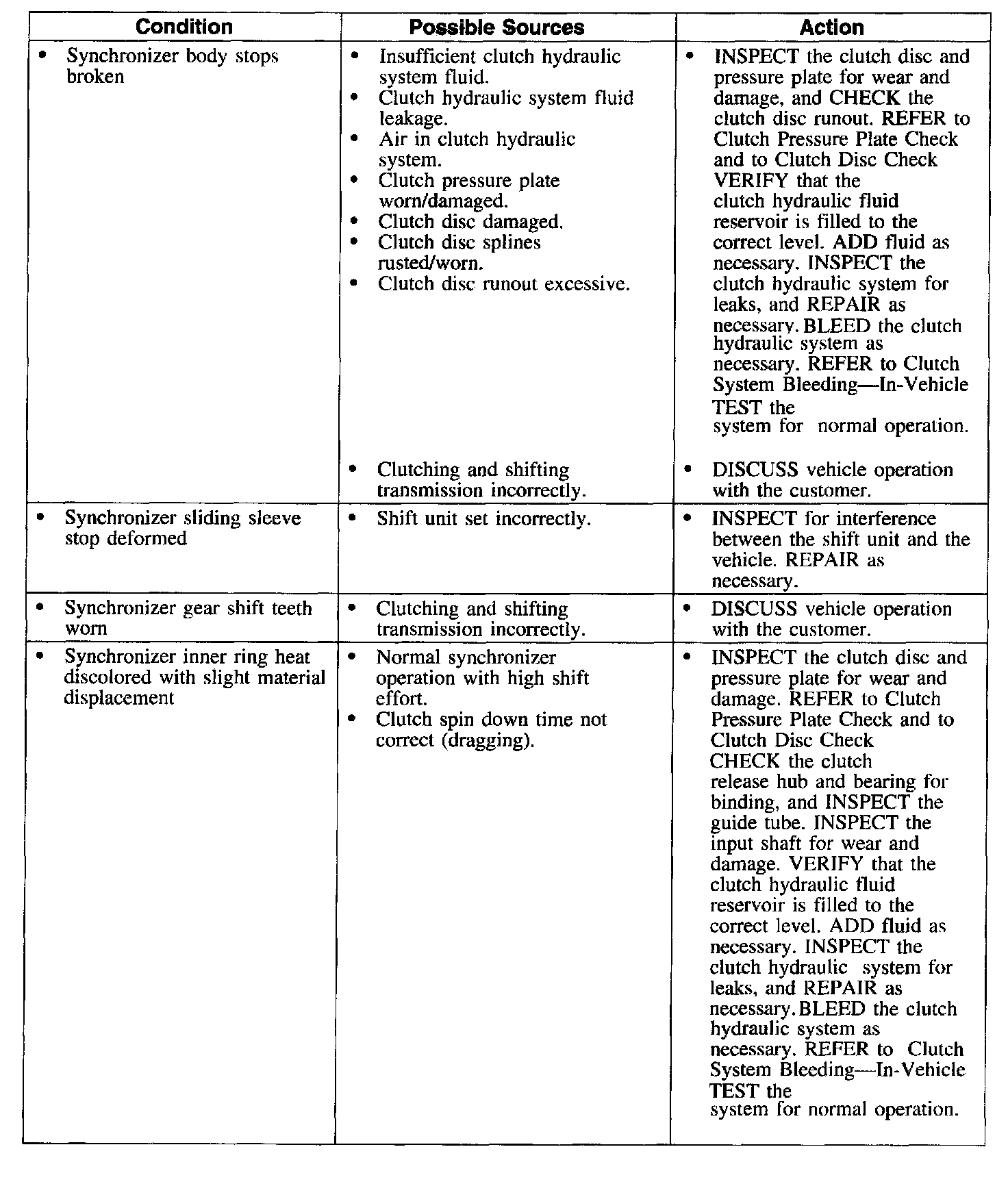

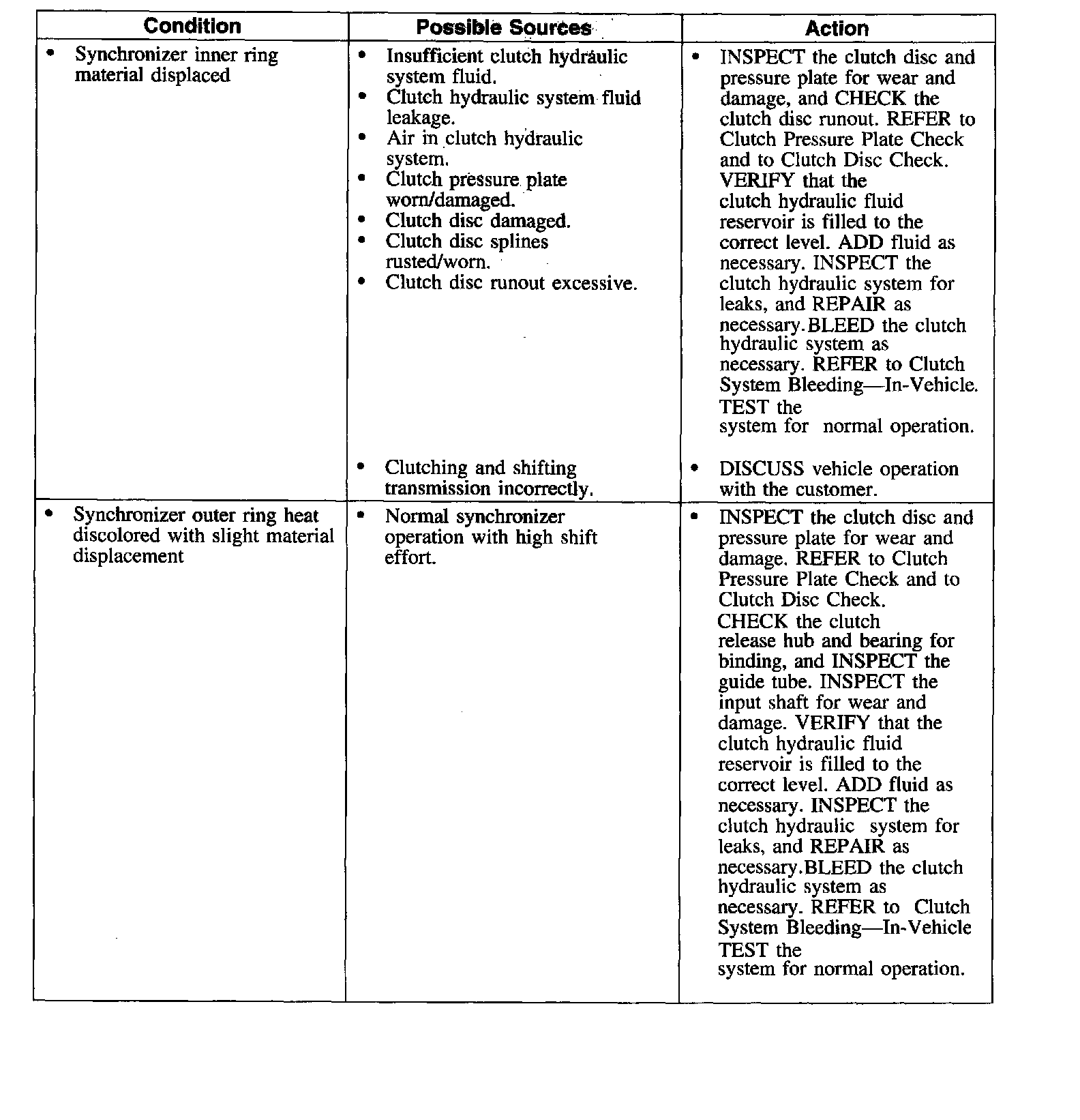

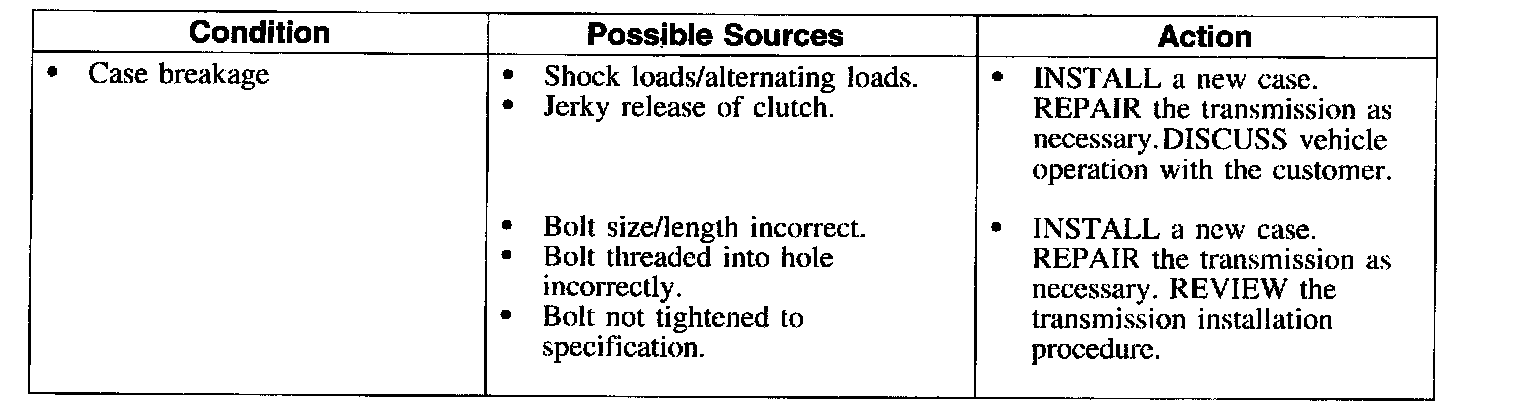

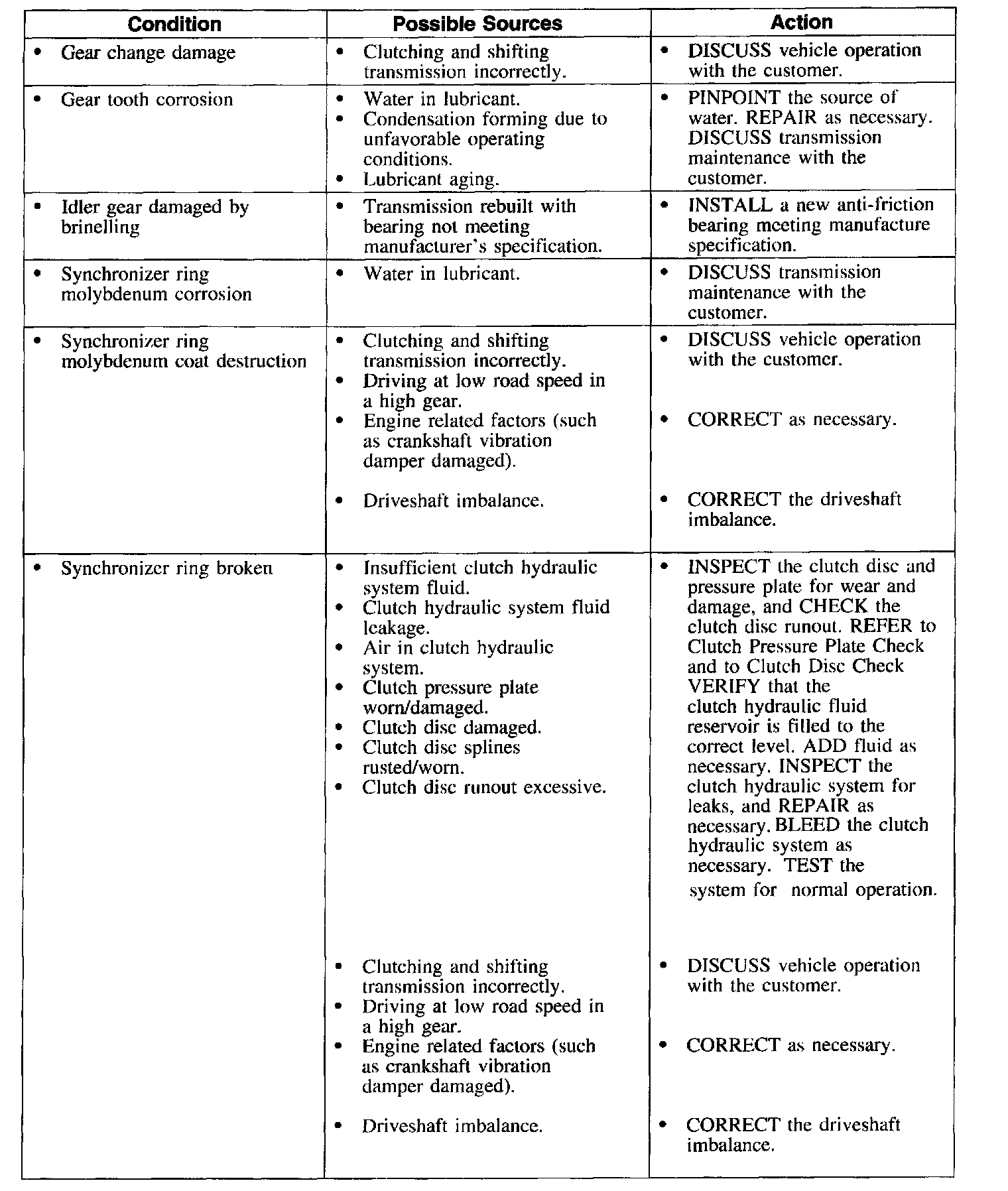

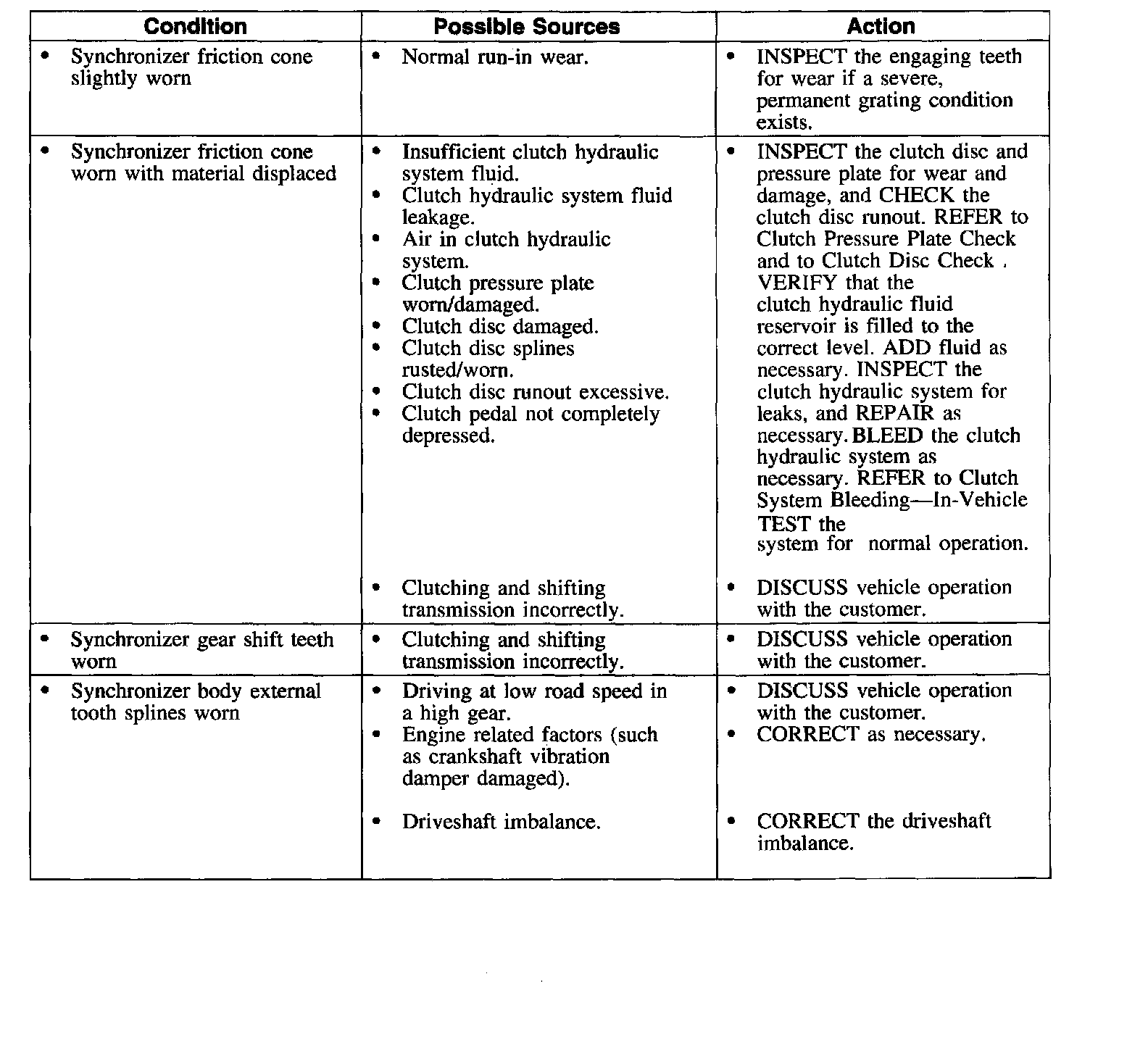

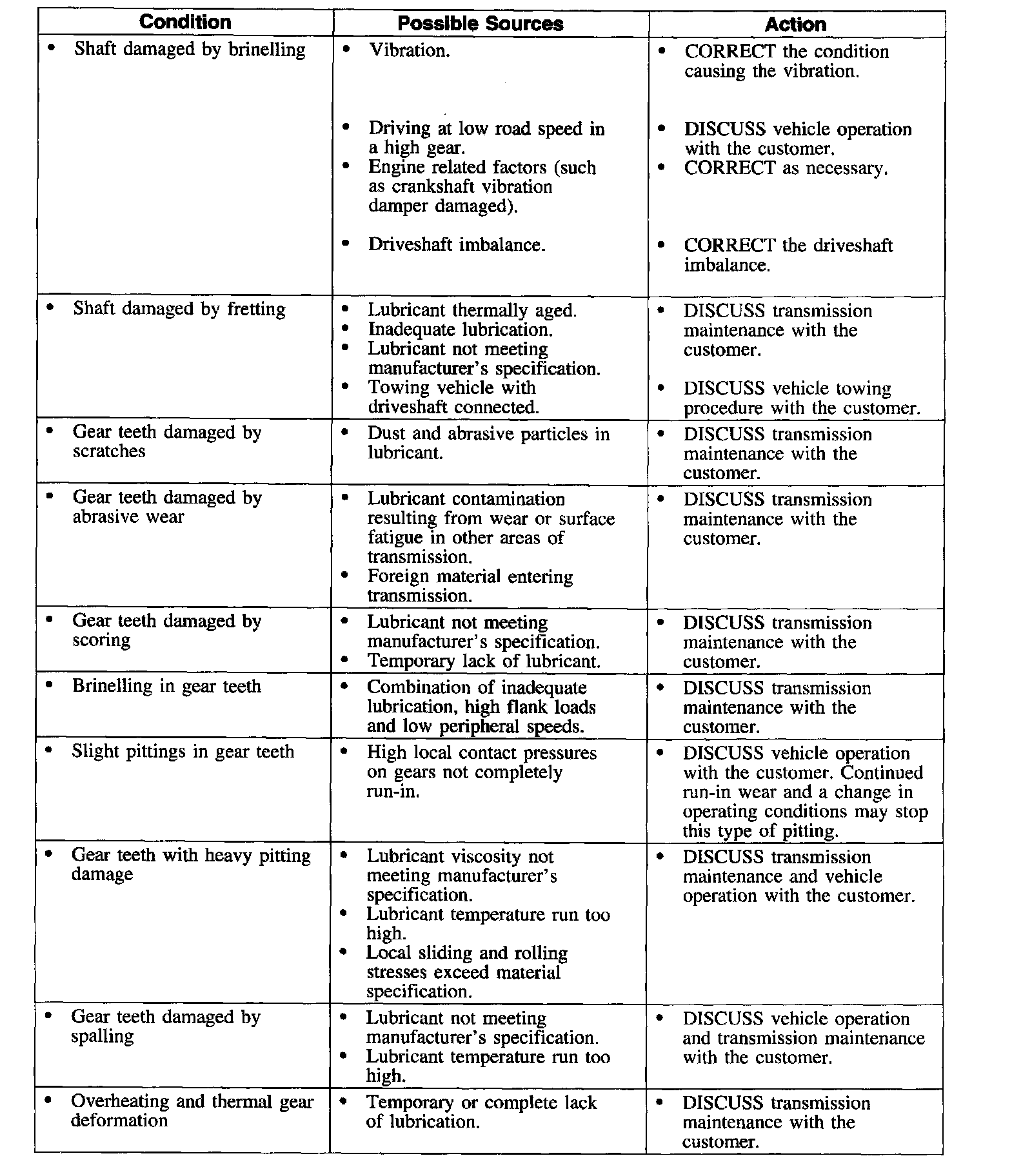

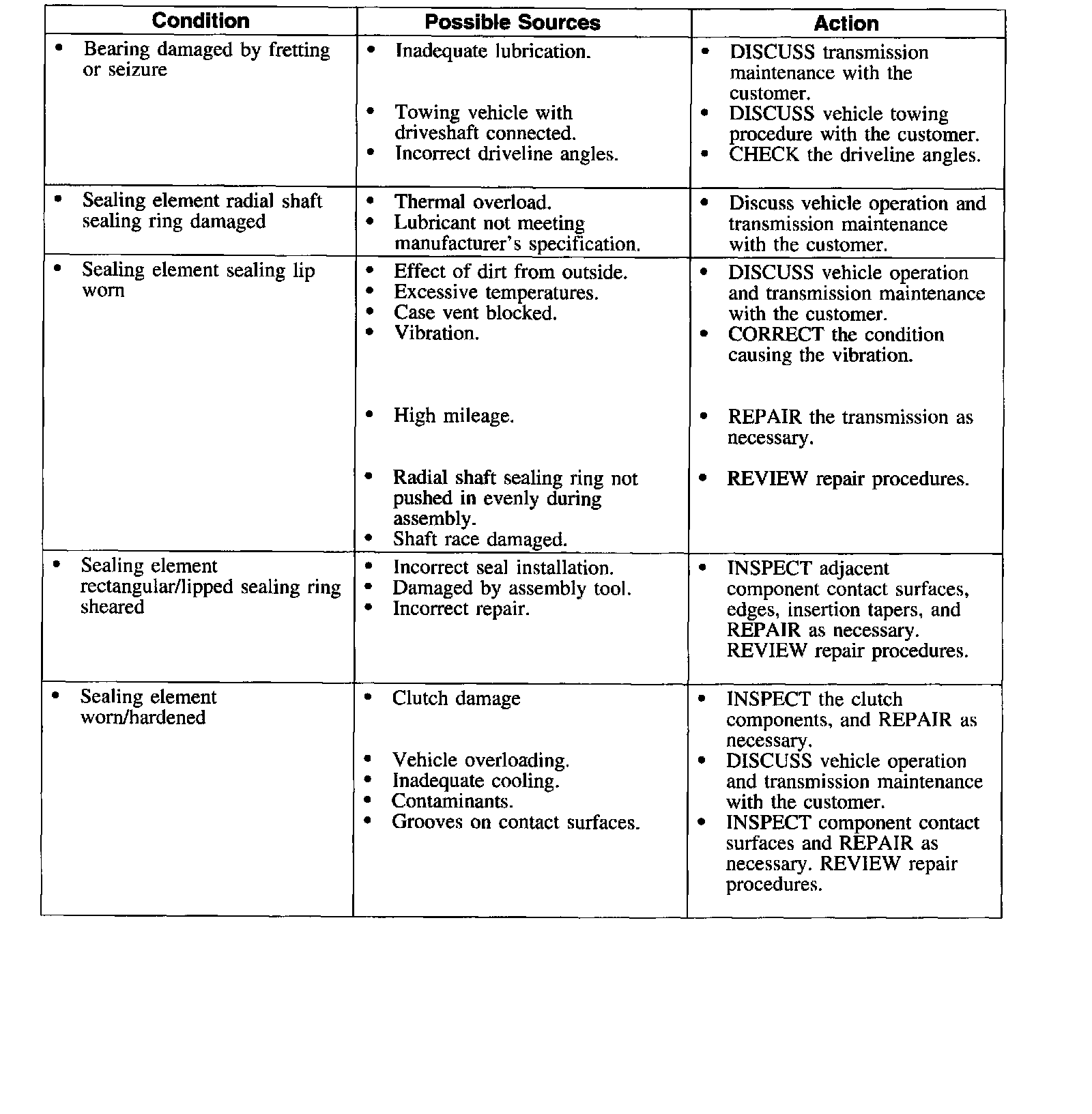

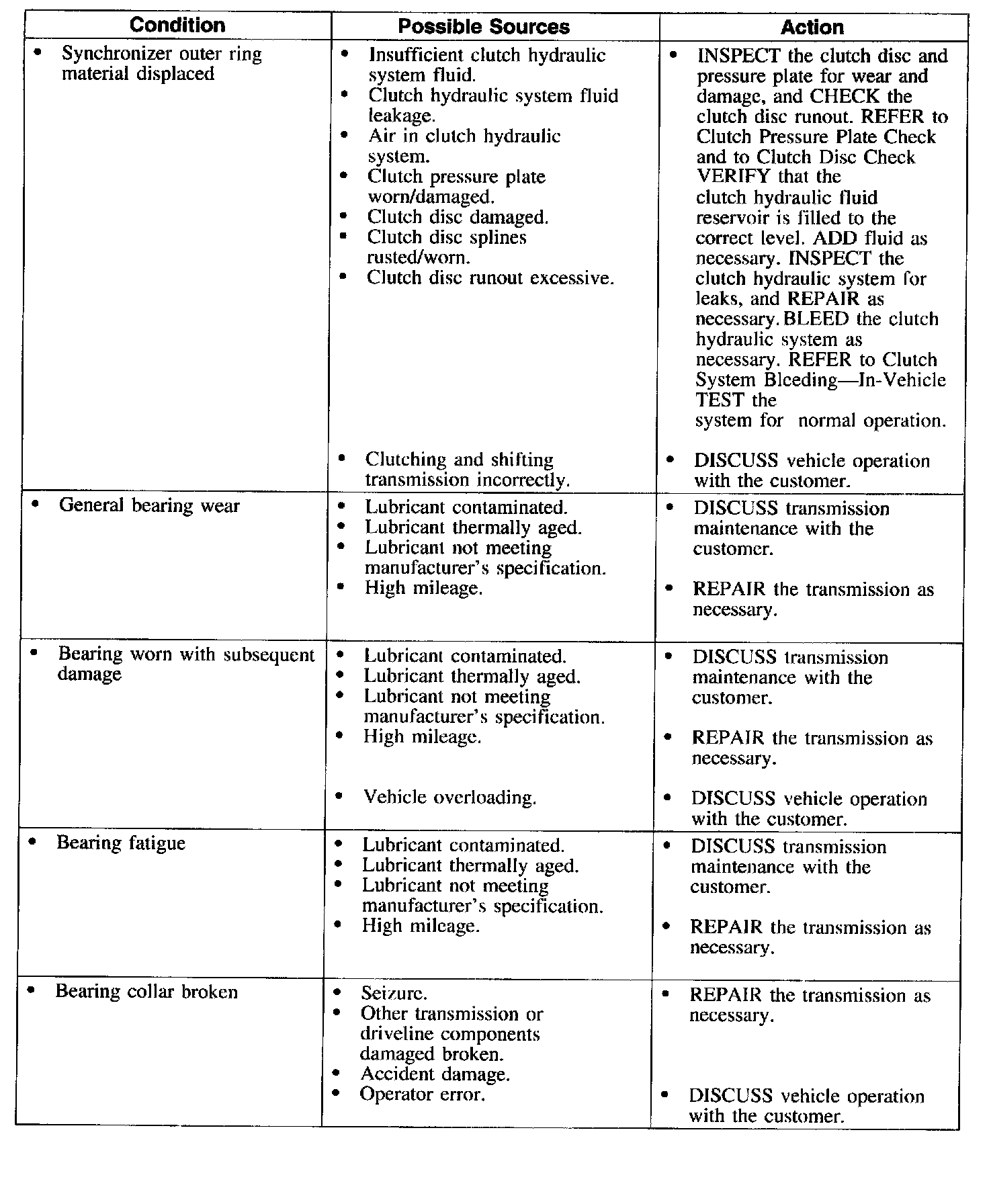

Symptom Chart-Transmission Component Wear and Damage
