Test D

PINPOINT TEST D: THE POWER SEAT DOES NOT MOVE HORIZONTALLY/VERTICALLY - VEHICLES WITH SIR, DRIVER SIDE

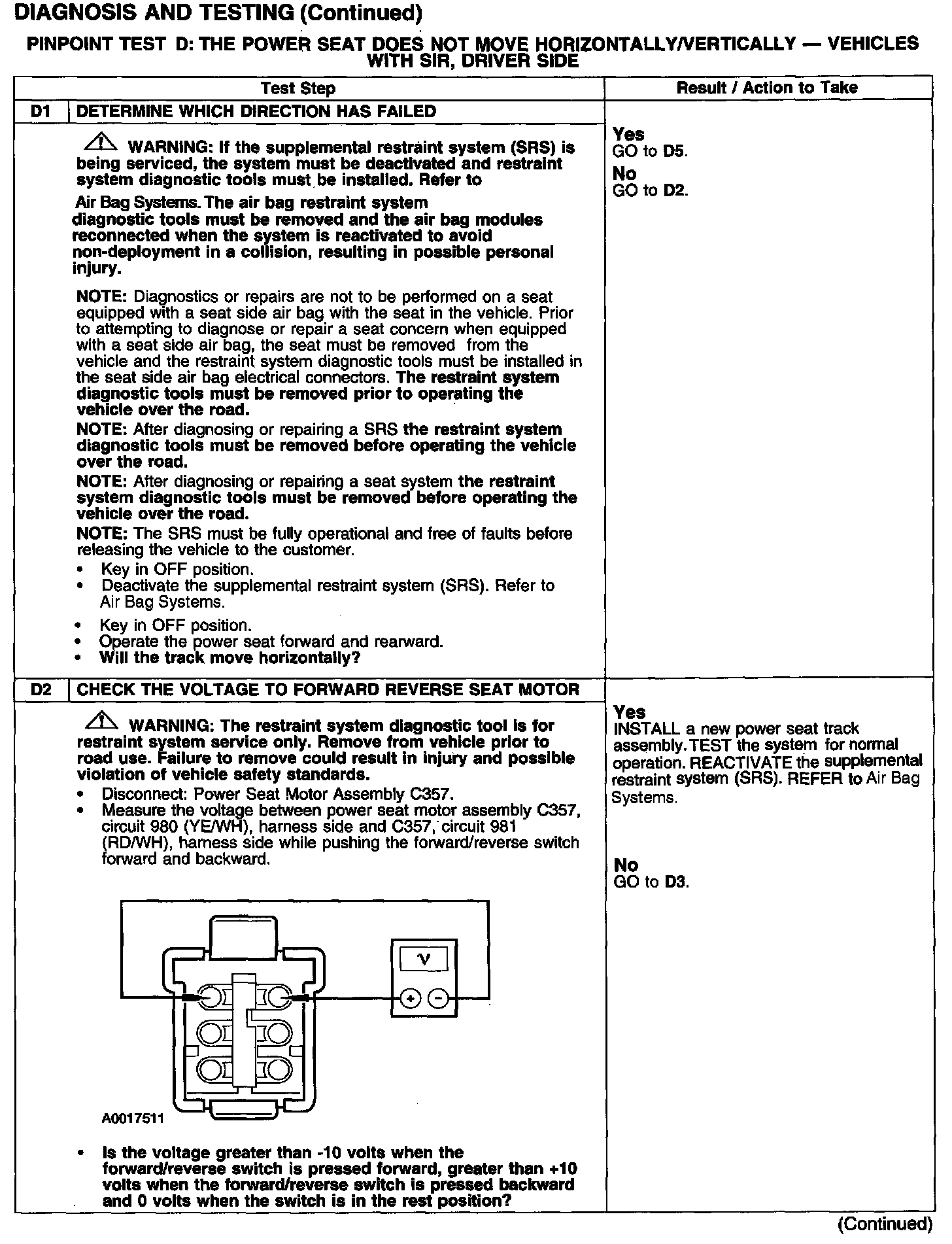

Test D1-D2:

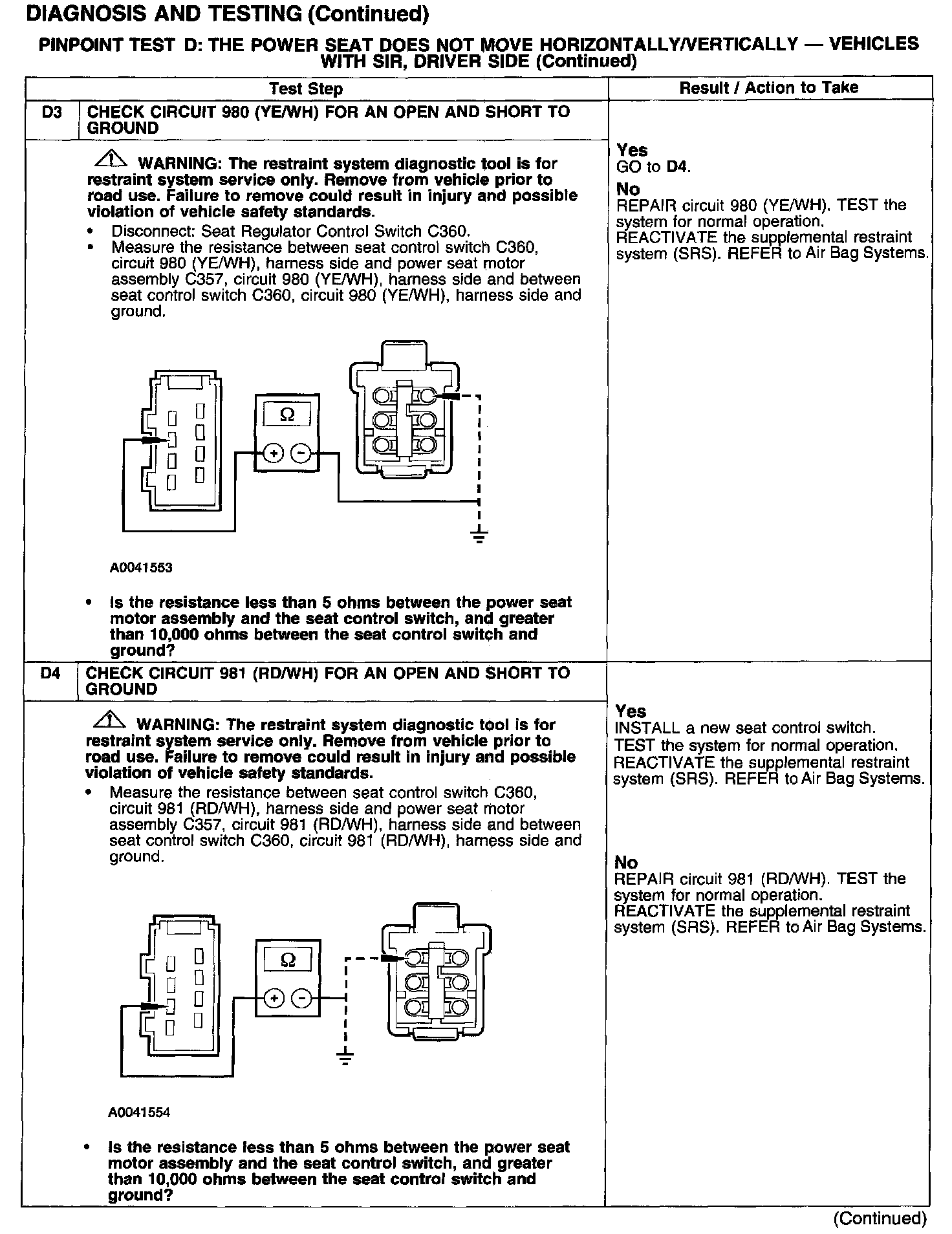

Test D3-D4:

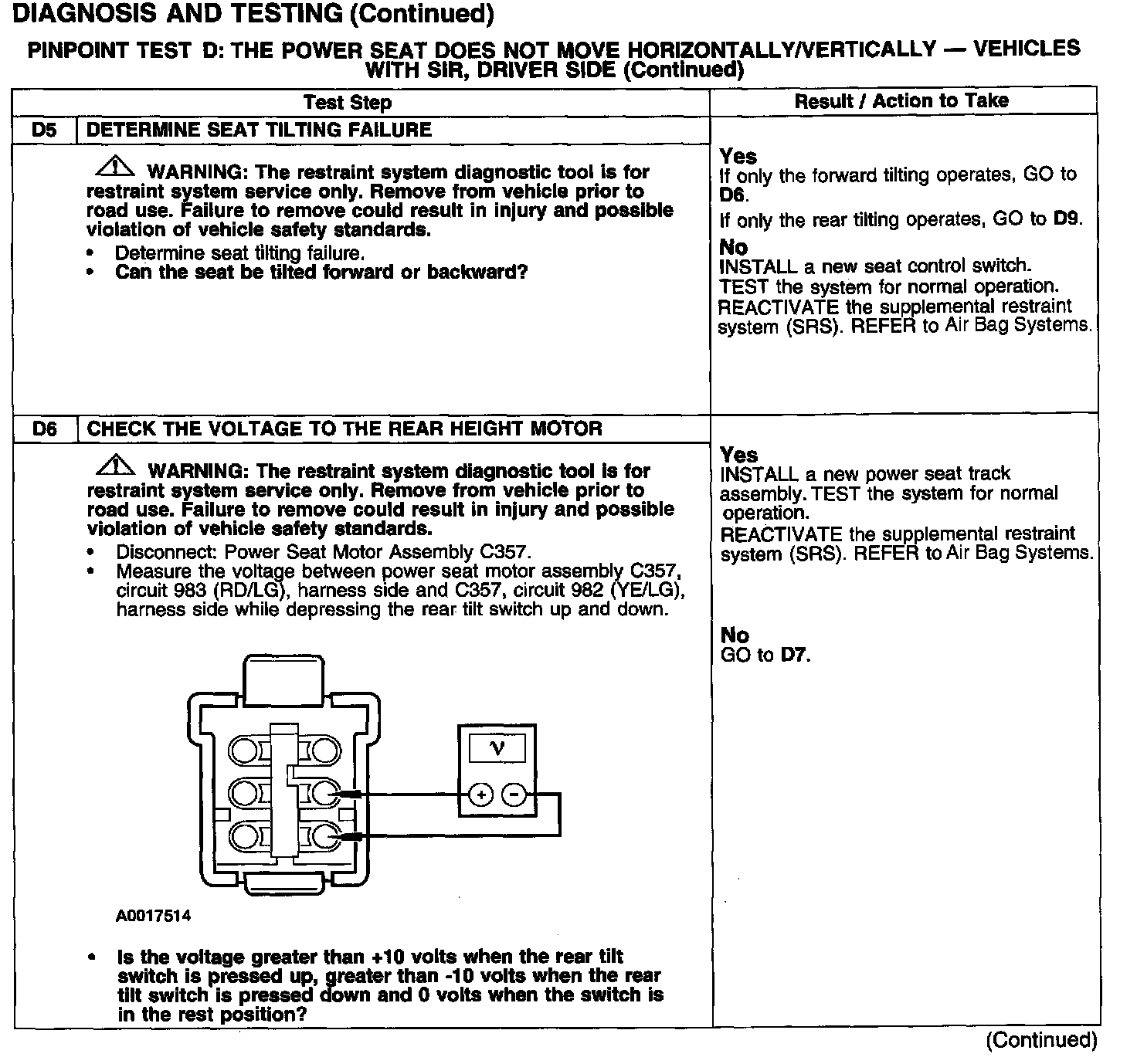

Test D5-D6:

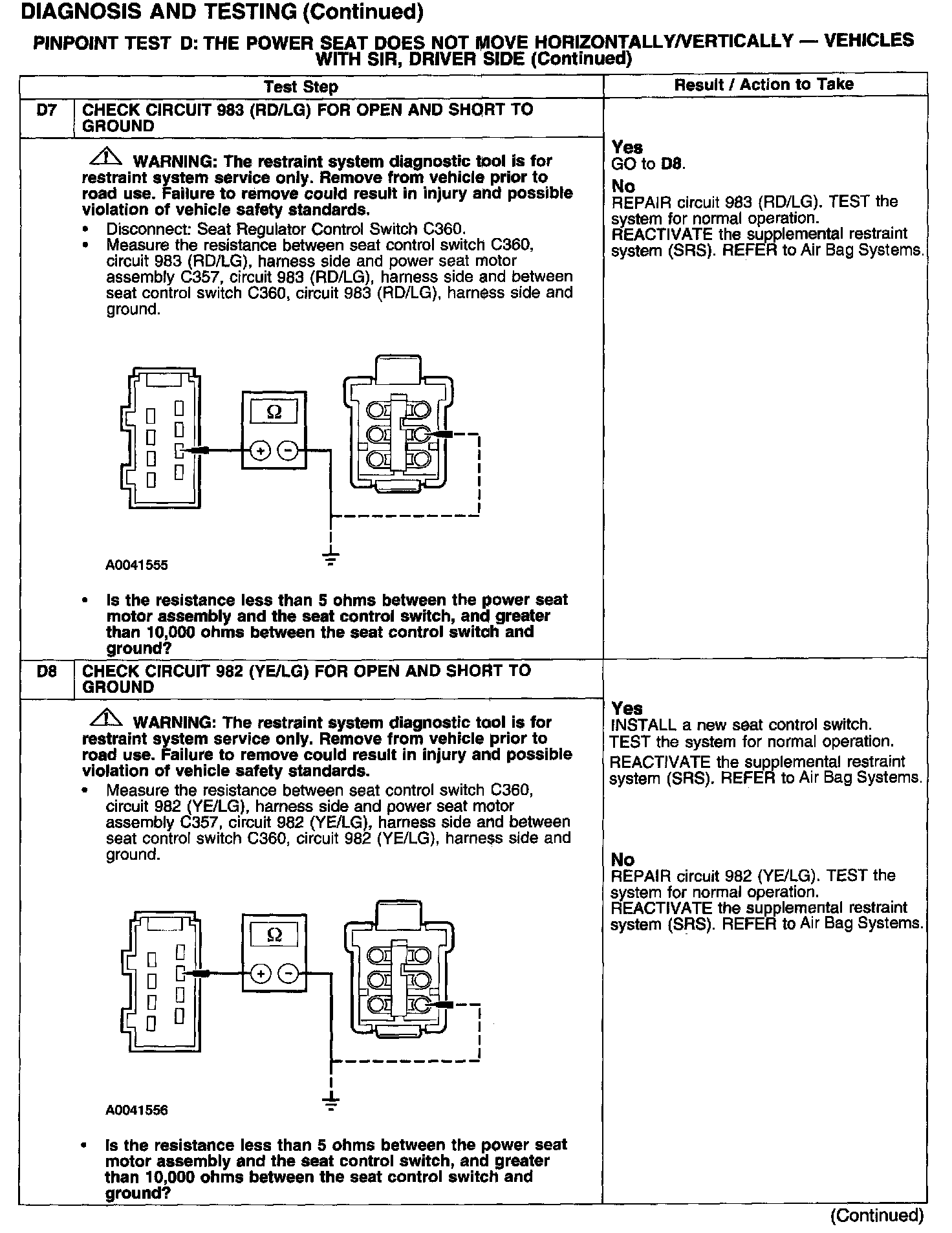

Test D7-D8:

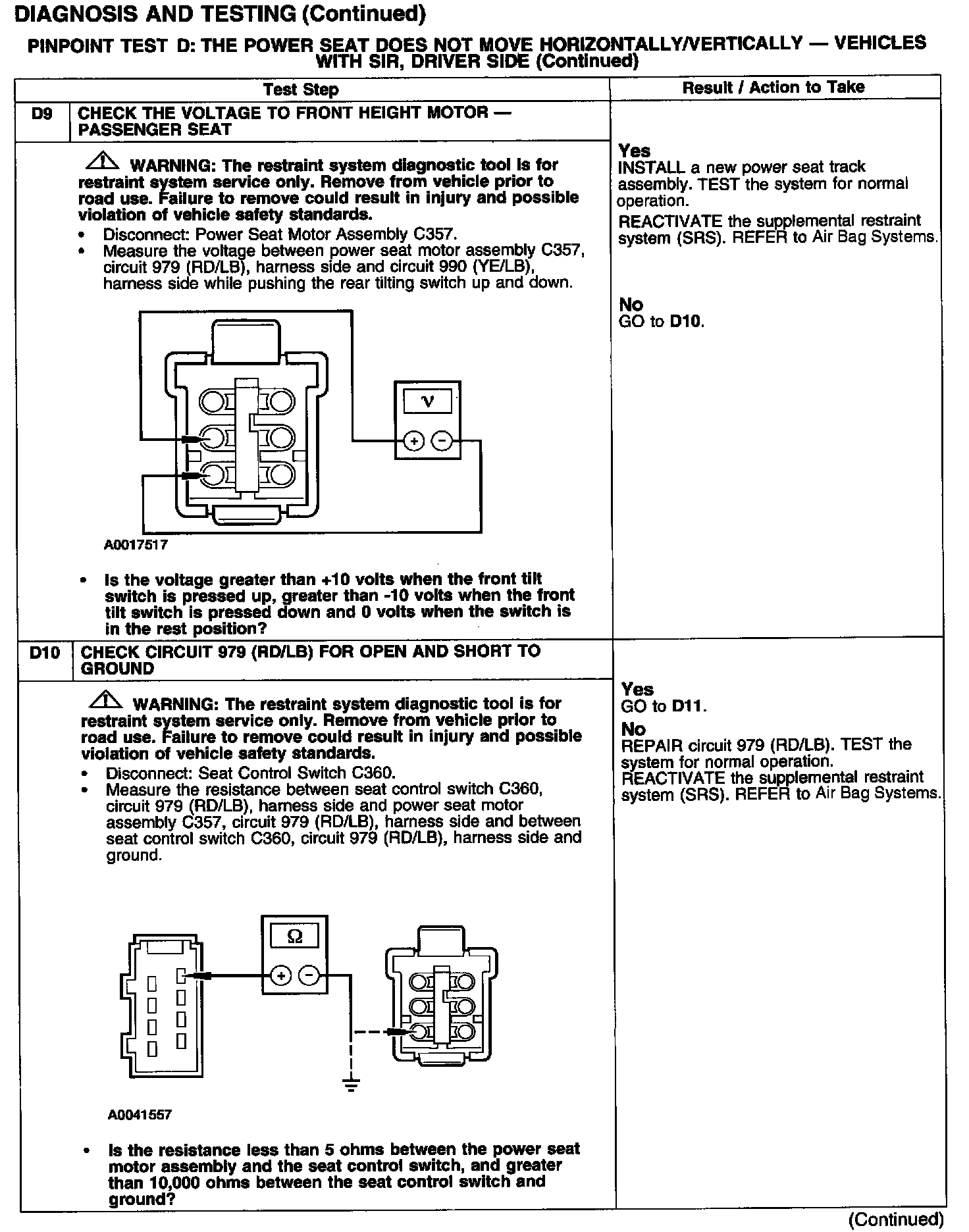

Test D9-D10:

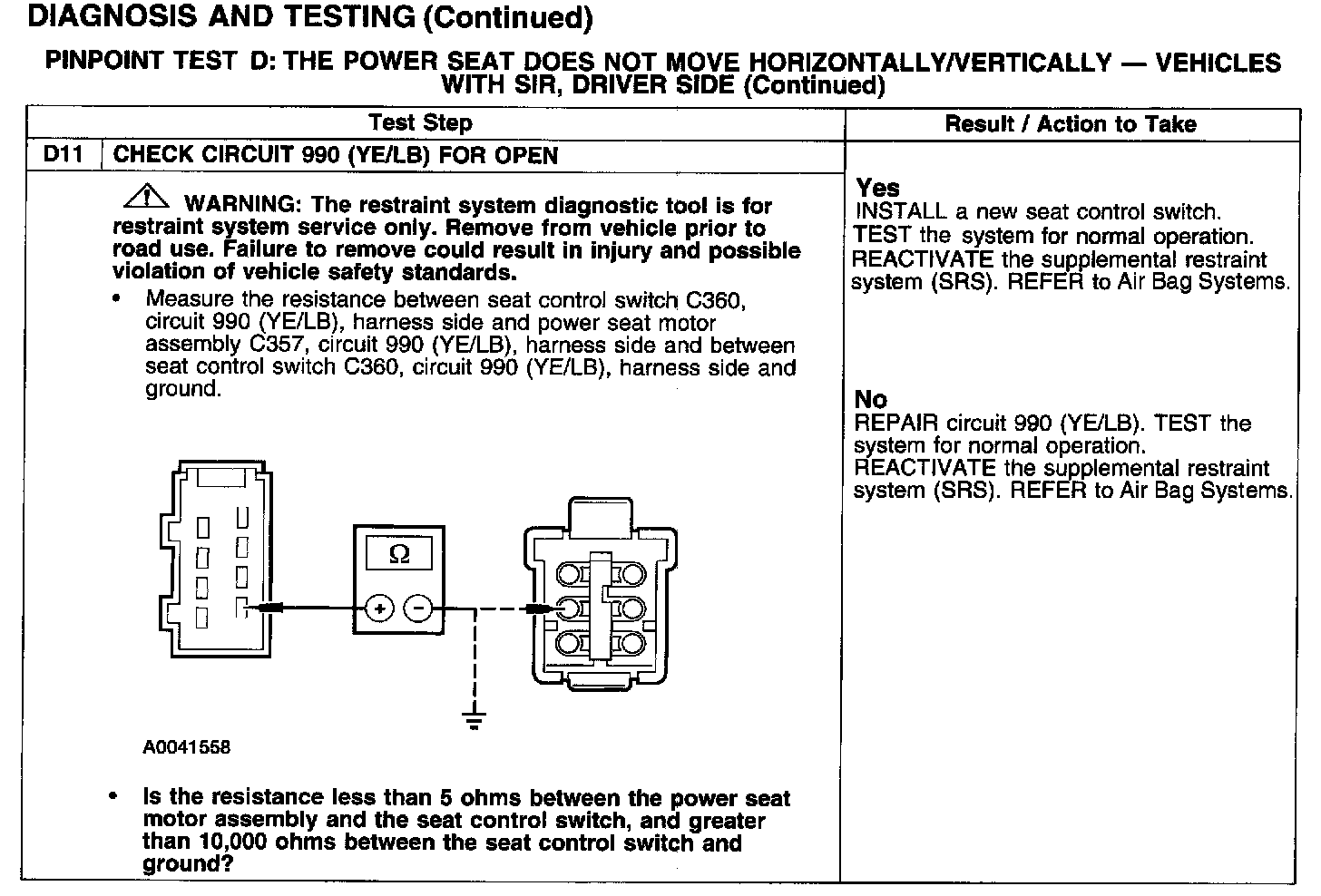

Test D11:
