Test C

PINPOINT TEST C: THE POWER SEAT DOES NOT MOVE HORIZONTALLY/VERTICALLY - VEHICLES WITHOUT SIR, DRIVER SIDE

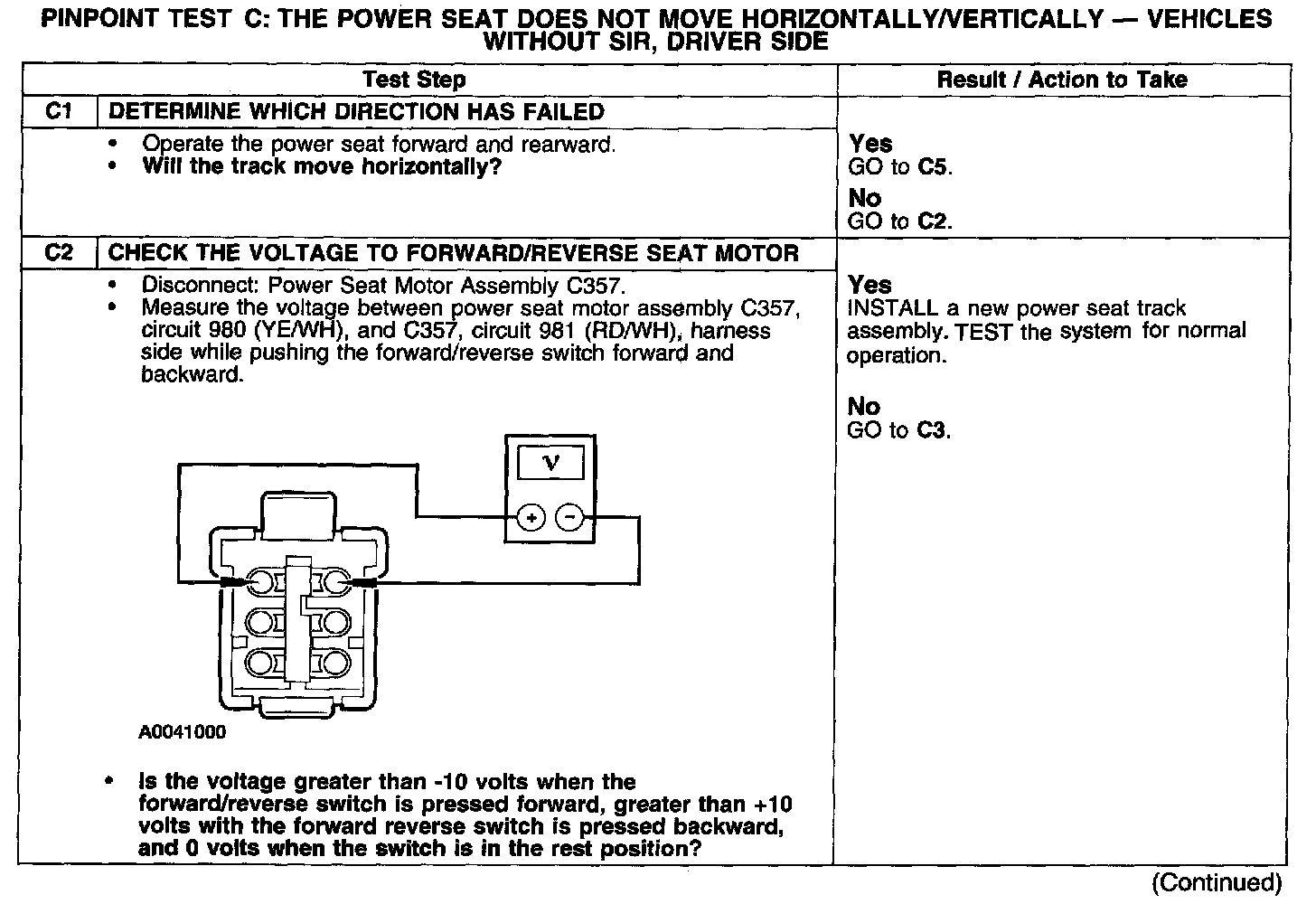

Test C1-C2:

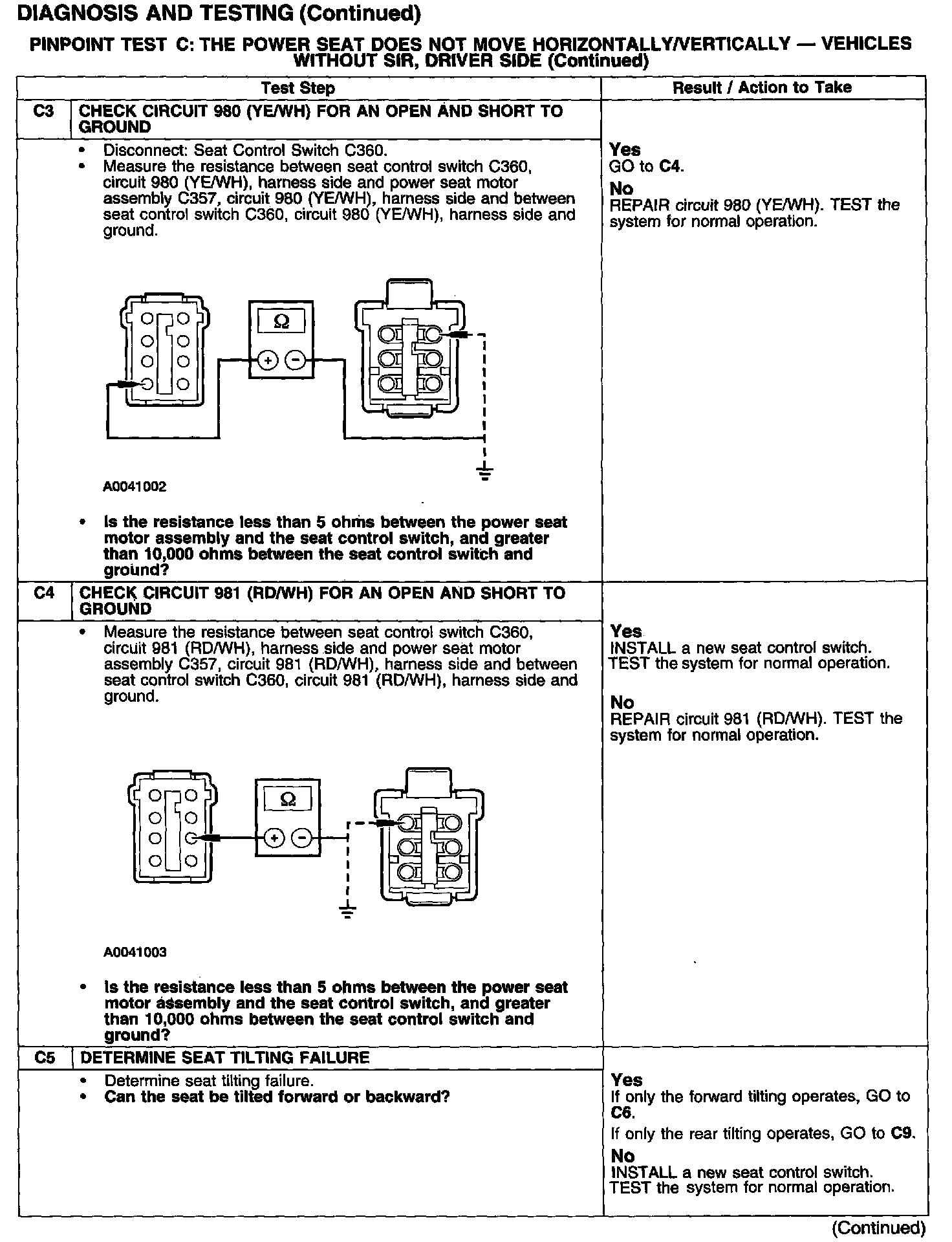

Test C3-C5:

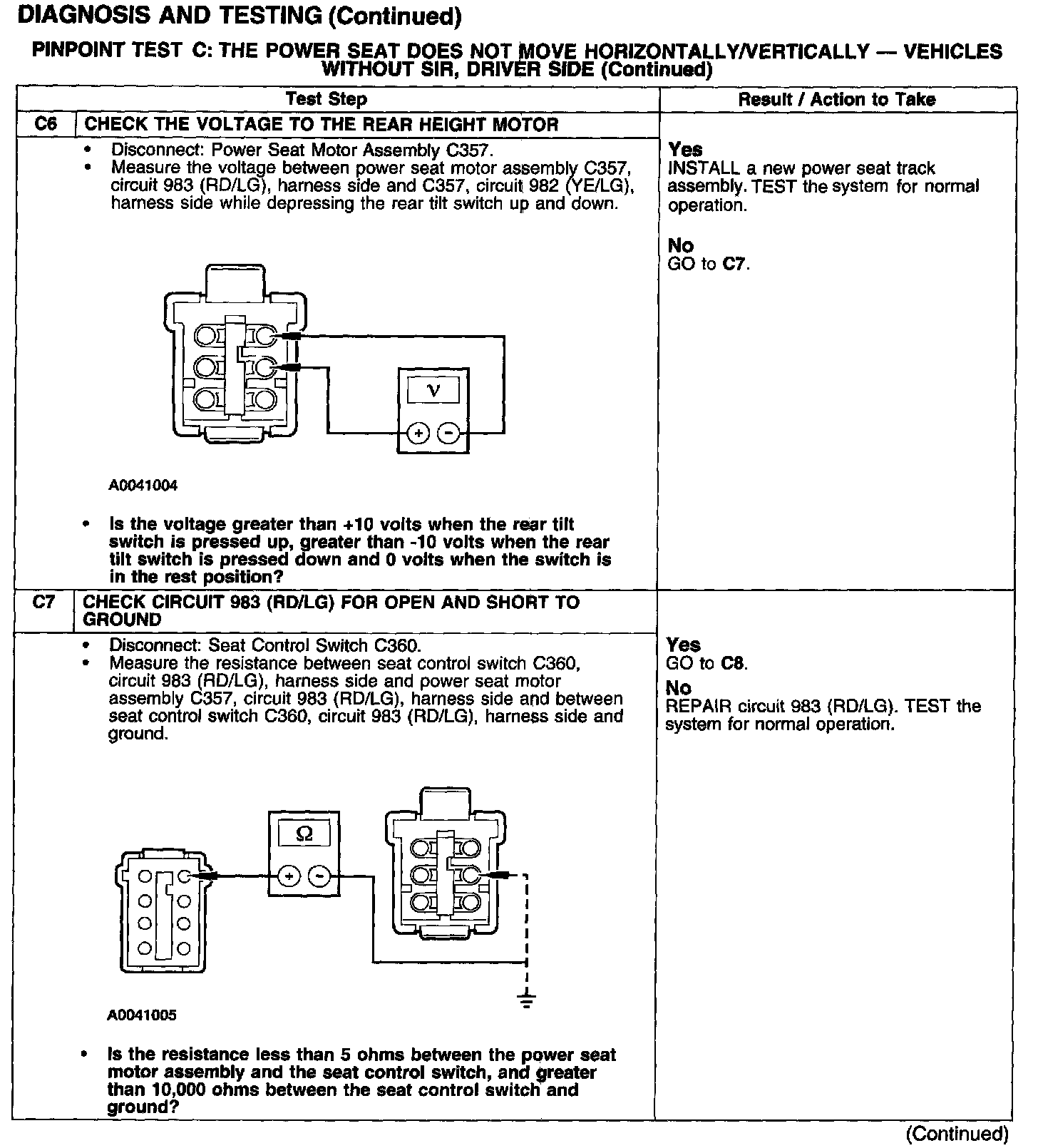

Test C6-C7:

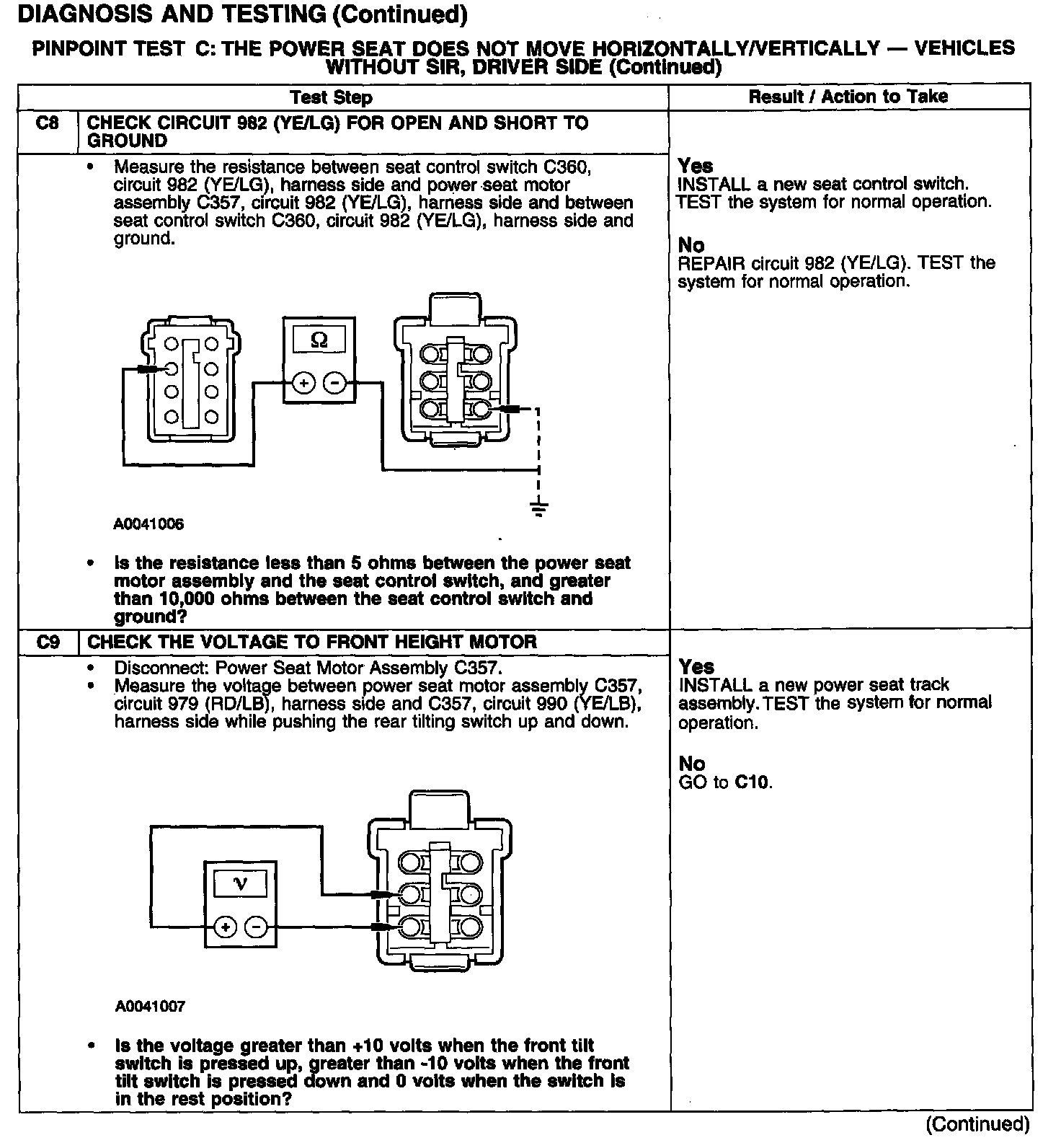

Test C8-C9:

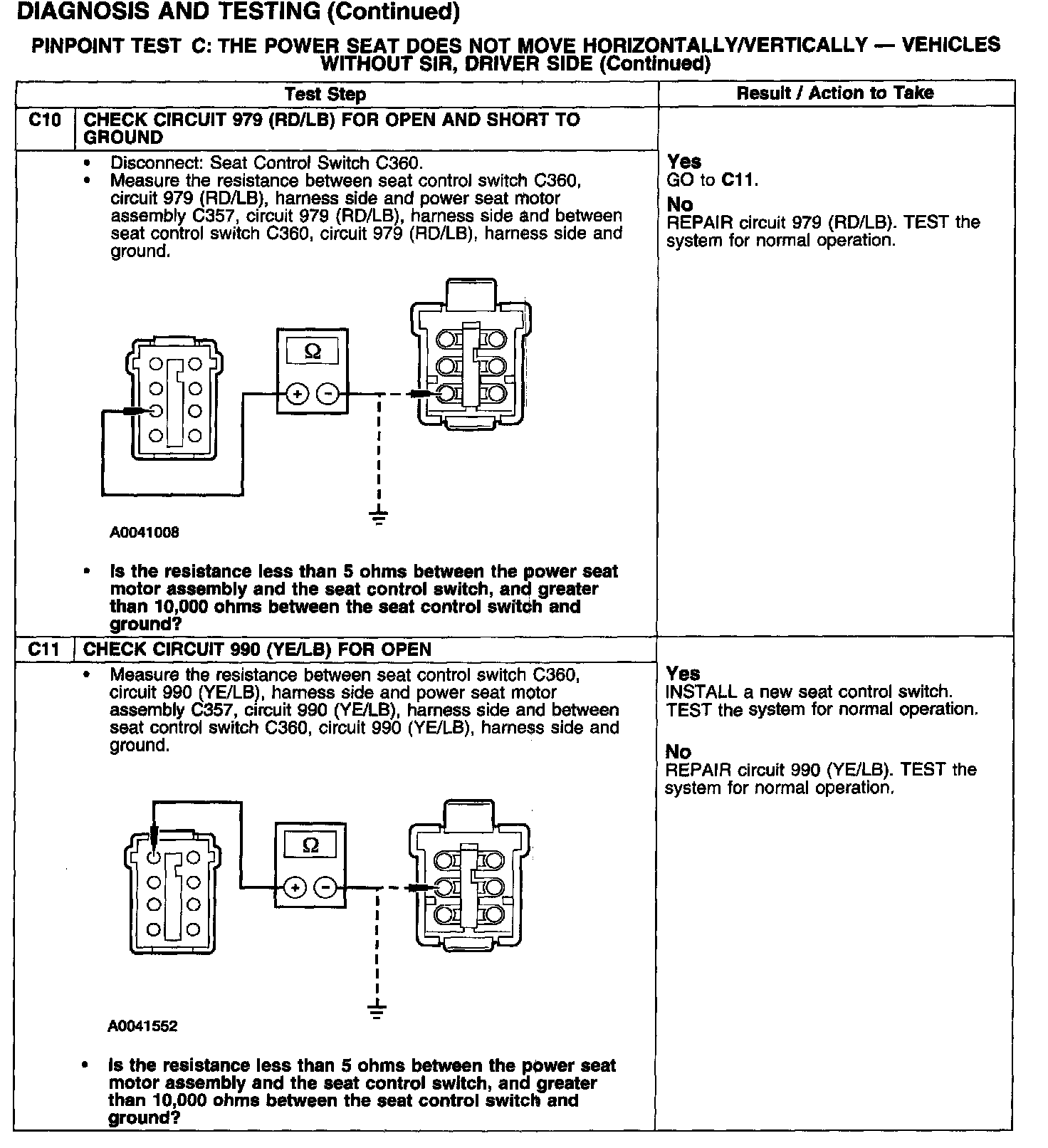

Test C10-C11:
