B1950

PINPOINT TEST H: THE MEMORY SEAT DOES NOT OPERATE CORRECTLY - DOES NOT OPERATE USING THE MEMORY SET SWITCH

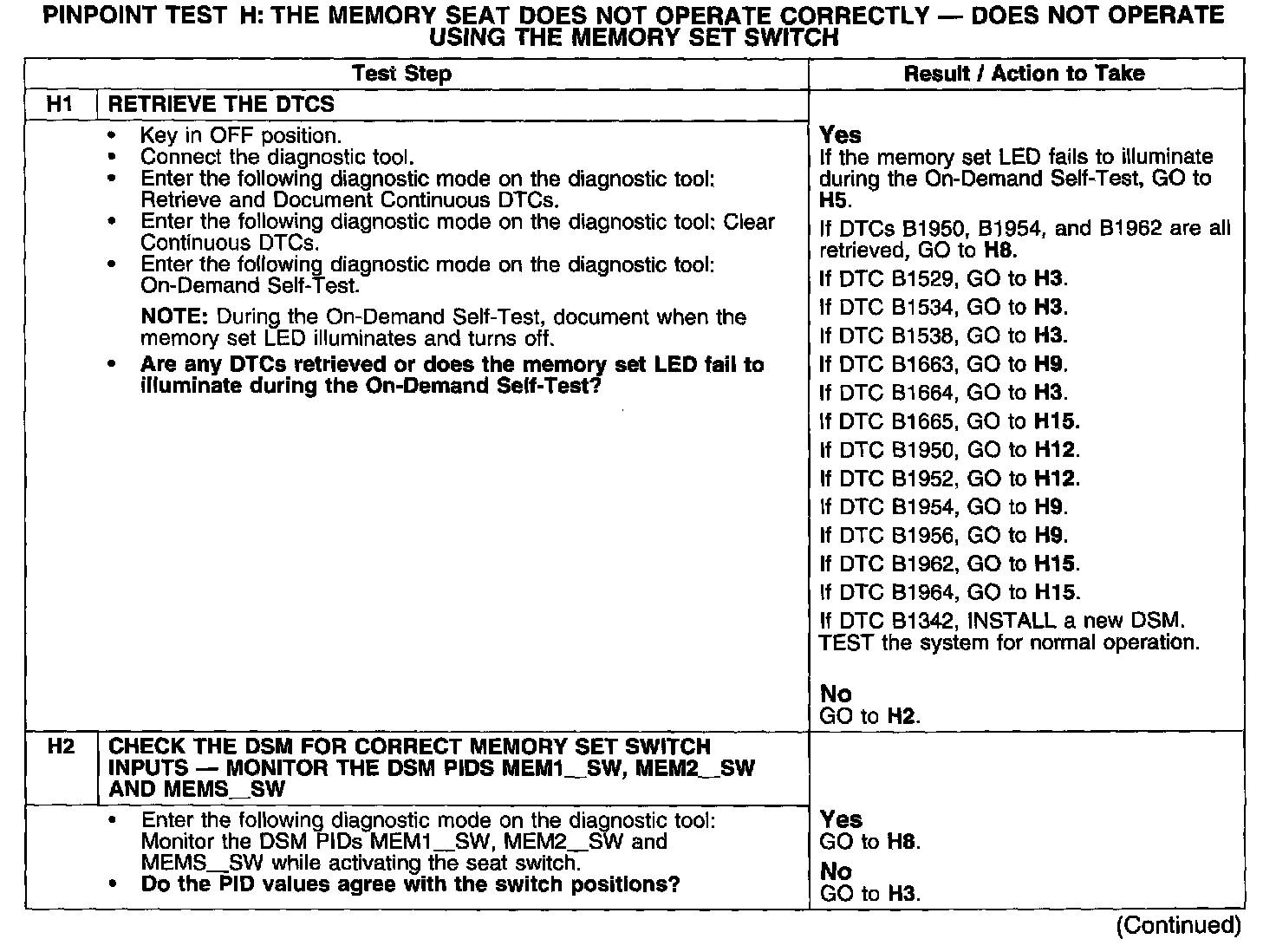

Test H1-H2:

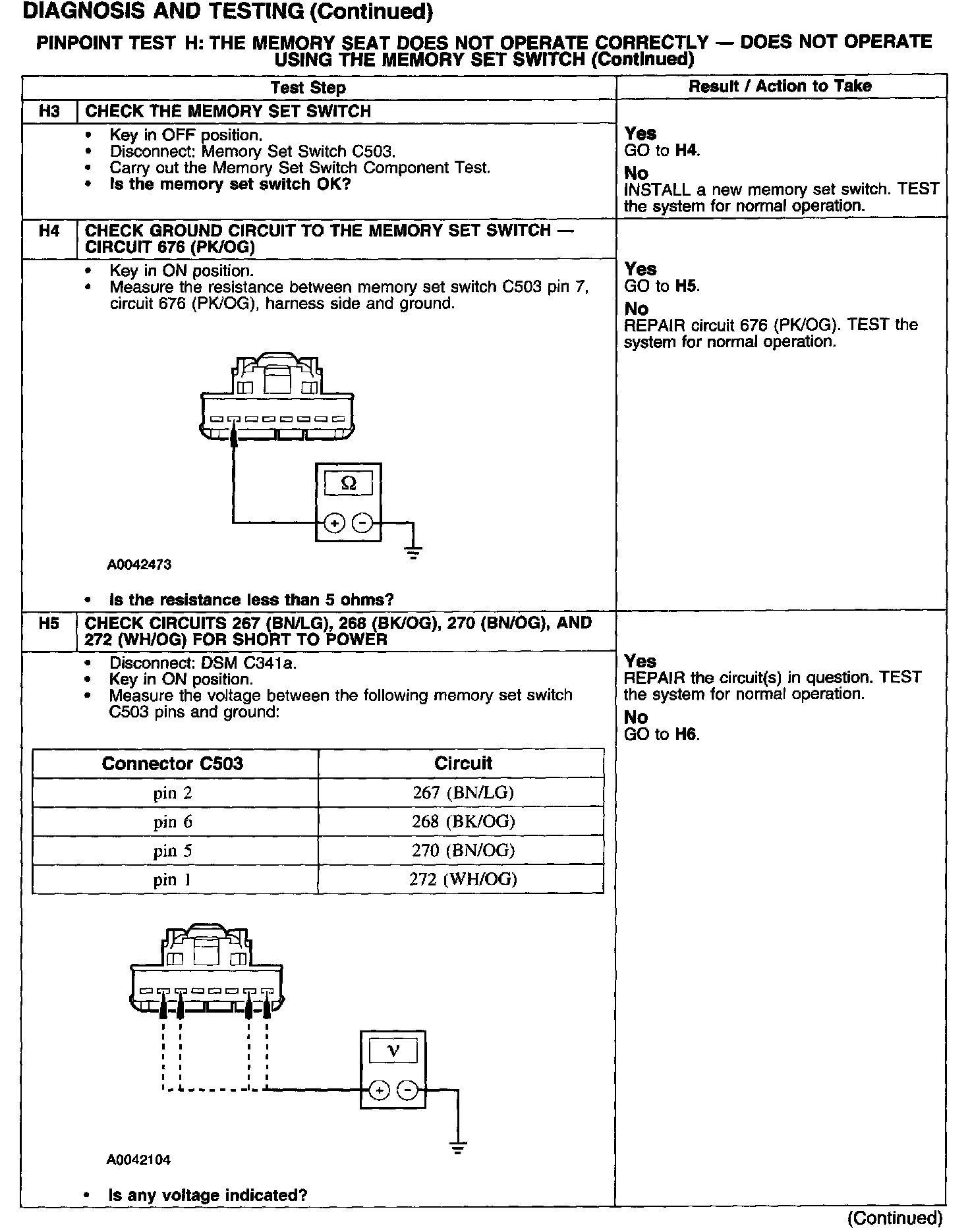

Test H3-H5:

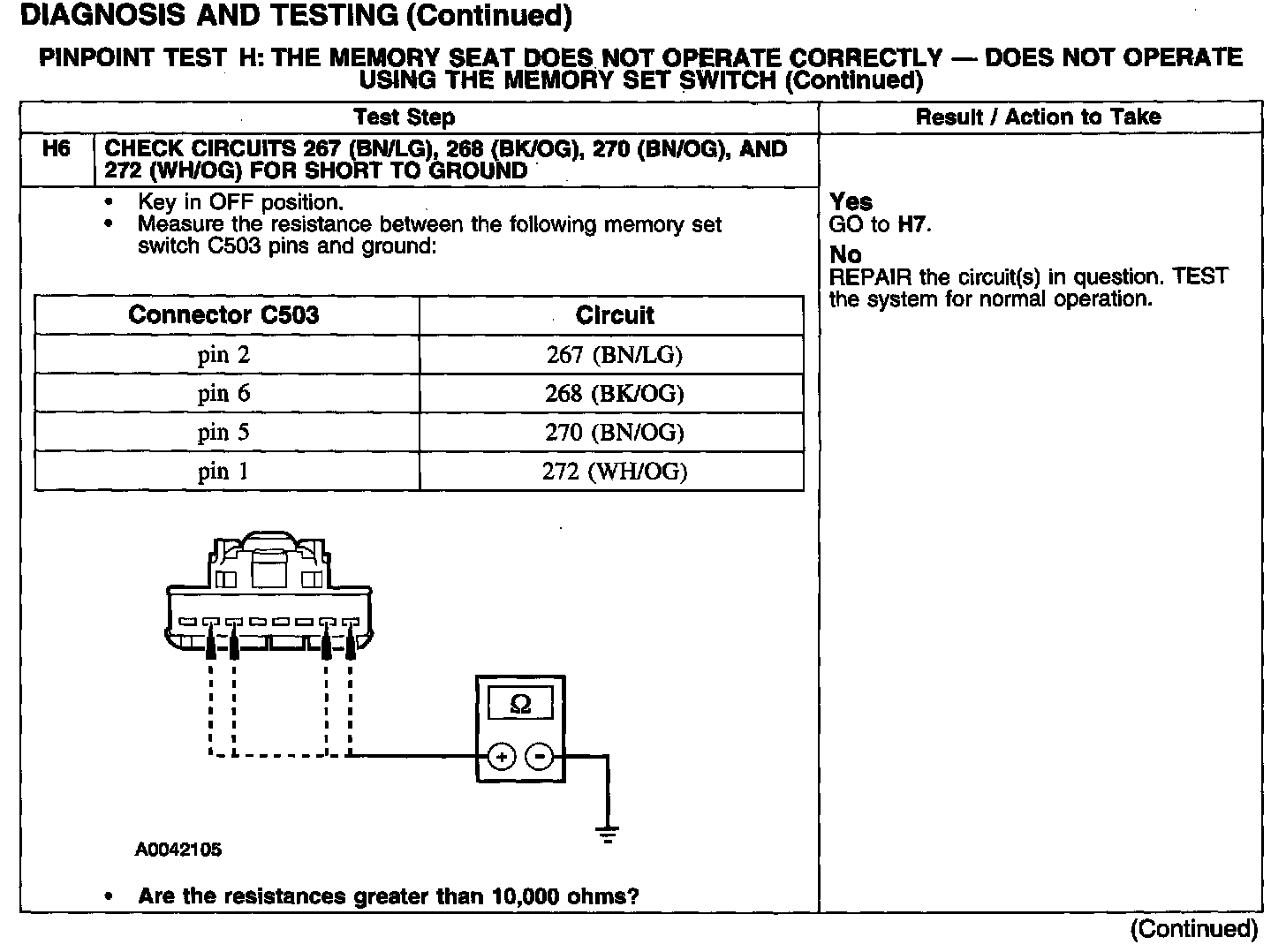

Test H6:

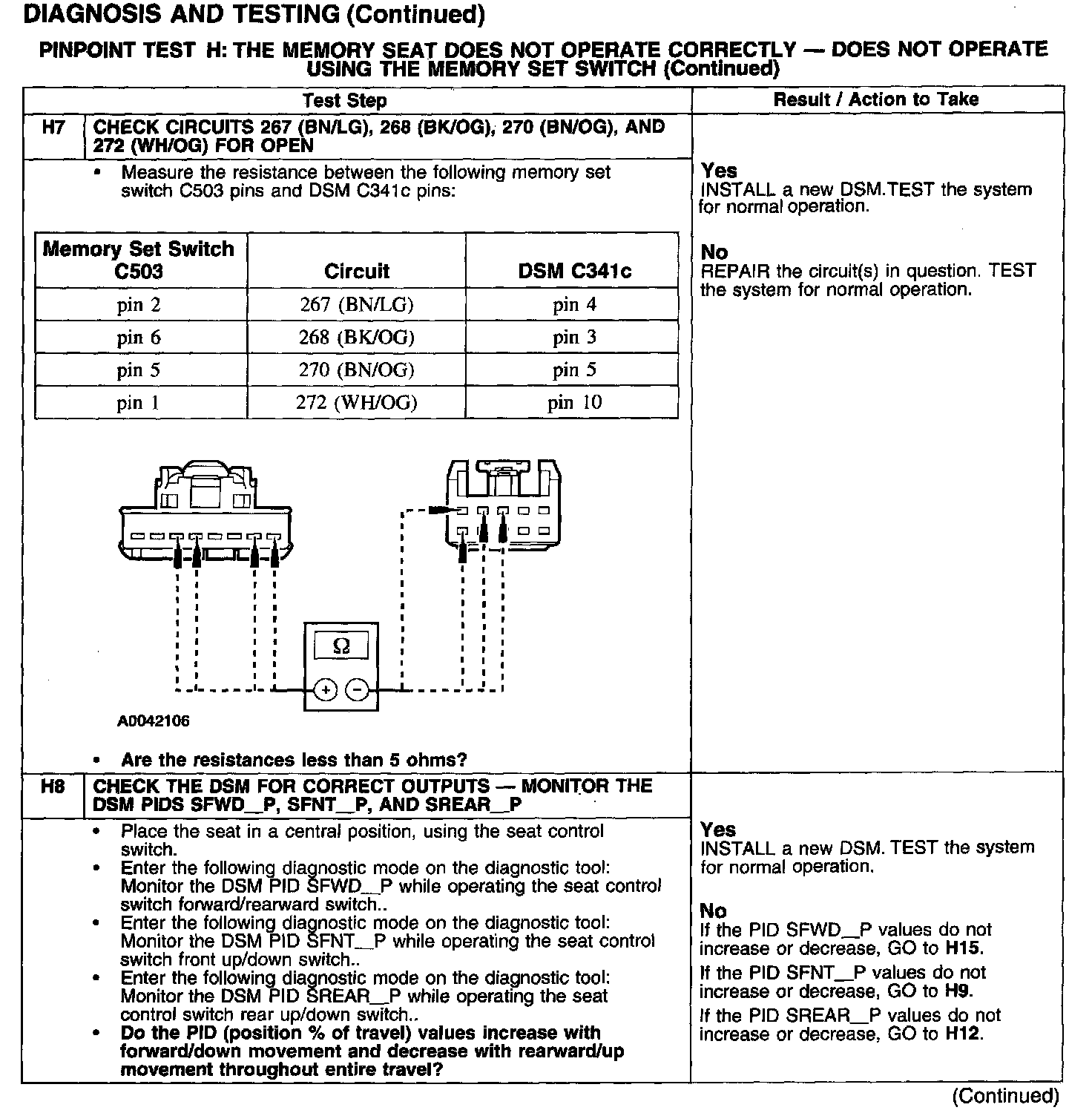

Test H7-H8:

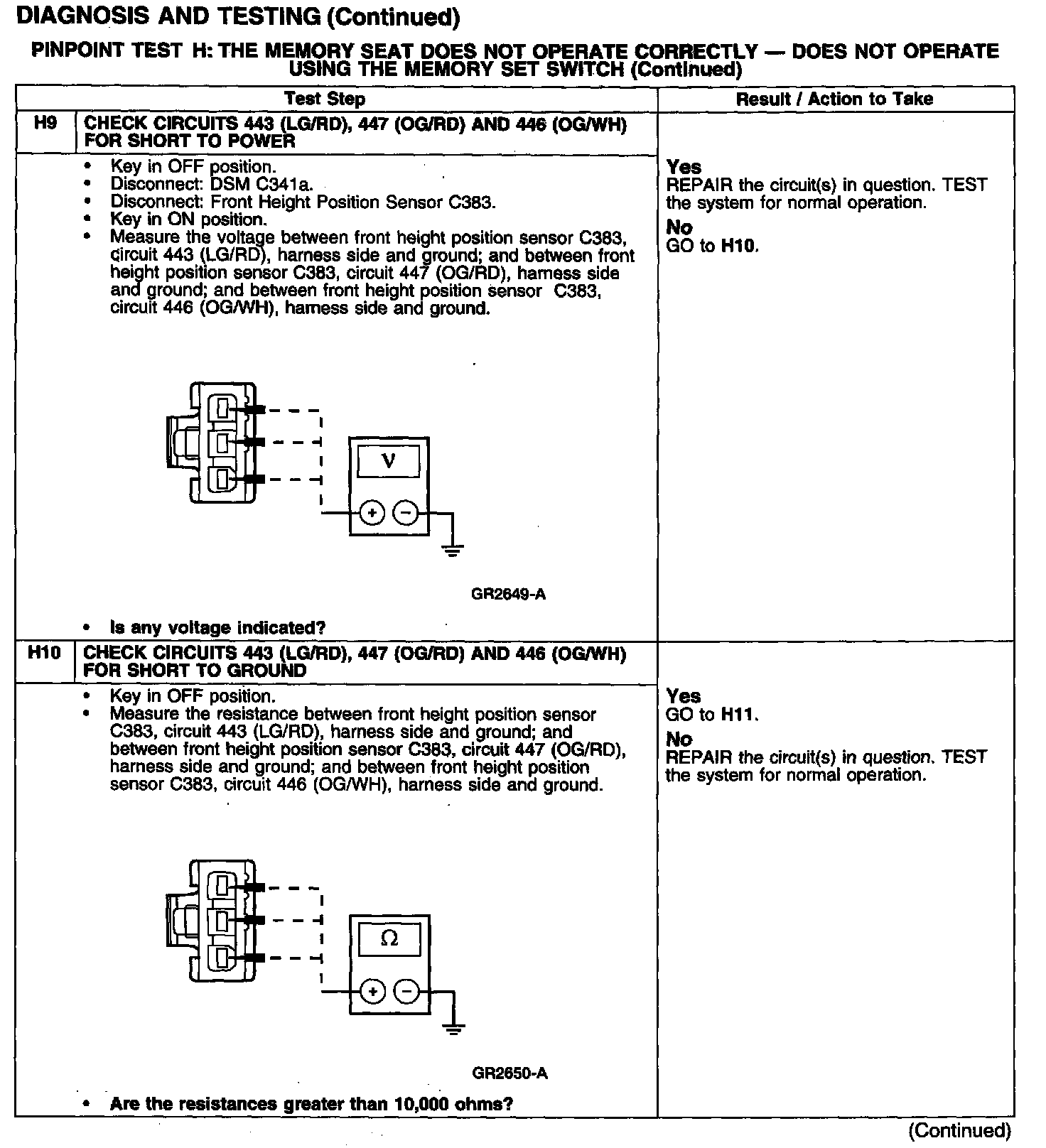

Test H9-H10:

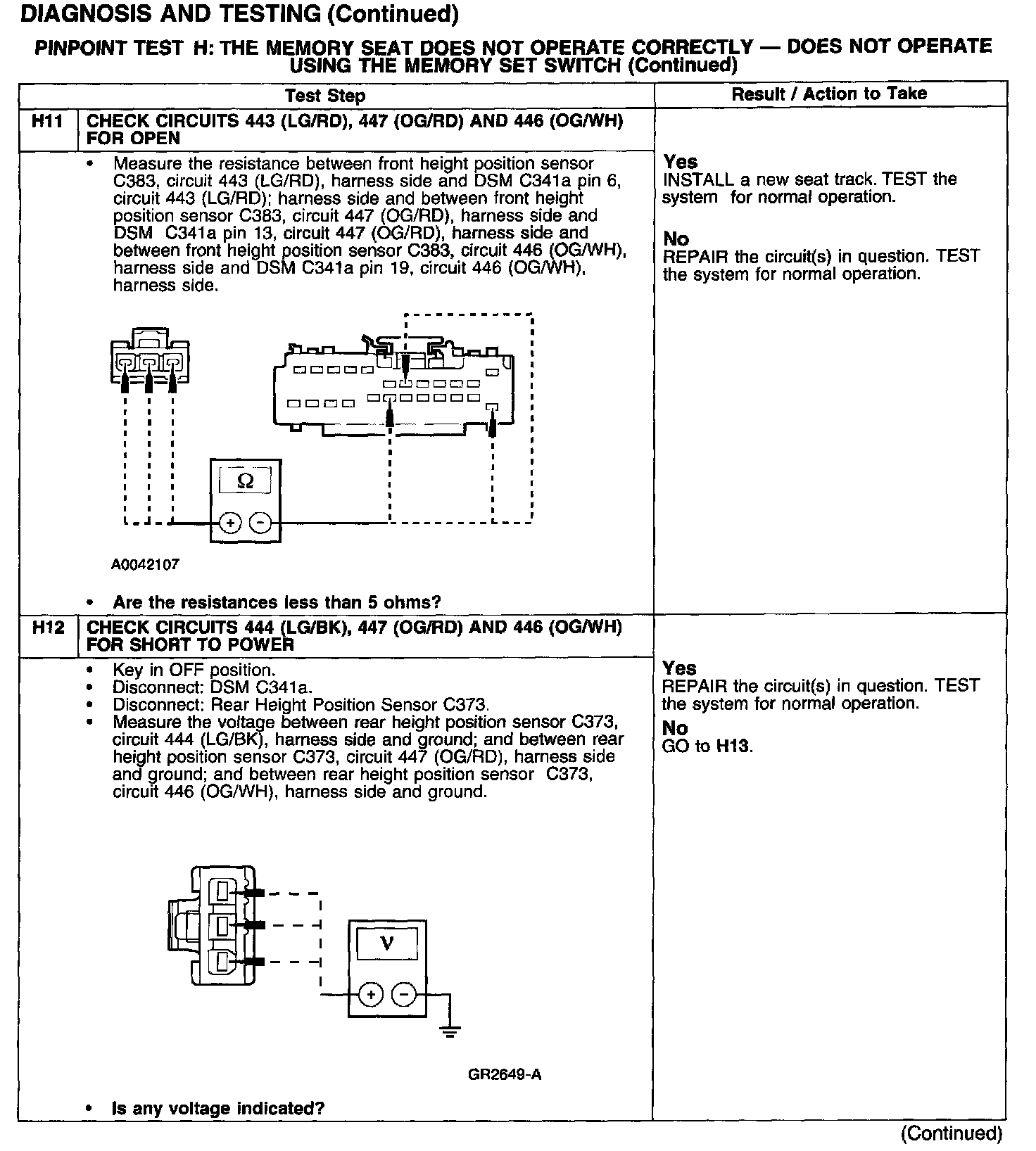

Test H11-H12:

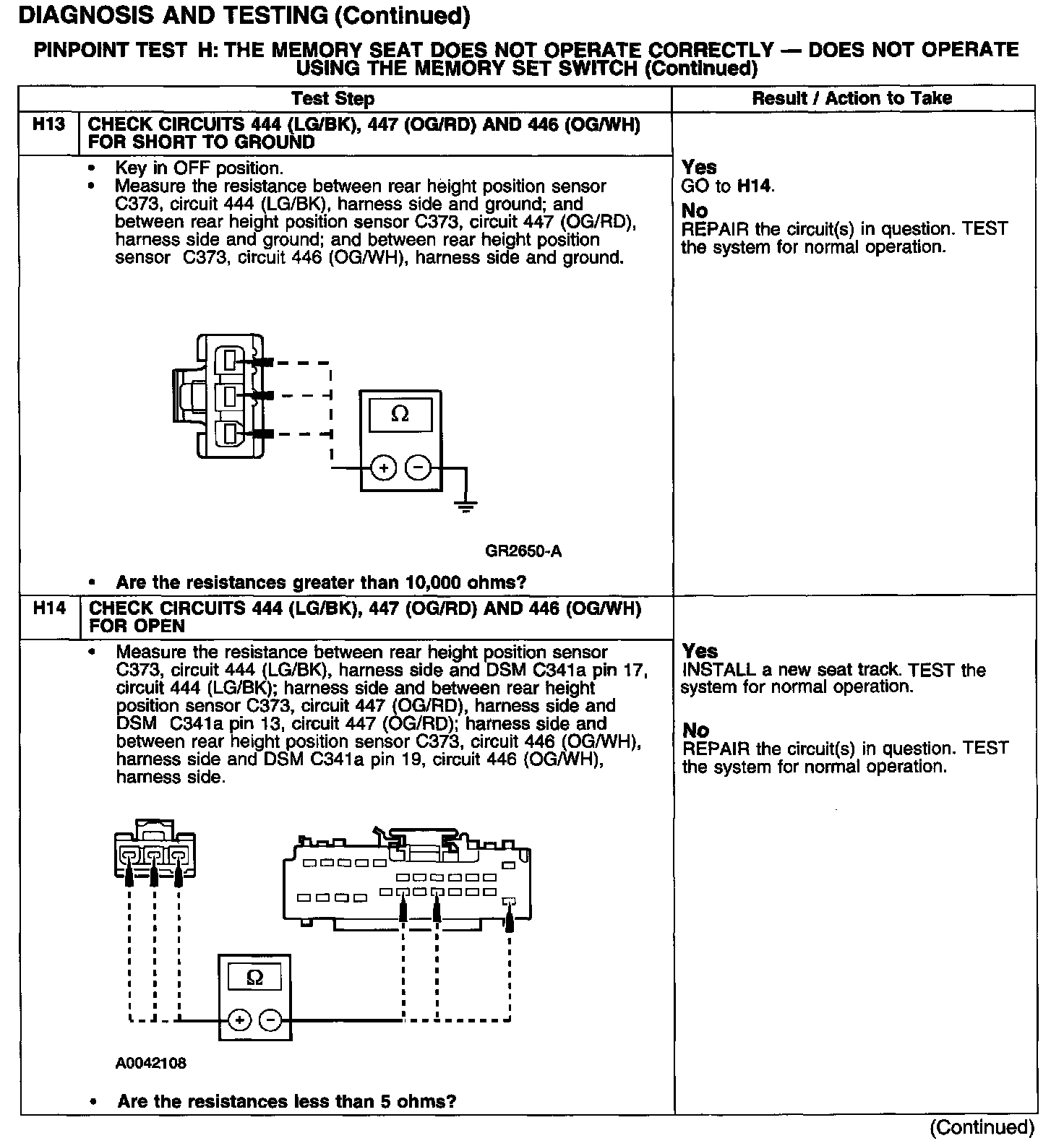

Test H13-H14:

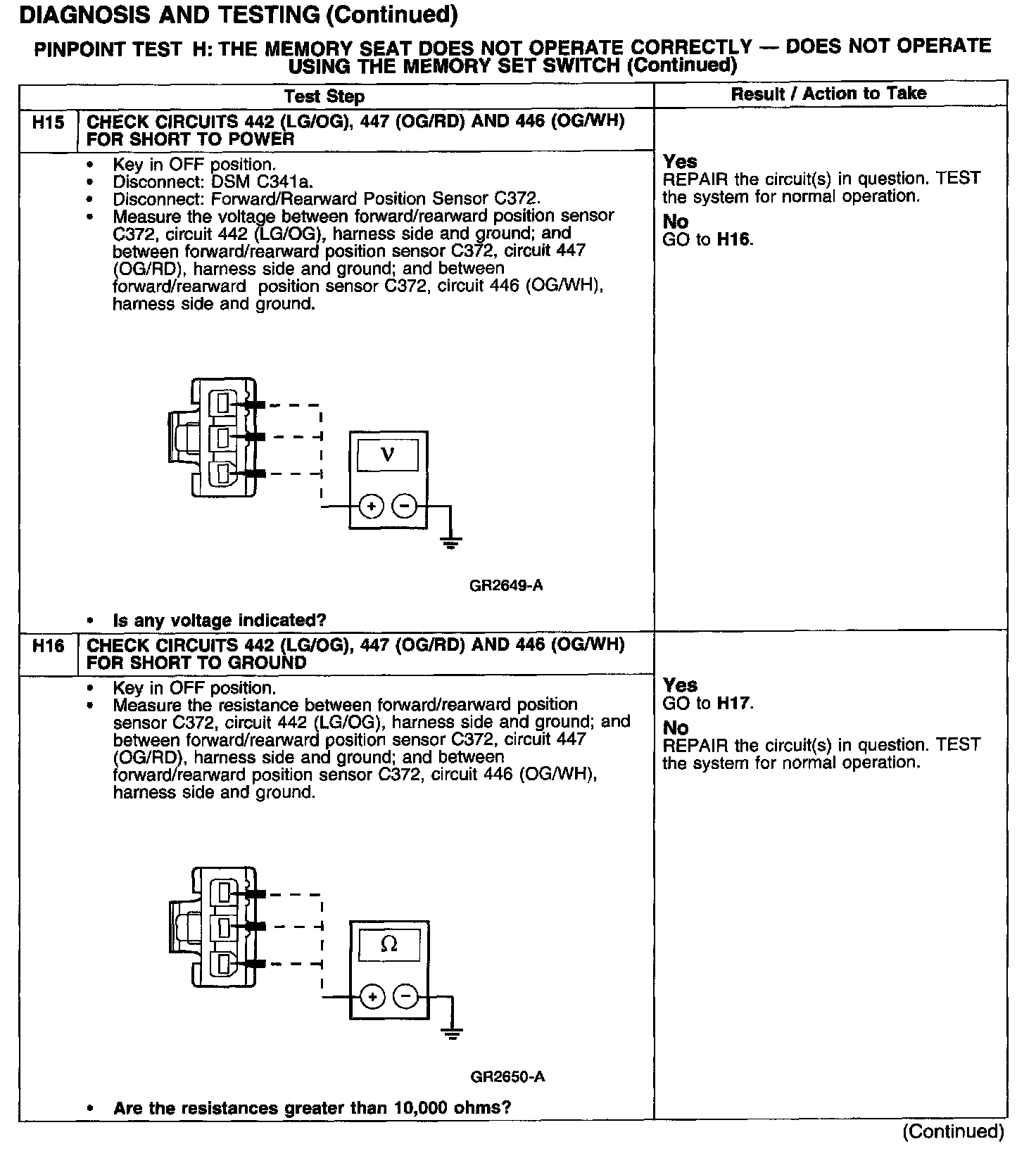

Test H15-H16:

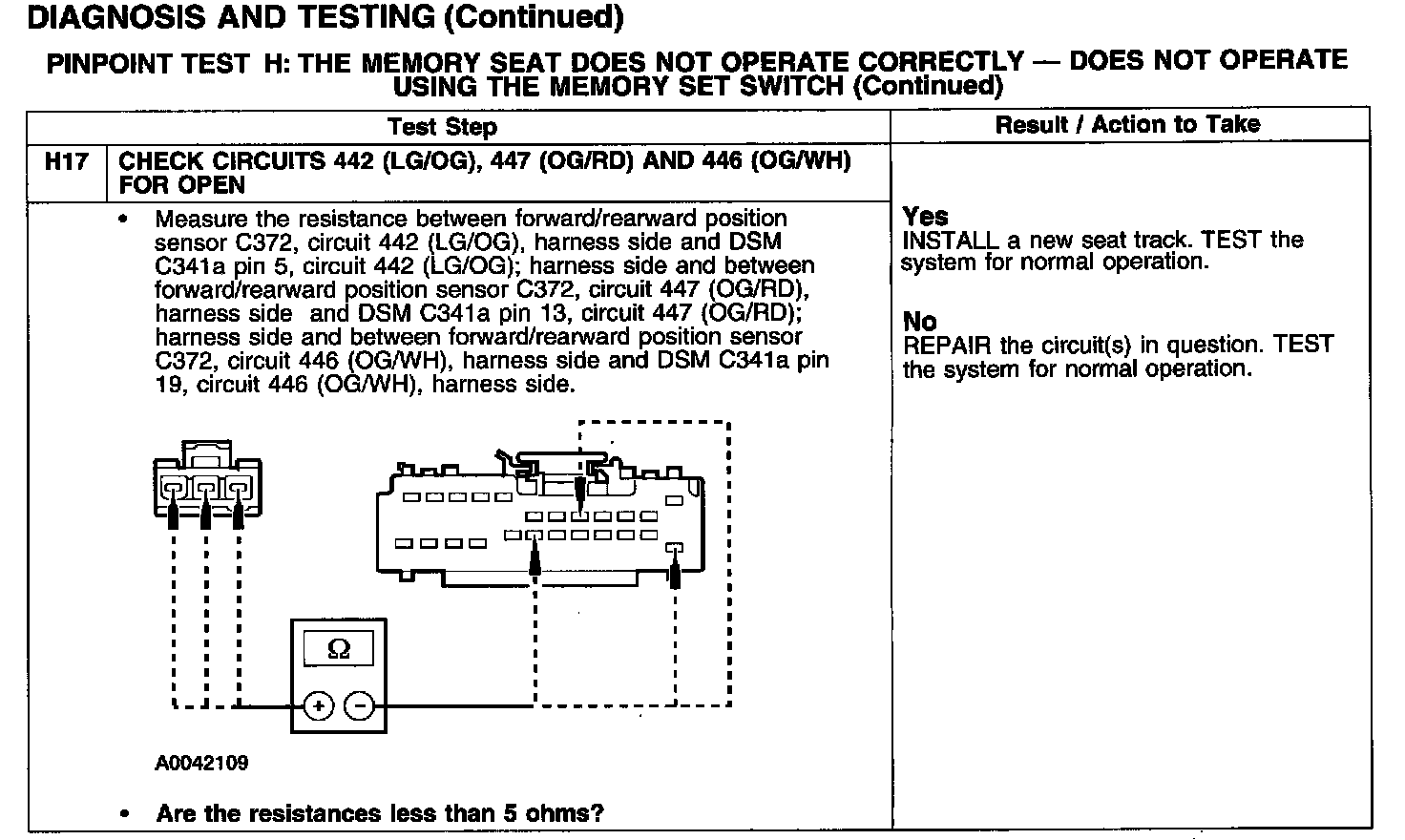

Test H17:
