Home >> Ford >> 2003 >> Excursion 2WD V8-6.0L DSL Turbo >> Repair and Diagnosis >> Body and Frame >> Mirrors >> Testing and Inspection >> Pinpoint Tests >> Test B
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

Test B

PINPOINT TEST B: A SINGLE MIRROR IS INOPERATIVE

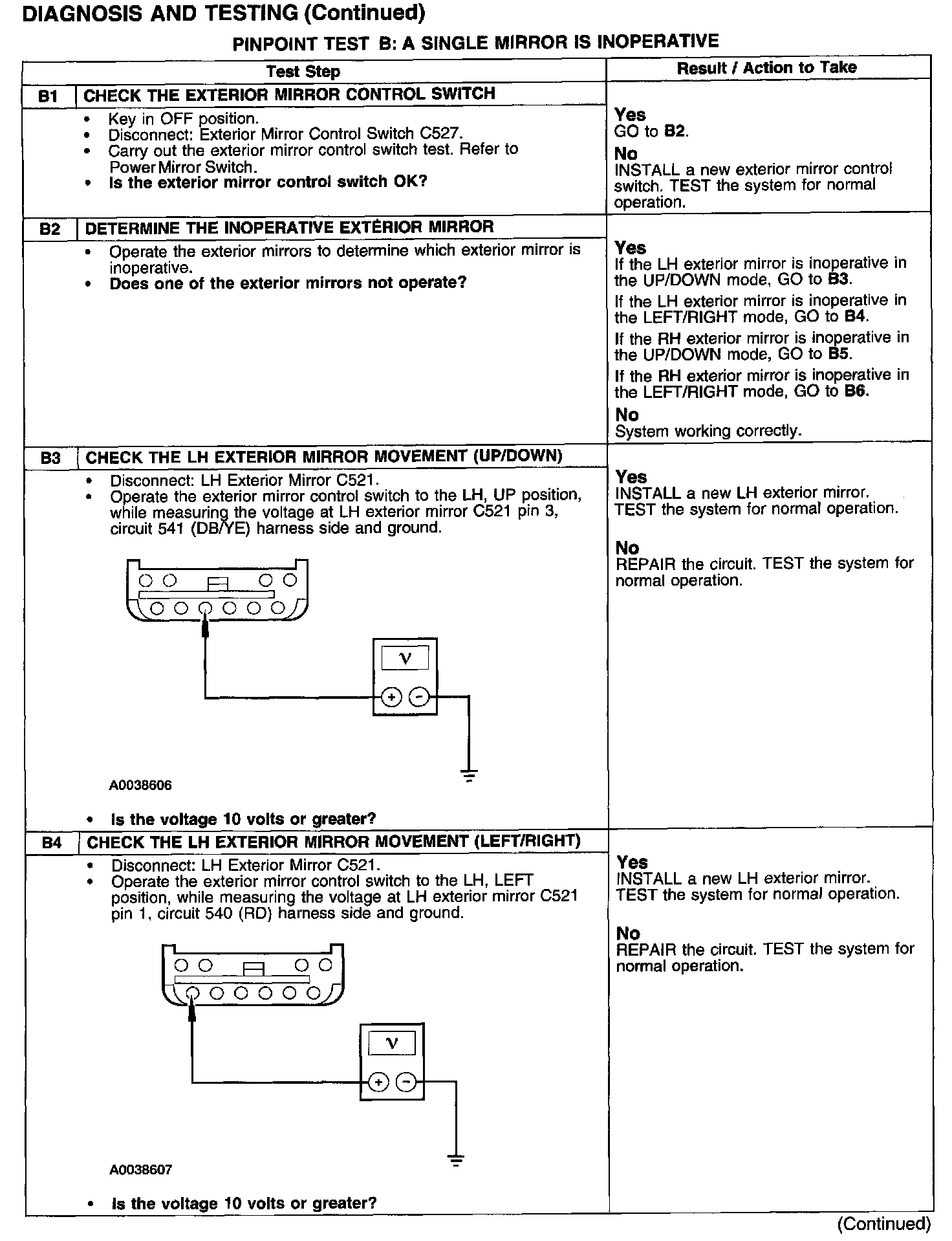

Test B1-B4:

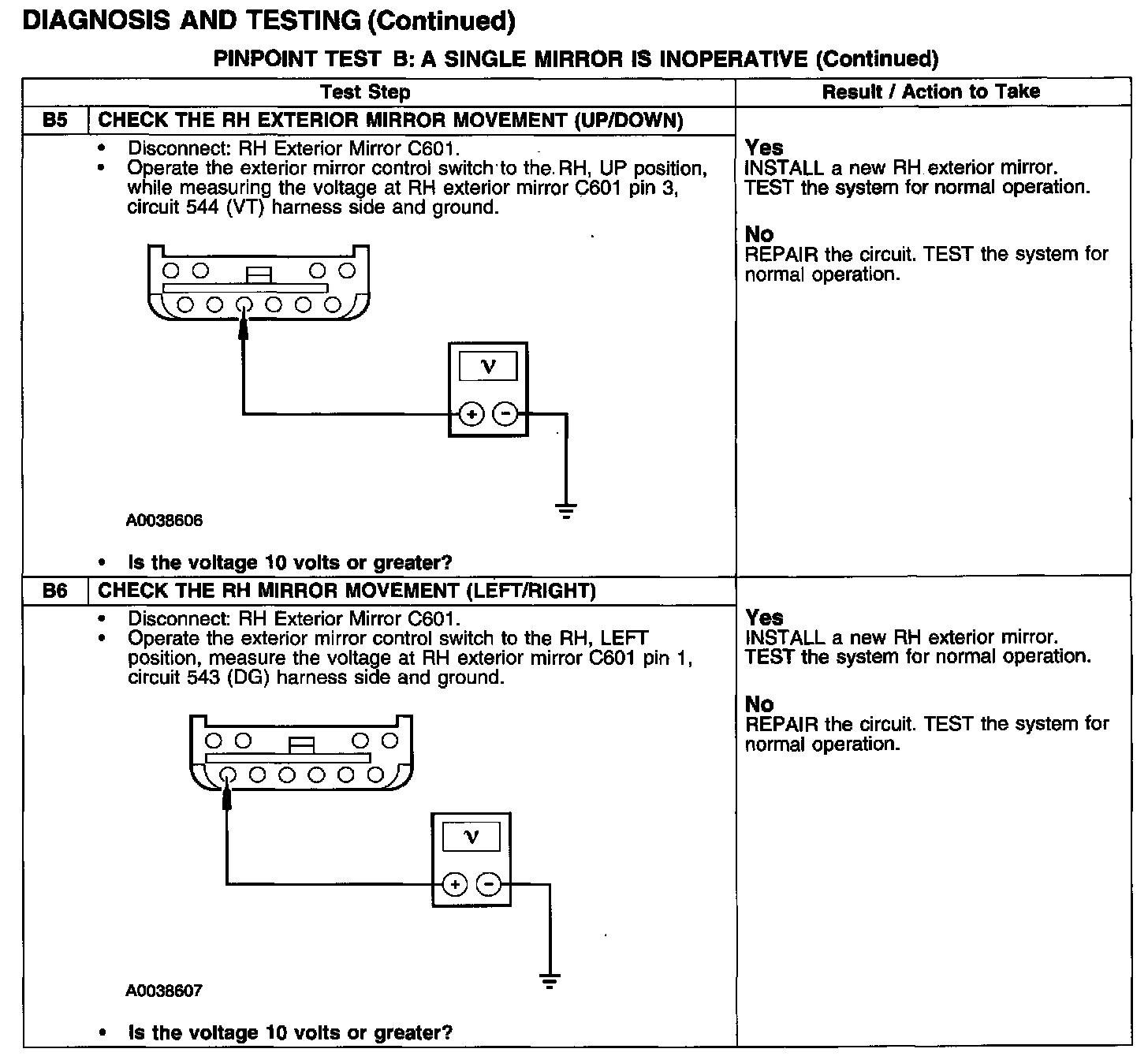

Test B5-B6:
