Tests KA: Fuel Pump Relay
KA Introduction 1 Of 8:
KA Introduction 2 Of 8:
KA Introduction 3 Of 8:
KA Introduction 4 Of 8:
KA Introduction 5 Of 8:
KA Introduction 6 Of 8:
KA Introduction 7 Of 8:
KA Introduction 8 Of 8:

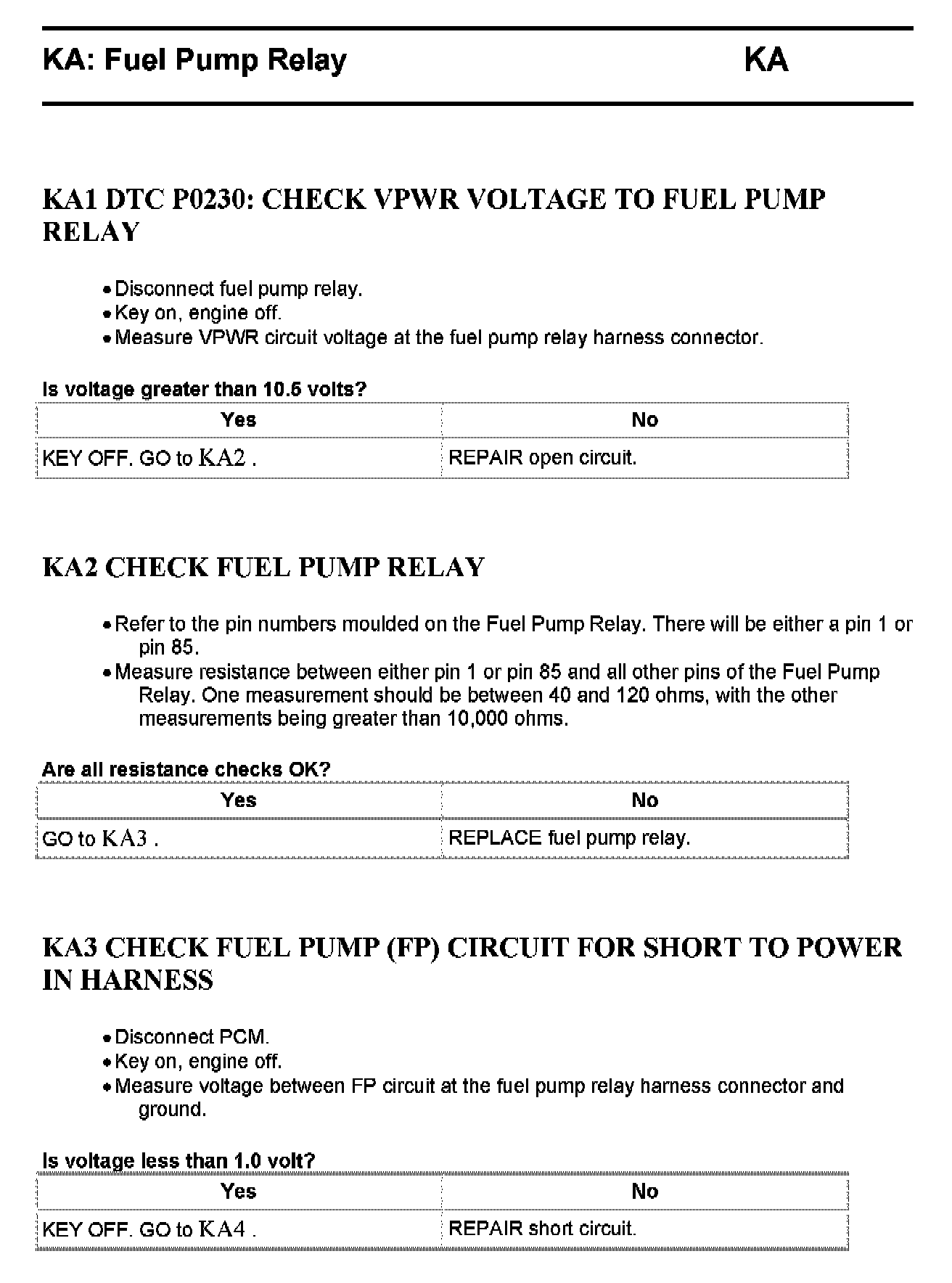

KA1 - KA3:
KA4 - KA5:

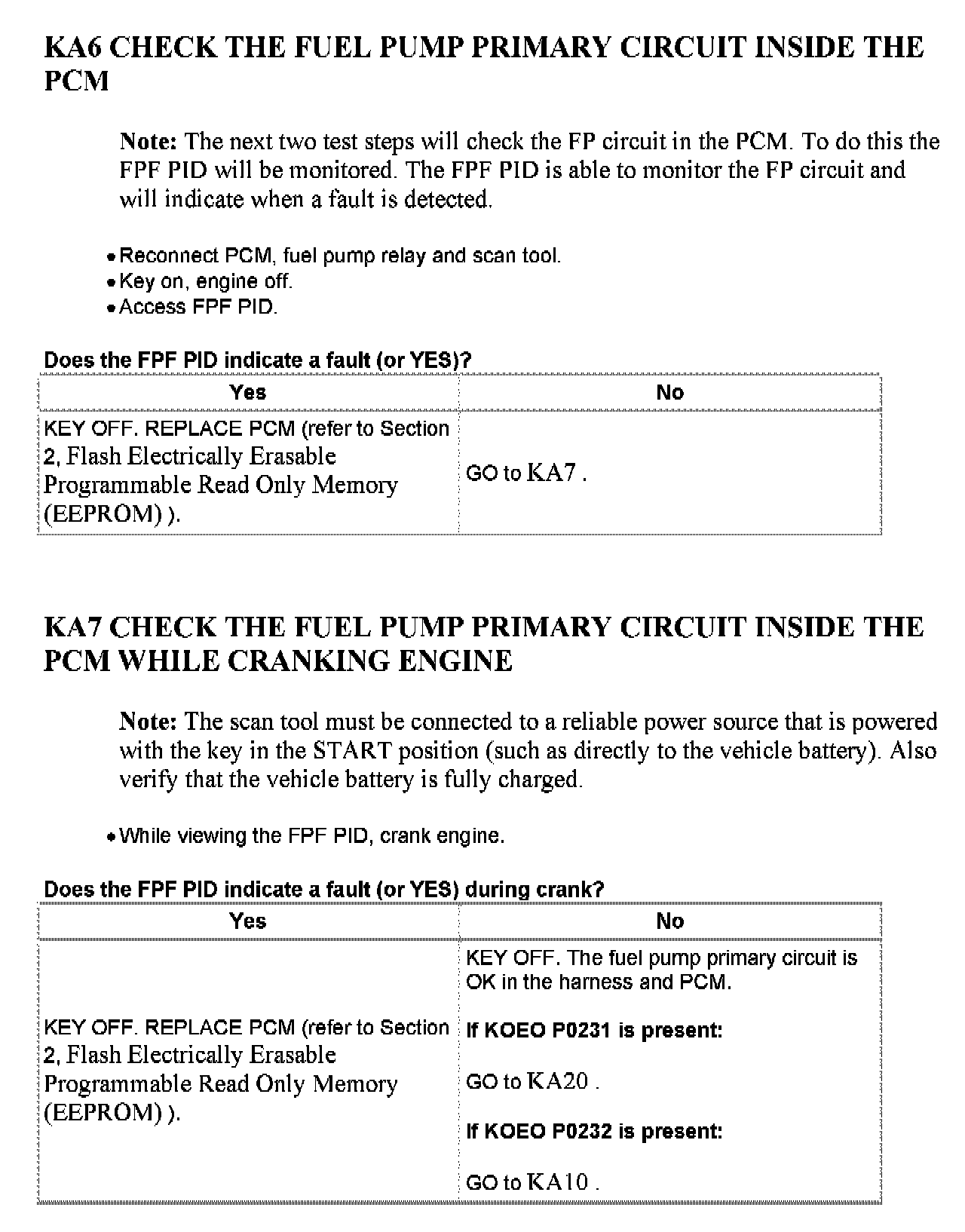

KA6 - KA7:
KA10 - KA12:

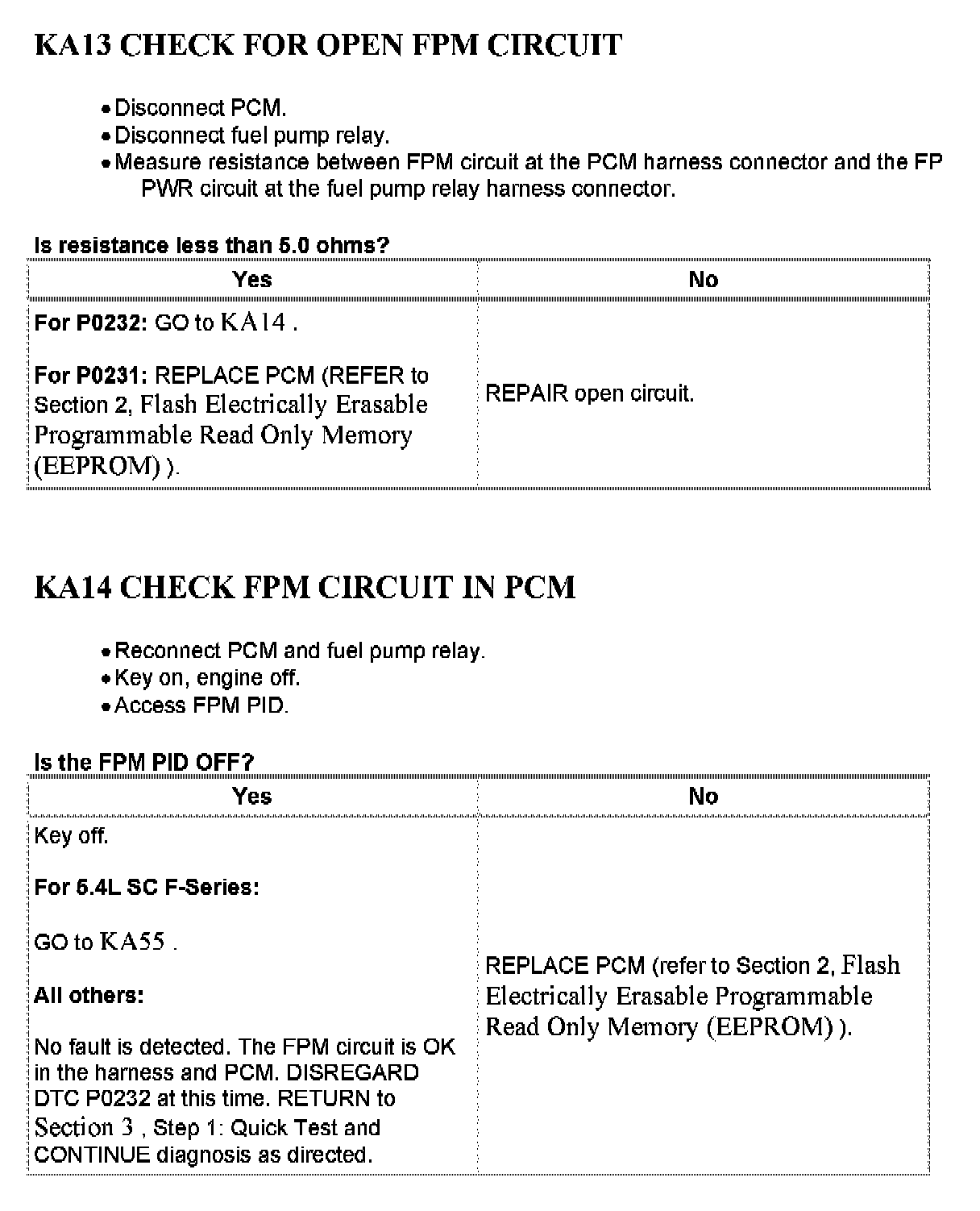

KA13 - KA14:

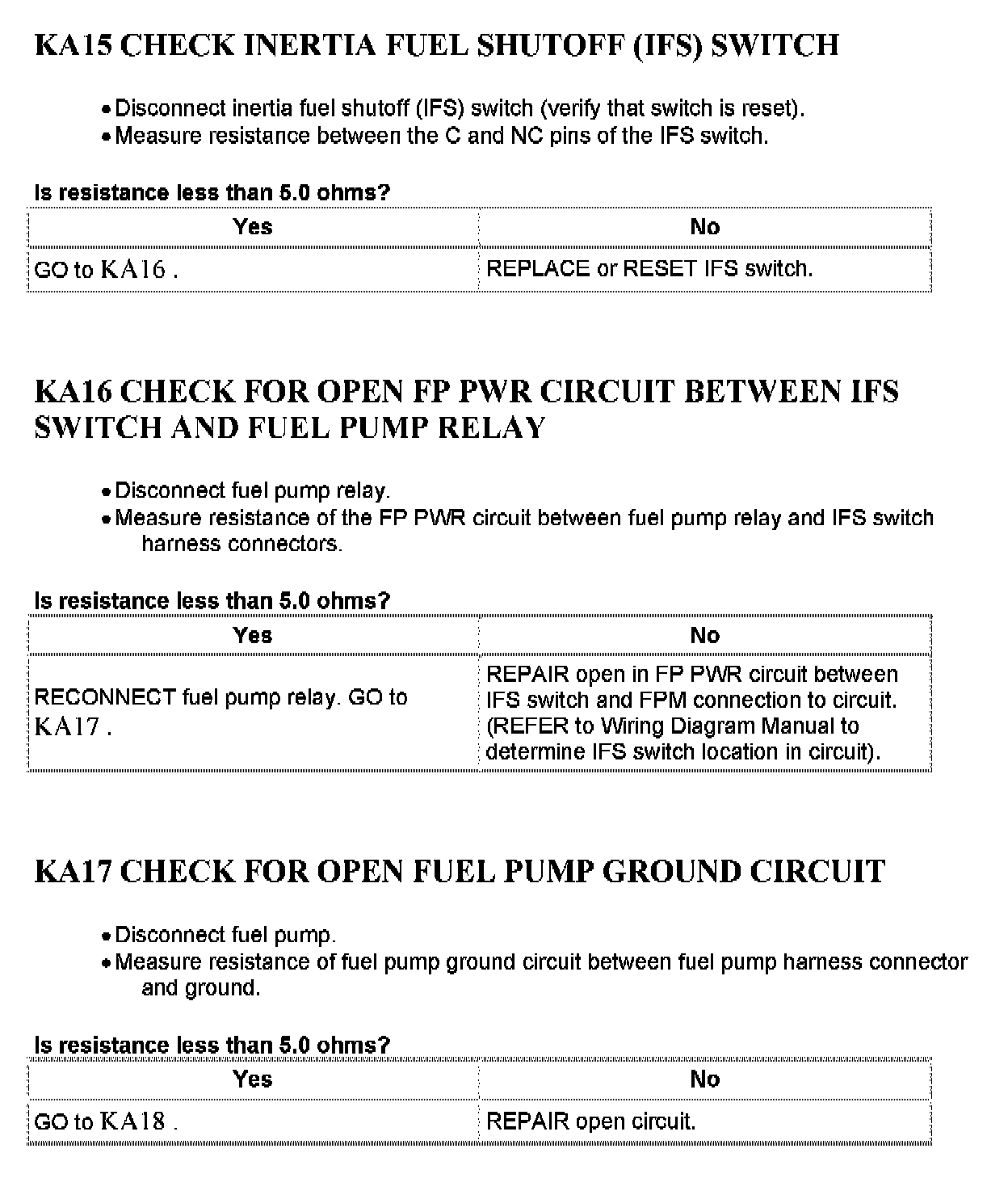

KA15 - KA17:

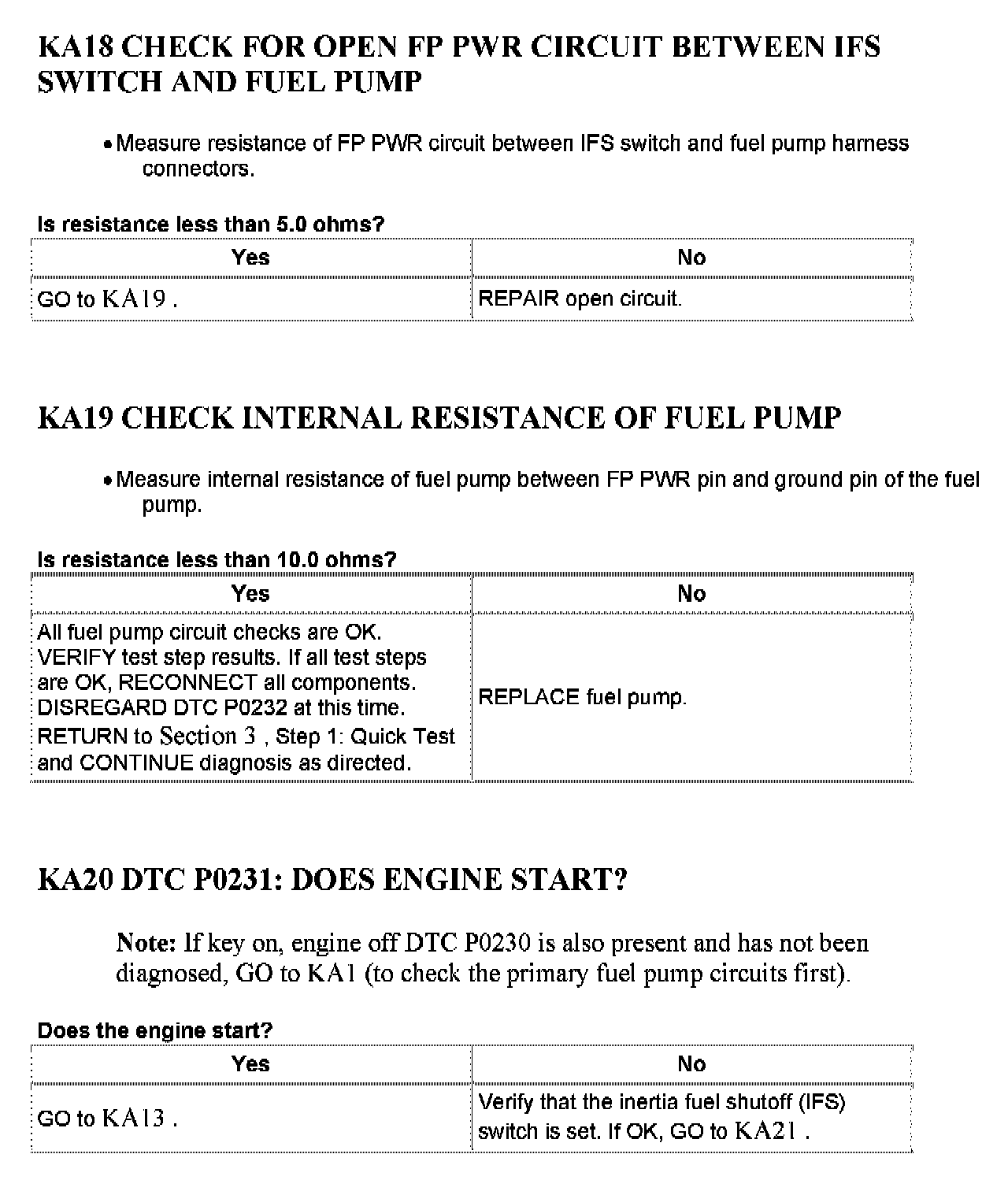

KA18 - KA20:

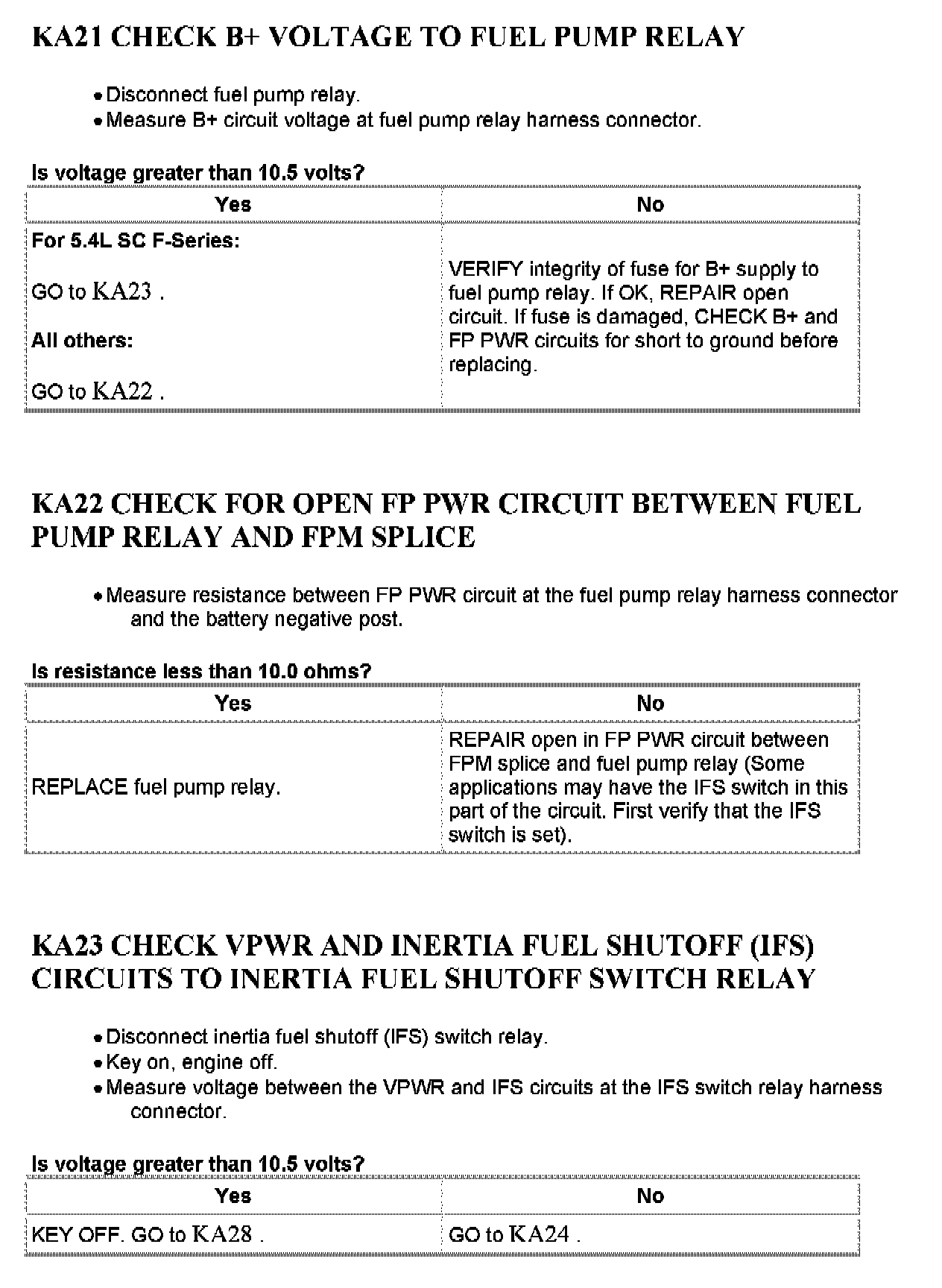

KA21 - KA23:

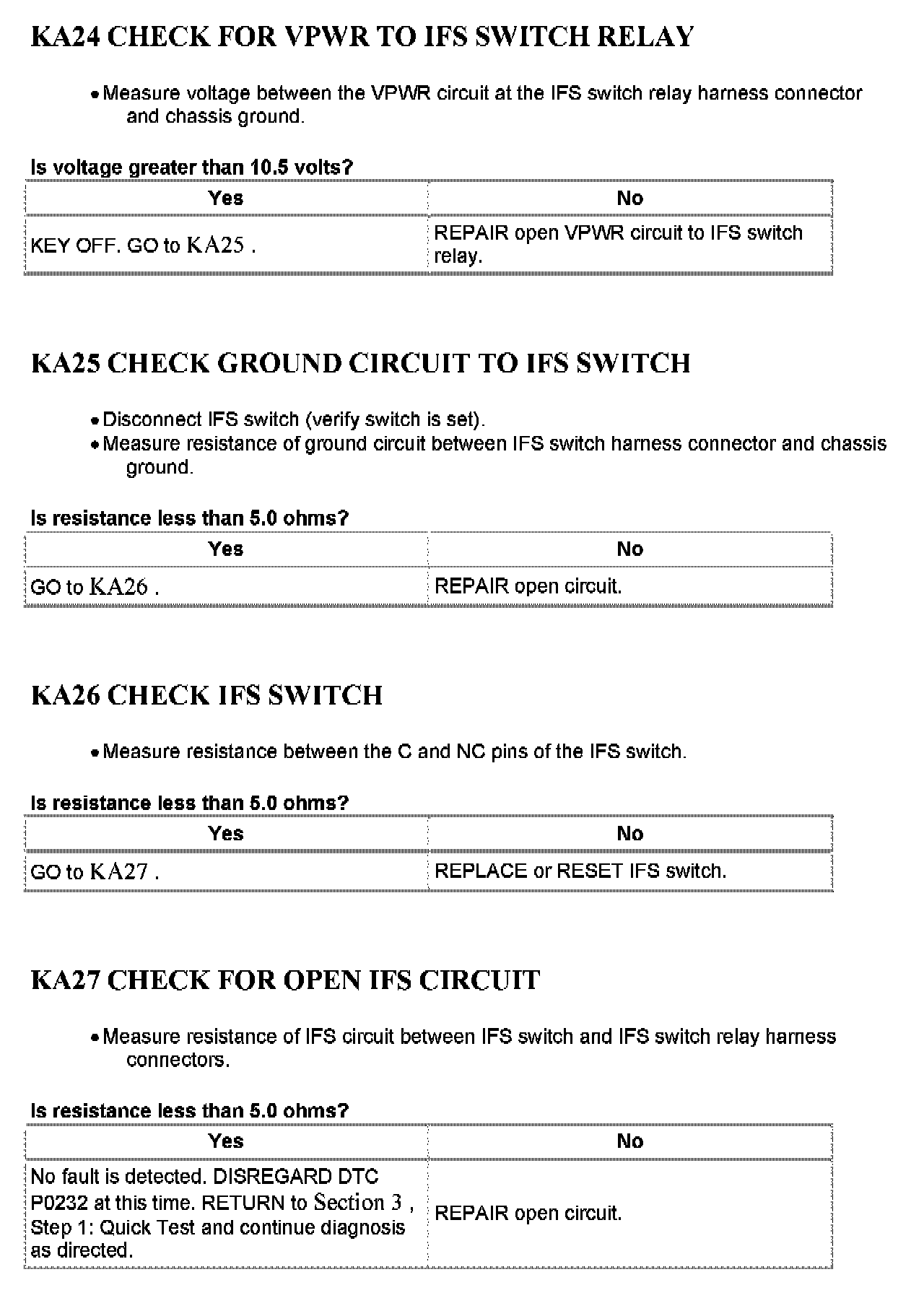

KA24 - KA27:
KA28 - KA29:

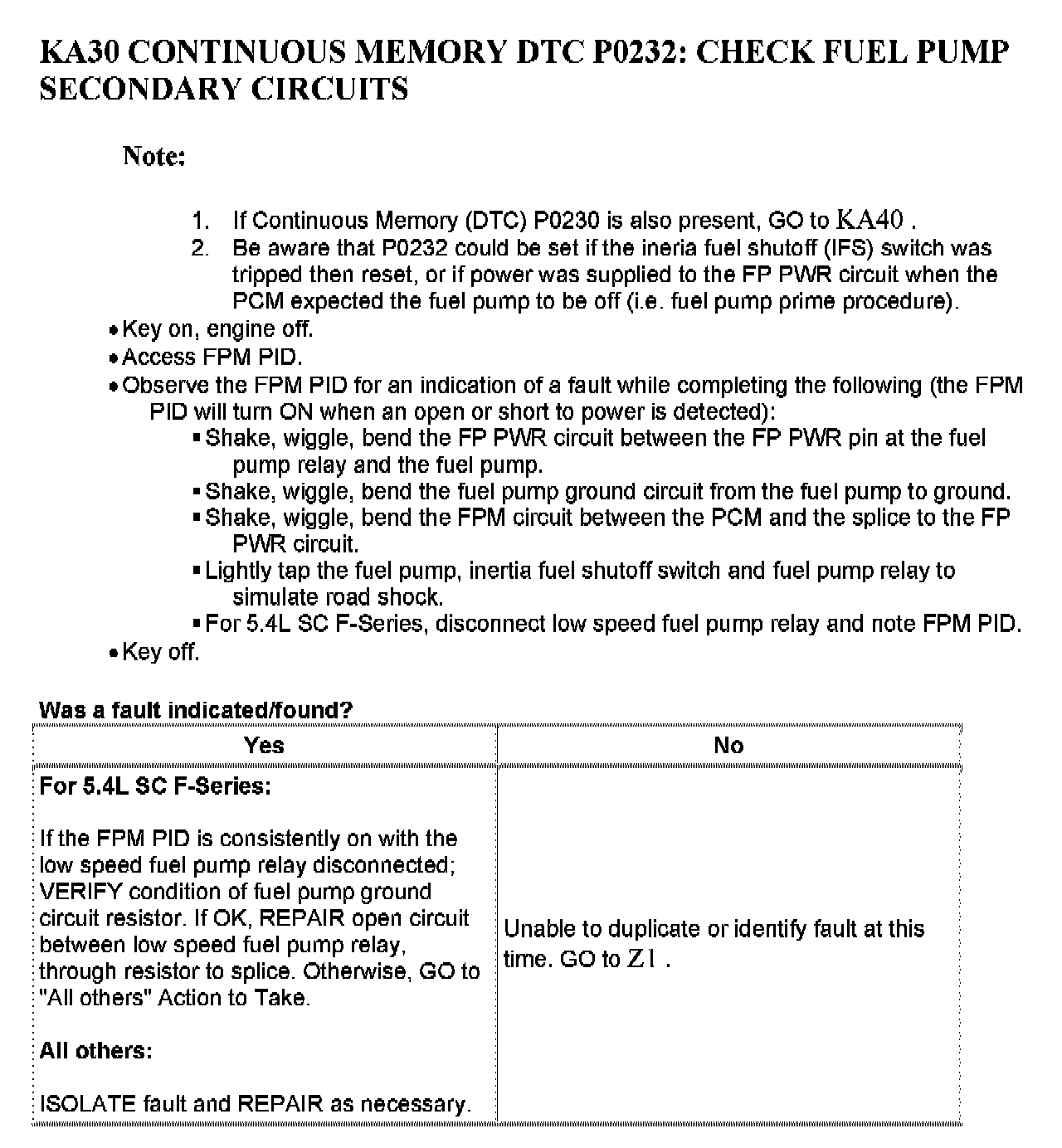

KA30:

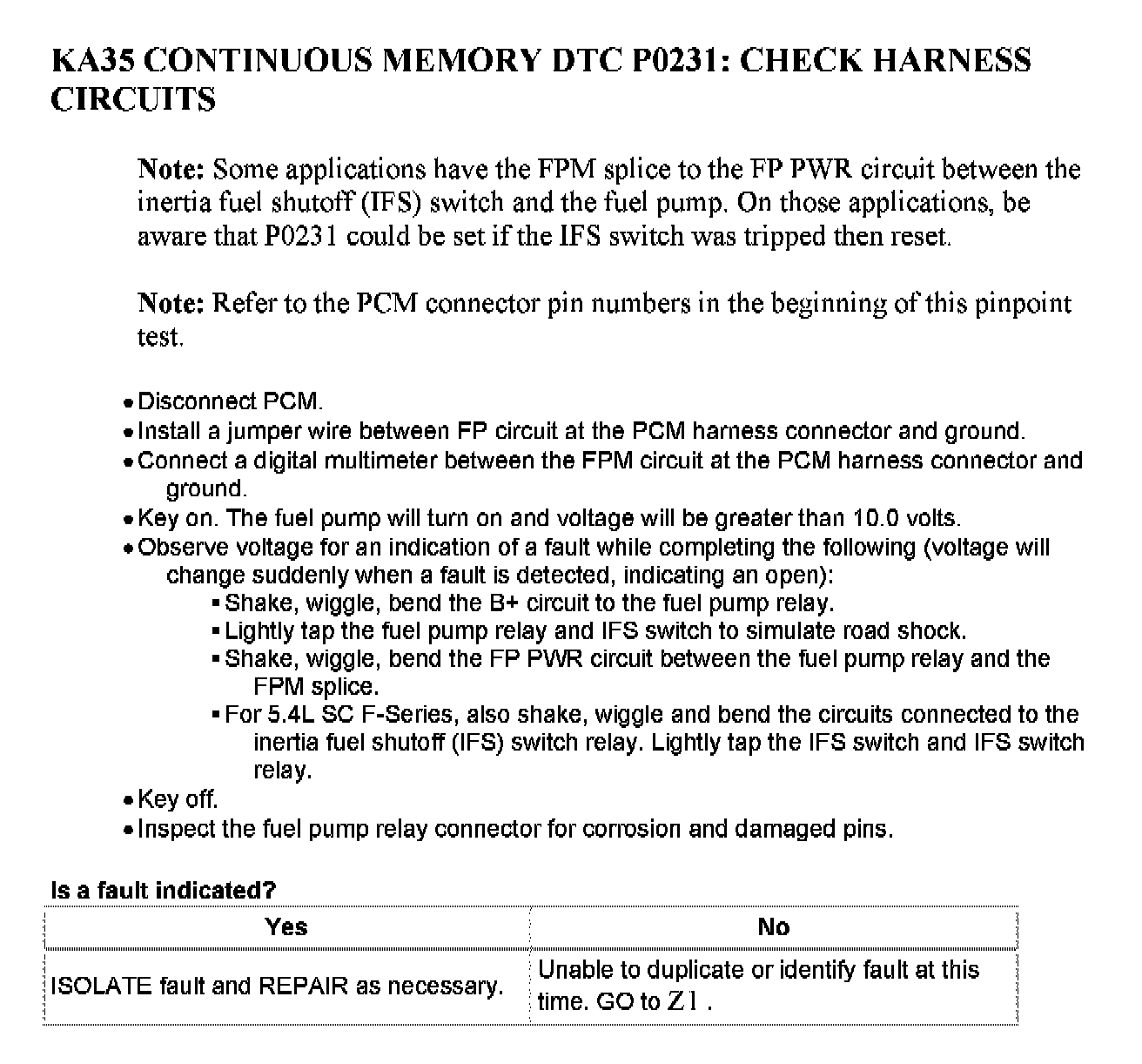

KA35:

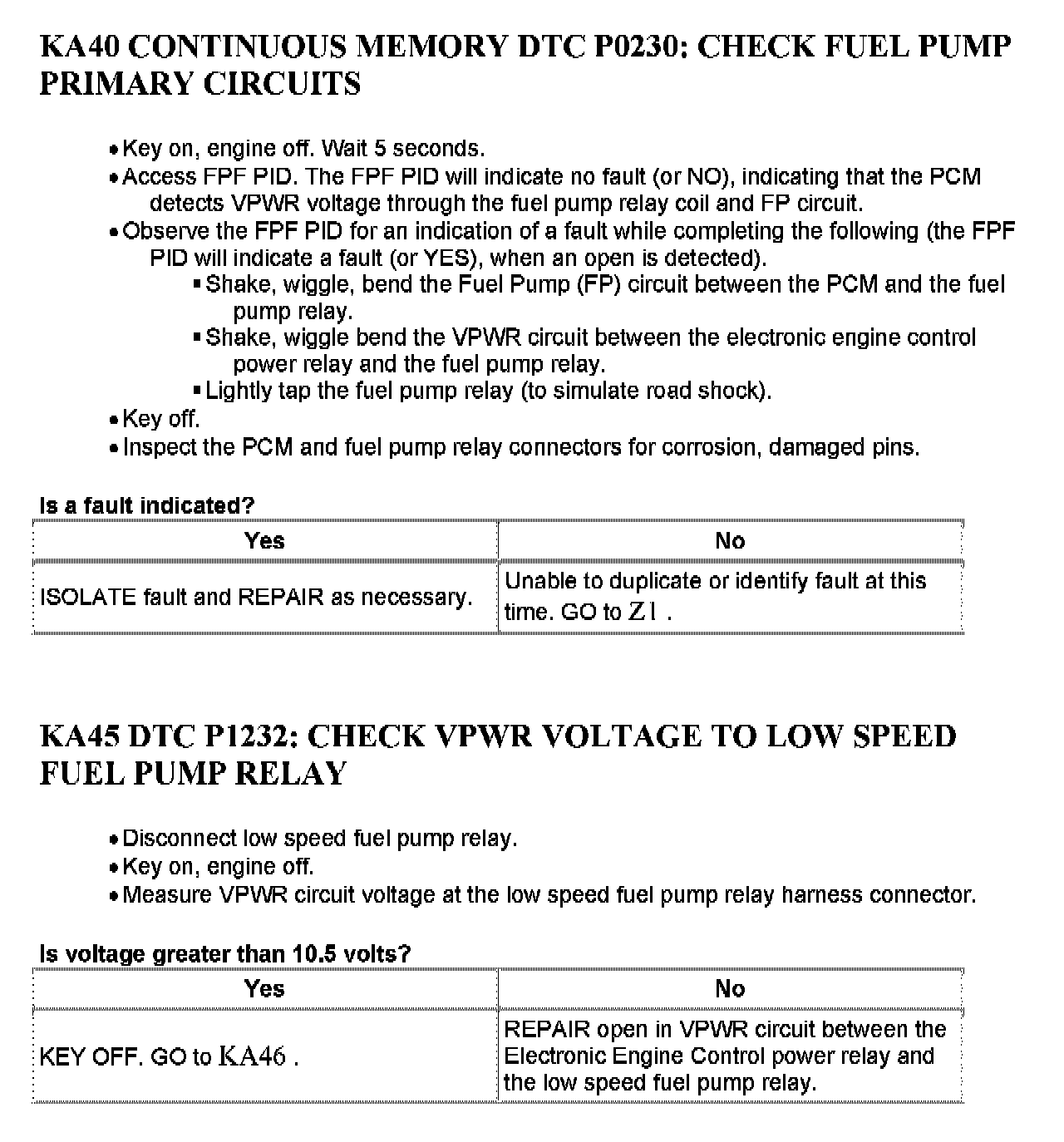

KA40 - KA45:

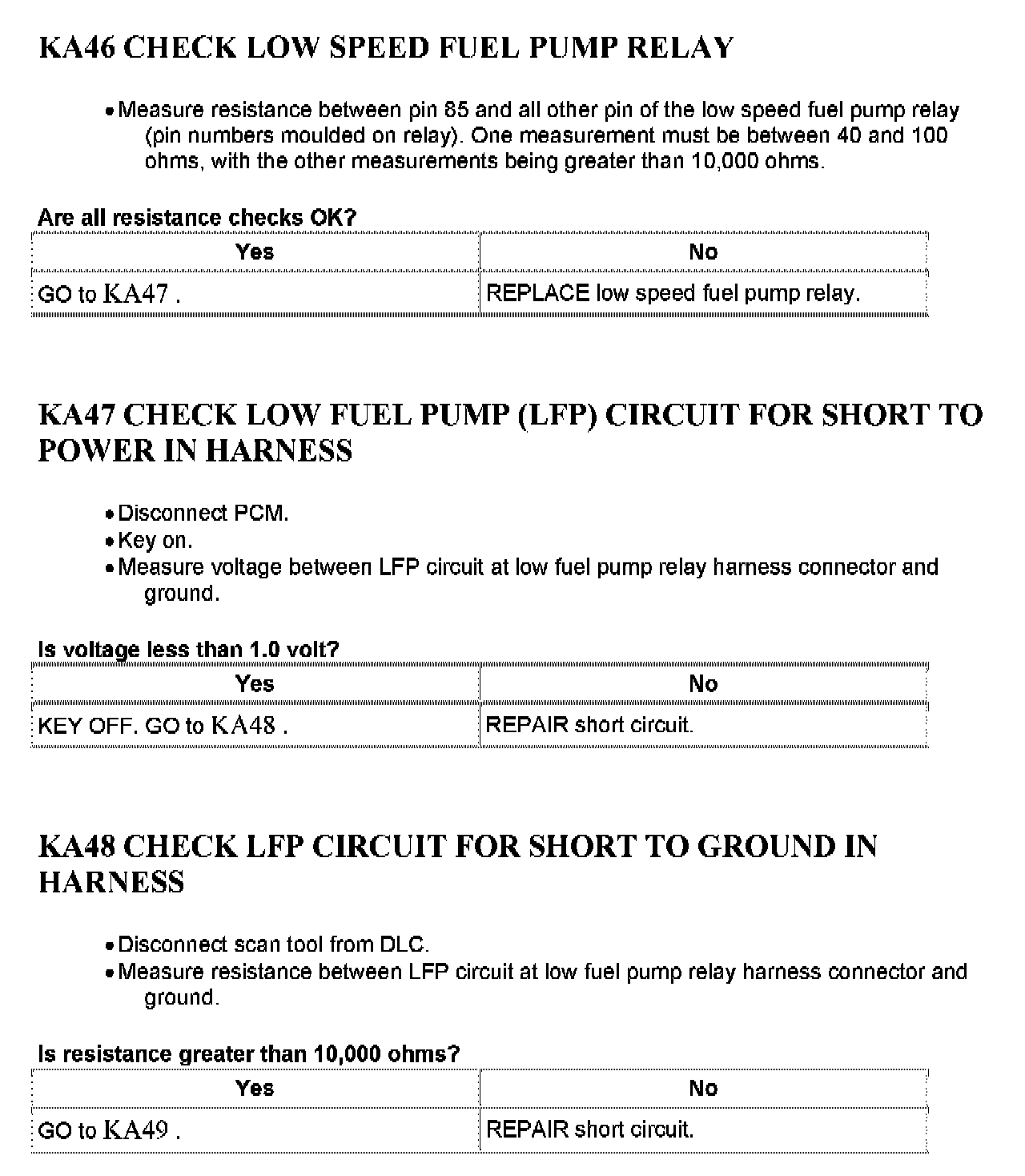

KA46 - KA48:
KA49 - KA55:

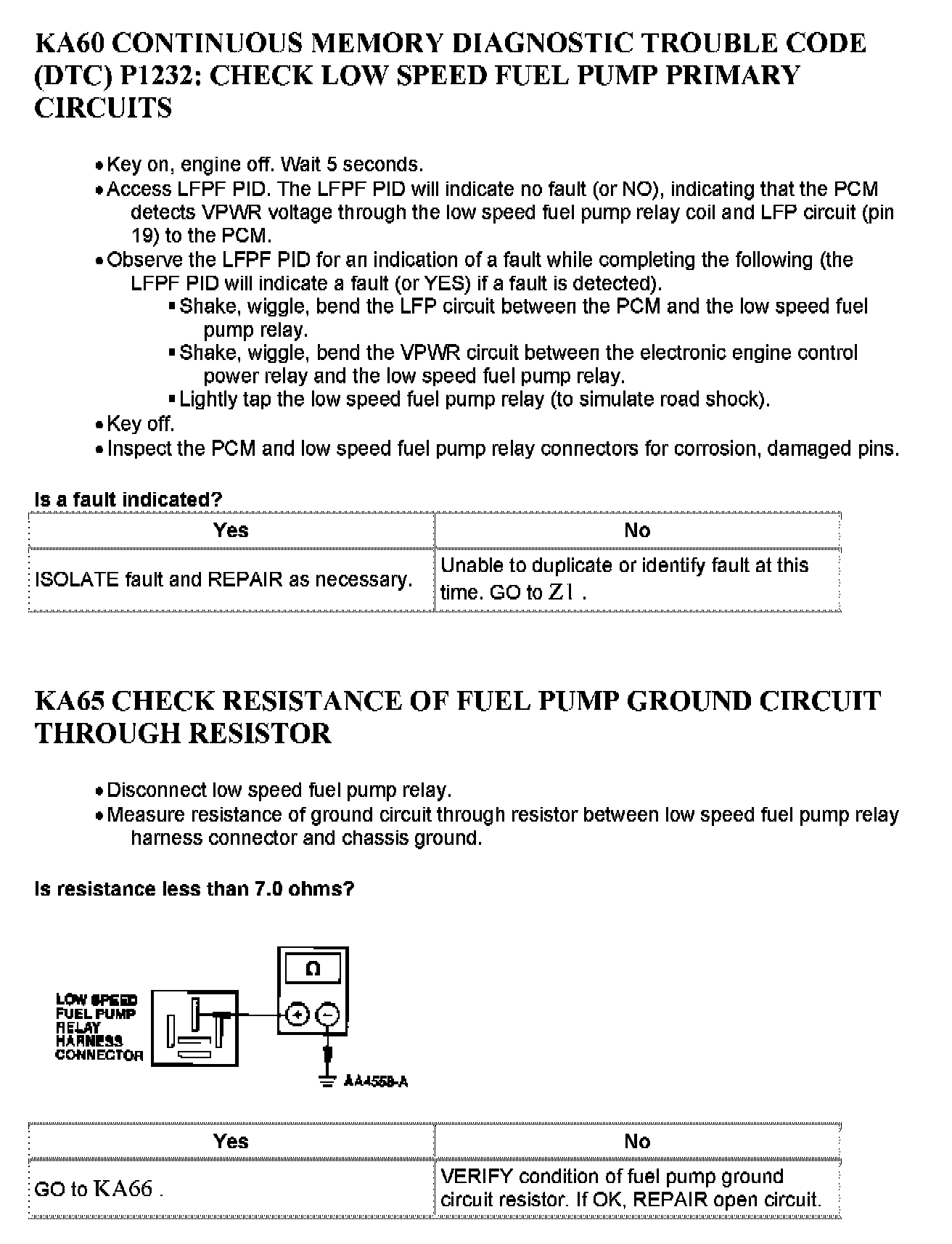

KA60 - KA65:

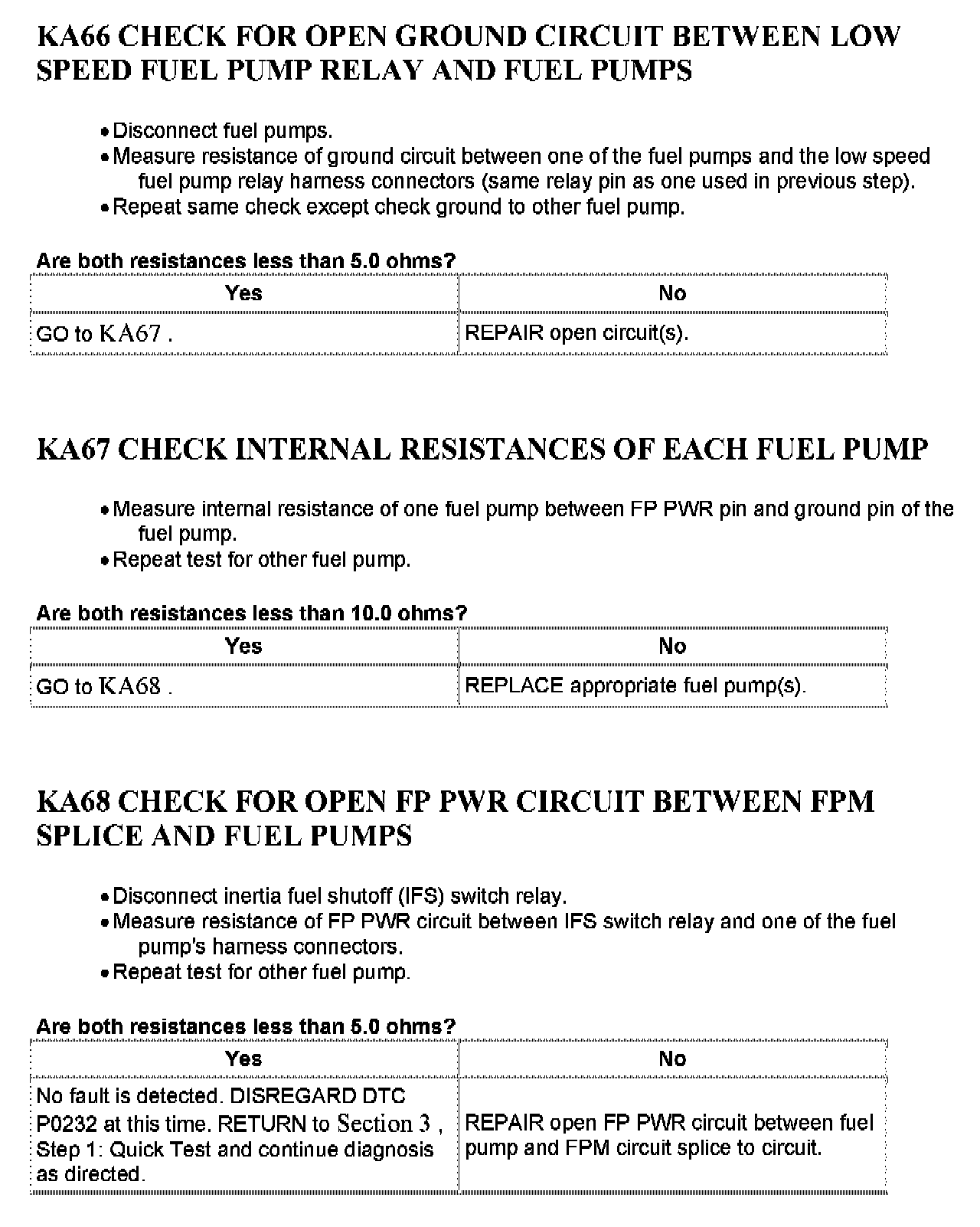

KA66 - KA68:

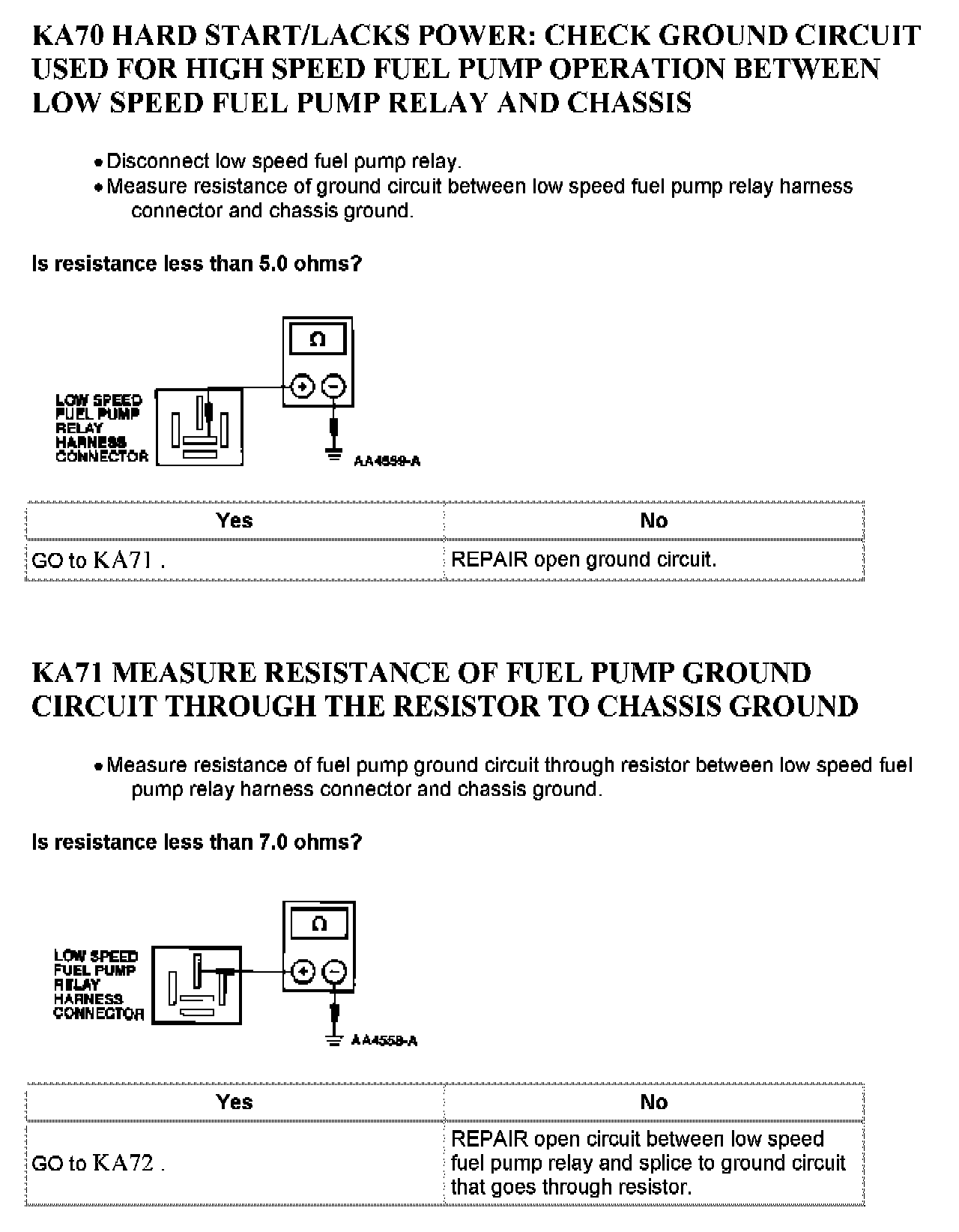

KA70 - KA71:

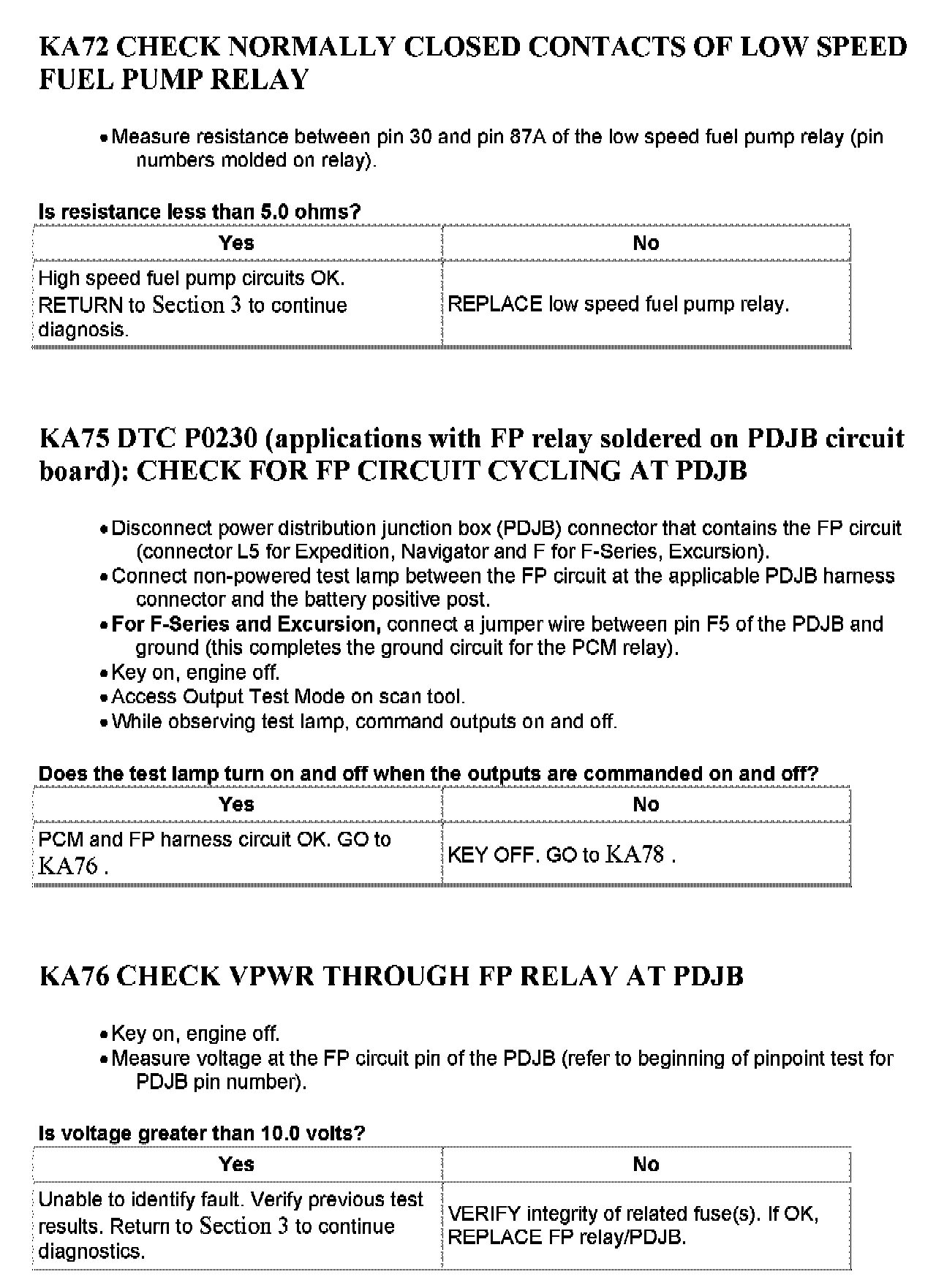

KA72 - KA76:

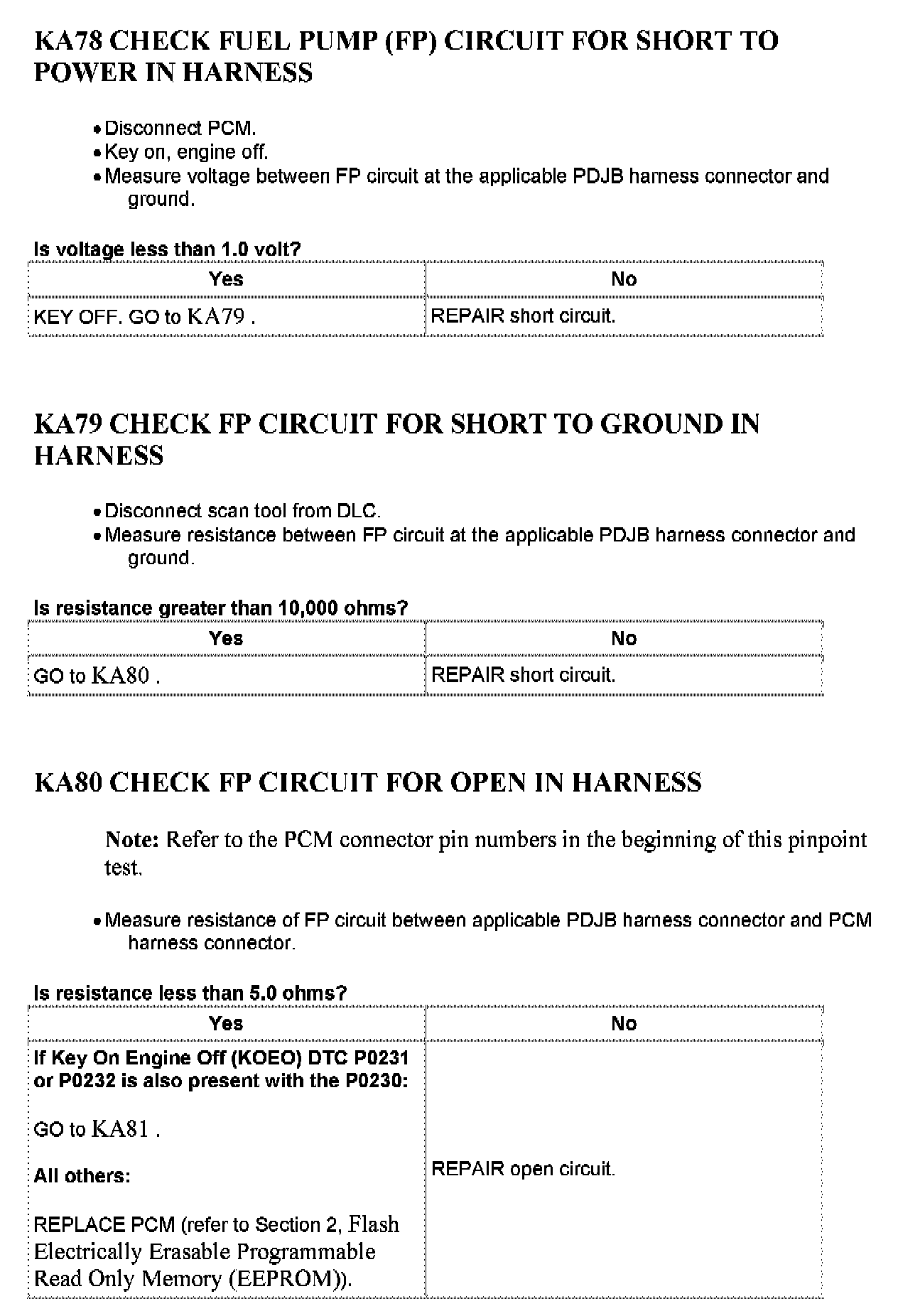

KA78 - KA80:

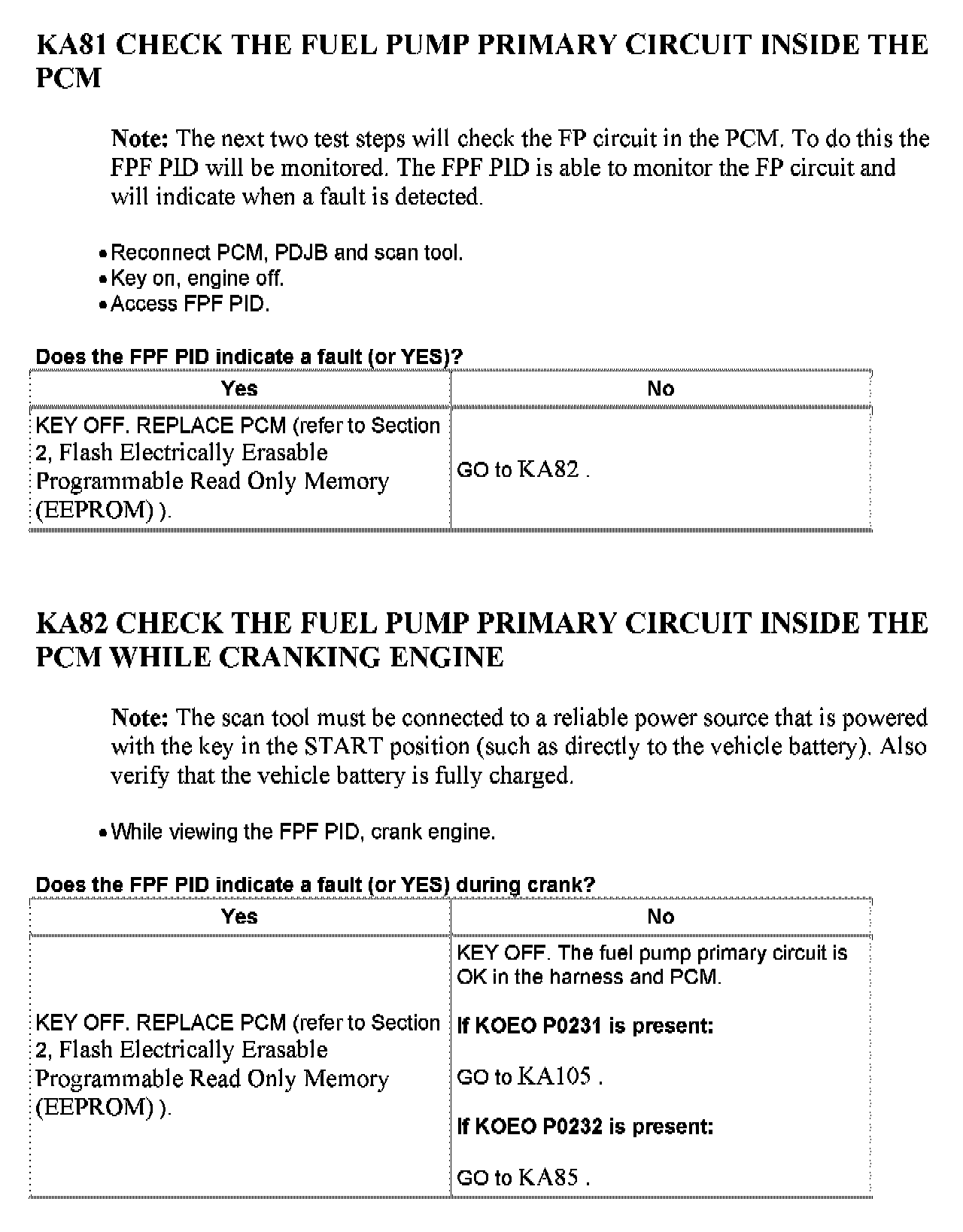

KA81 - KA82:

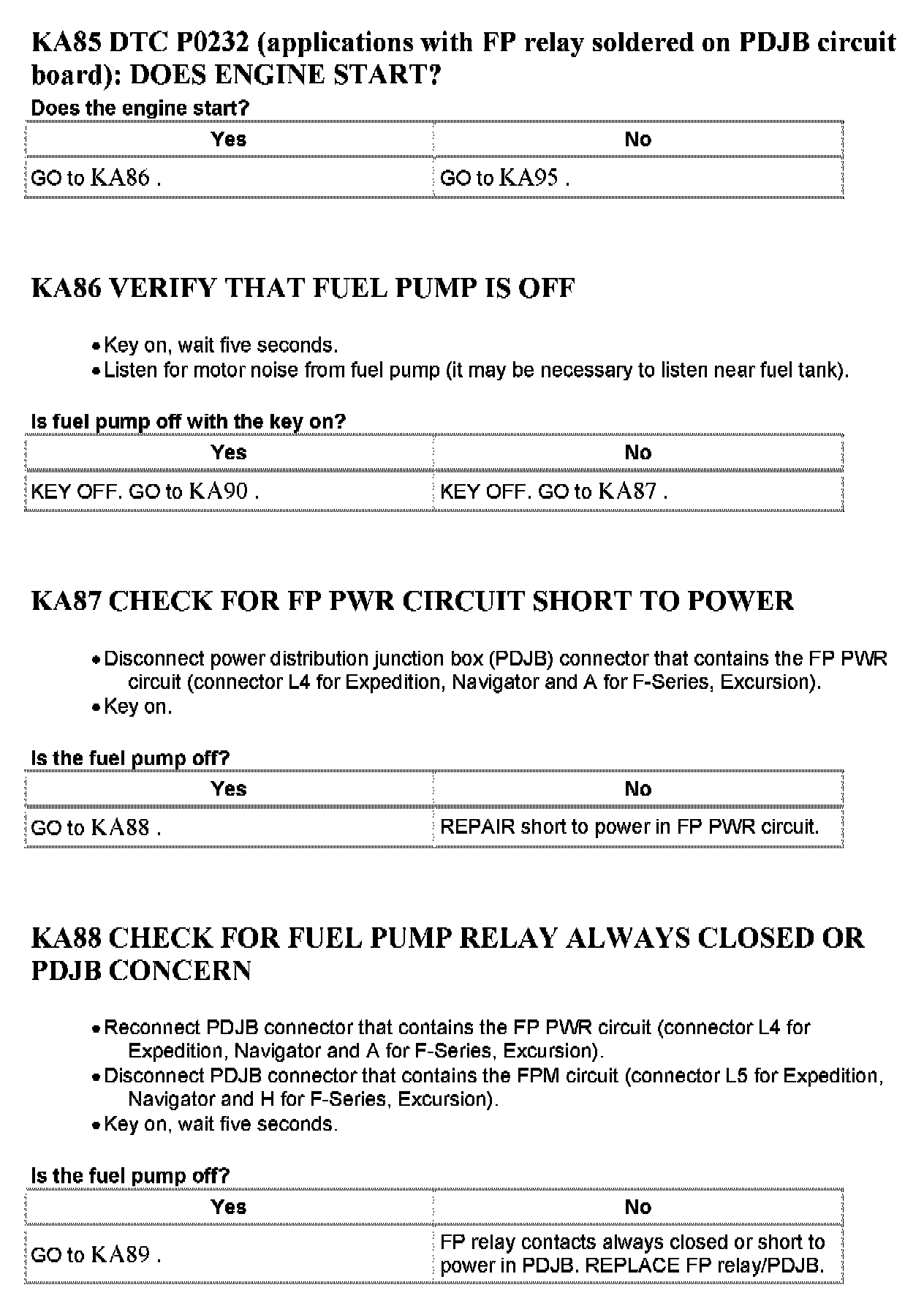

KA85 - KA88:

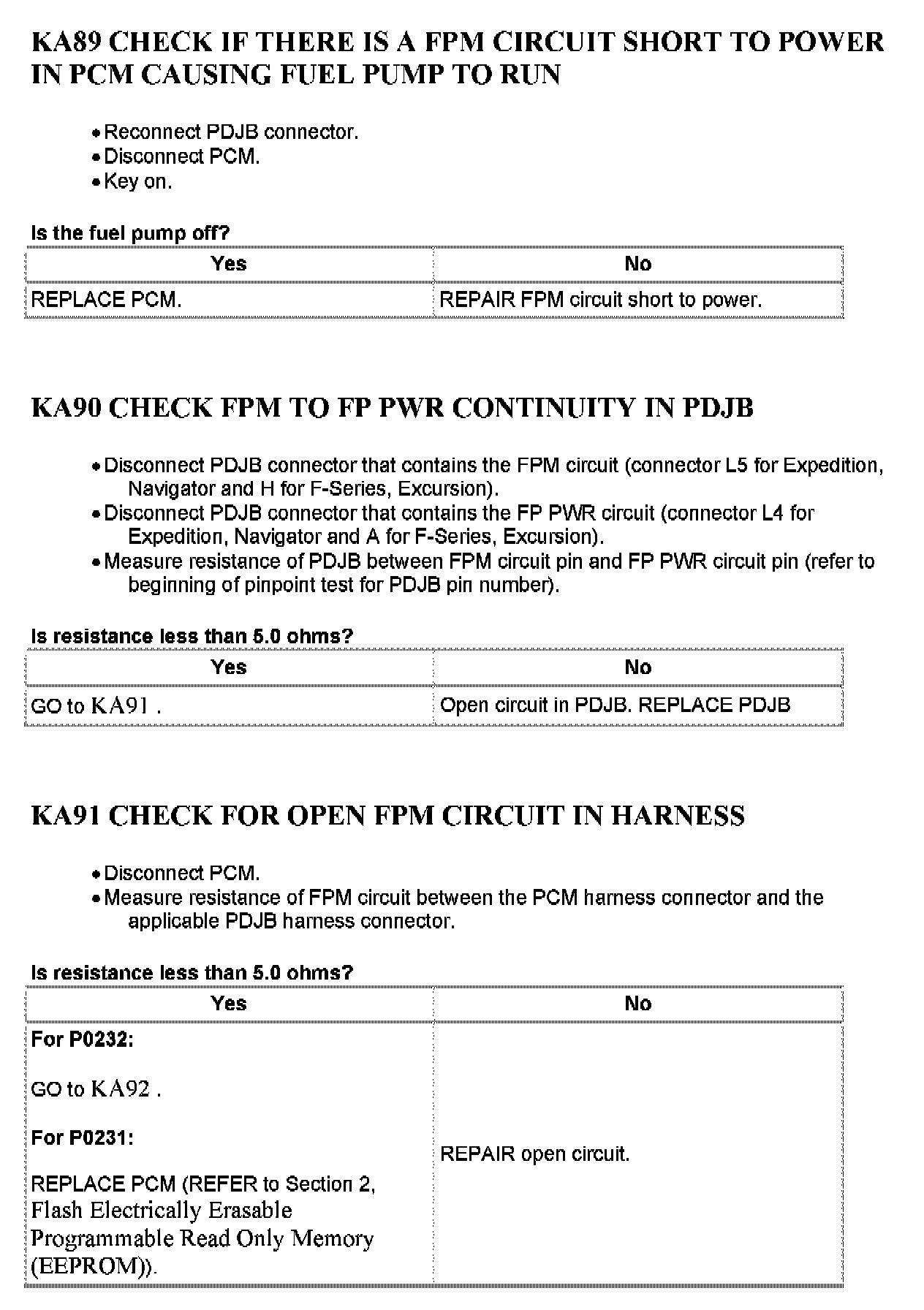

KA89 - KA91:

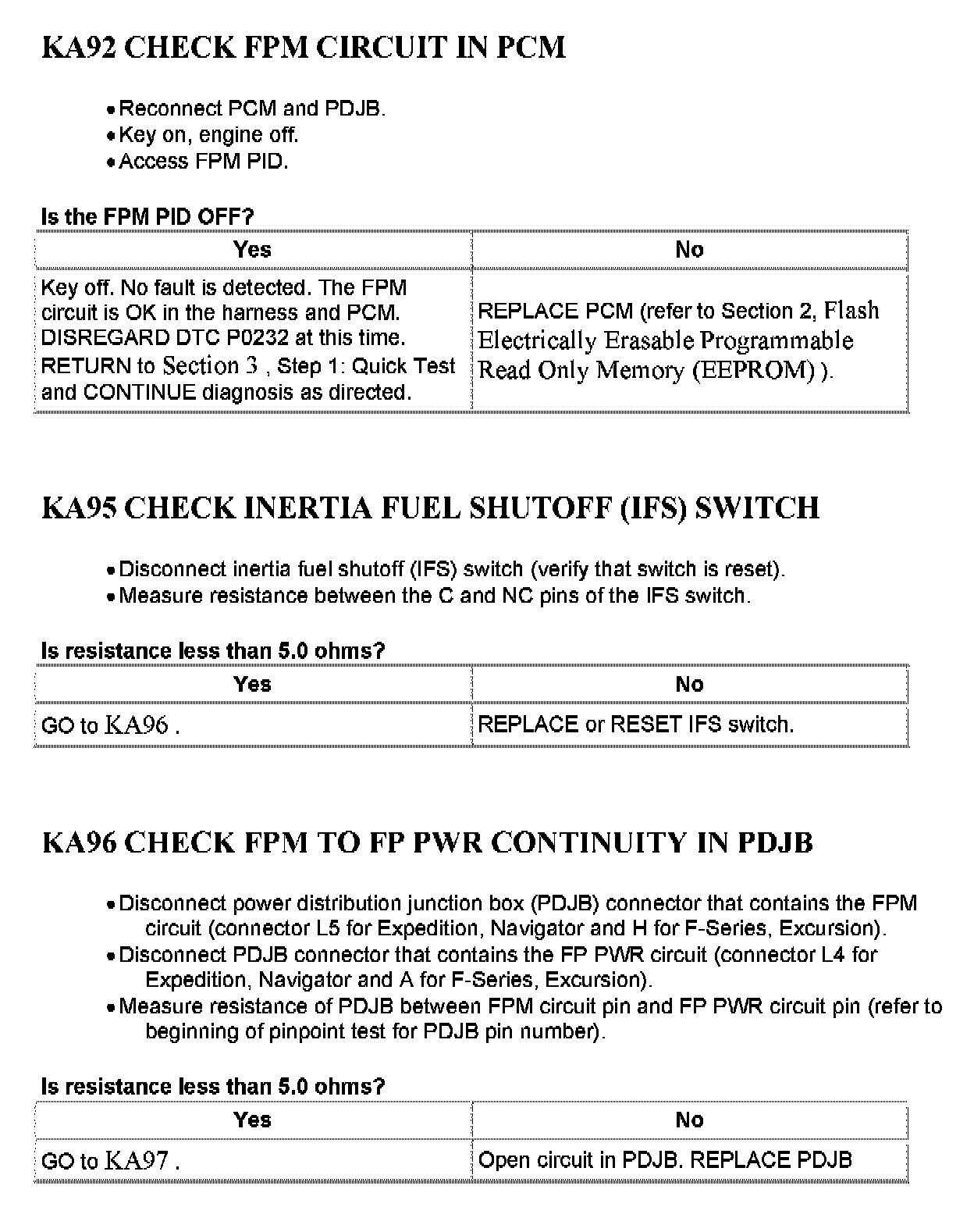

KA92 - KA96:

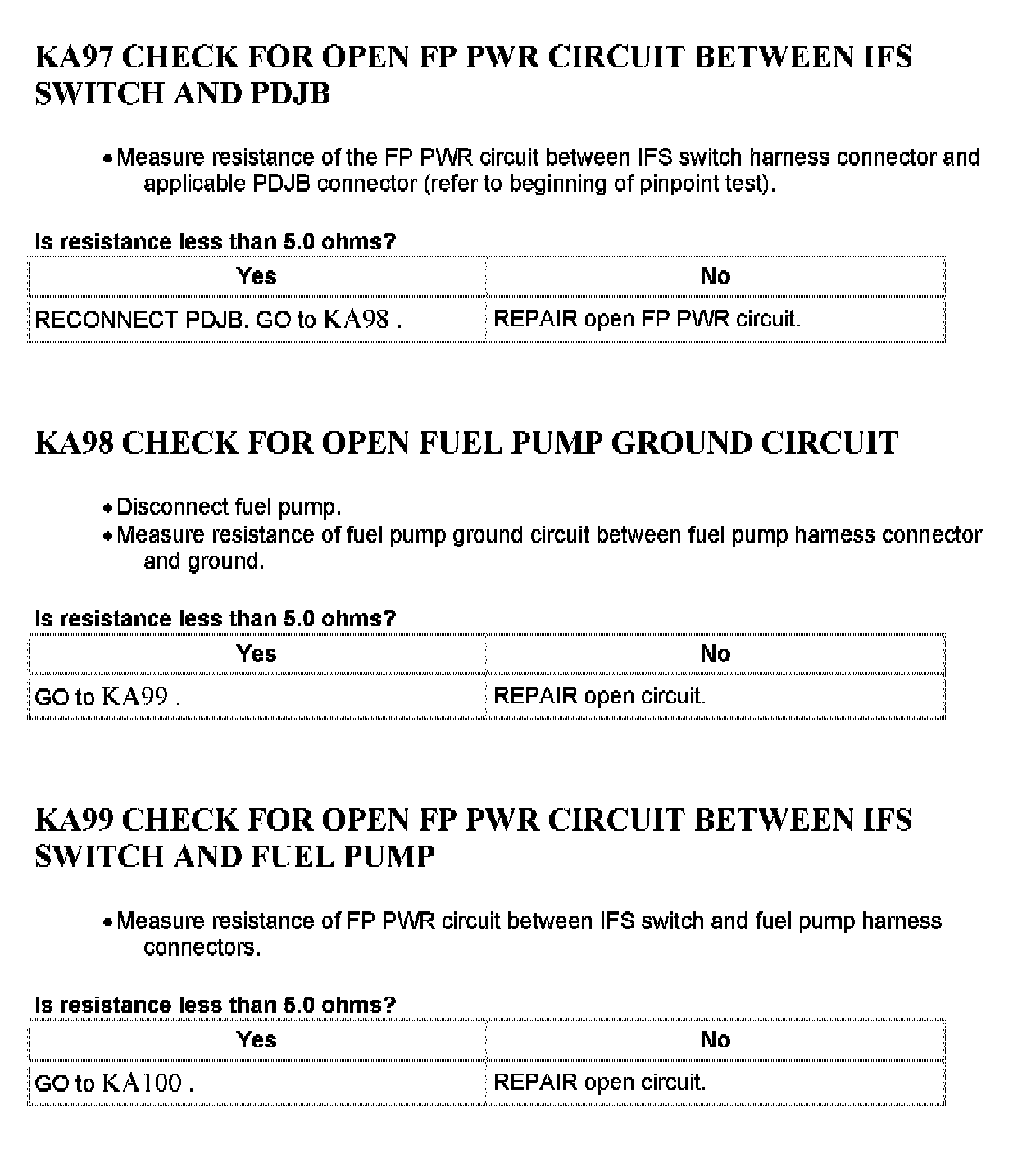

KA97 - KA99:

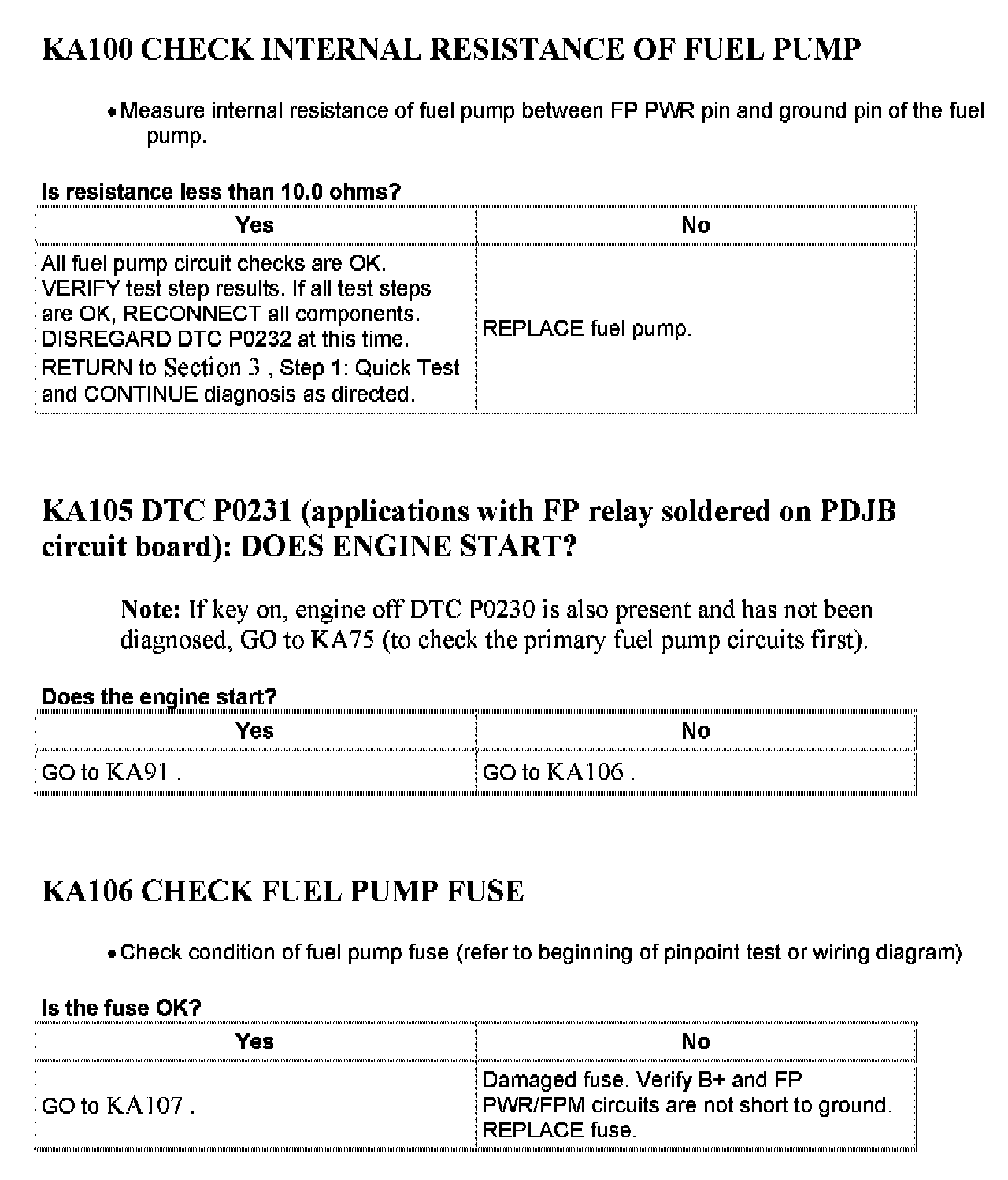

KA100 - KA106:

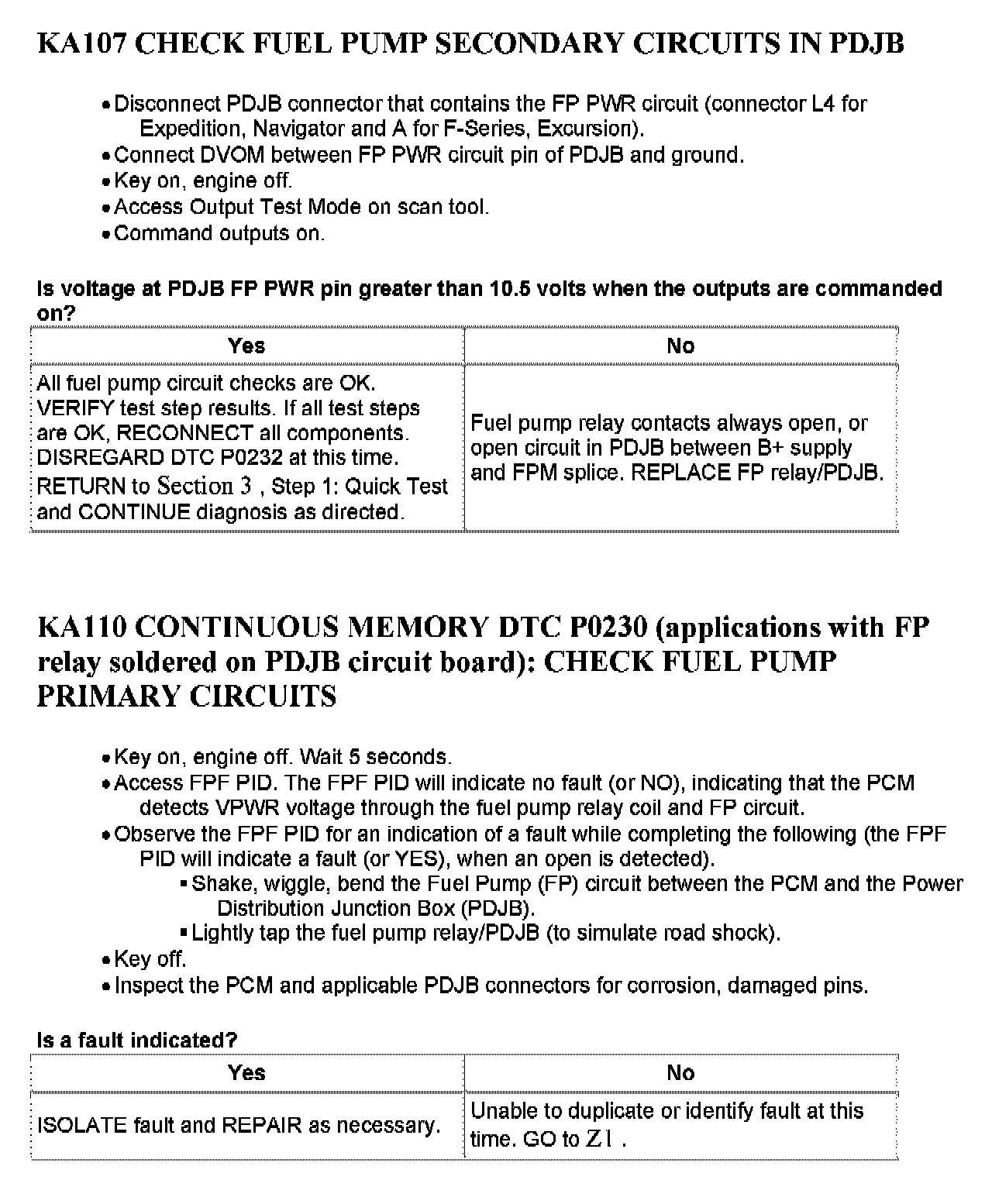

KA107 - KA110:
KA115:

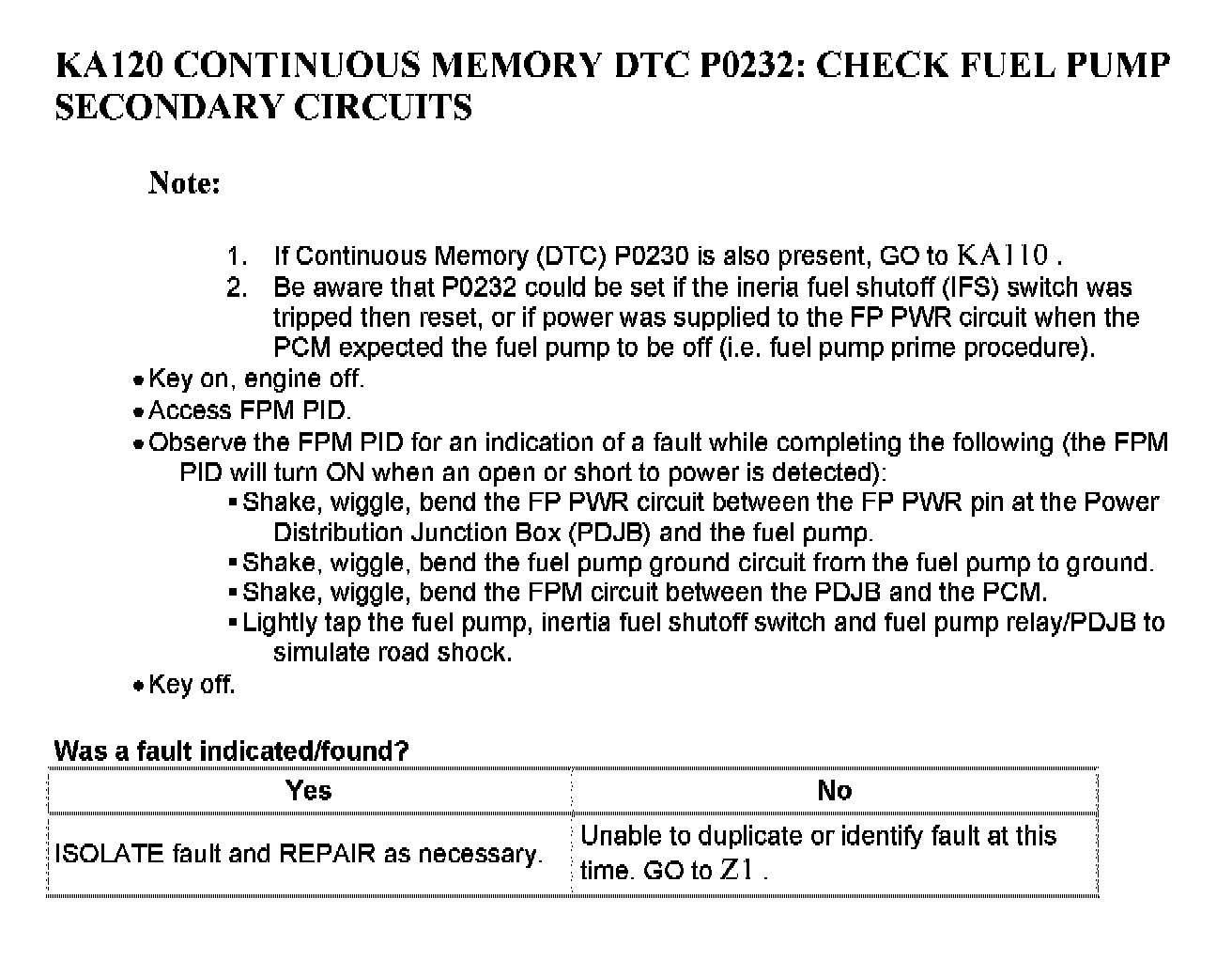

KA120:
