Tests DP: Vehicle Speed Sensor/Transfer Case Speed Sensor



DP INTRODUCTION 1 OF 2:





DP INTRODUCTION 2 OF 2:

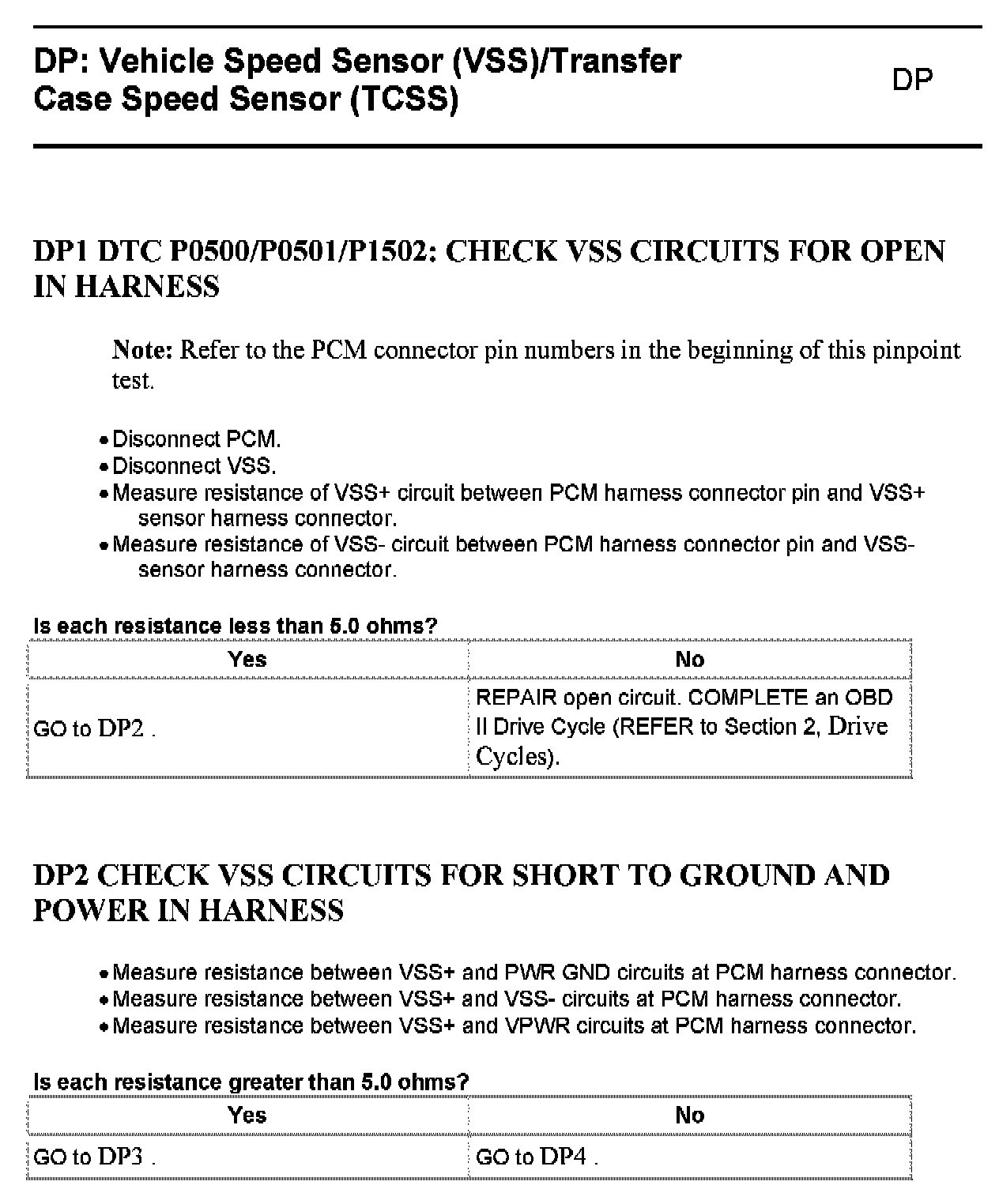

DP1 - DP2:

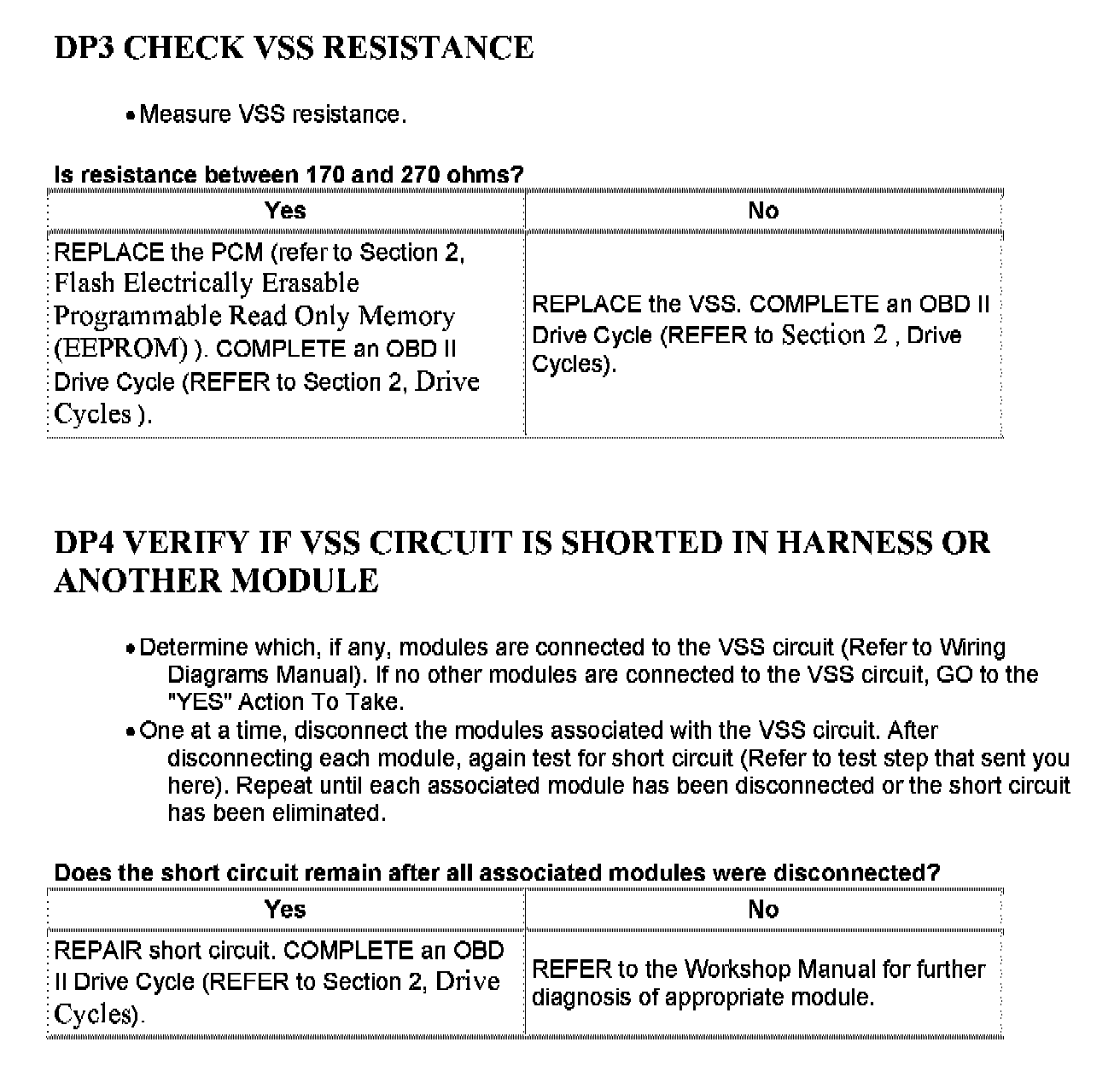

DP3 - DP4:

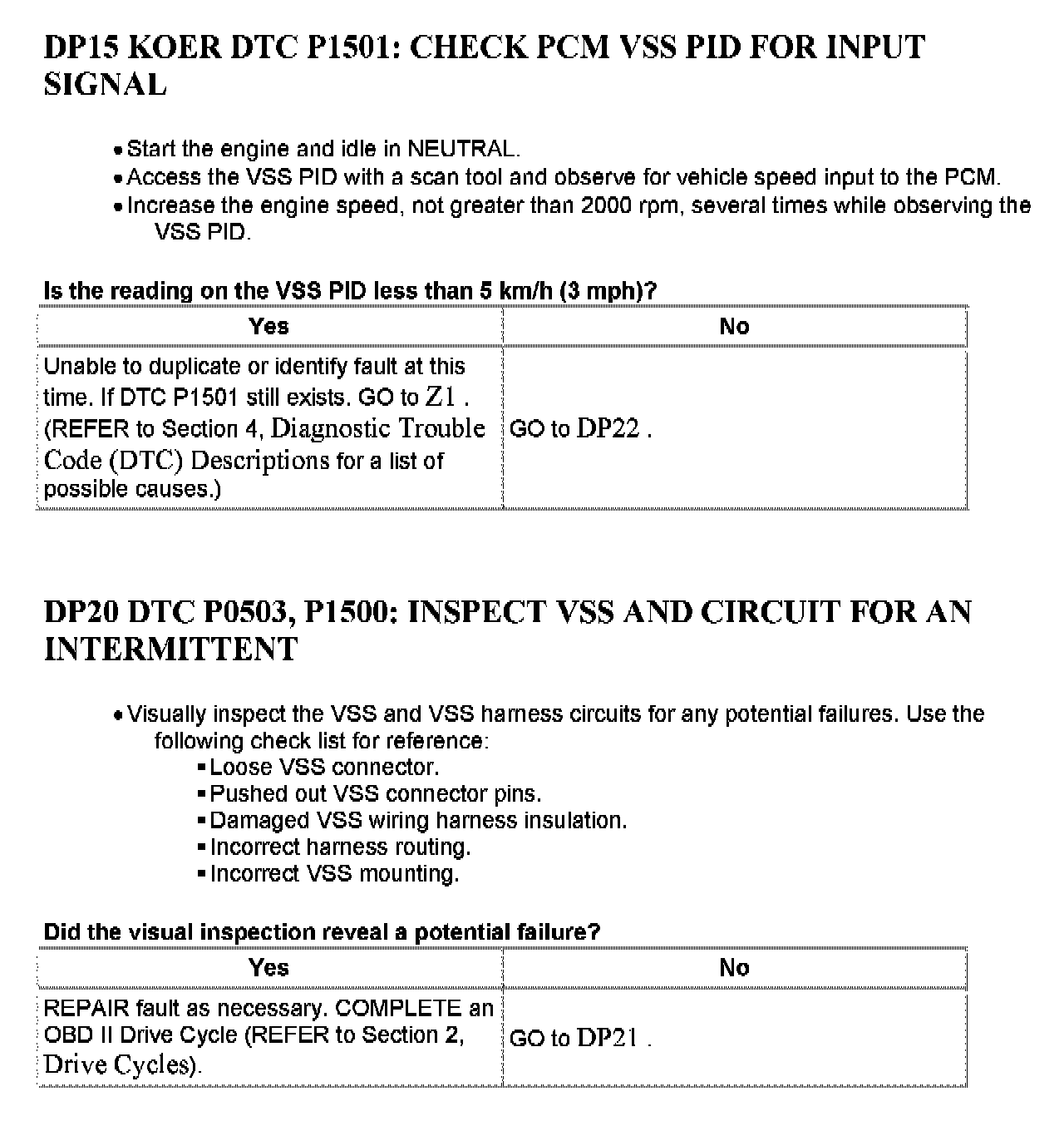

DP15 - DP20:

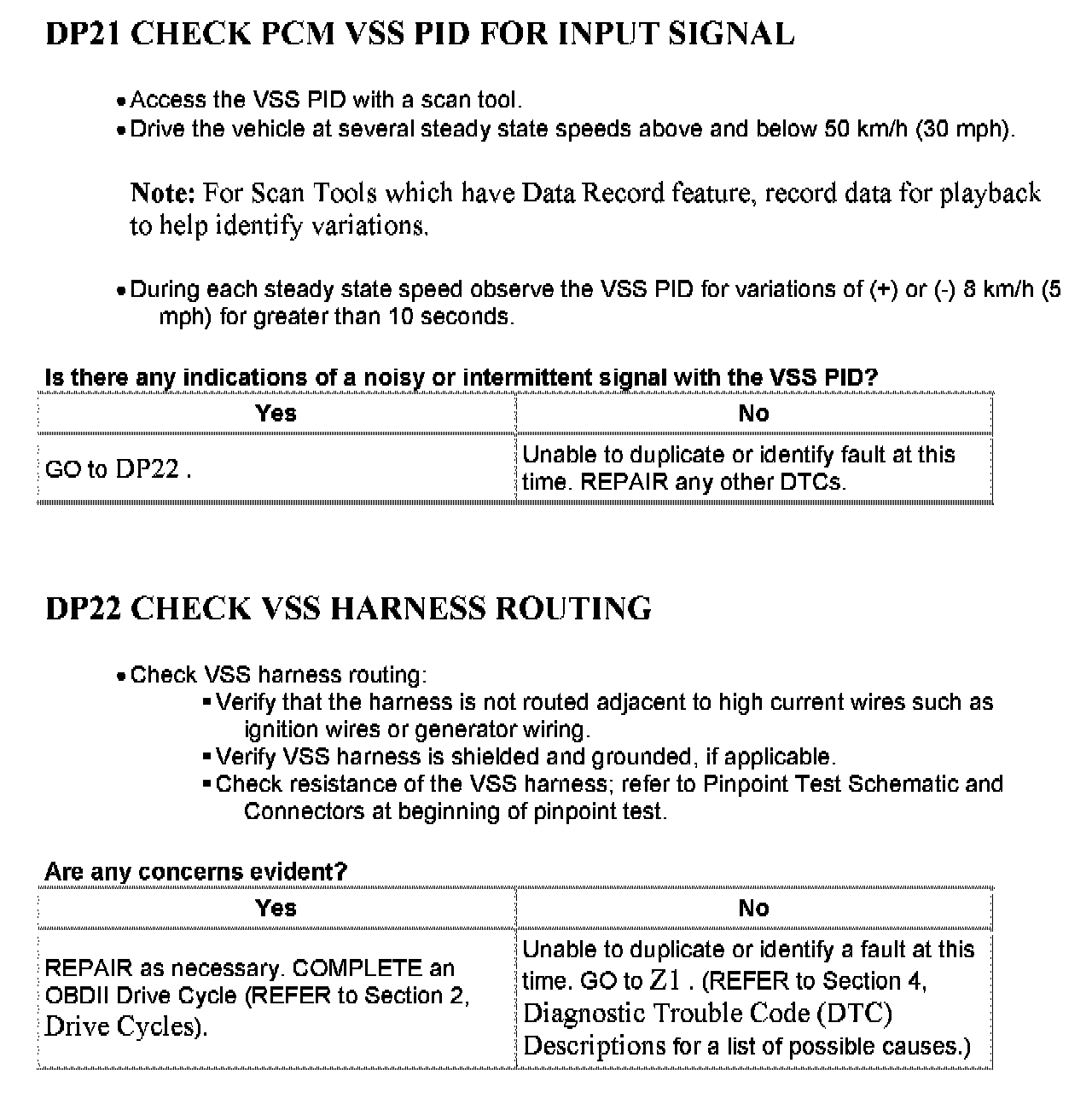

DP21 - DP22:

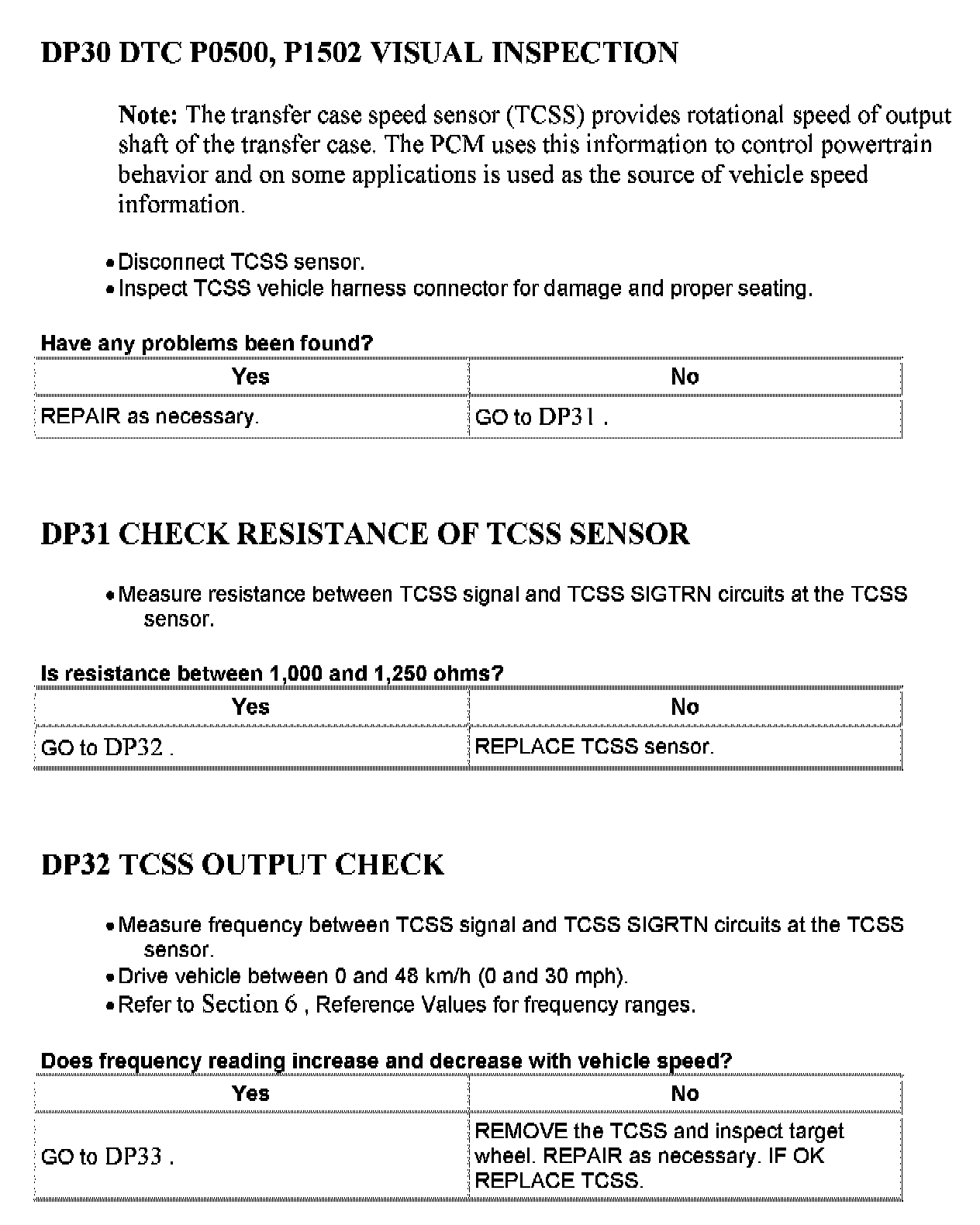

DP30 - DP32:

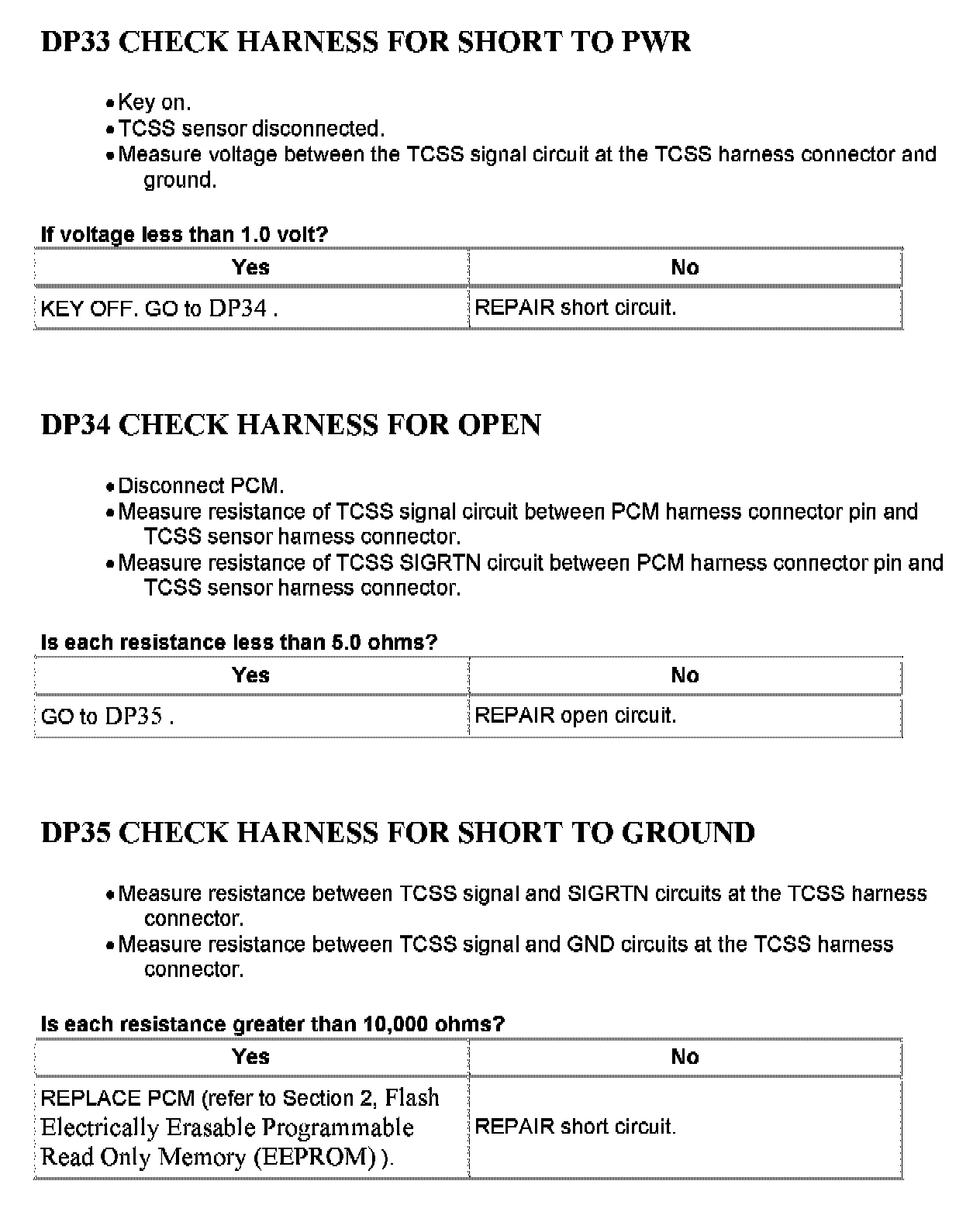

DP33 - DP35:
