G5M, M50D-R1 & M50D-R2

Remove drain plug. See Fig 1 and Fig 2 . After fluid has drained, reinstall drain plug and tighten to specification. See TORQUE SPECIFICATIONS . Remove LH splash shield. Remove fill plug. See Fig 3 and Fig 4 . Fill transmission with appropriate fluid until level with fill hole. See RECOMMENDED FLUIDS . Install fill plug and tighten to specification. See TORQUE SPECIFICATIONS . Install LH splash shield.

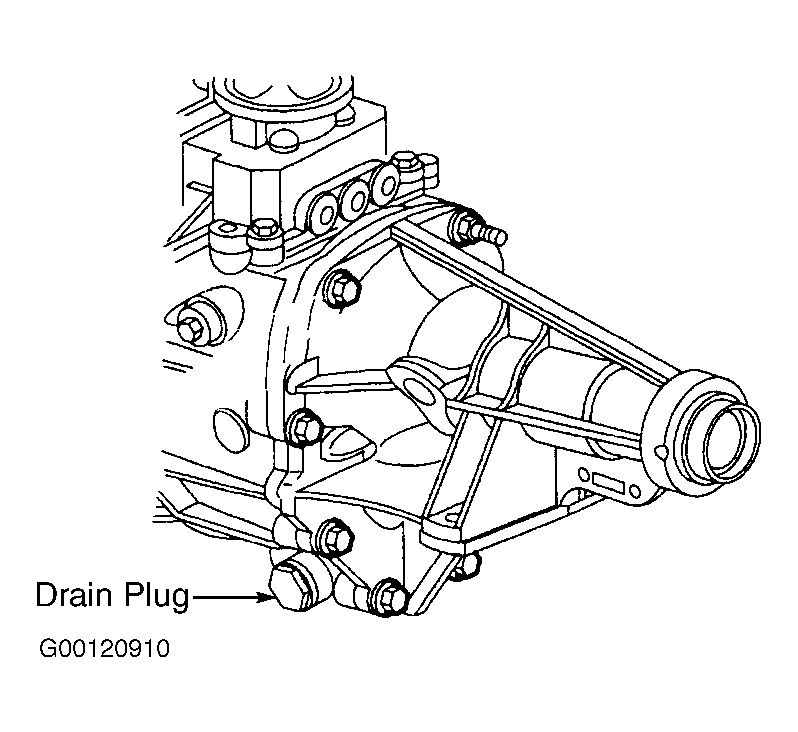

Fig 1: Identifying G5M Transmission Drain Plug Location

Courtesy of FORD MOTOR CO.

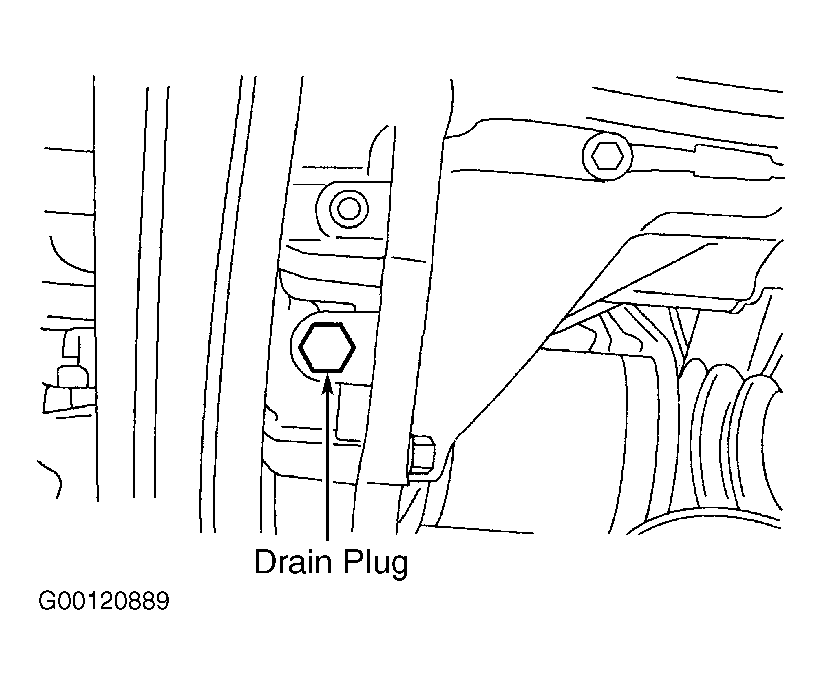

Fig 2: Identifying M50D-R1 Transmission Drain Plug Location

Courtesy of FORD MOTOR CO.

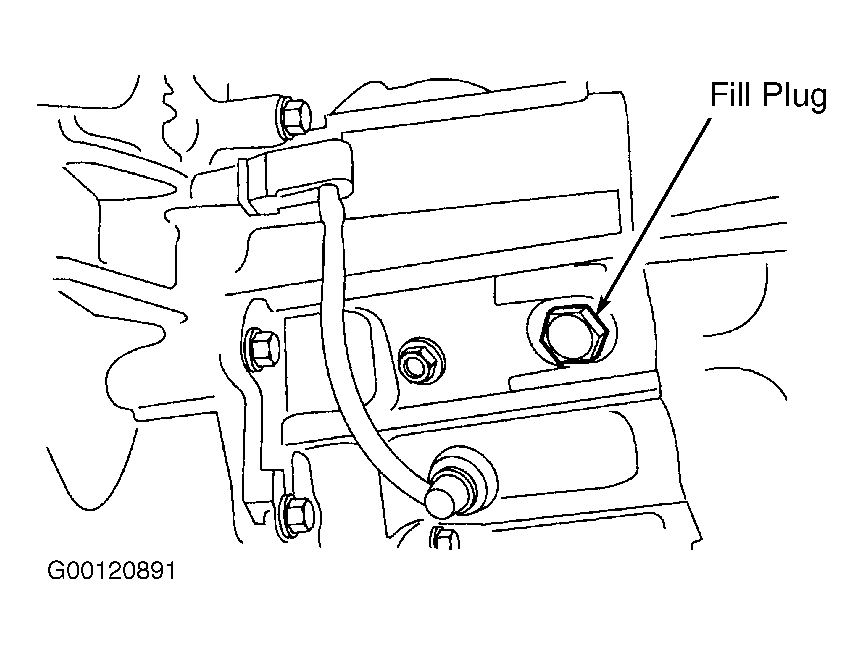

Fig 3: Identifying G5M Transmission Fill Plug Location (RWD)

Courtesy of FORD MOTOR CO.

Fig 4: Identifying G5M Transmission Fill Plug Location (4WD)

Courtesy of FORD MOTOR CO.
