Pinpoint Test F: The Yellow Abs Warning Indicator Does Not Self-Check

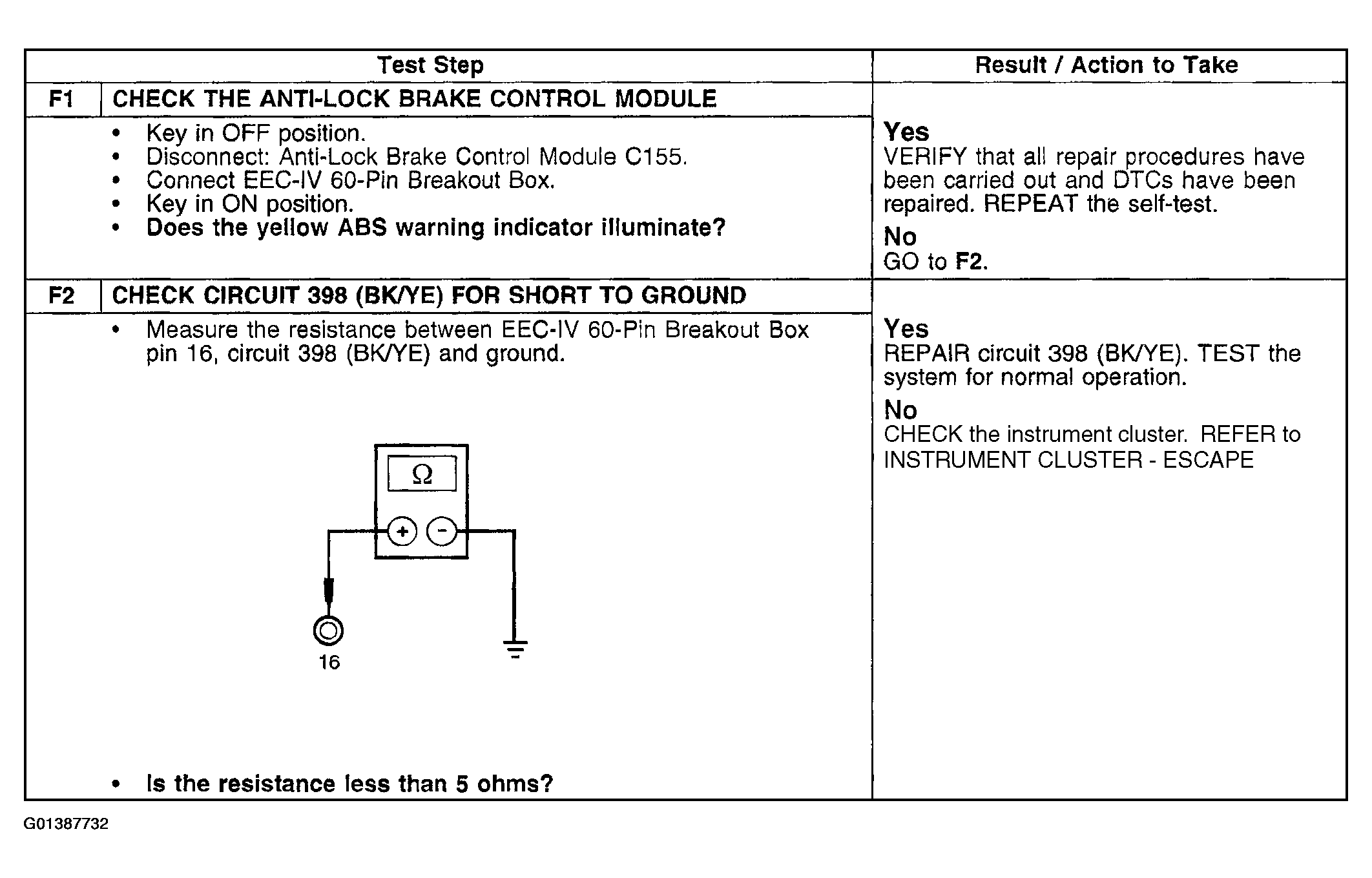

Fig 1: Pinpoint Test F: Yellow ABS Warning Indicator Does Not Self-Check
Courtesy of FORD MOTOR CO.
