Test G

PINPOINT TEST G: NO MODULE/NETWORK COMMUNICATION - SCP NETWORK


Test G1:

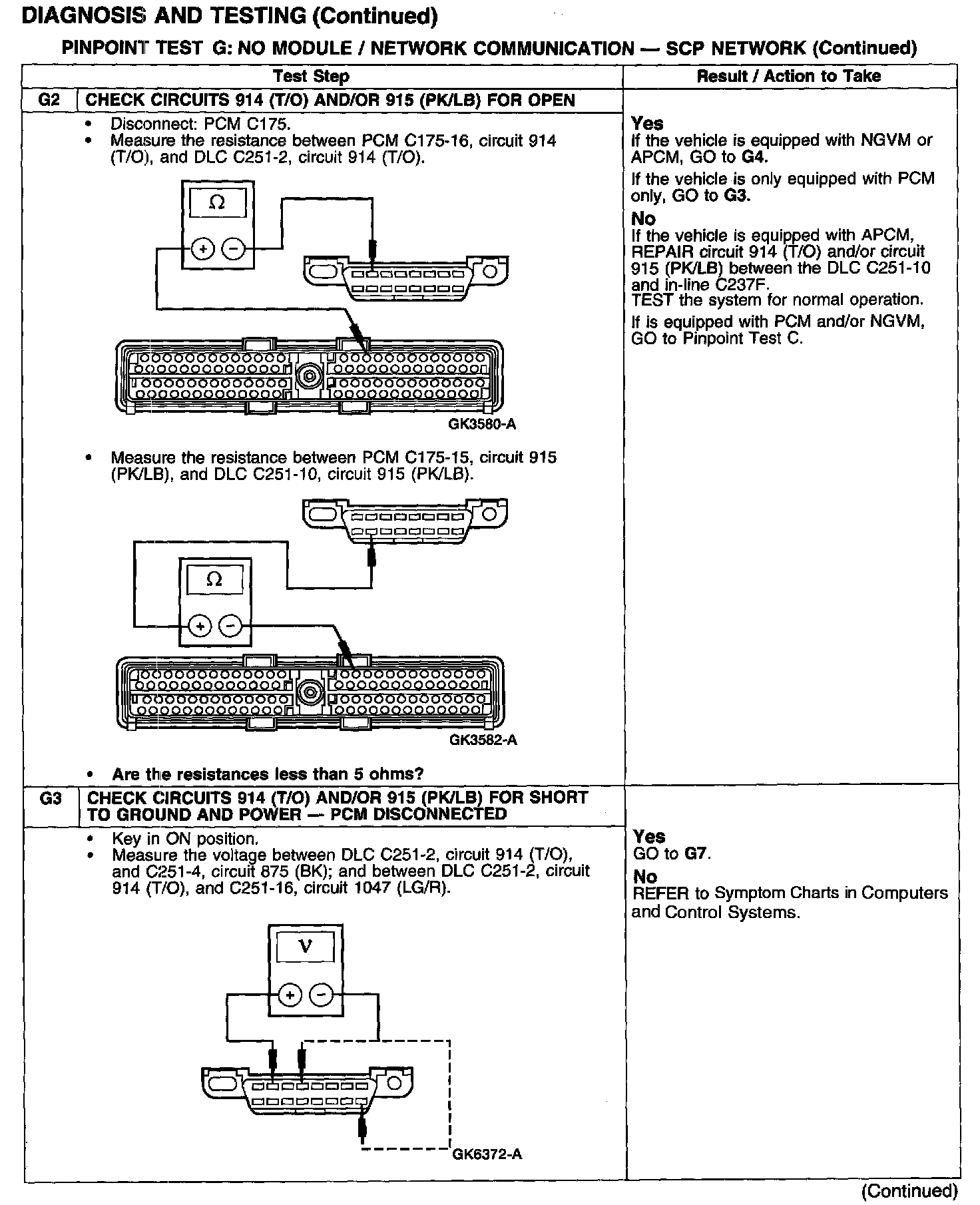

Test G2-G3:

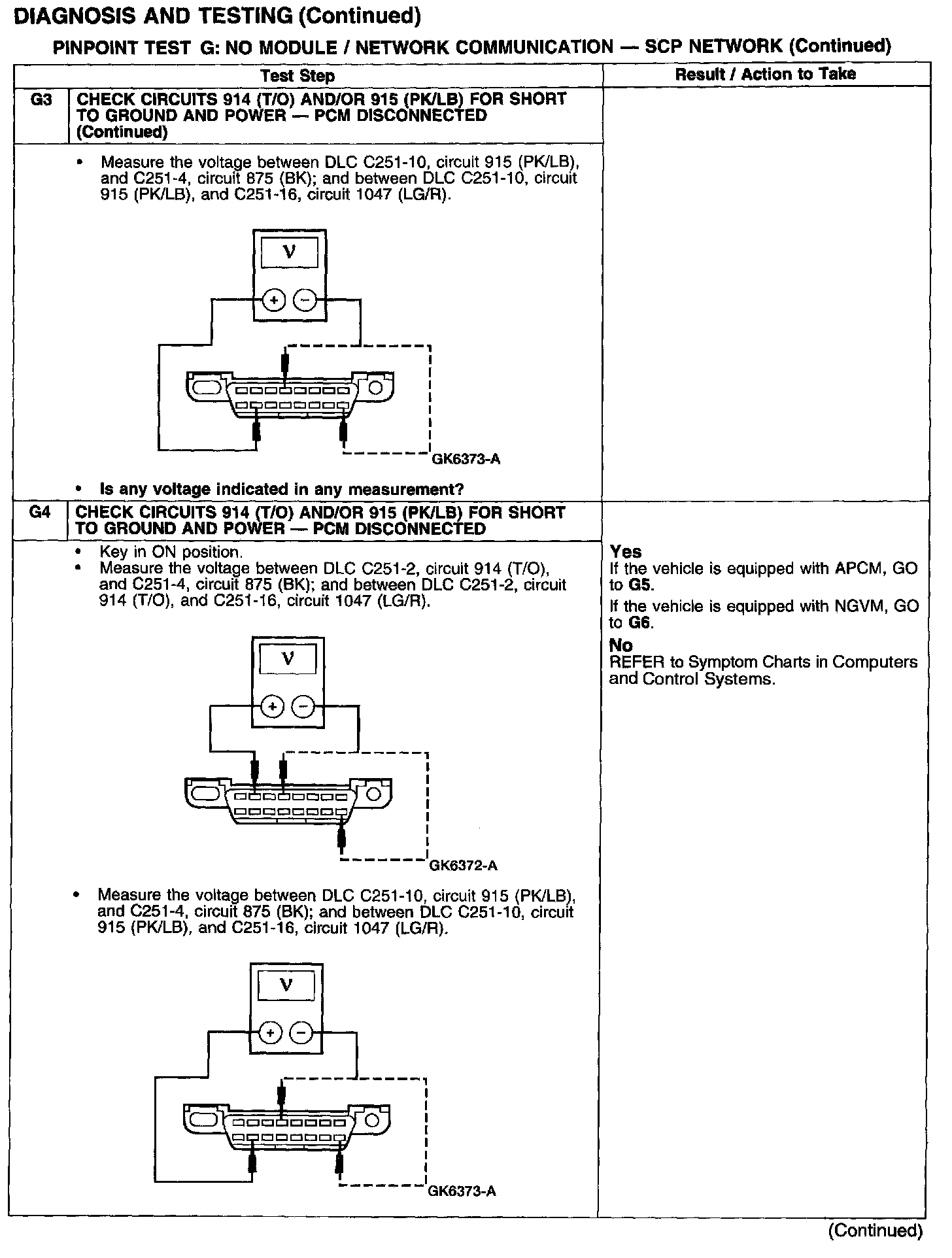

Test G3-G4:

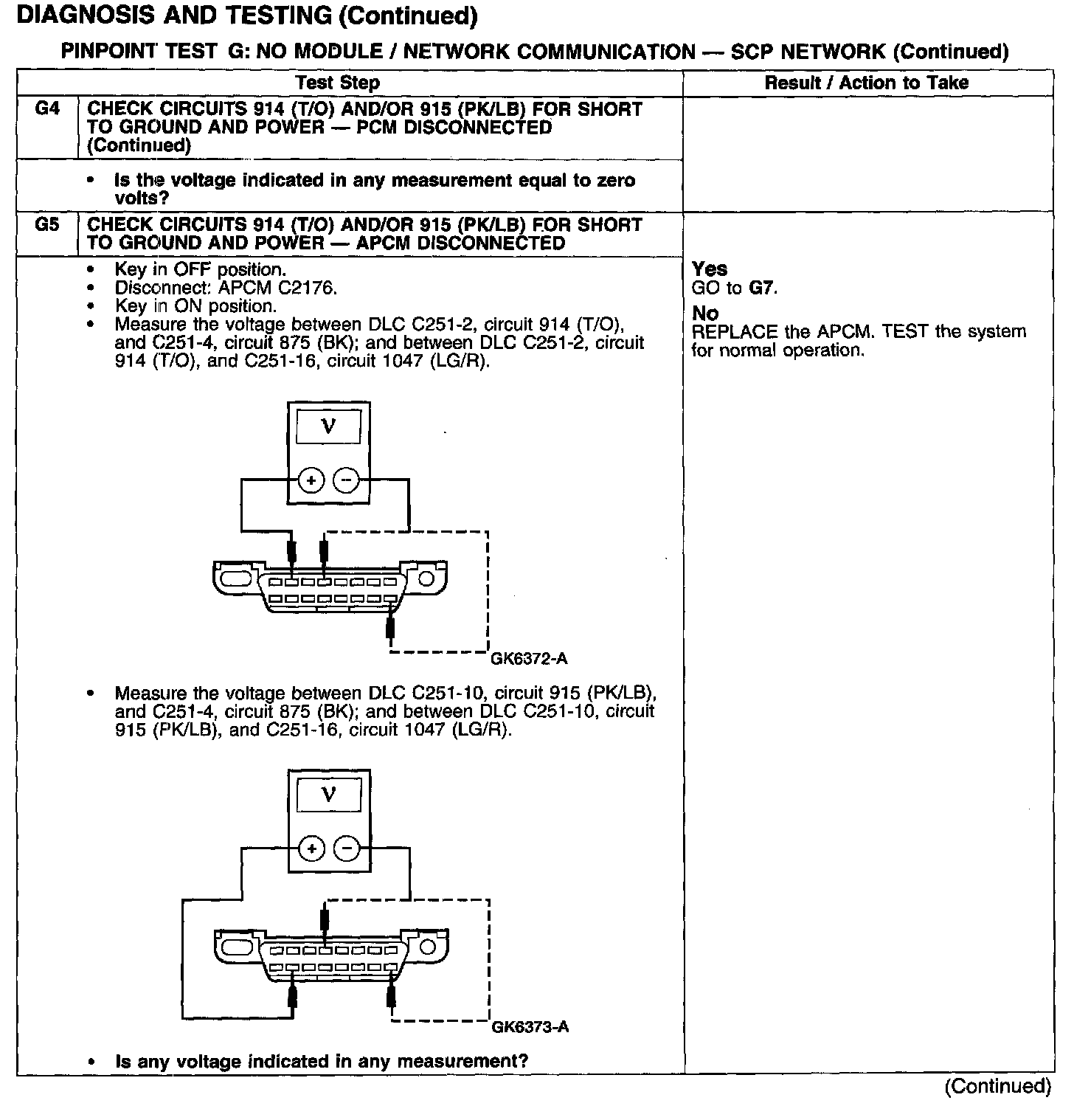

Test G4-G5:

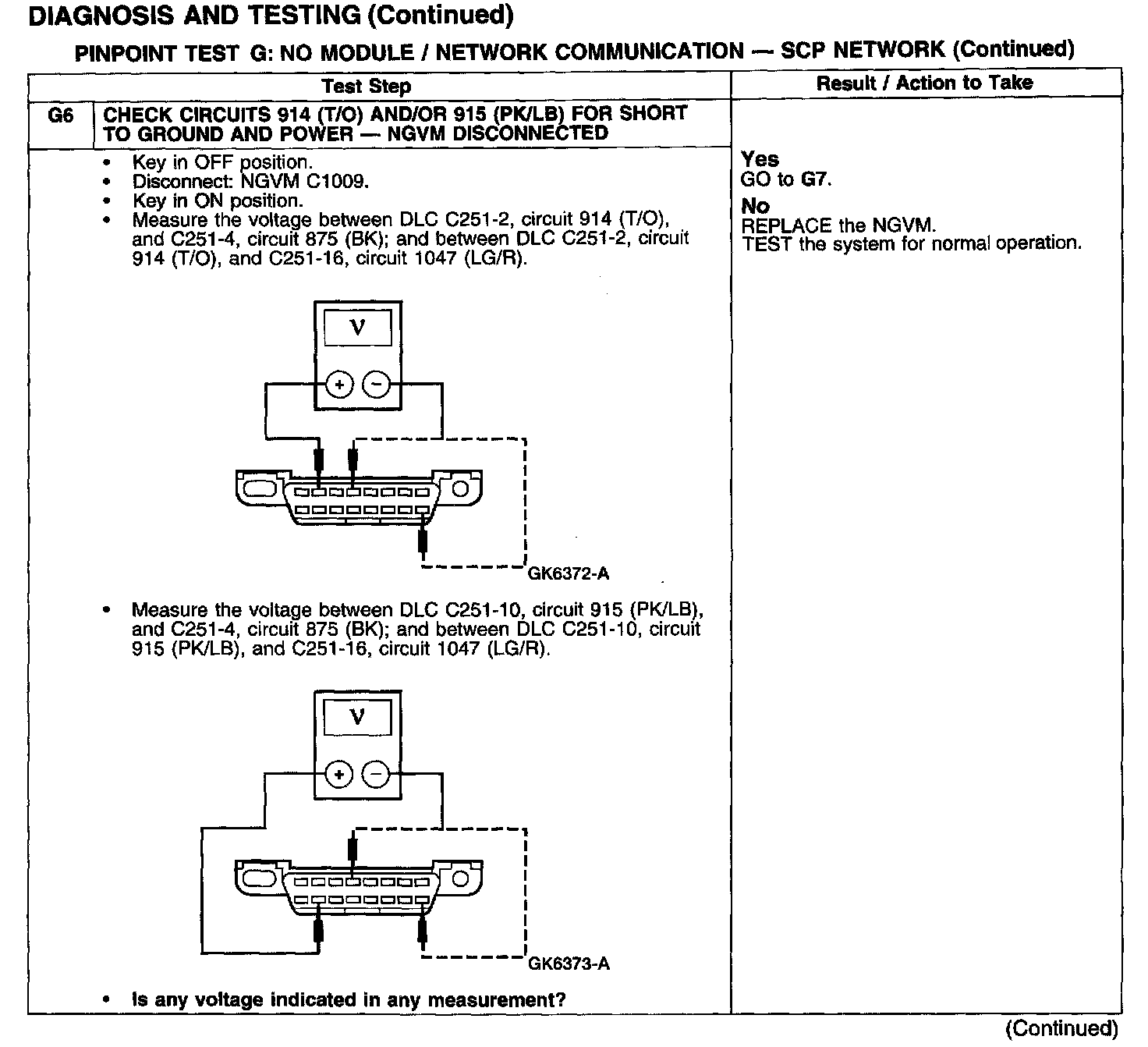

Test G6:

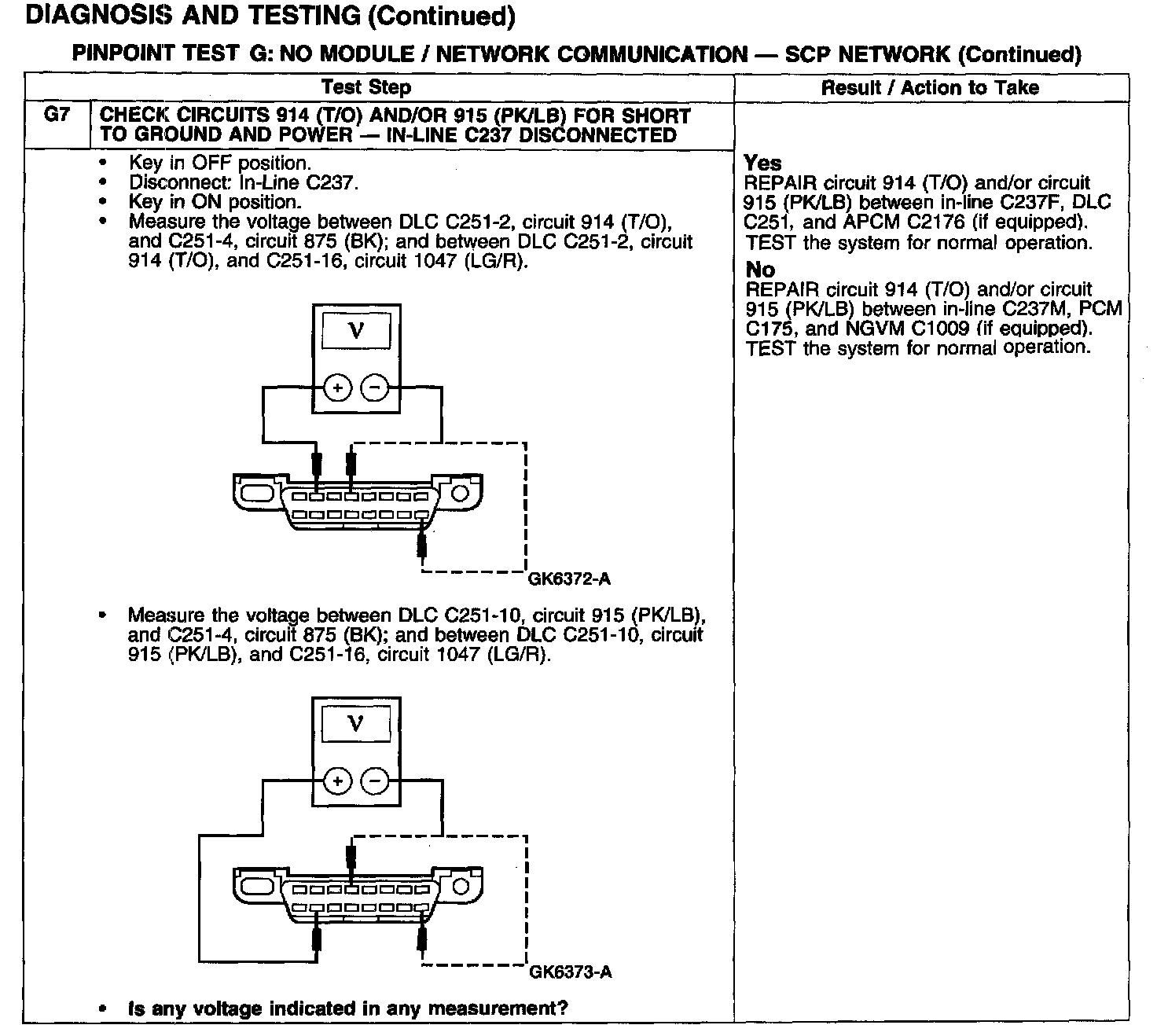

Test G7:
