Test F
PINPOINT TEST F: NO MODULE/NETWORK COMMUNICATION - ISO 9141 NETWORK
Test F1:

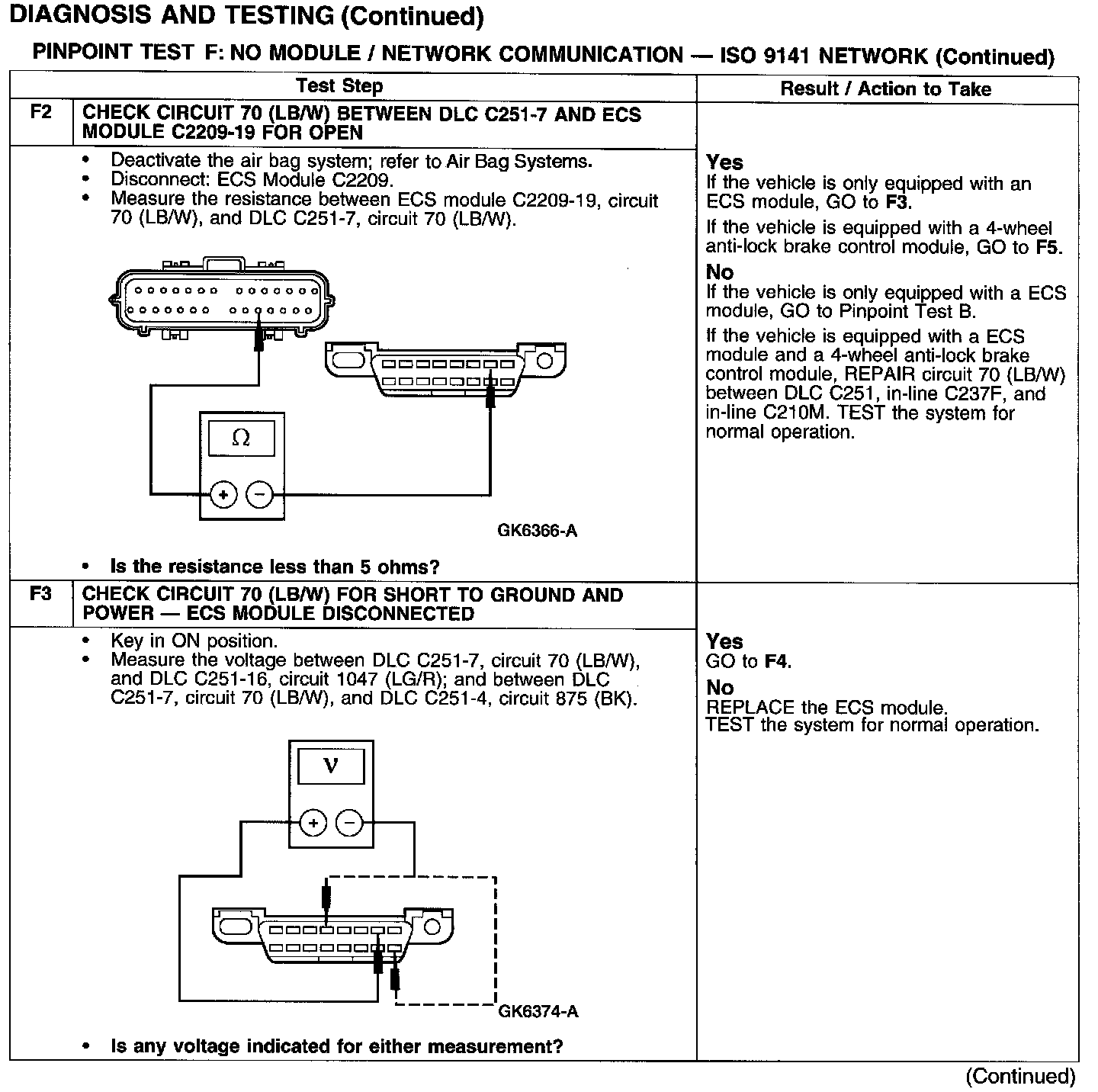

Test F2-F3:

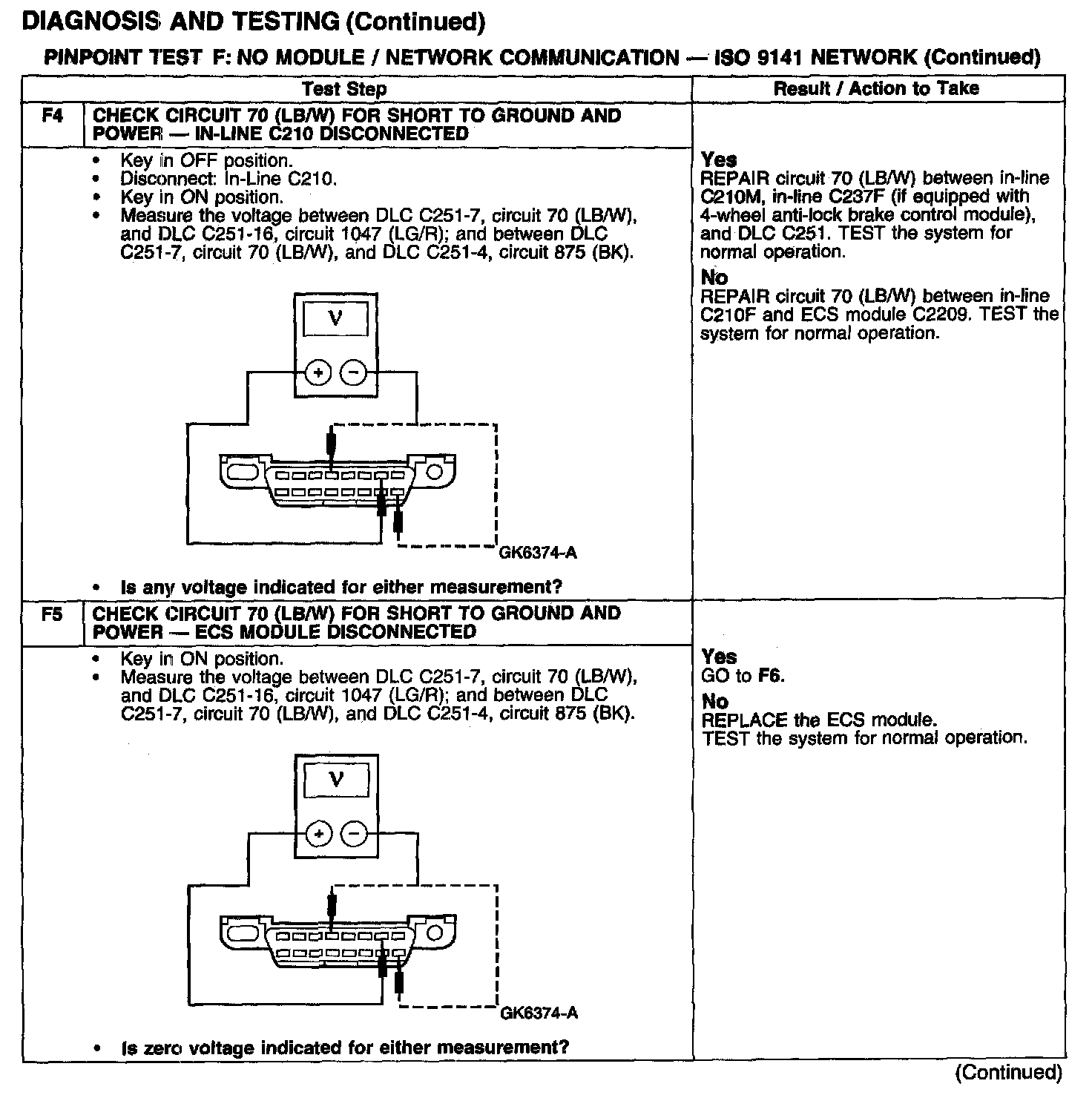

Test F4-F5:

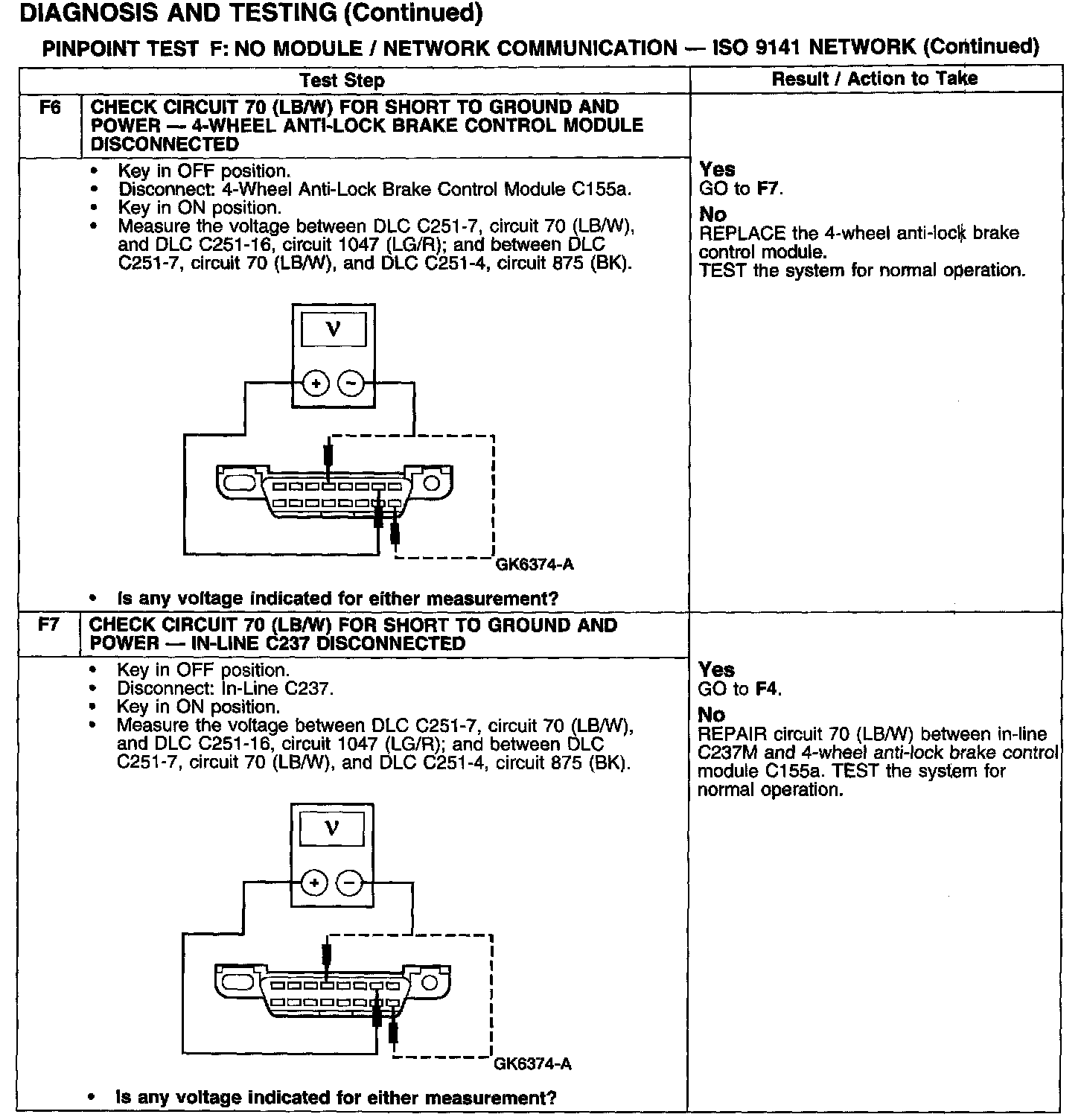

Test F6-F7:
