Test D

PINPOINT TEST D: THE MODULE DOES NOT RESPOND TO THE DIAGNOSTIC TOOL - AUXILIARY POWERTRAIN CONTROL MODULE (APCM)


Test D1:

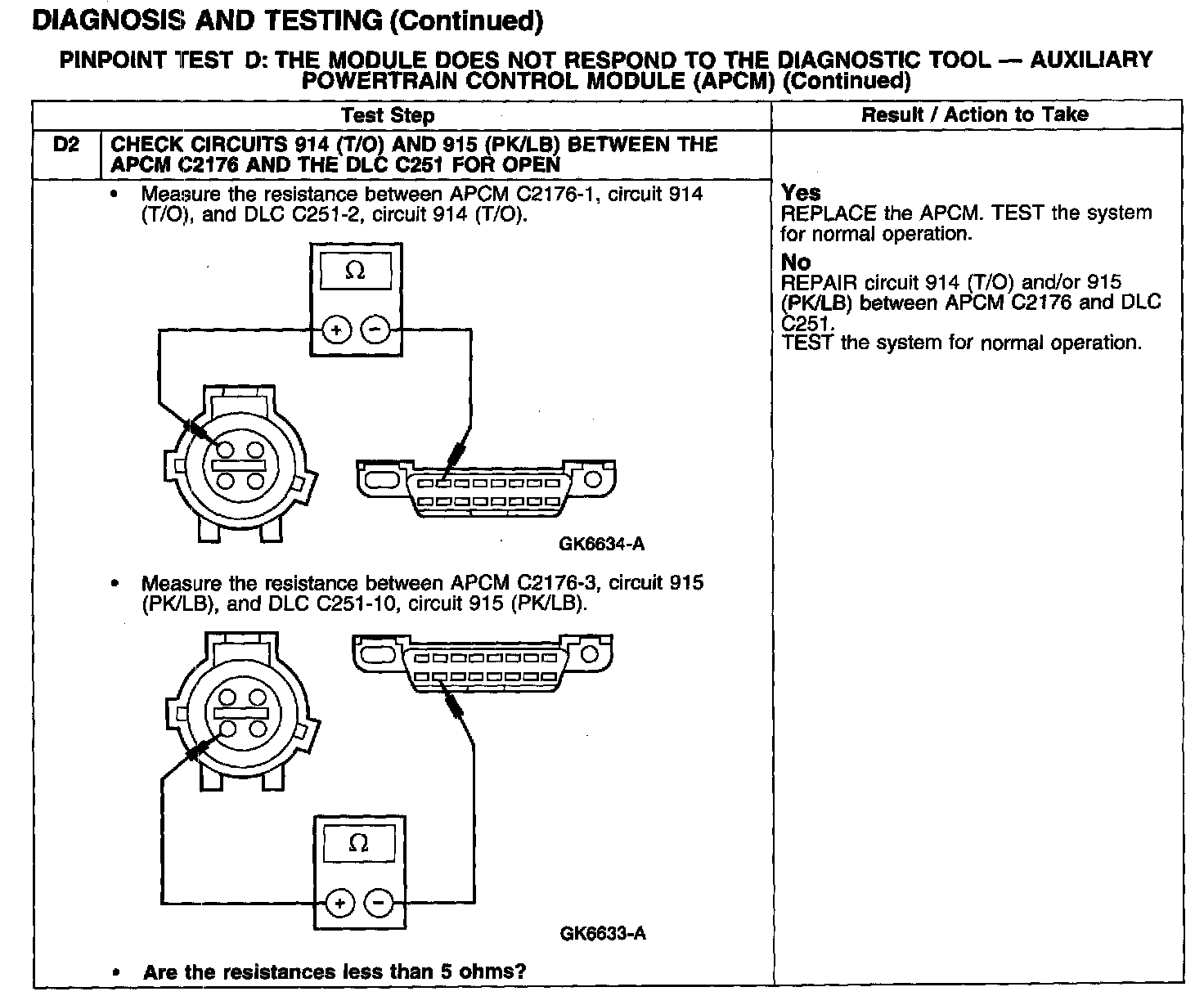

Test D2:
