Test N

PINPOINT TEST N: DTC B1300, DTC B1310, DTC B1396, DTC B1397 DOOR UNLOCK CIRCUIT FAILURE


Test N1:

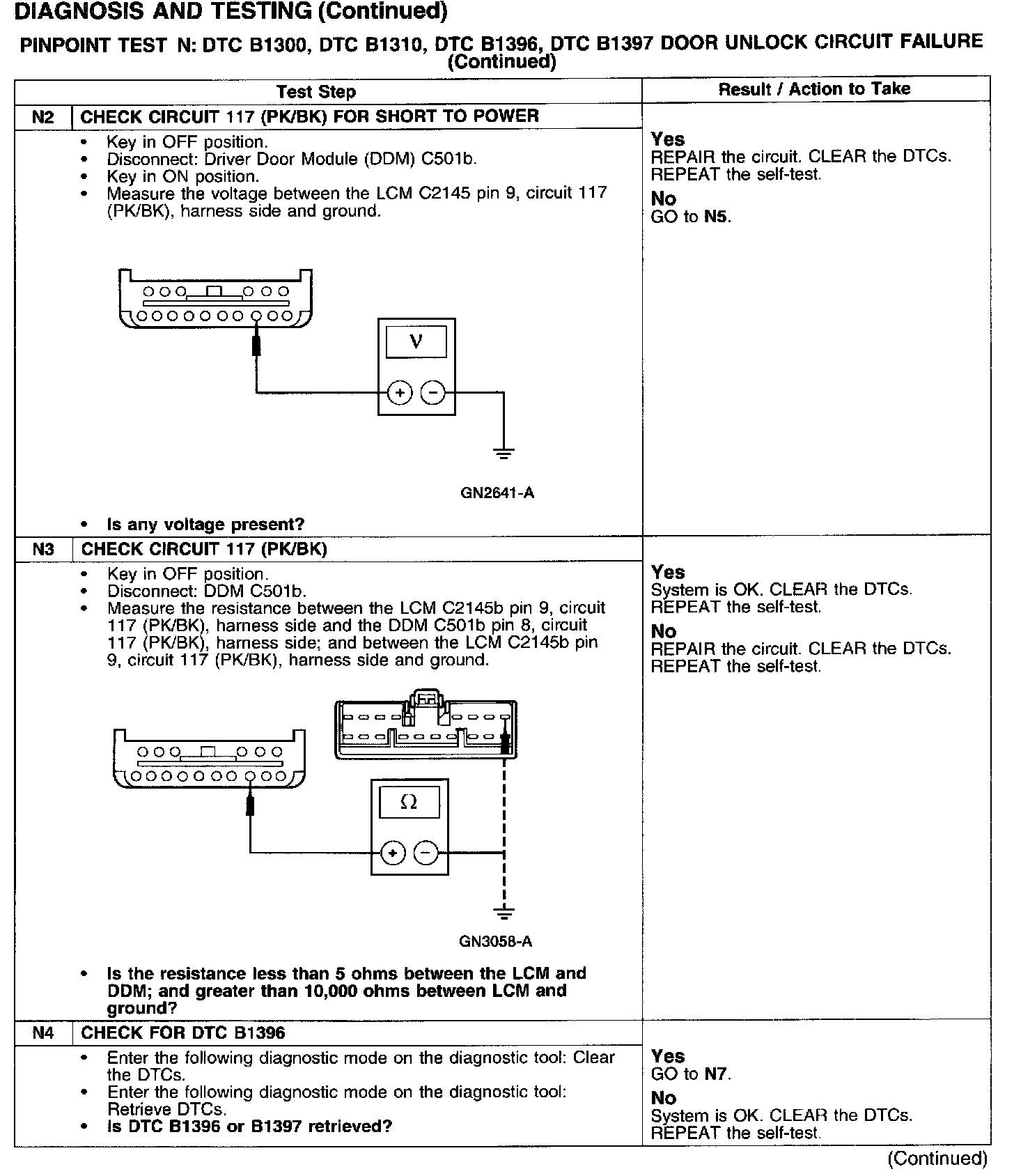

Test N2-N4:

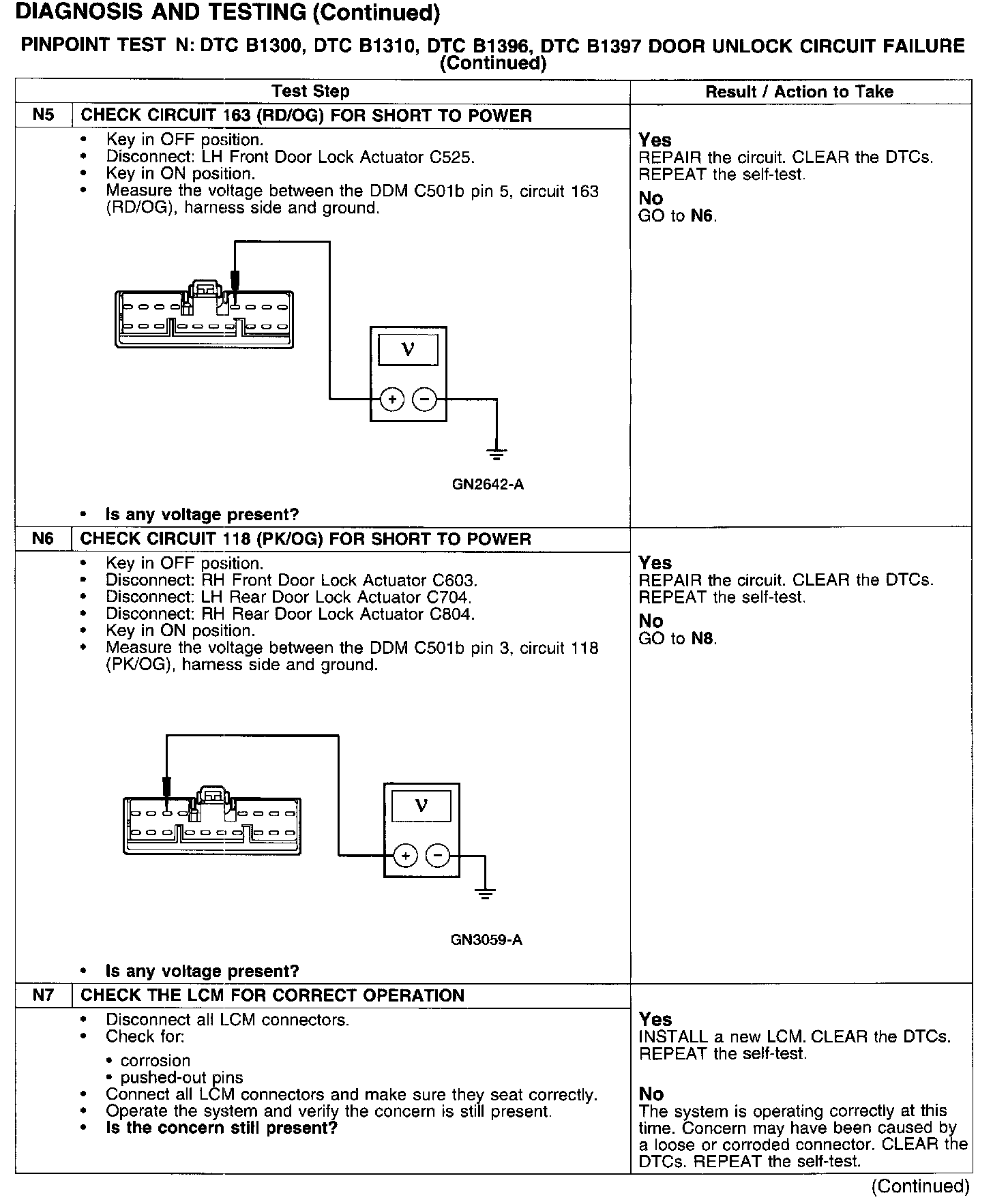

Test N5-N7:

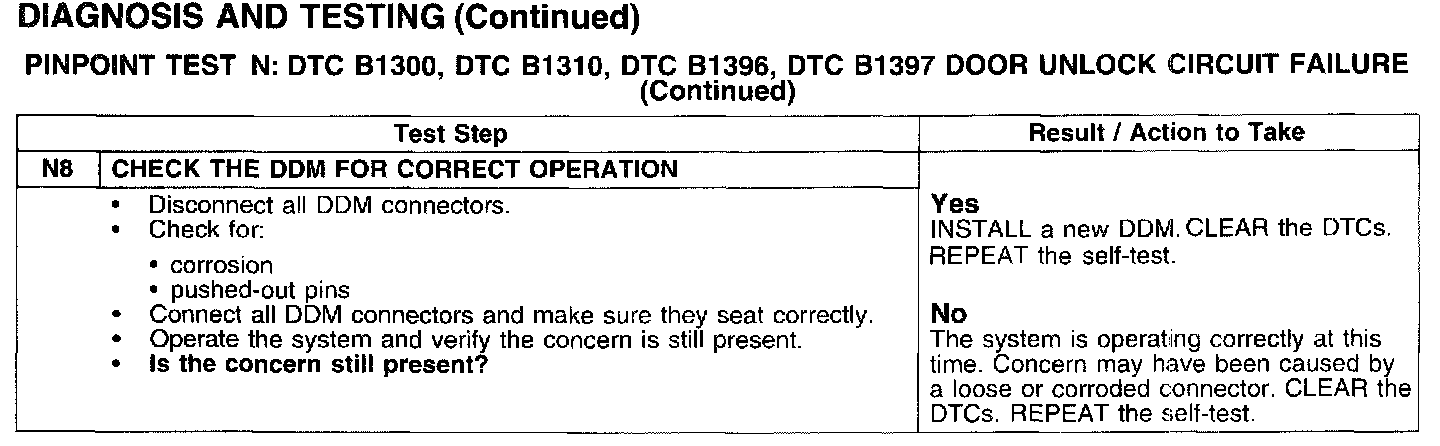

Test N8:
