Test K: IC Module Does Not Respond To The Diagnostic Tool
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Test K: IC Module Does Not Respond To The Diagnostic Tool

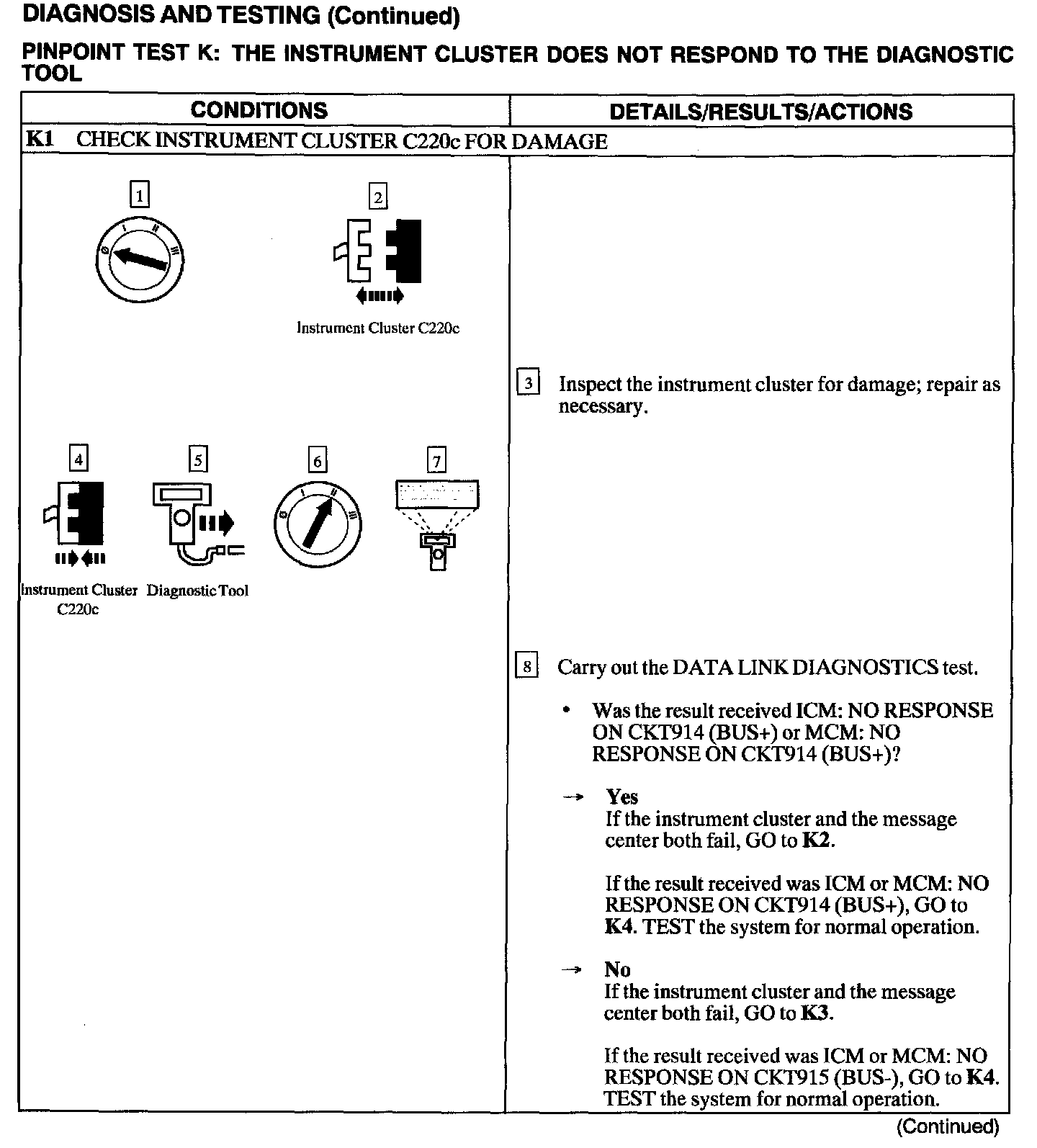

K1:

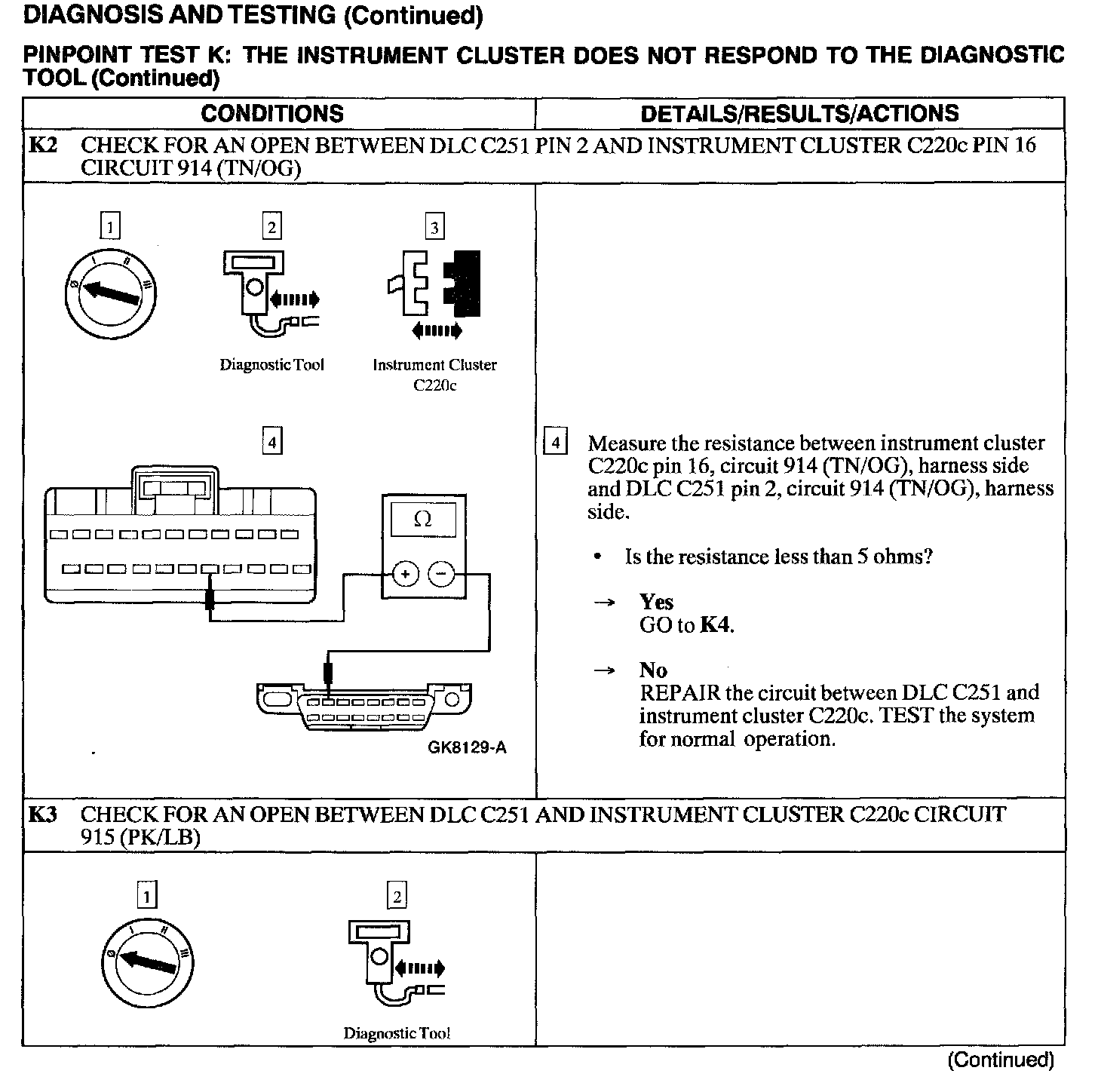

K2 - K3:

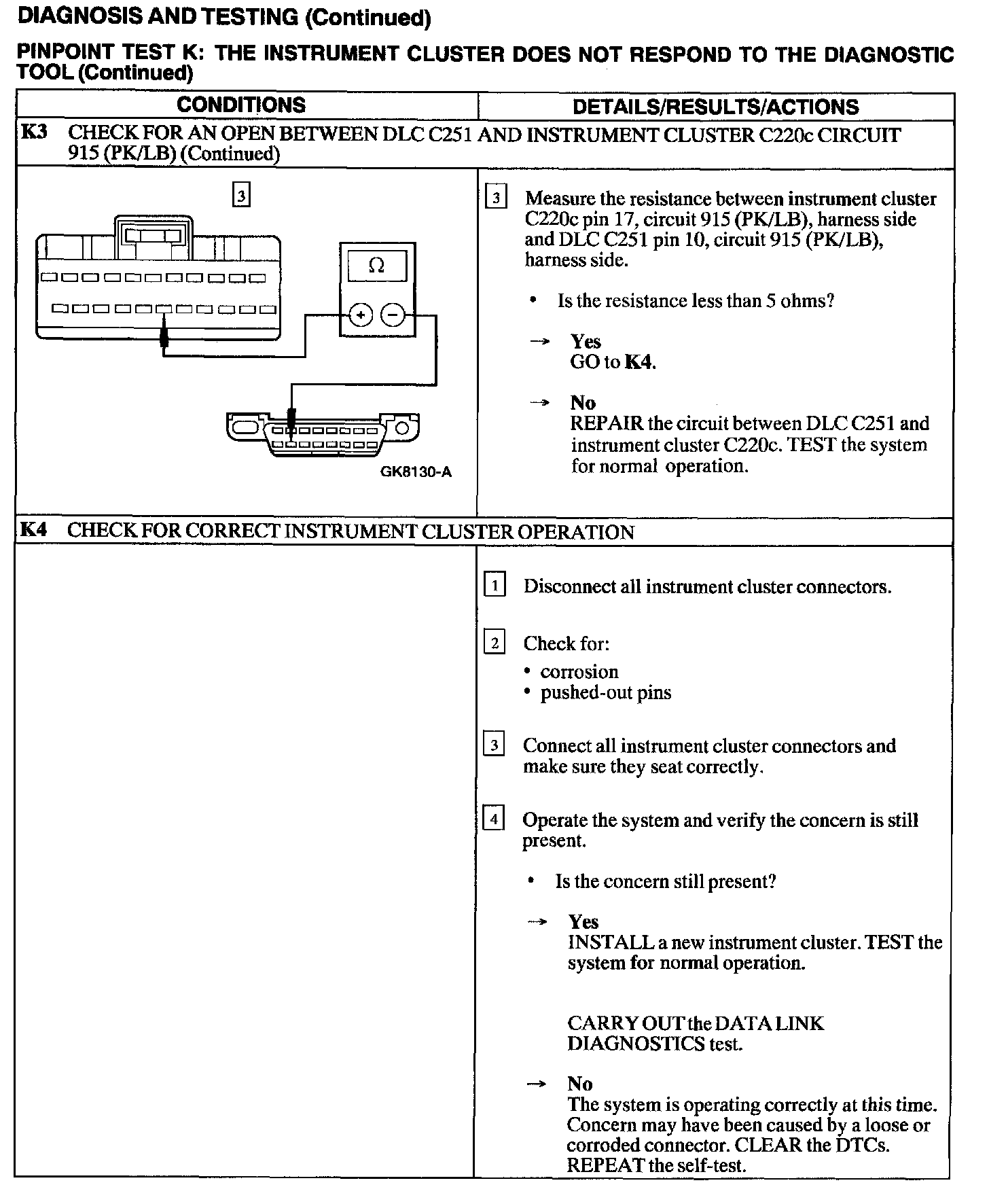

K3 - K4:
