Coast Band Servo

    NOTE: Inspect the seals on the coast servo piston and rod, and the coast servo cover, for damage. If the seals are damaged a new piston, rod, and the coast servo cover are installed as an assembly.

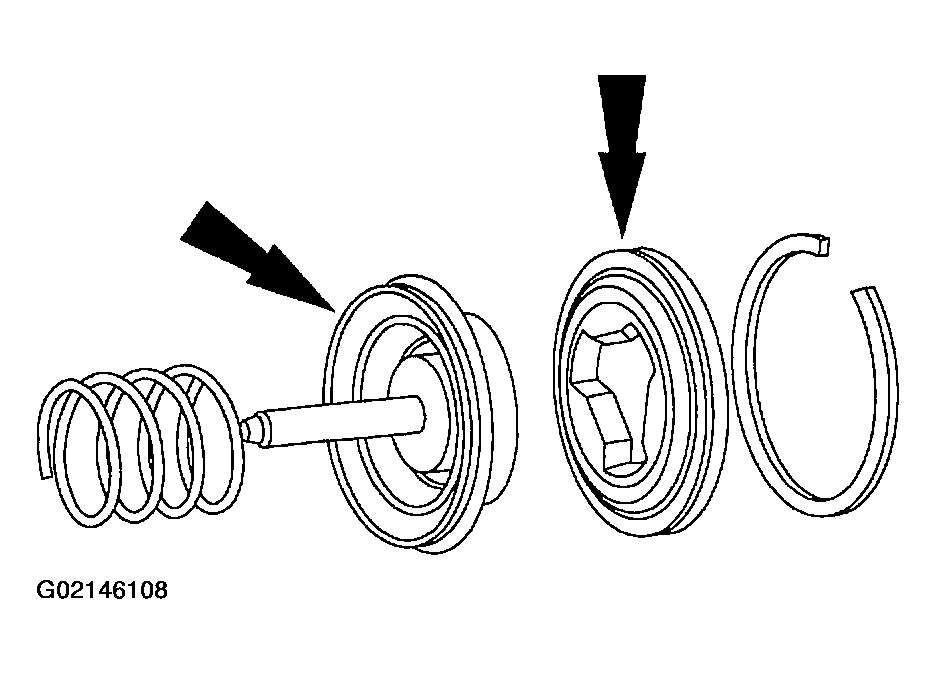

    Fig 1: Inspecting Seals On Coast Servo Piston And Rod
    G02146108Courtesy of FORD MOTOR CO.
  1. Inspect the seals.
