Pulley - CIII Pump: Removal

  1. Remove the power steering pump (3A674). Refer to PUMP - CIII  .
  2. Using the special tool, remove the power steering pump pulley.

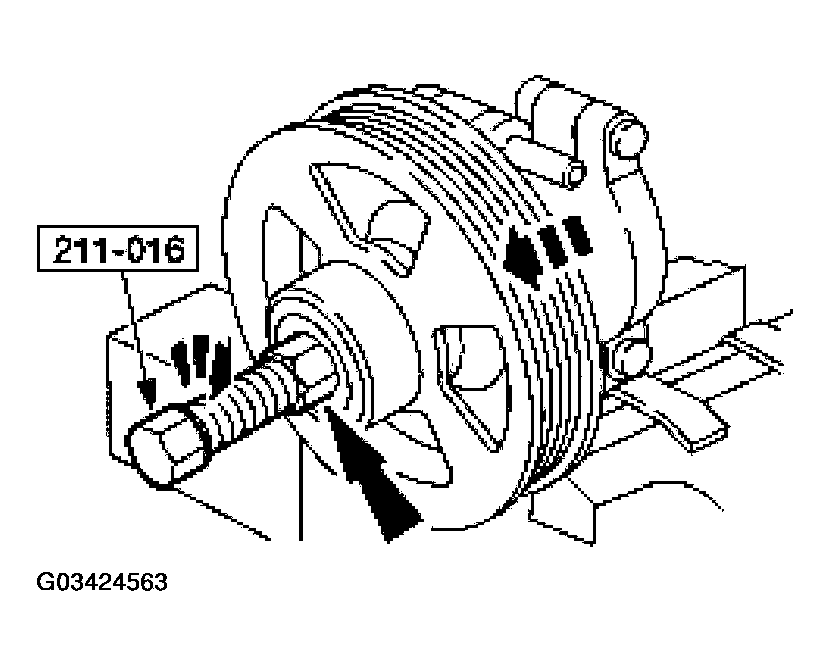

    Fig 1: Removing Power Steering Pump Pulley
    G03424563Courtesy of FORD MOTOR CO.
