Engine - Upper Components

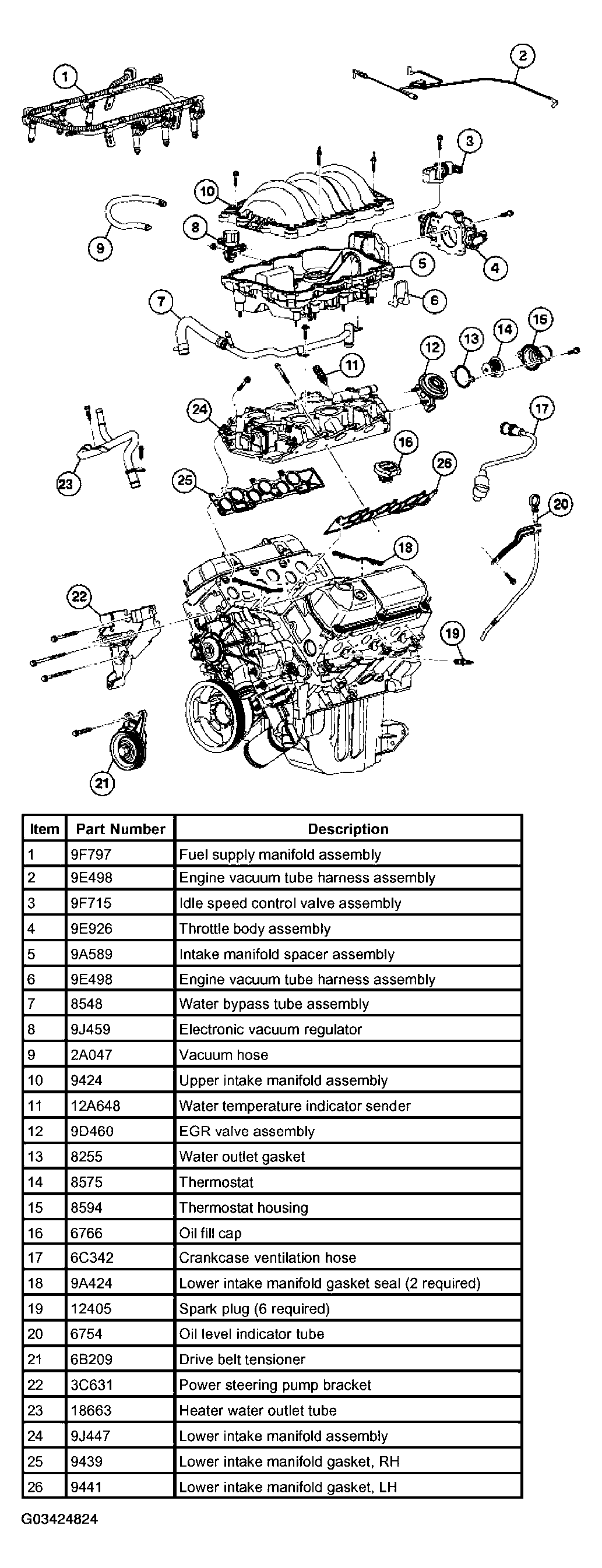

Fig 1: Exploded View Of 3.8L Engine (Engine - Upper Components)
Courtesy of FORD MOTOR CO.
