Removal and Installation

  1. Remove the console panel assembly. For additional information, refer to INSTRUMENT PANEL AND CONSOLE .
  2. Remove the traction control switch electrical connector.

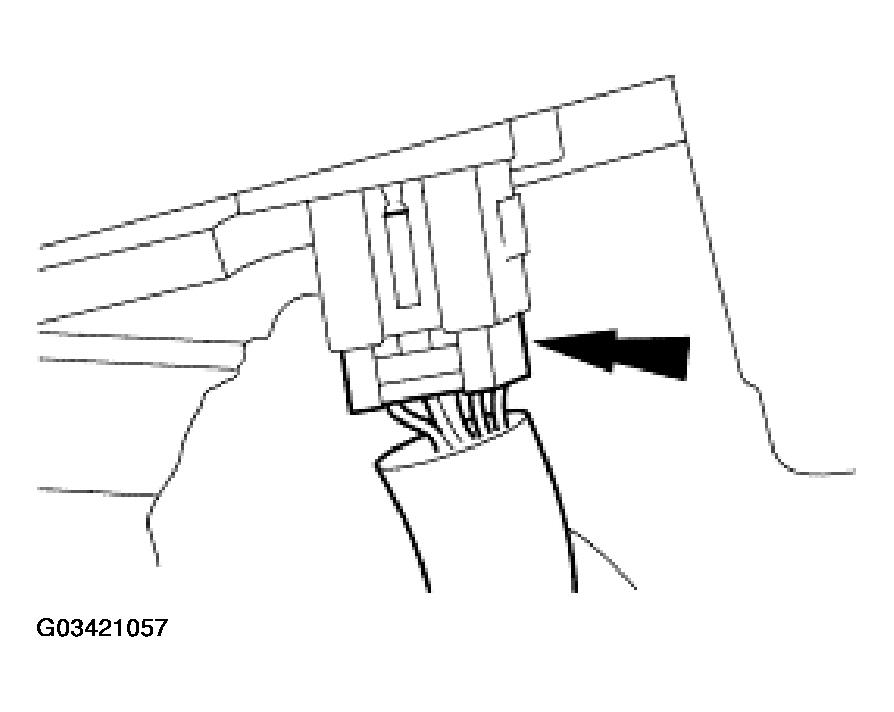

    Fig 1: Removing Traction Control Switch Electrical Connector
    G03421057Courtesy of FORD MOTOR CO.
  3. Remove the traction control switch.
    1. Remove the traction control switch screws.
    2. Remove the traction control switch.

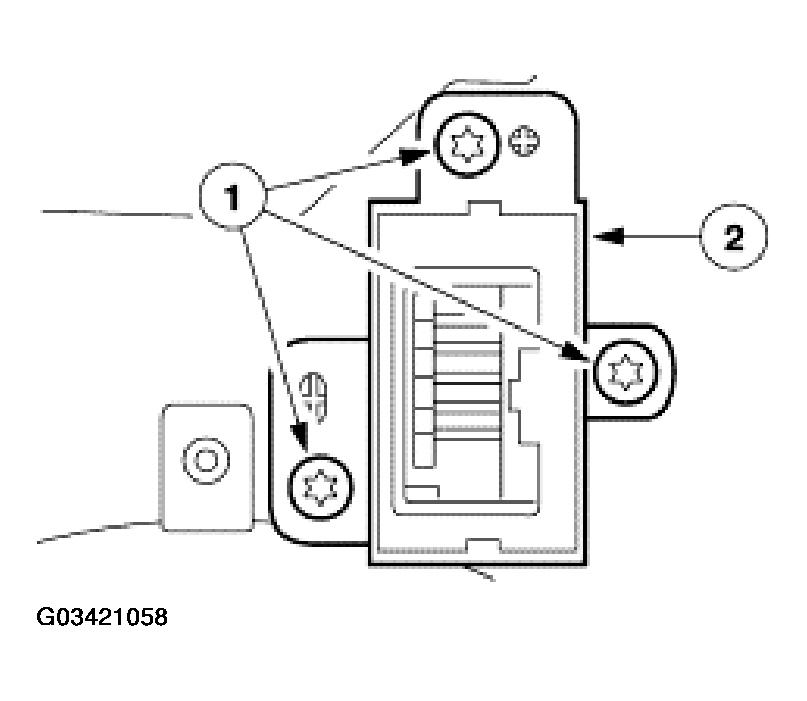

      Fig 2: Removing Traction Control Switch
      G03421058Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
