Steering System

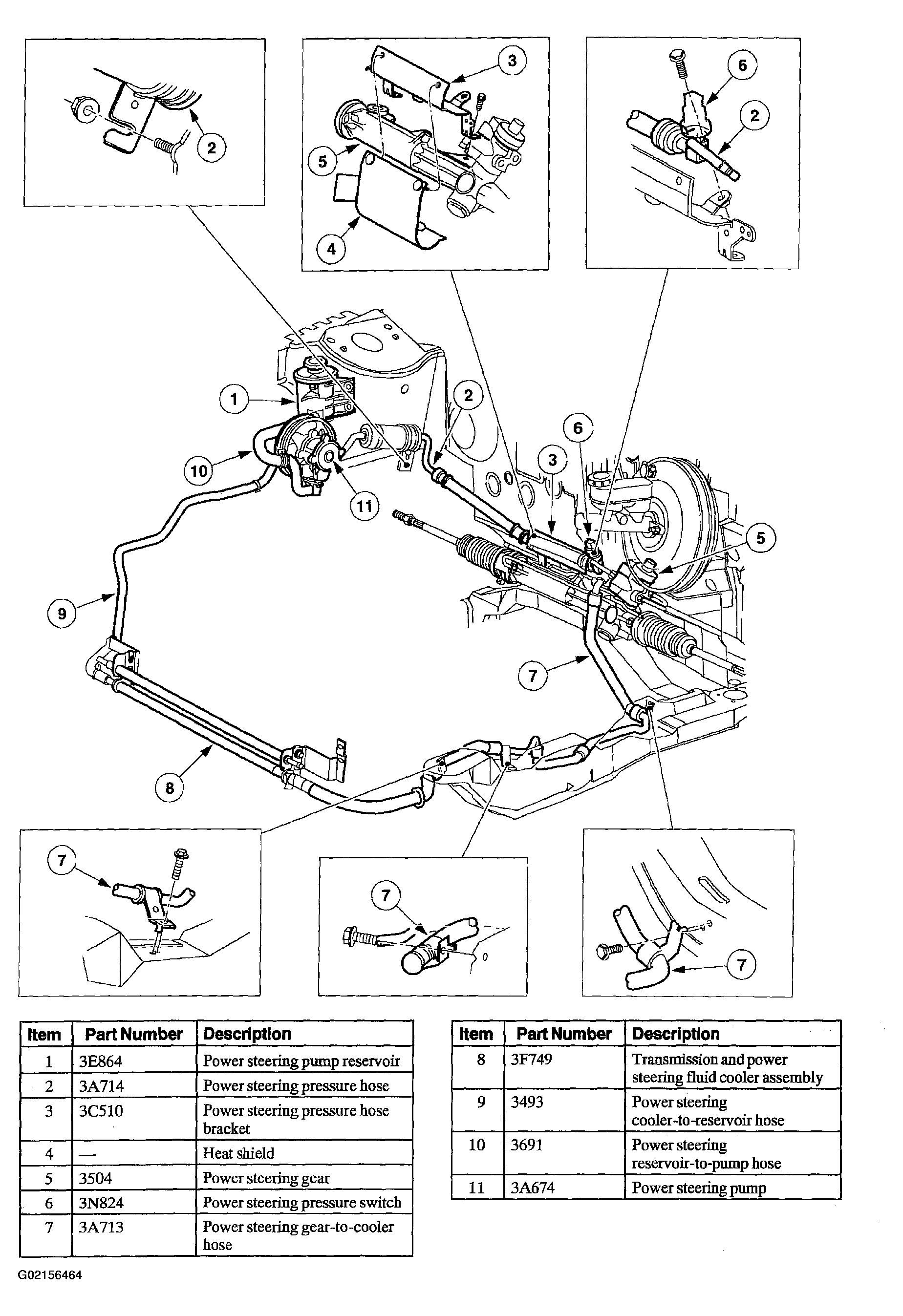

Fig 1: Identifying Steering System Components (3.0L 2V Engine, CII Pump)
Courtesy of FORD MOTOR CO.
Fig 2: Identifying Steering System Components (3.0L 4V Engine, CIII Pump)
Courtesy of FORD MOTOR CO.
