Test A: 4WABS Control Module Does Not Respond to Diagnostic Tool
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Test A: 4WABS Control Module Does Not Respond to Diagnostic Tool

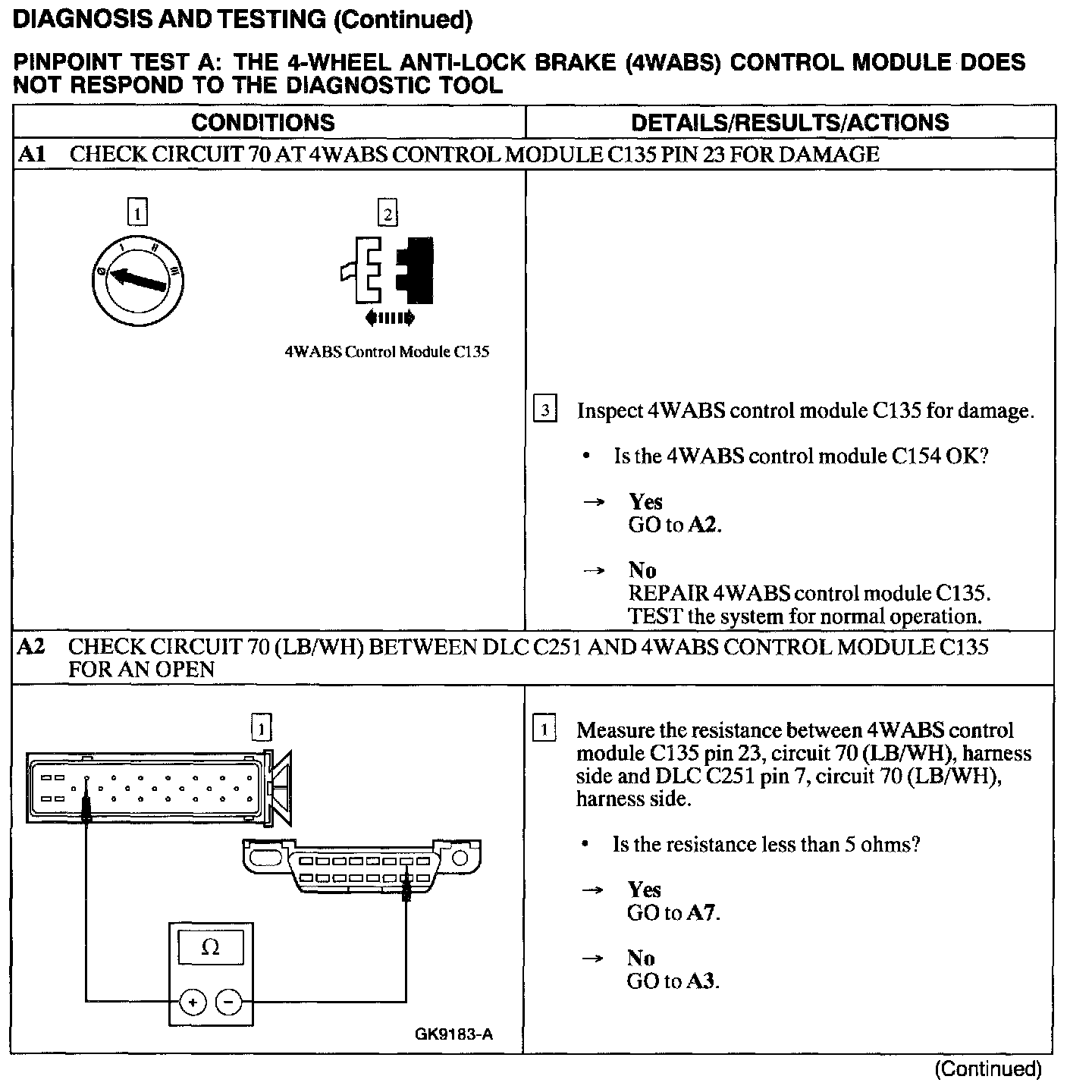

A1 - A2:

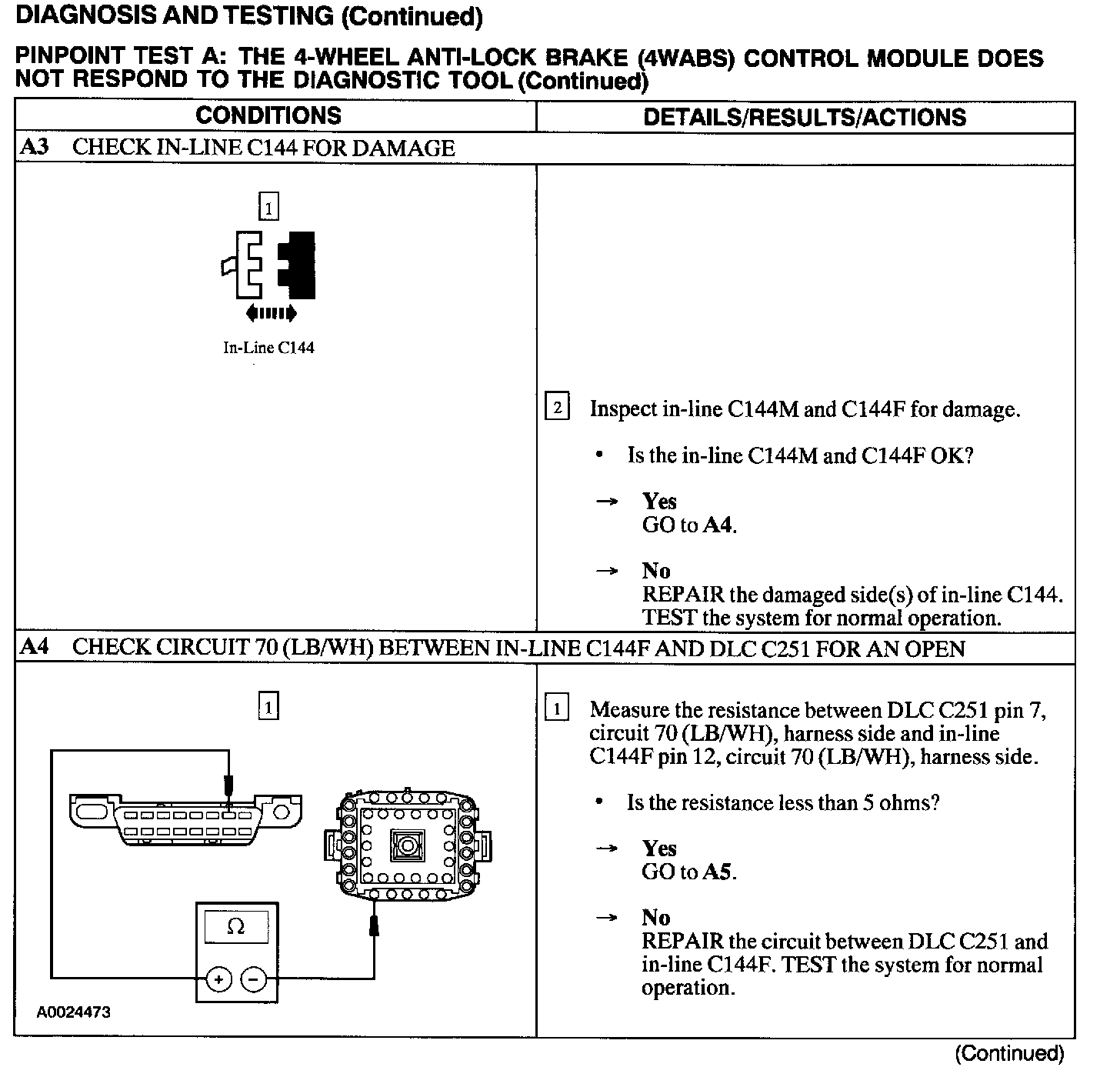

A3 - A4:

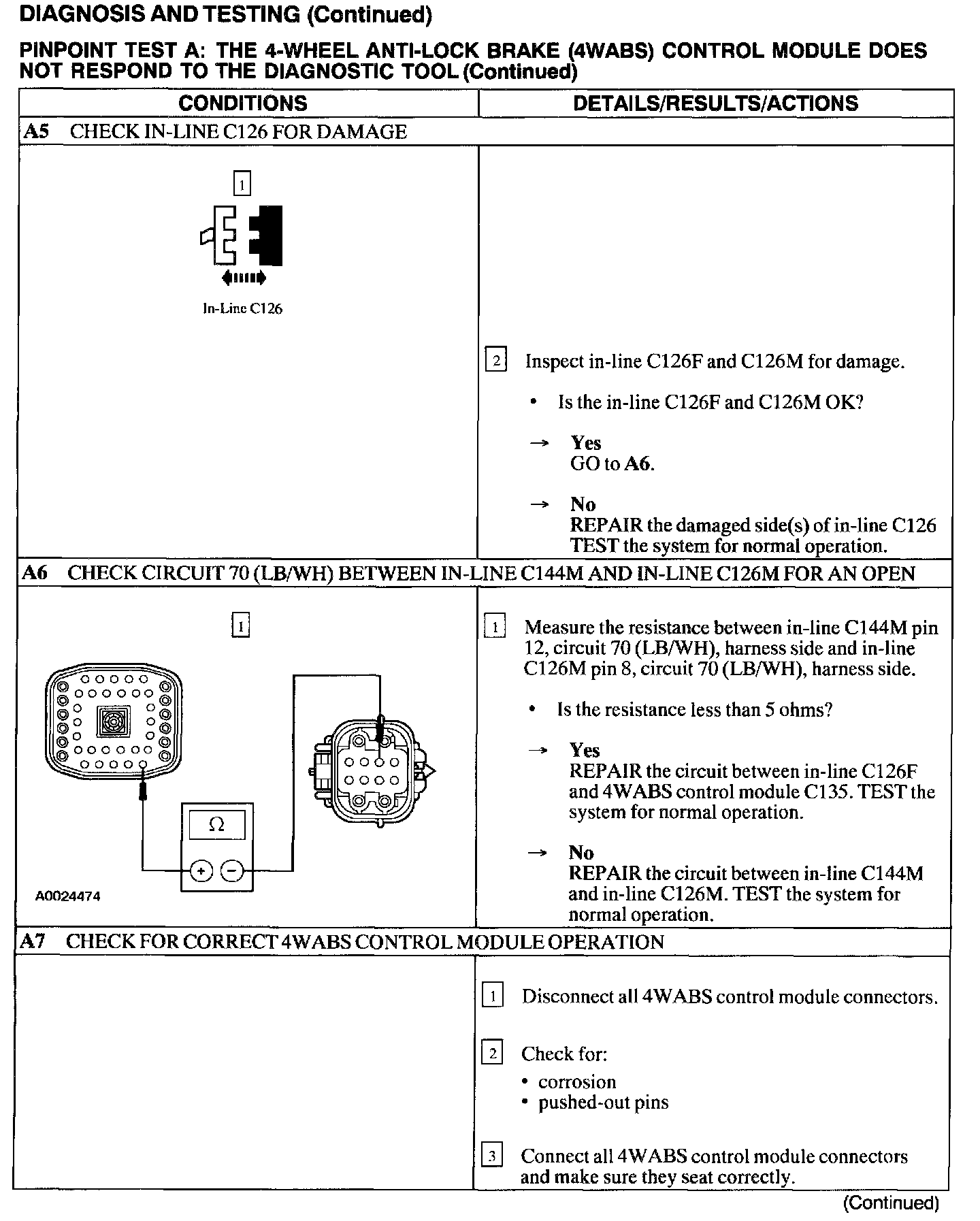

A5 - A7:

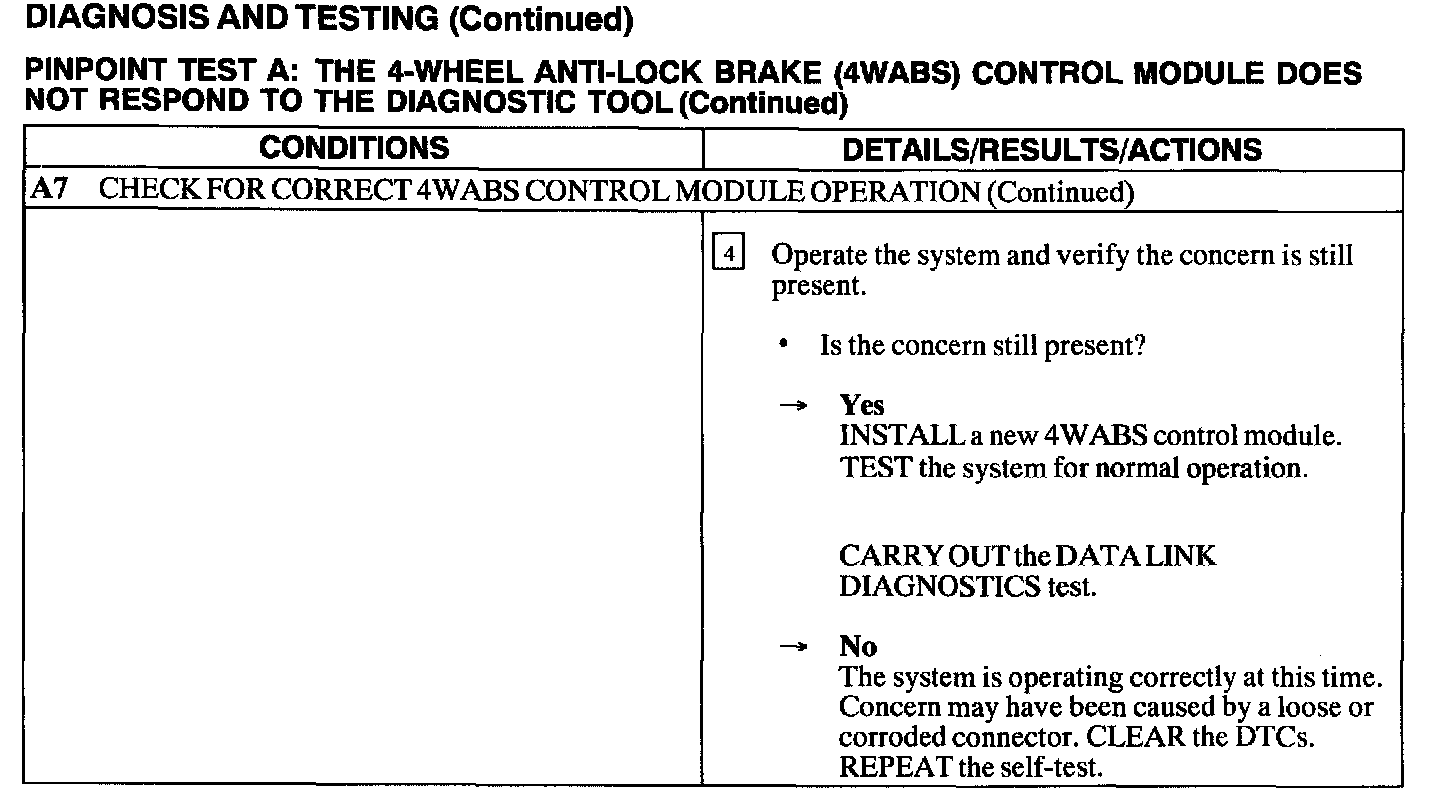

A7:
