Pinpoint Test I: DTC C1267 - Abs Functions Temporarily Disabled

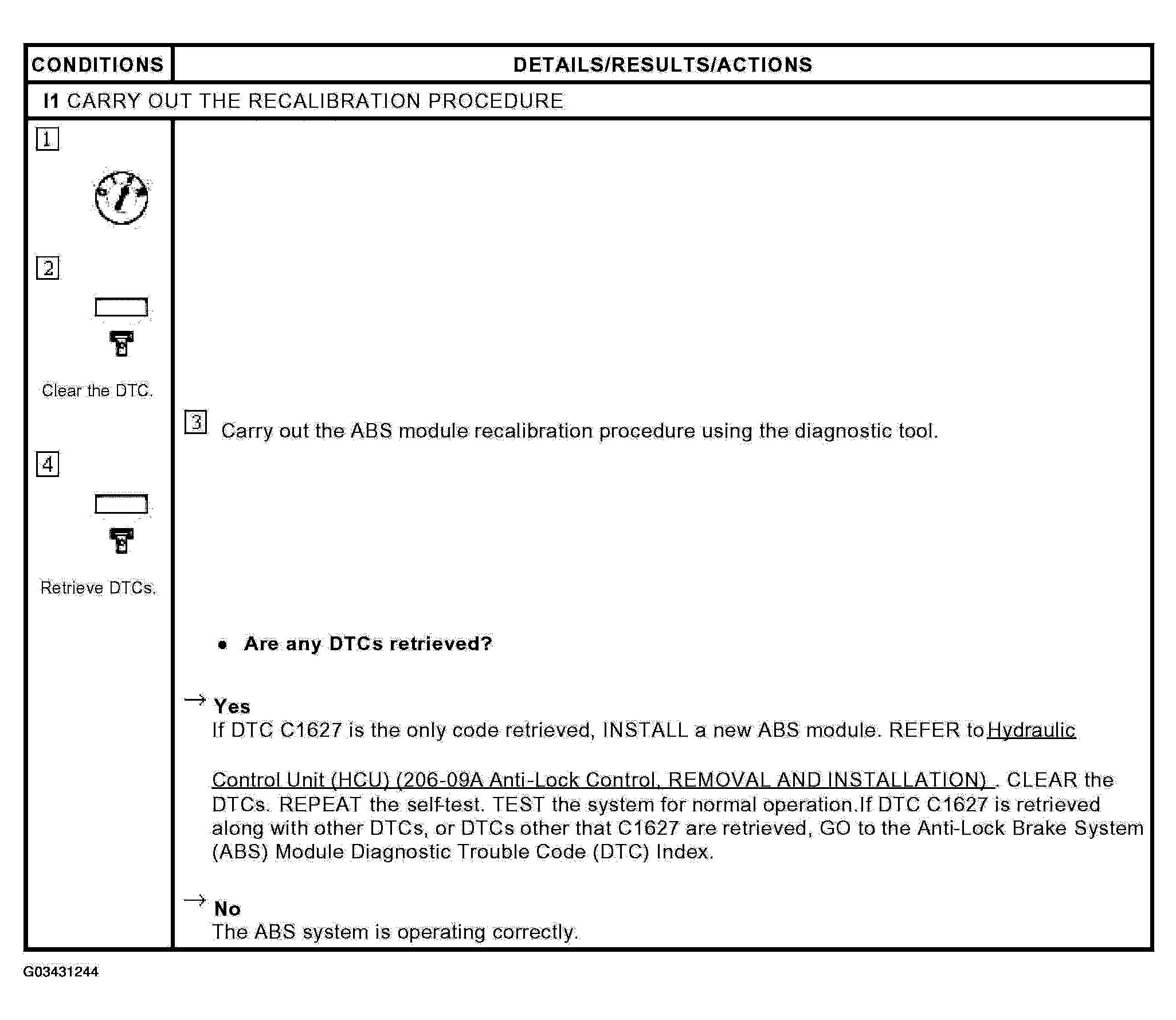

Fig 1: Pinpoint Test I Chart - DTC C1267 - ABS Functions Temporarily Disabled
G03431244Courtesy of FORD MOTOR CO.
