Inline Connector End View (C80)

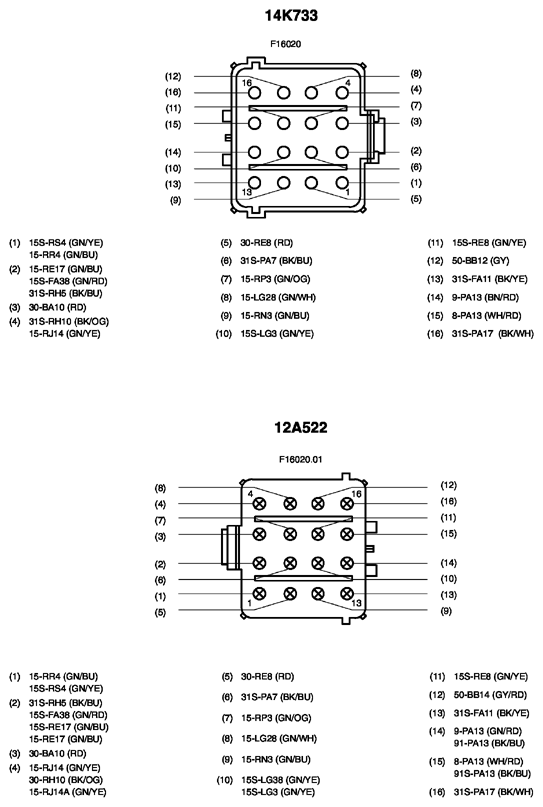

Fig 1: Identifying Inline Connector (C80)
Courtesy of FORD MOTOR CO.
