Gearshift Linkage: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Reinstall the components in reverse order.
    1. Install the shift and selector cables by twisting the abutment collar clockwise.
    2. Install the shift and selector levers.
    3. Tighten the nuts.

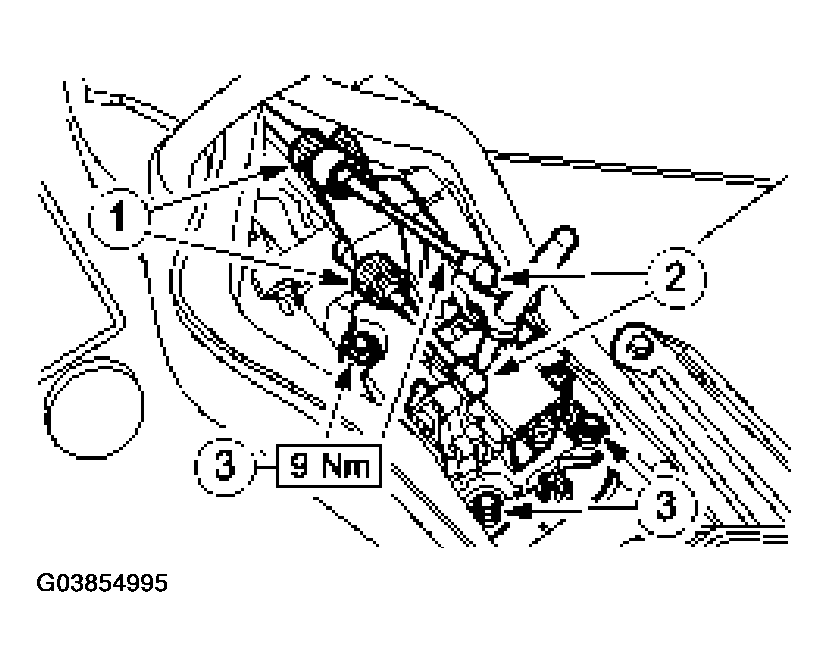

    Fig 1: Installing Shift And Selector Levers
    G03854995Courtesy of FORD MOTOR CO.

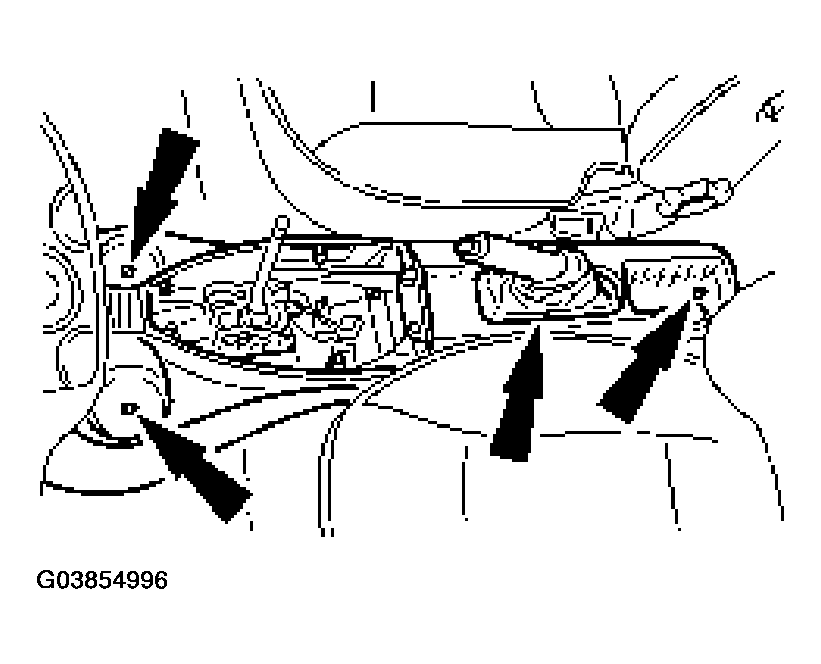

    Fig 2: Locating Shift Selector Levers Screws
    G03854996Courtesy of FORD MOTOR CO.
  2. Adjust the shift mechanism. Refer to MANUAL TRANSMISSION/TRANSAXLE AND CLUTCH - GENERAL INFORMATION .
