Gearshift Cables: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install the components in reverse order.
    Fig 1: Installing Components
    G03855011Courtesy of FORD MOTOR CO.

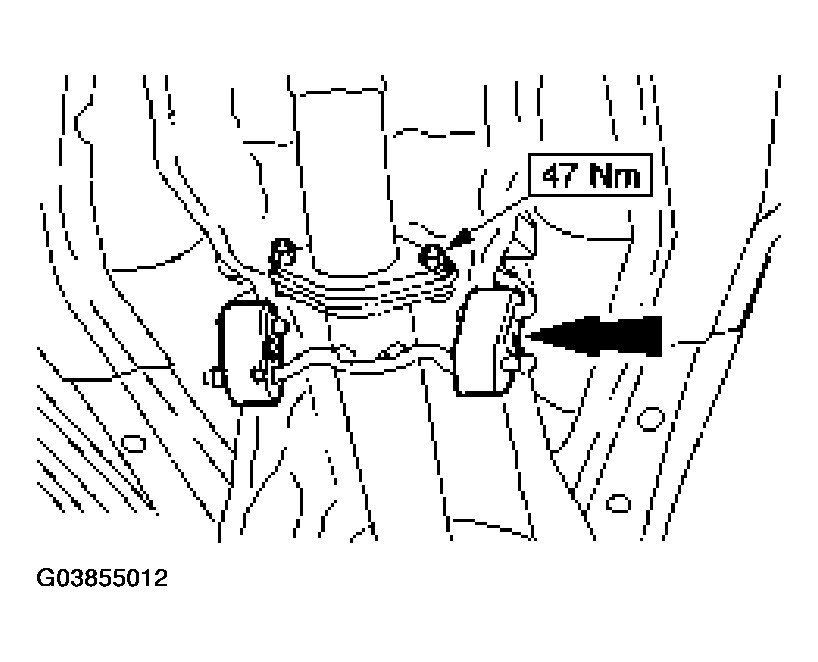

    Fig 2: Installing Components
    G03855012Courtesy of FORD MOTOR CO.
  2. Adjust the shift and selector cables. Refer to MANUAL TRANSMISSION/TRANSAXLE AND CLUTCH - GENERAL INFORMATION .
