Gearshift Lever: Disassembly

WARNING: This page is about a different variant/trim than selected.
  1. Remove the gearshift lever knob.
    • Remove the compression spring and damping sleeve.

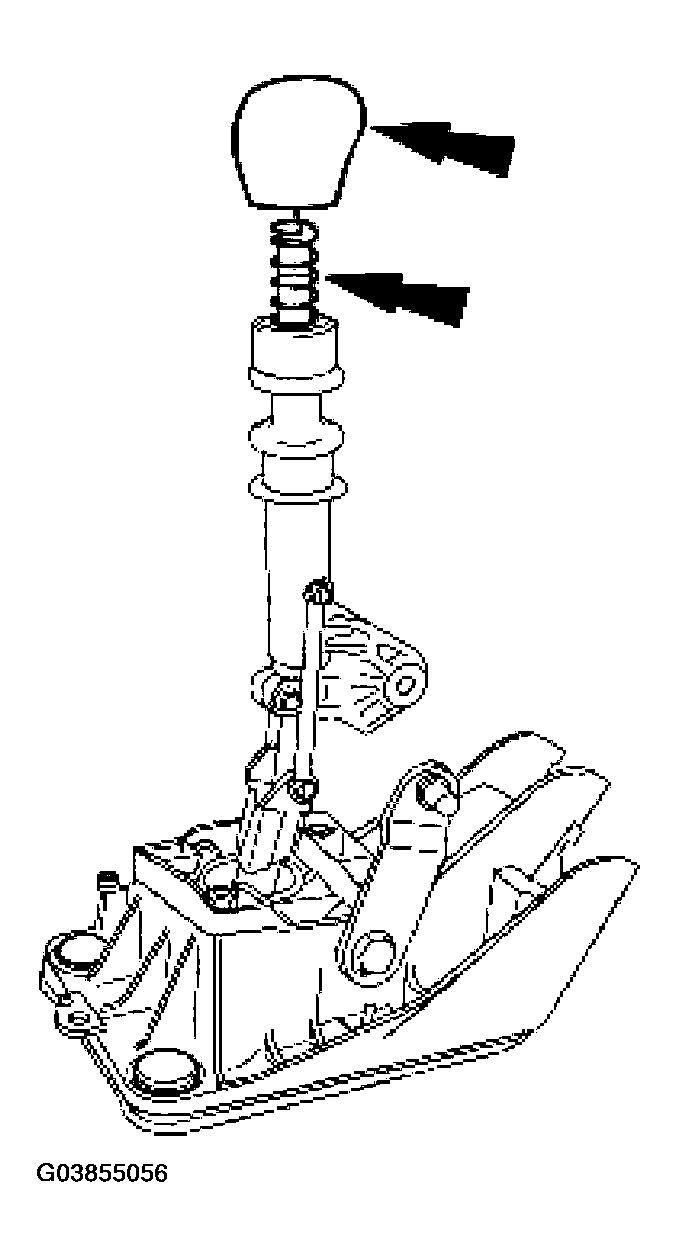

    Fig 1: Removing Gearshift Lever Knob
    G03855056Courtesy of FORD MOTOR CO.
  2. Detach the reverse gear release from the gearshift lever.
    • Remove the reverse gear release.

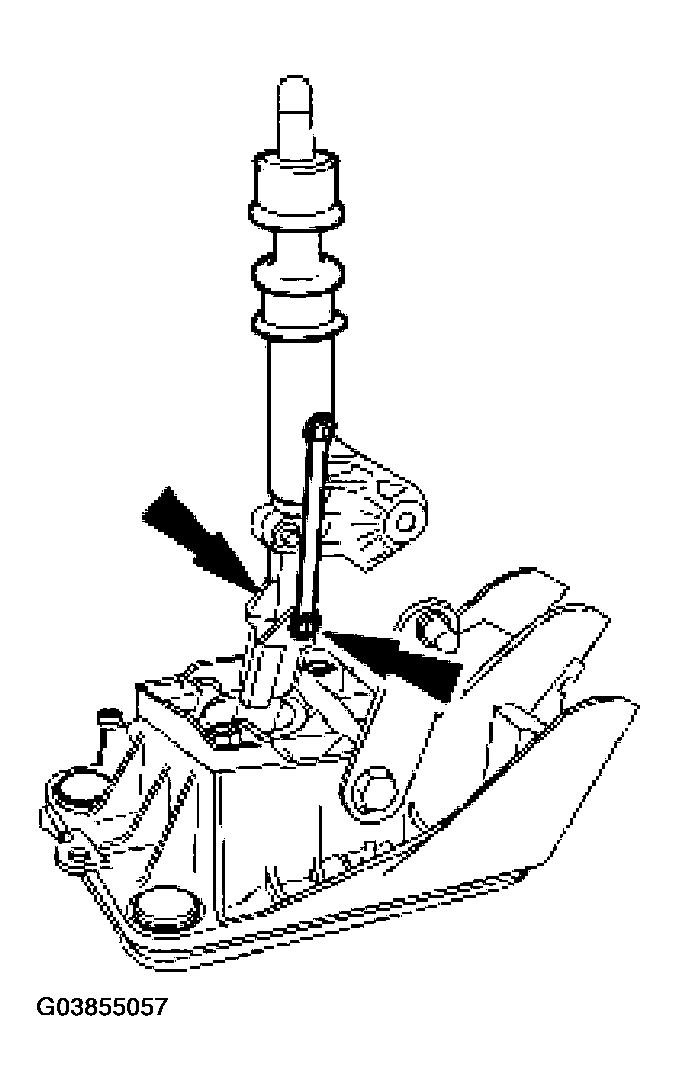

    Fig 2: Removing Reverse Gear Release
    G03855057Courtesy of FORD MOTOR CO.
  3. Remove the gearshift lever cover.

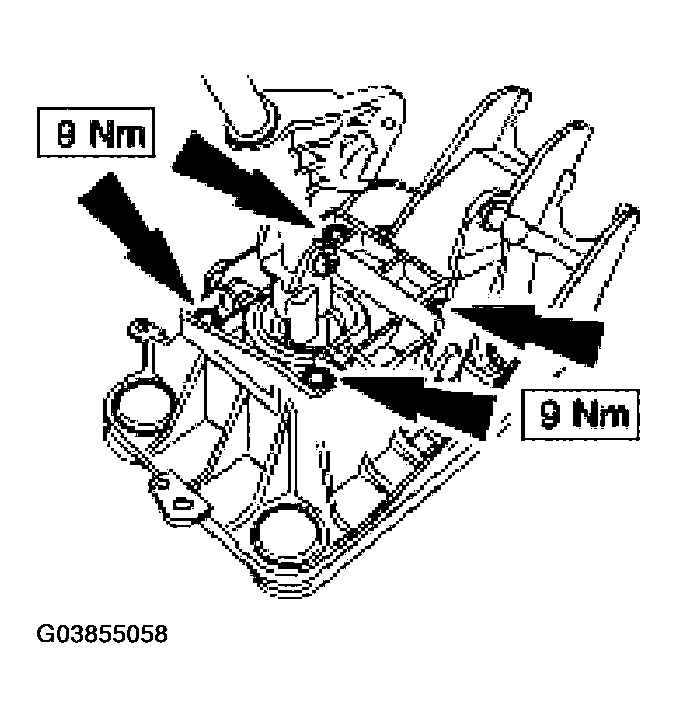

    Fig 3: Removing Gearshift Lever Cover
    G03855058Courtesy of FORD MOTOR CO.
  4. Remove the gearshift lever.

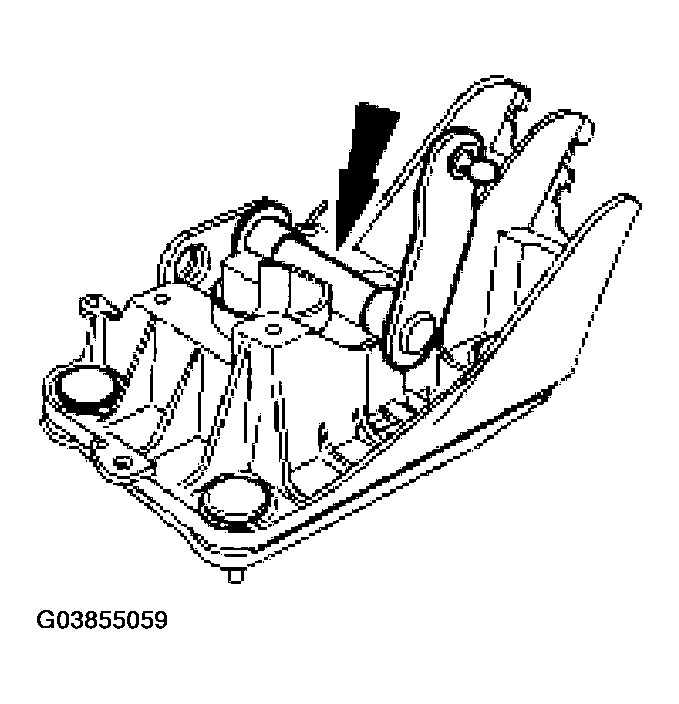

    Fig 4: Removing Gearshift Lever
    G03855059Courtesy of FORD MOTOR CO.
