Pinpoint Test S: The Stability Assist/Traction Control Switch Indicator Is Never/Always On

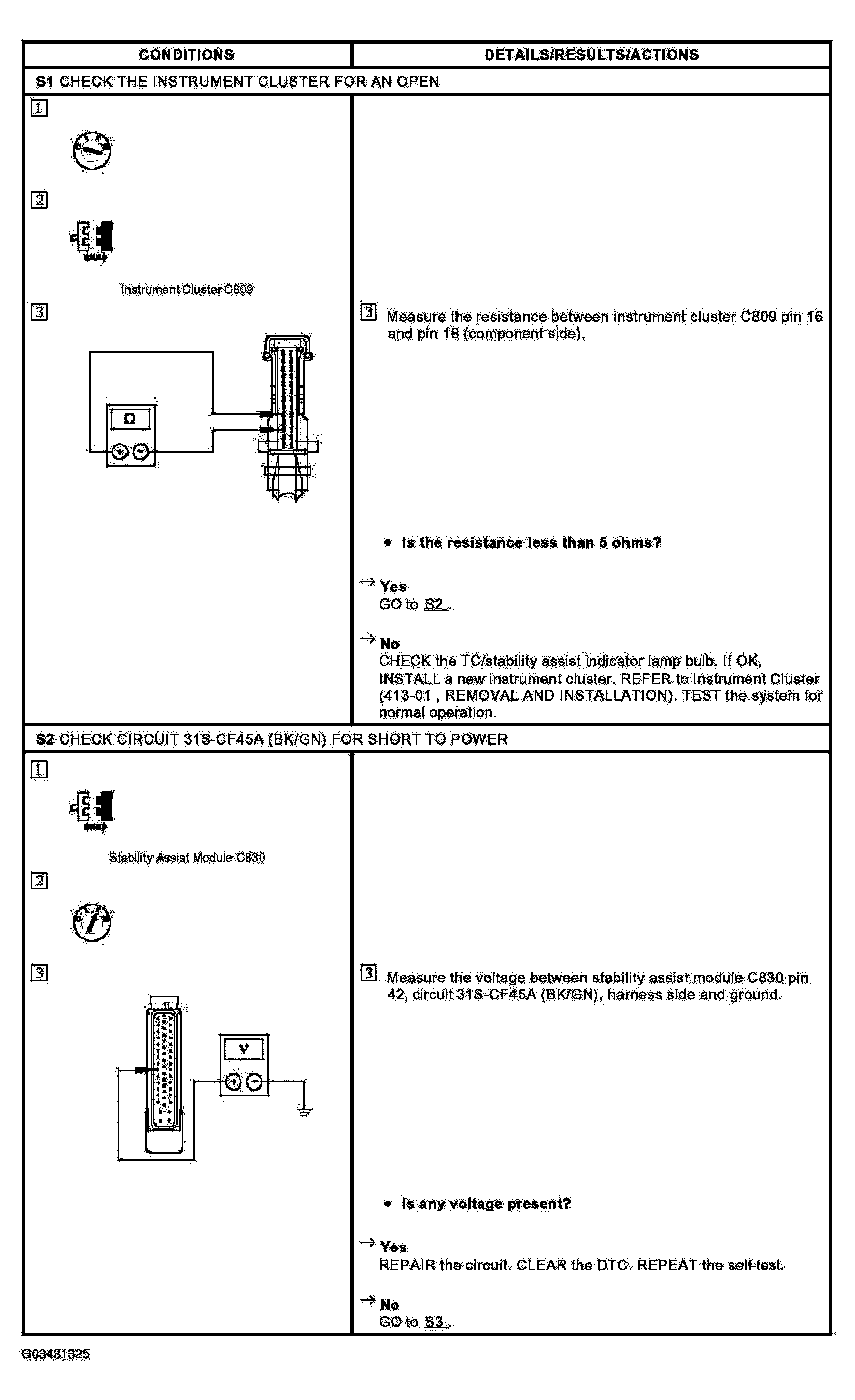

Fig 1: Pinpoint Test S Chart - Stability Assist/Traction Control Switch Indicator Is Never/Always On (S1-S2)
G03431325Courtesy of FORD MOTOR CO.

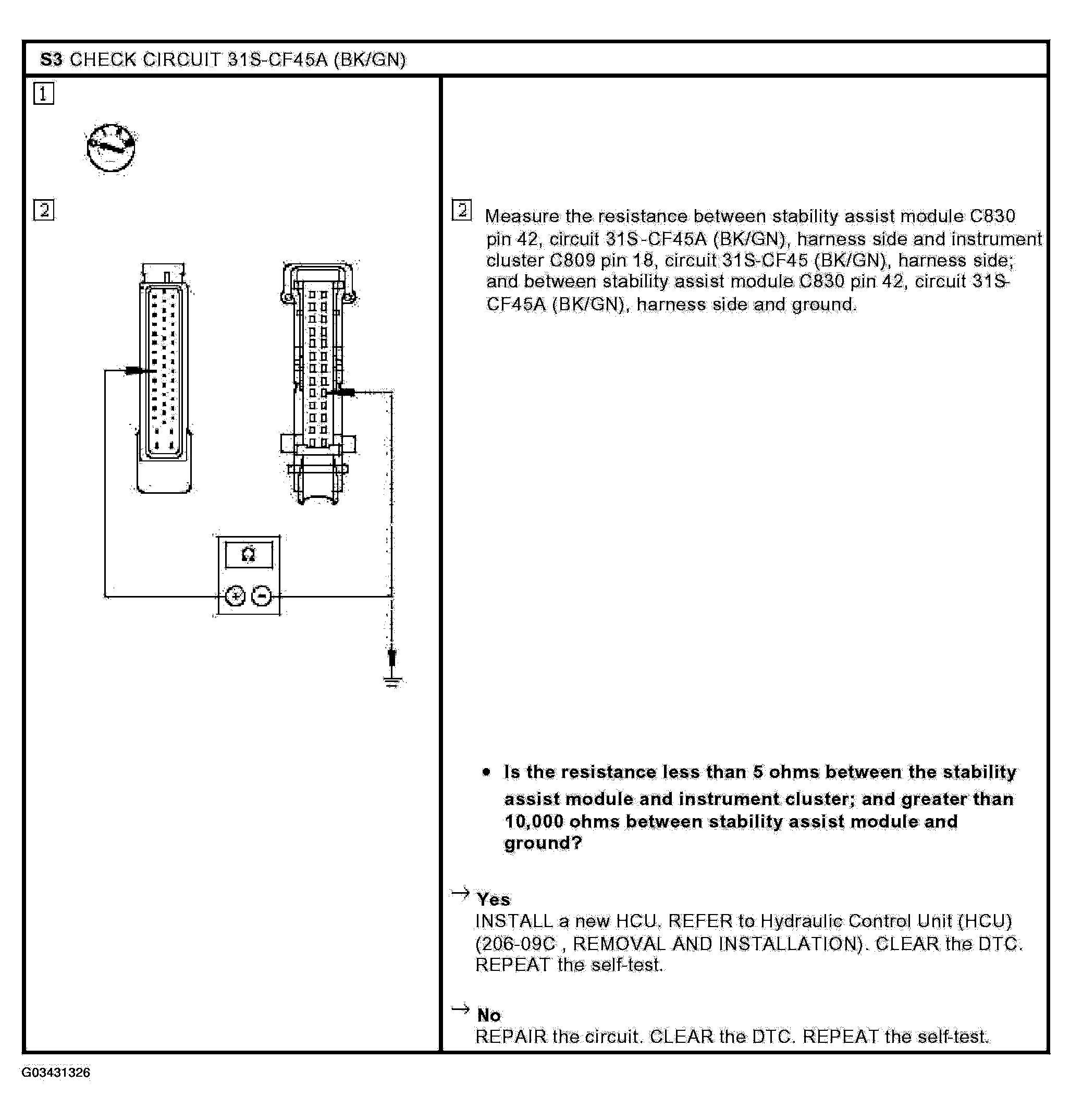

Fig 2: Pinpoint Test S Chart - Stability Assist/Traction Control Switch Indicator Is Never/Always On (S3)
G03431326Courtesy of FORD MOTOR CO.
