Automatic Transmission
>>
Description And Operation
>>
Transaxle Description
>>
Main control assembly
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Main control assembly

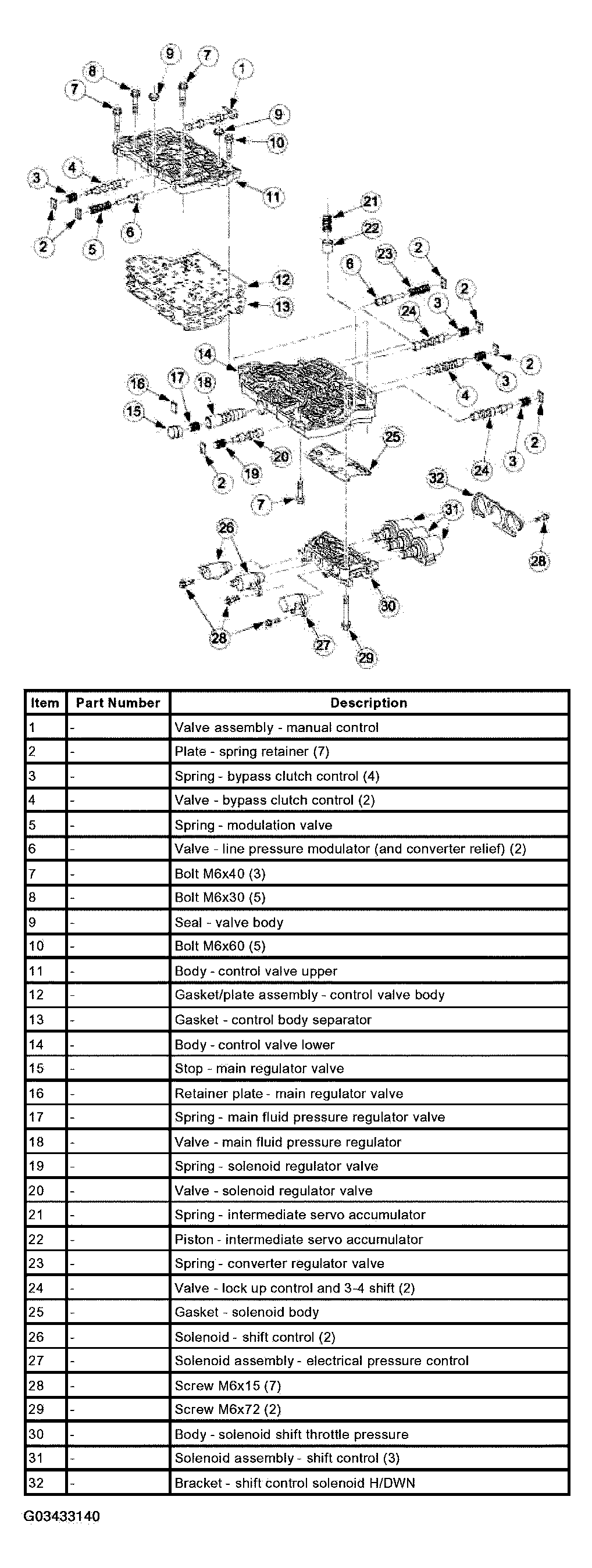

Fig 1: Exploded View Of Main Control Assembly Components
Courtesy of FORD MOTOR CO.
