Generator

REMOVAL
1. Remove the cooling fan motor and shroud.
2. Remove the accessory drive belt.







3. Remove the power steering pipe support brackets.







4. Remove the exhaust manifold heatshield.
5. Raise and support the vehicle.







6. Disconnect the generator electrical connectors.







7. Detach the generator.
8. Lower the vehicle.







9. Detach the generator.
1. Remove the clip.
2. Detach the generator.

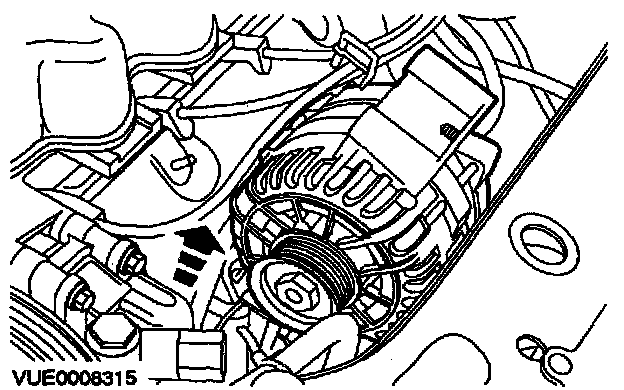

10. Remove the generator.

INSTALLATION

















1. To install, reverse the removal procedure.
