System Specifications

Rear Drive Axle/Differential - Ford 8.8-Inch Ring Gear

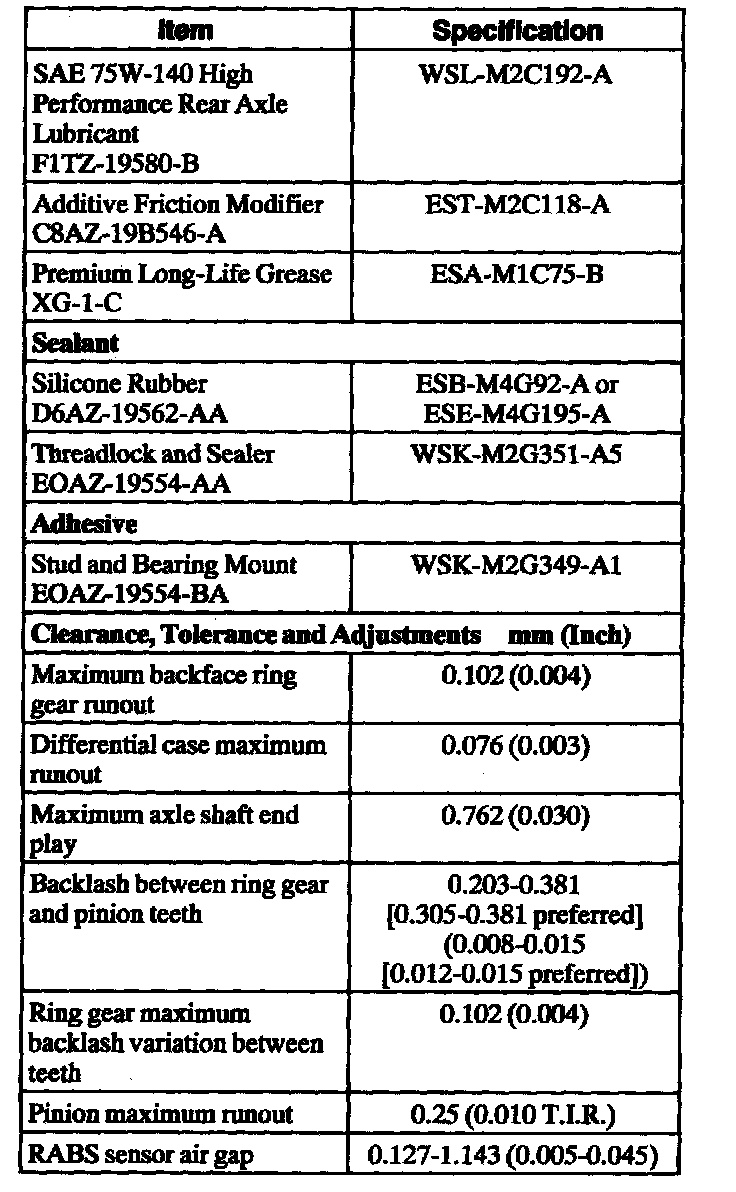

General Specifications

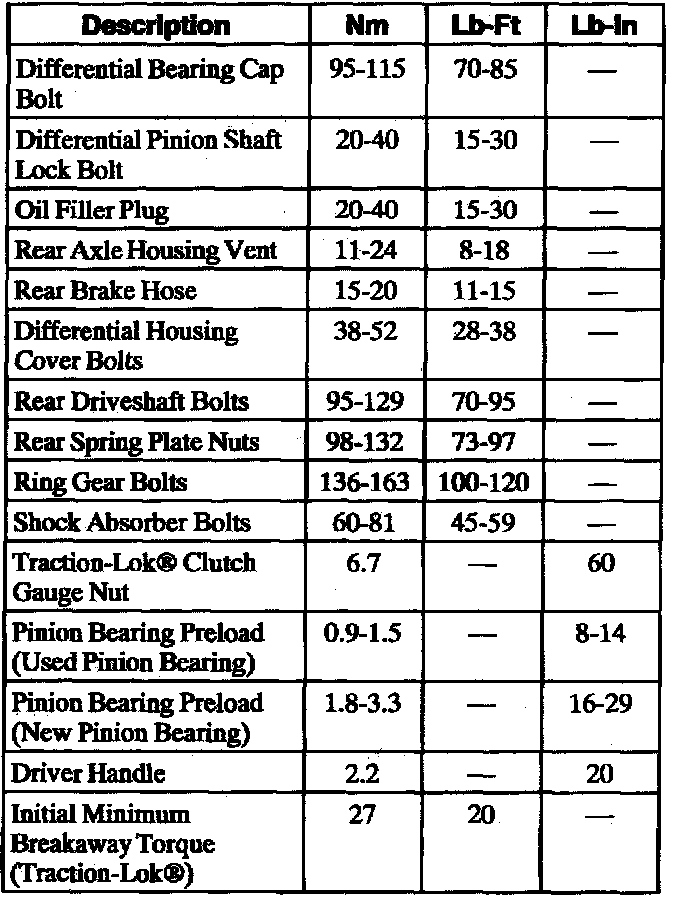

Torque Specifications

Rear Drive Axle/Differential - Ford 9.75-Inch Ring Gear

General Specifications:

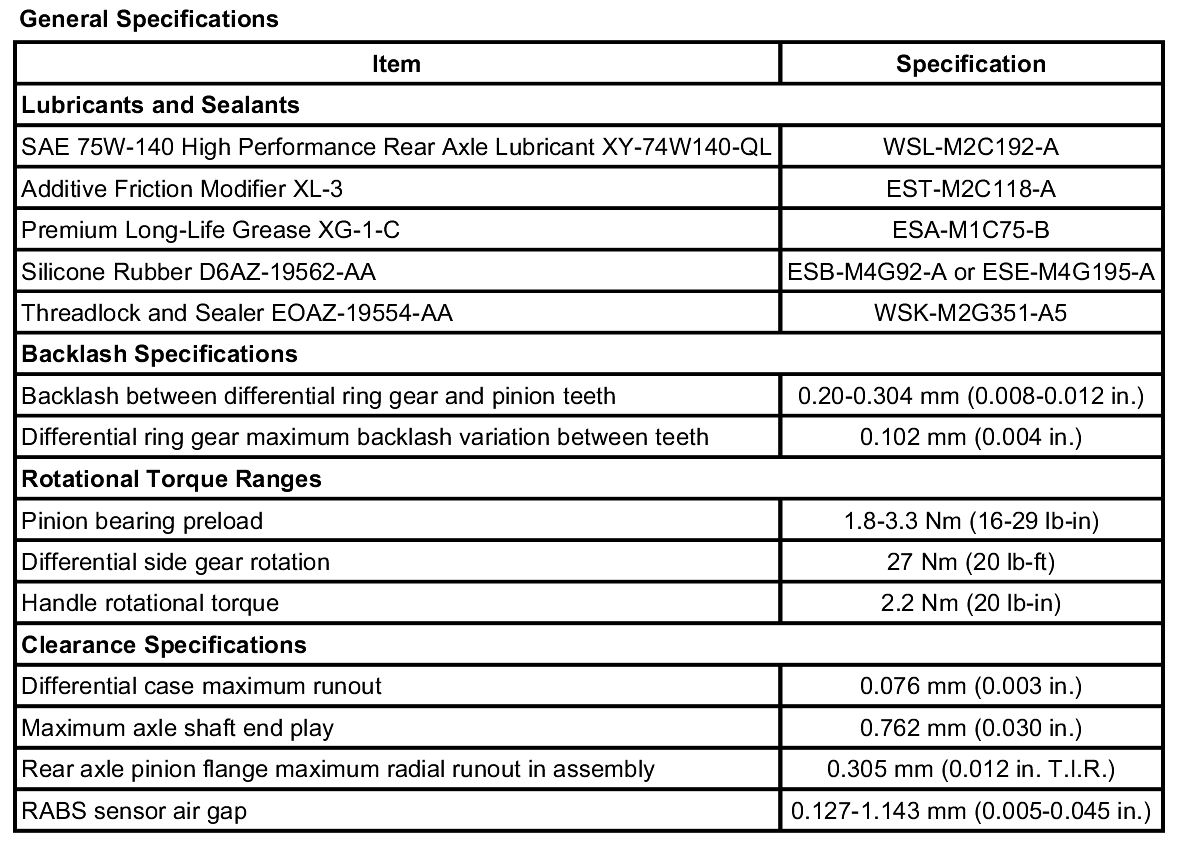

General Specifications

Torque Specifications:

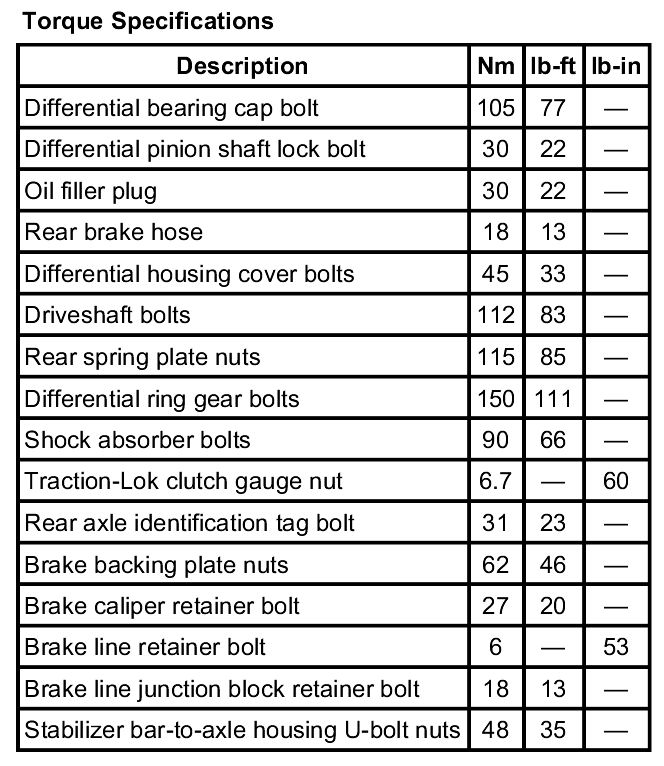

Torque Specifications

Rear Drive Axle/Differential - Ford 10.25-Inch Ring Gear

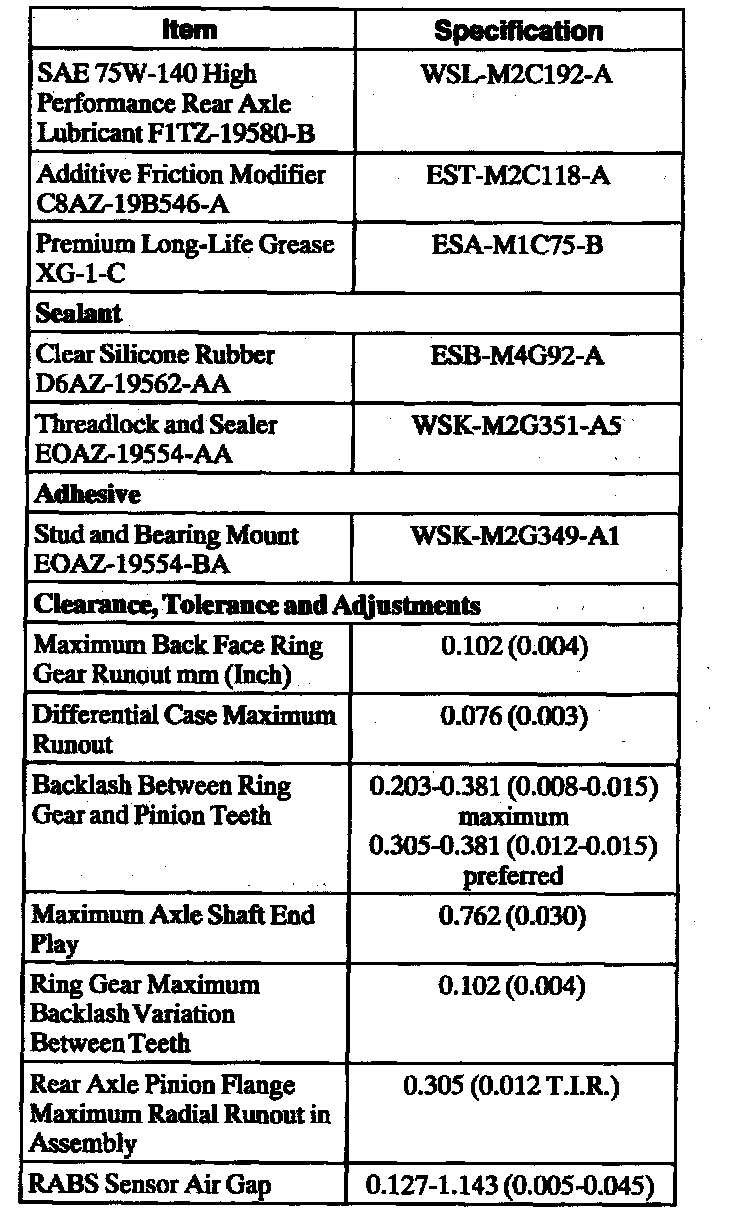

General Specifications

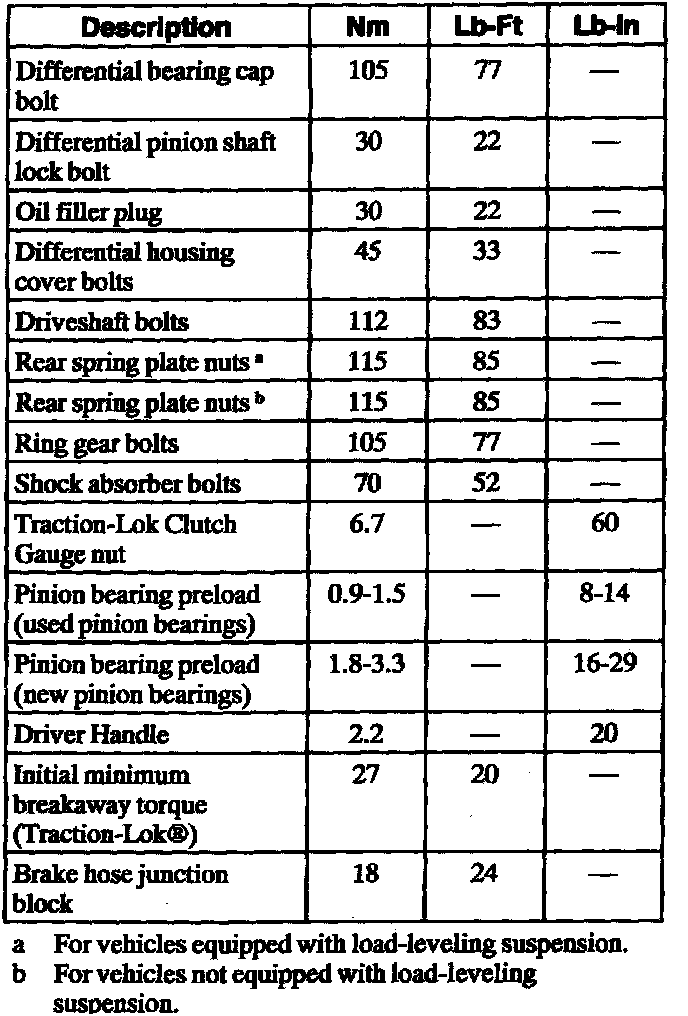

Torque Specifications

Front Drive Axle/Differential - Ford 8.8-Inch Ring Gear

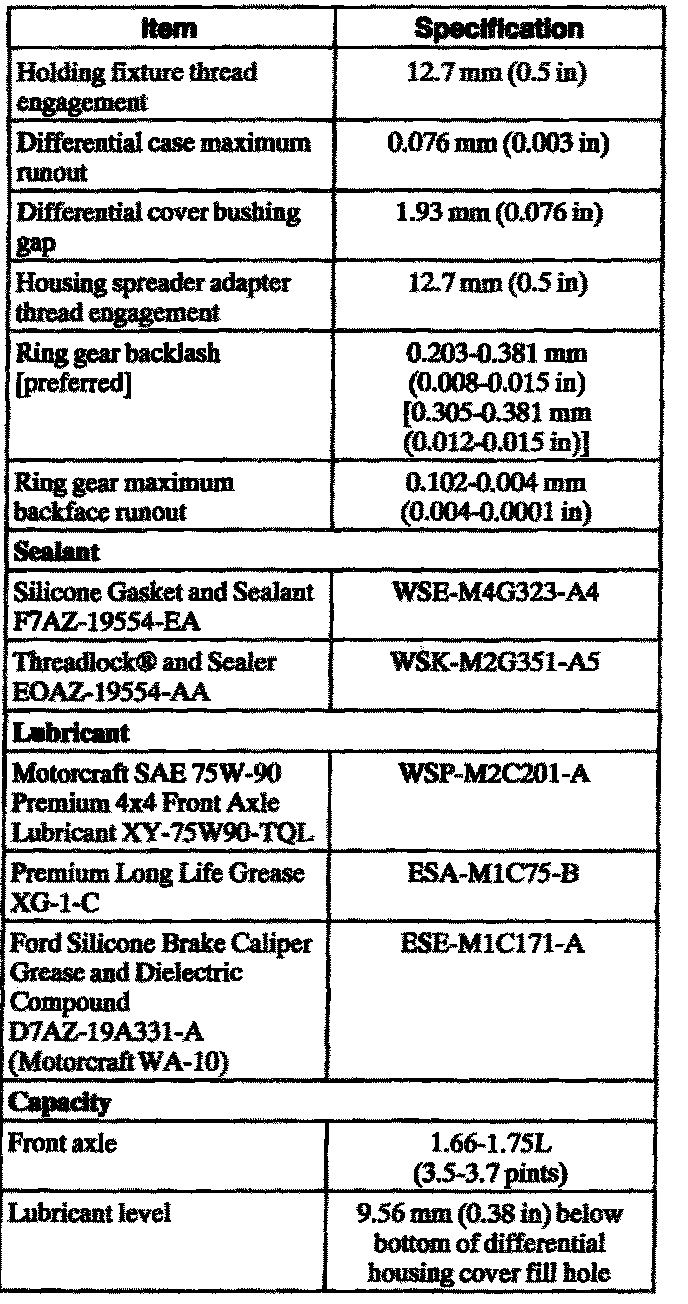

General Specifications

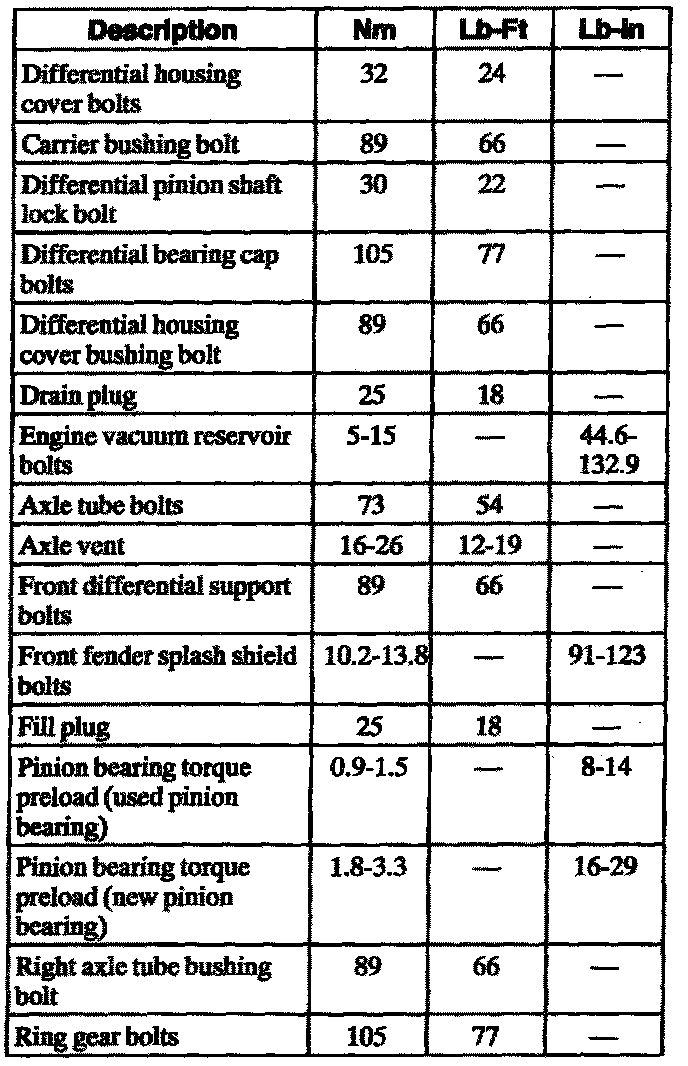

Torque Specifications
