Main Relay (Computer/Fuel System): Testing and Inspection

Introduction To Component Testing:

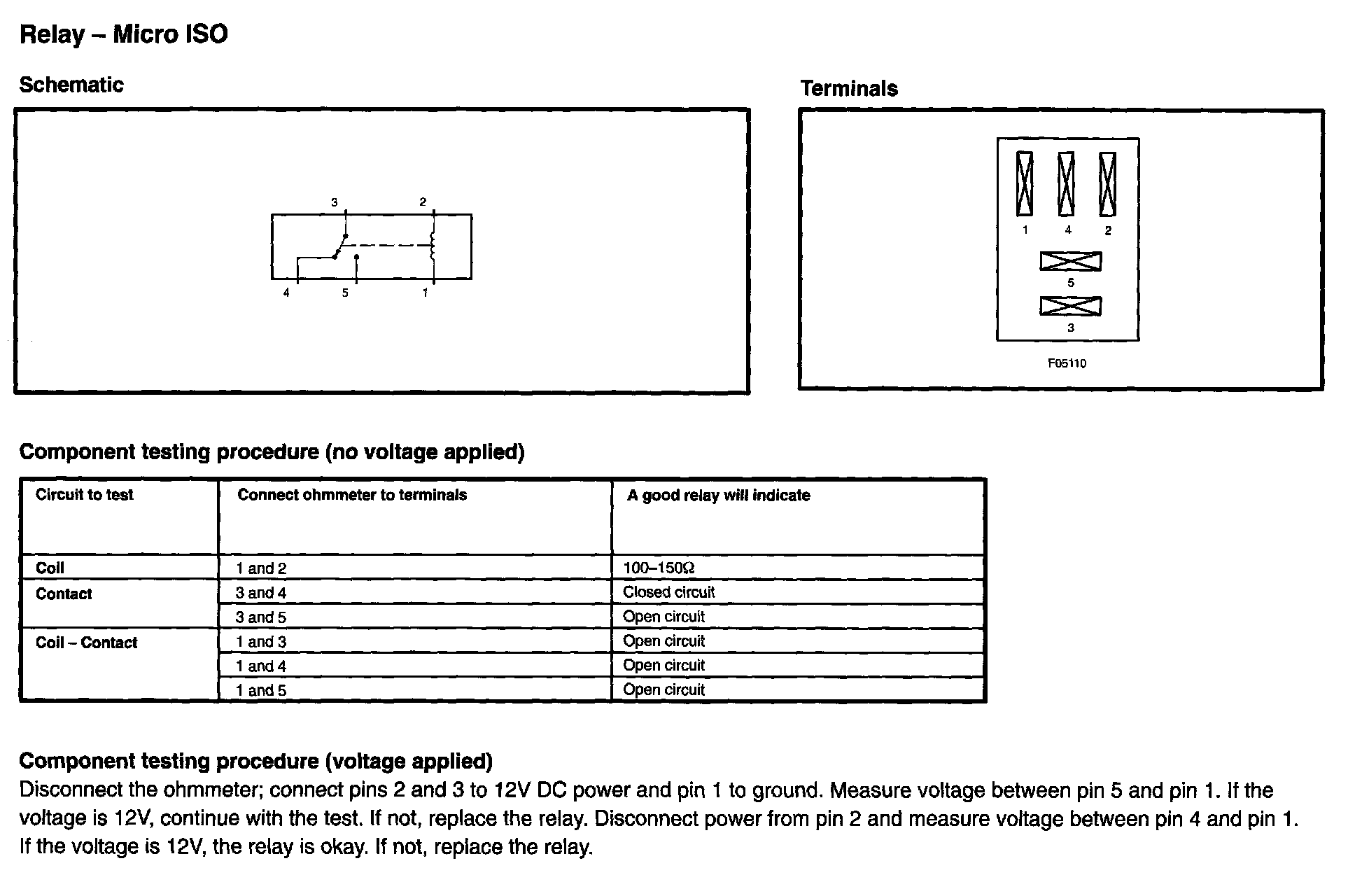

Relay-Micro ISO:
