Home >> Ford >> 2002 >> F 150 2WD Pickup V8-4.6L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Drive/Propeller Shaft >> Driveshaft-Rear Two-Piece

July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

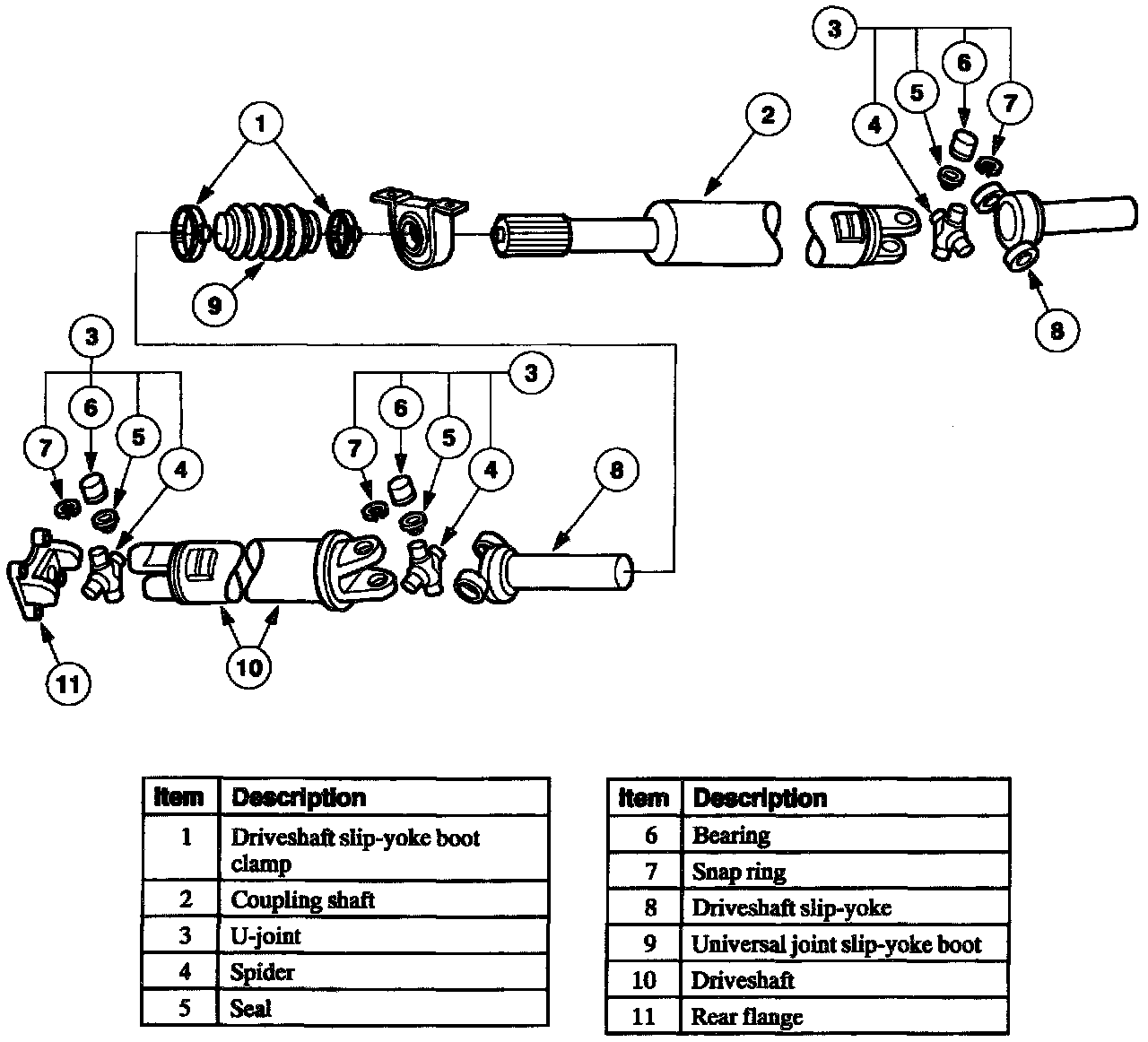

Driveshaft-Rear Two-Piece
