Home >> Ford >> 2002 >> F 150 2WD Pickup V8-4.6L >> Repair and Diagnosis >> Body and Frame >> Seats >> Seat Temperature Control Module >> Locations >> Driver Side Front

July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

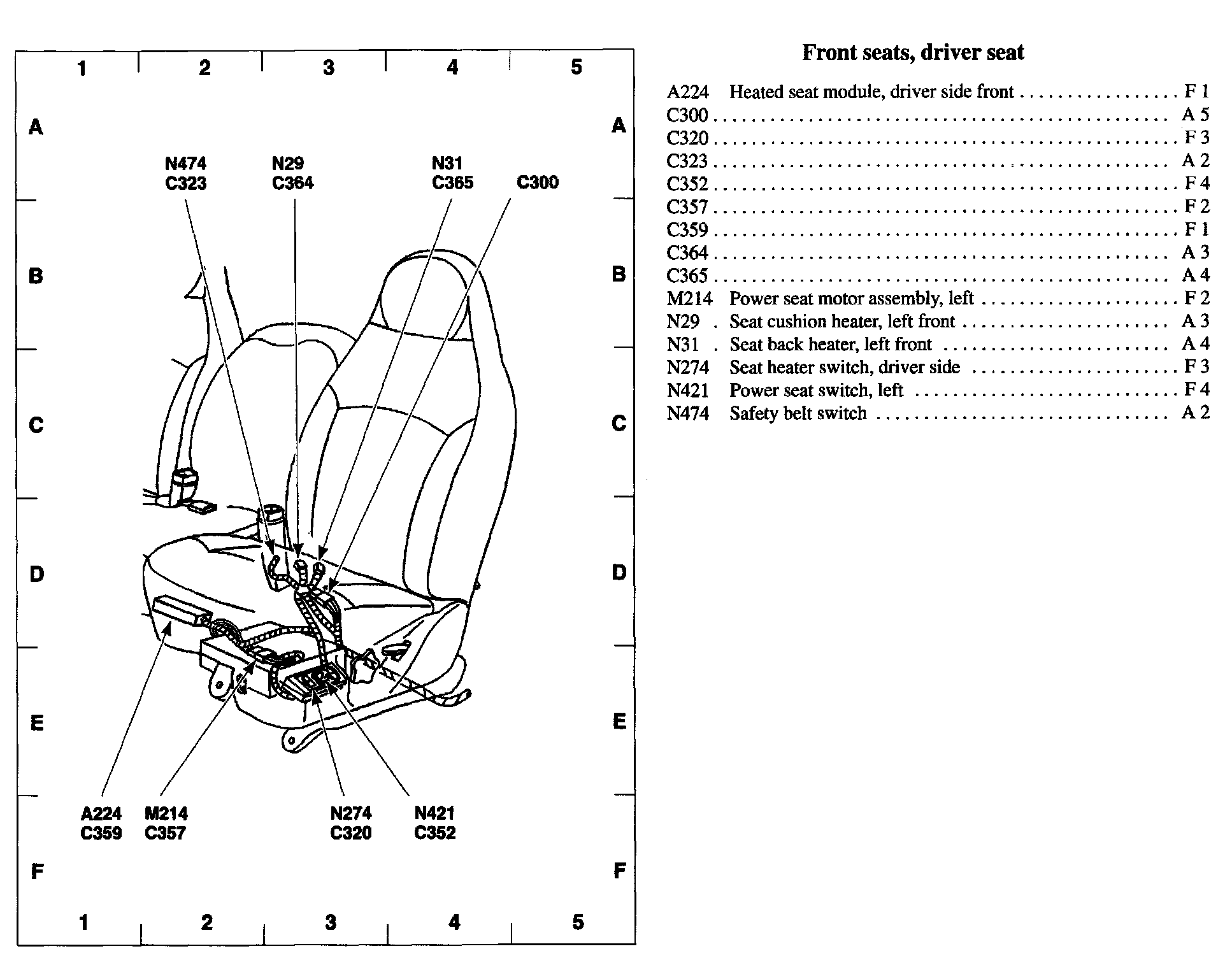

Driver Side Front

View 151-32:
