Test F: Incorrect Key Code (Unprogrammed PATS Key)

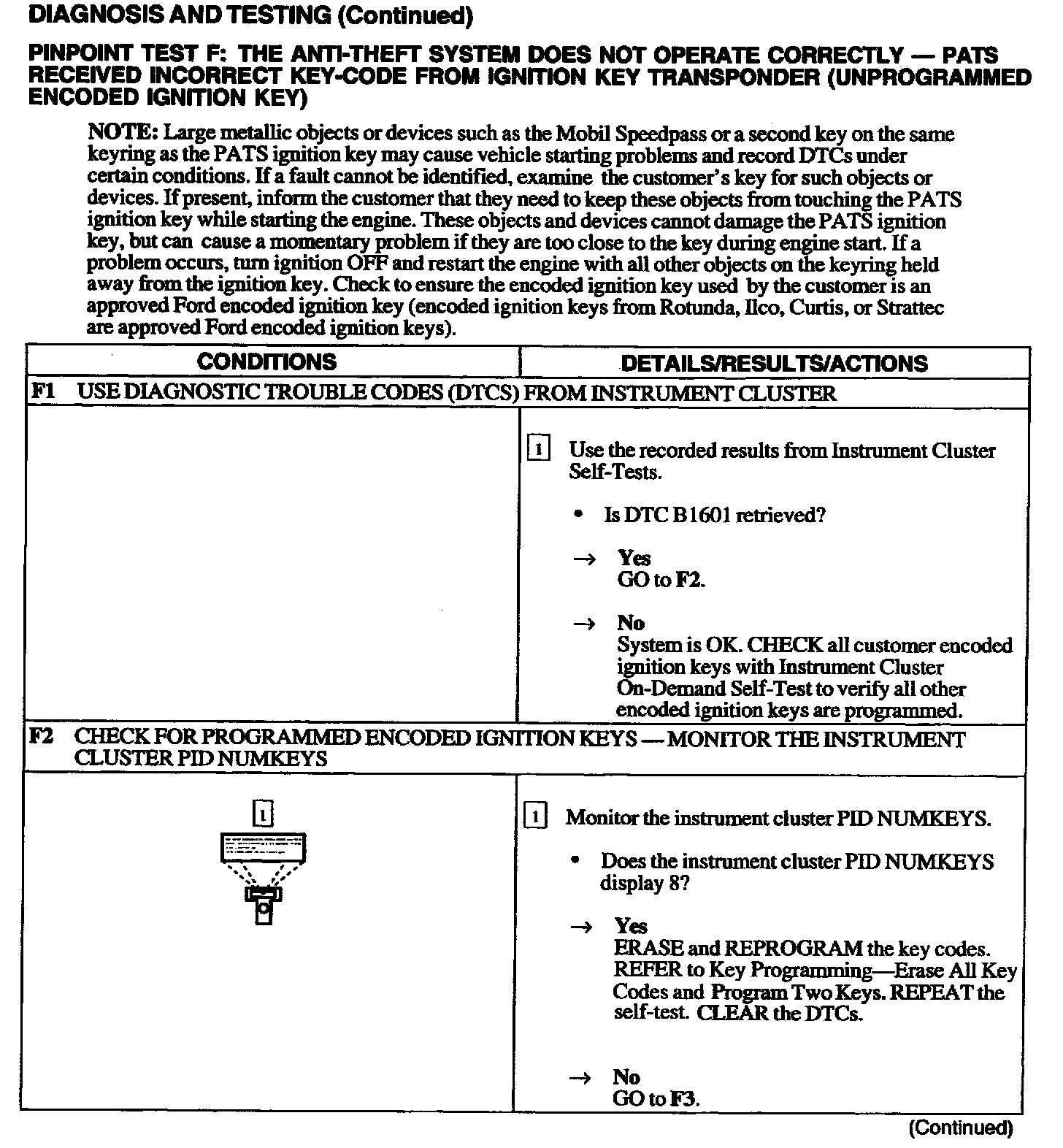

F1 - F2:

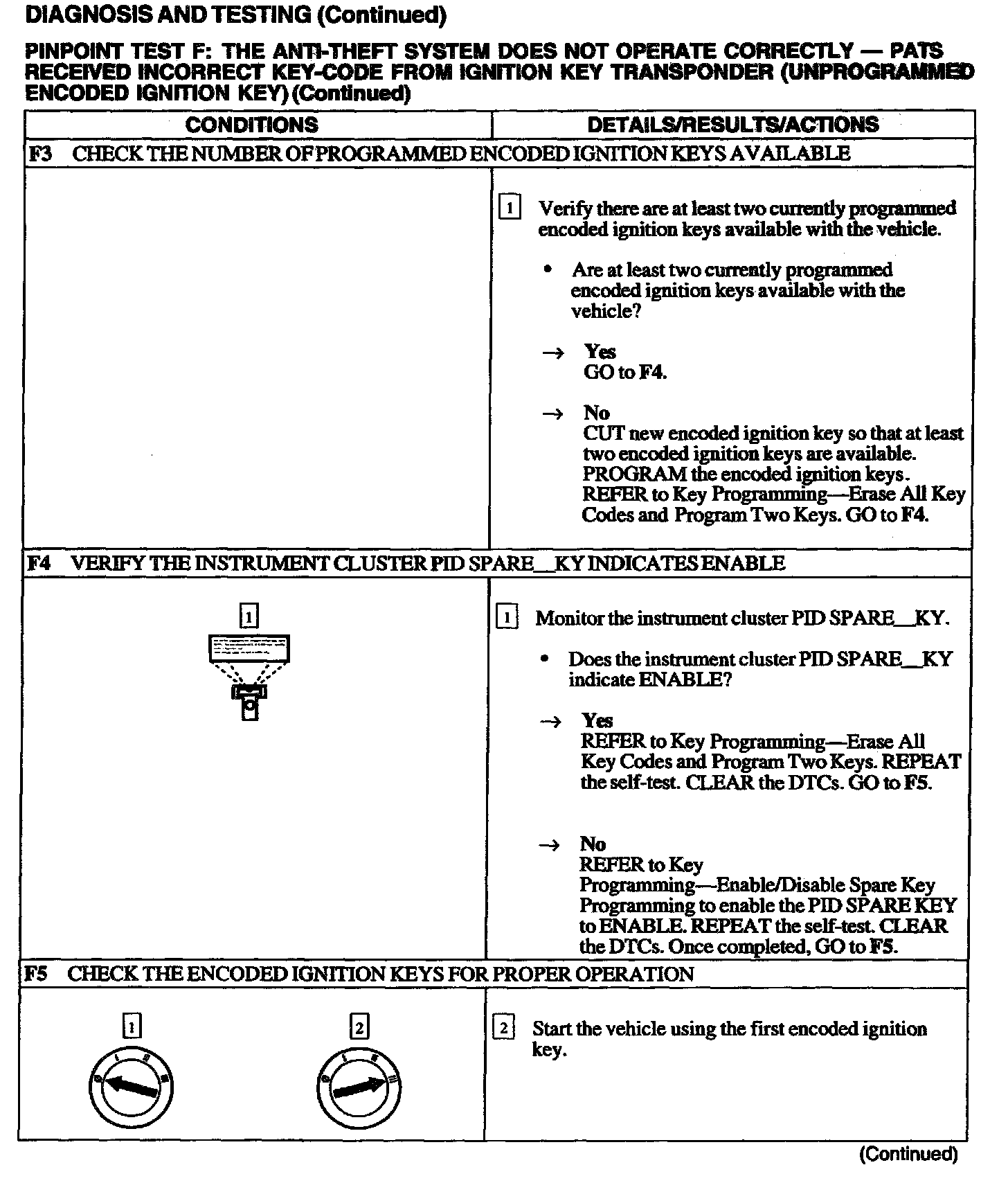

F3 - F5:

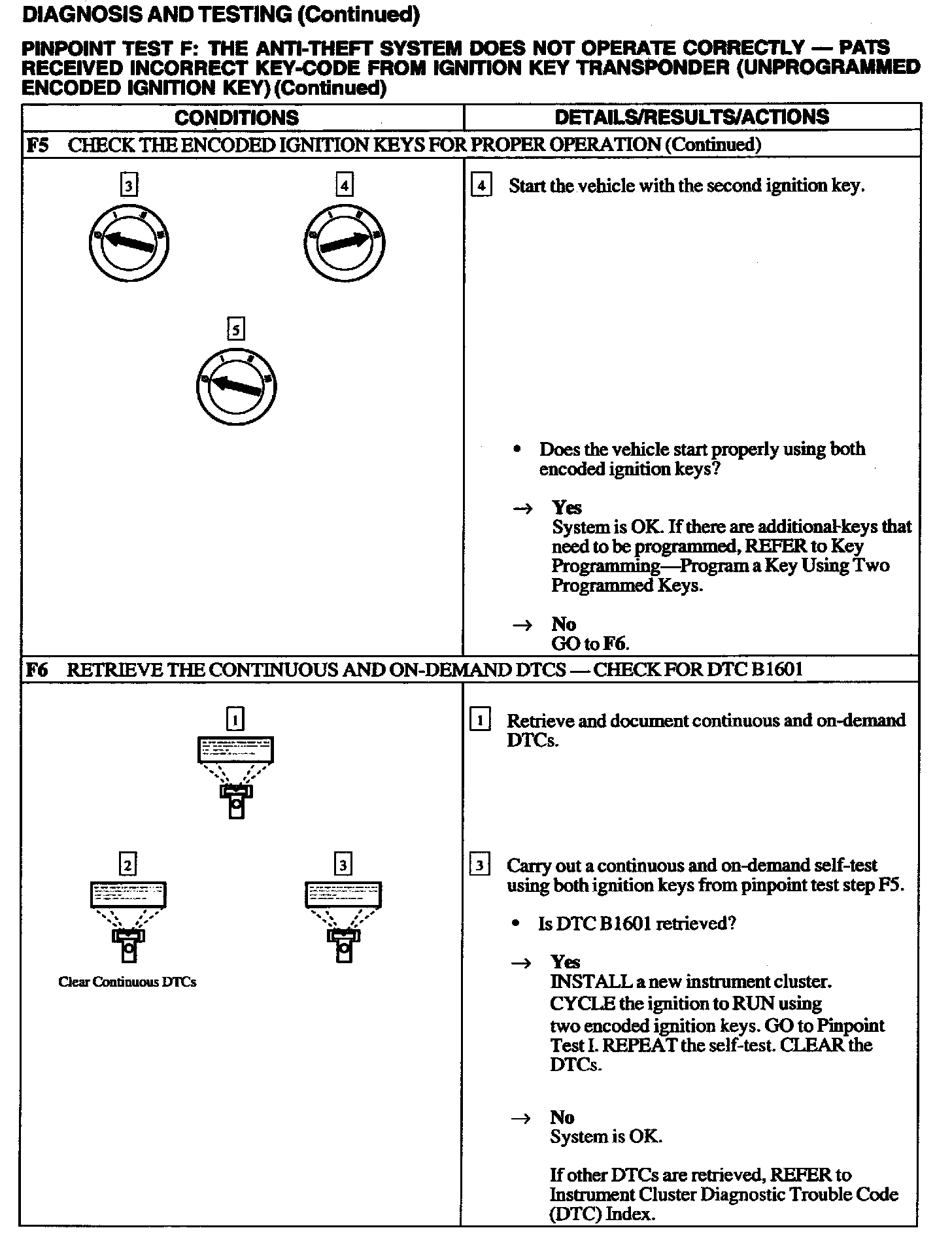

F5 - F6:






F: A-Theft System Not Operating Correctly - Incorrect Key-Code From Ign Key Transponder
