Test C: The Trans Control Switch Is Not Operating Properly

PINPOINT TEST C: TRANSMISSION CONTROL SWITCH (TCS) IS NOT OPERATING PROPERLY

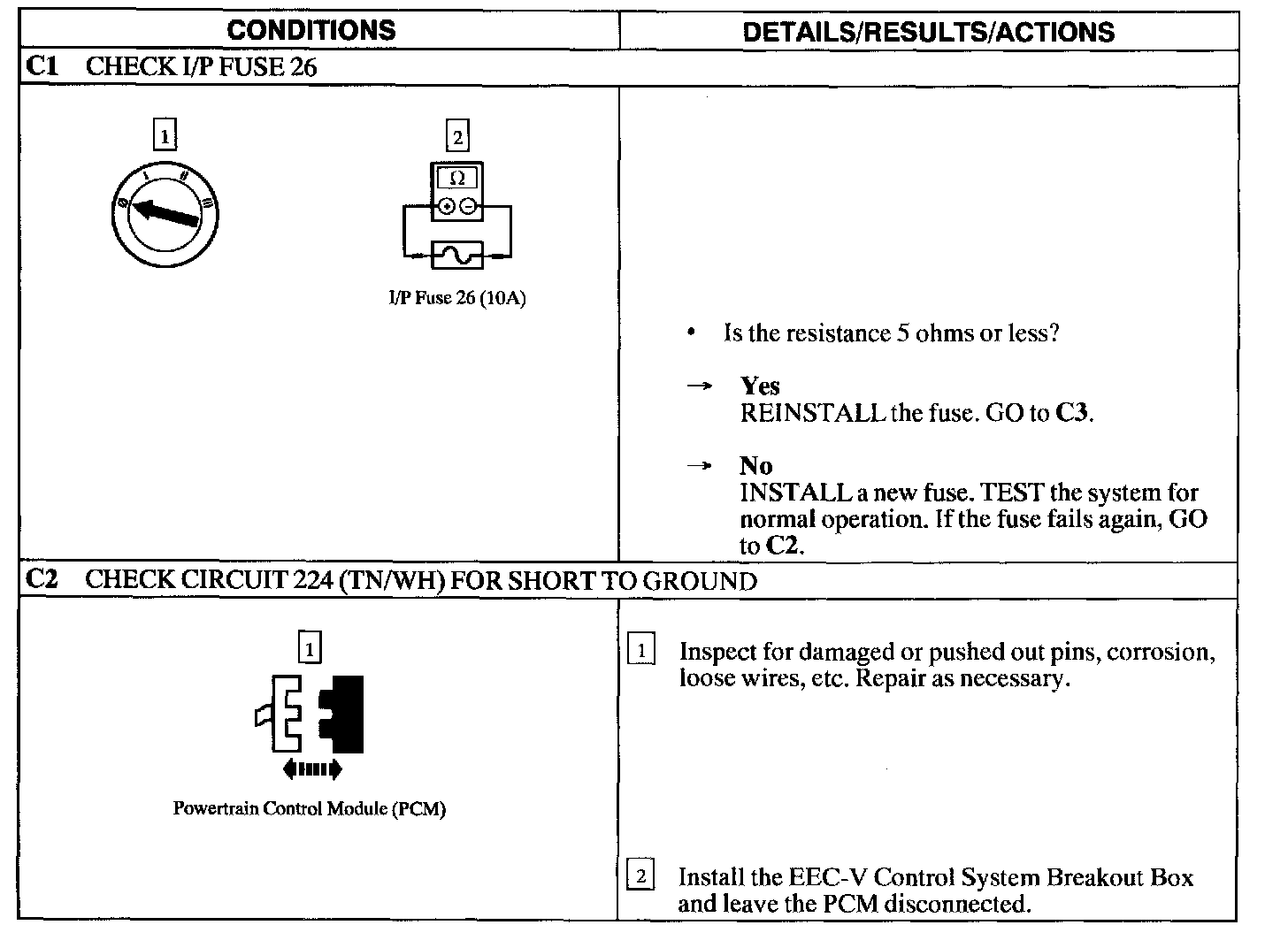

Test C1-C2

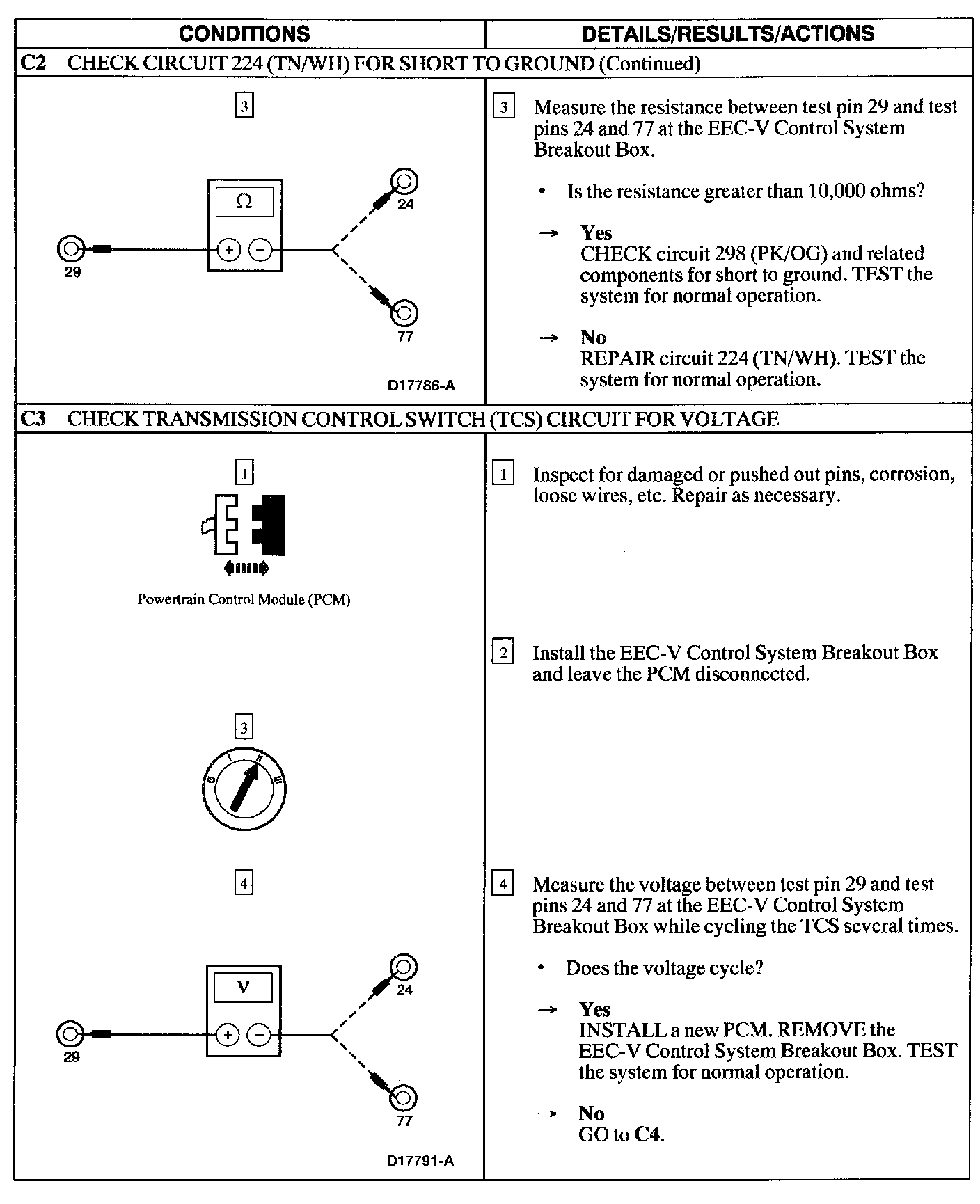

Test C2-C3

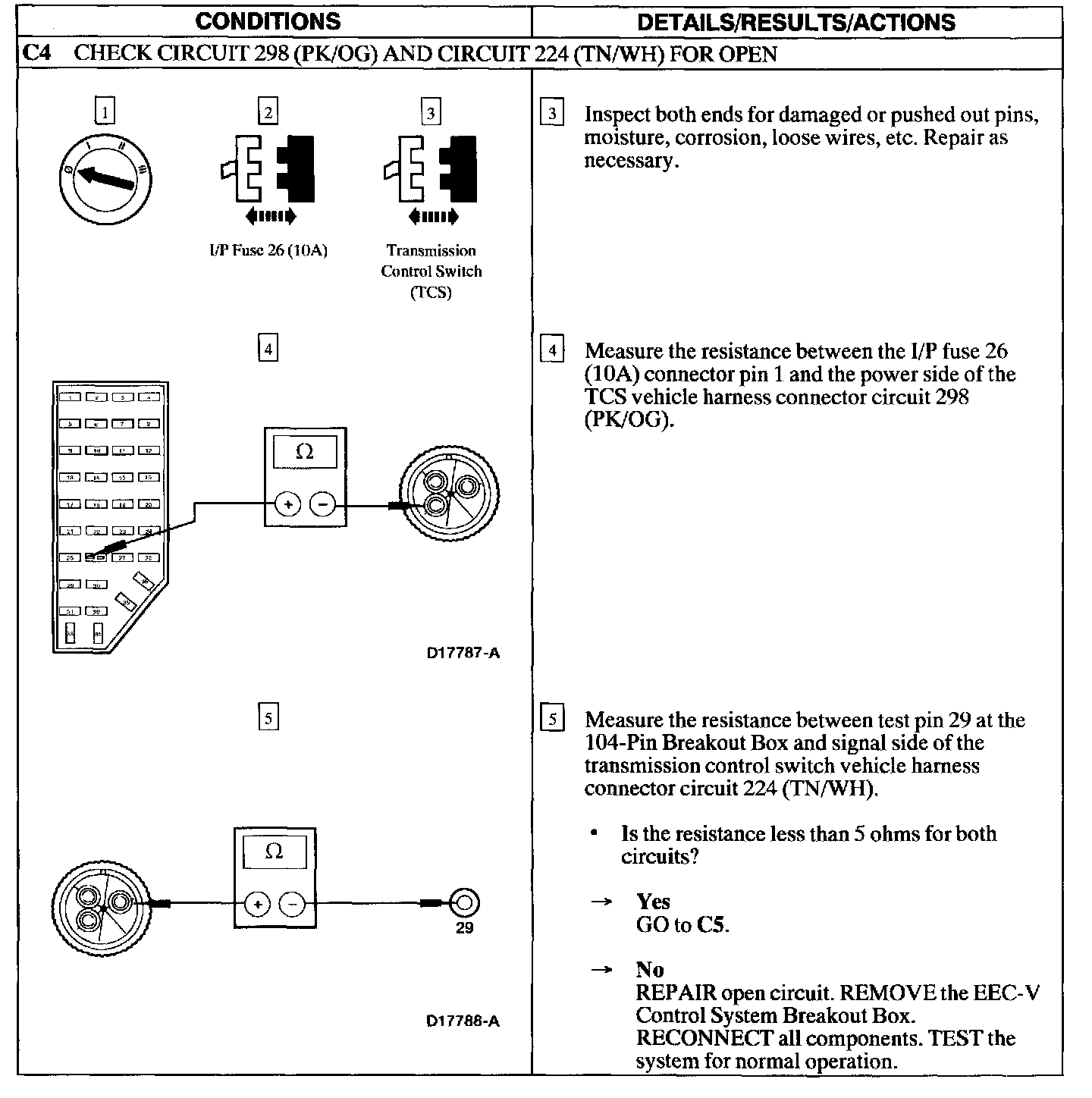

Test C4

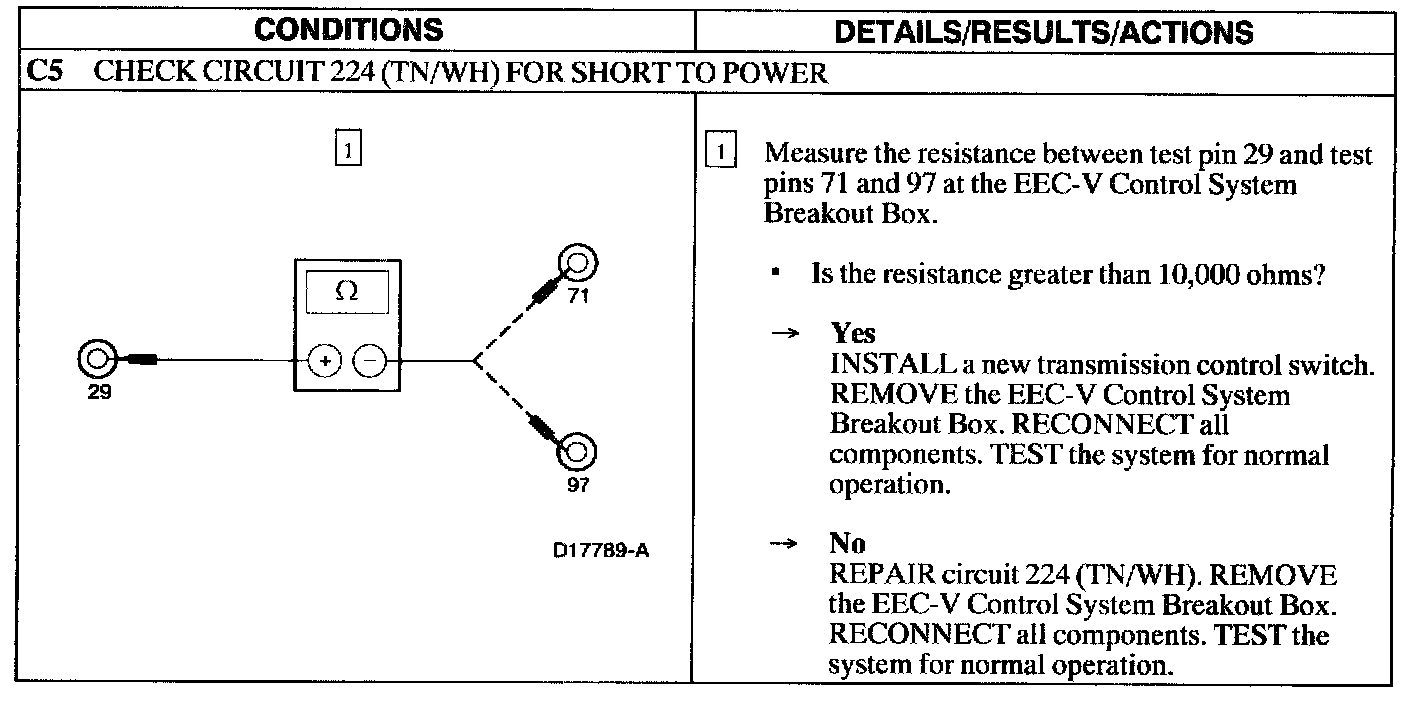

Test C5
