Heater Control Valve: Service and Repair

REMOVAL

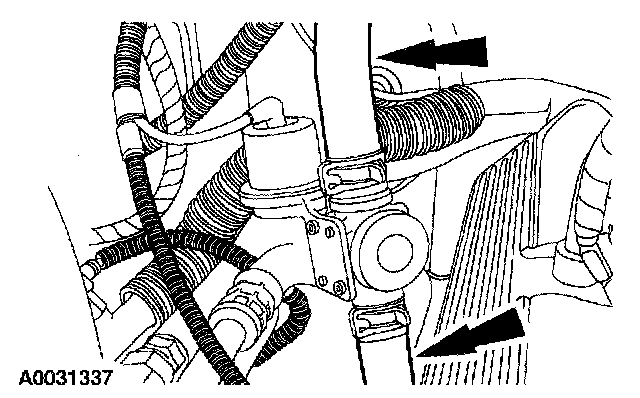

1. Using suitable tools, clamp-off the heater hoses.

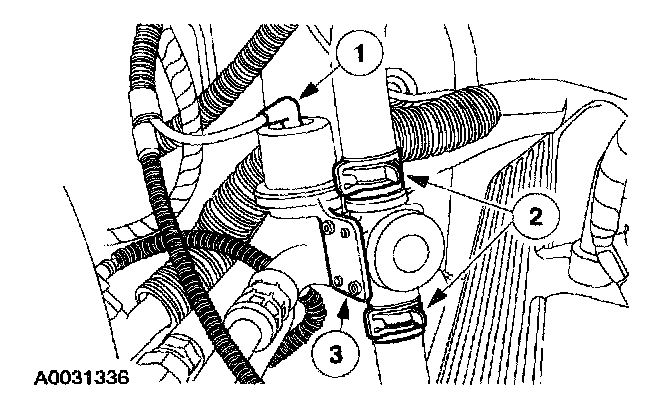

2. Remove the heater control valve.
1 Disconnect the vacuum connector.
2 Disconnect the heater hoses.
3 Remove the heater control valve.

INSTALLATION
1. To install, reverse the removal procedure.
- Clean and lubricate the coolant hoses with coolant hose lubricant or plain water only if needed.

2. Top-off the engine cooling system.
