LEMON Manuals
: Even more car manuals for everyone: 1960-2025
Home
>>
Ford
>>
2002
>>
Explorer 2WD V8-4.6L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuse Block
>>
Central Junction Box (CJB)
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

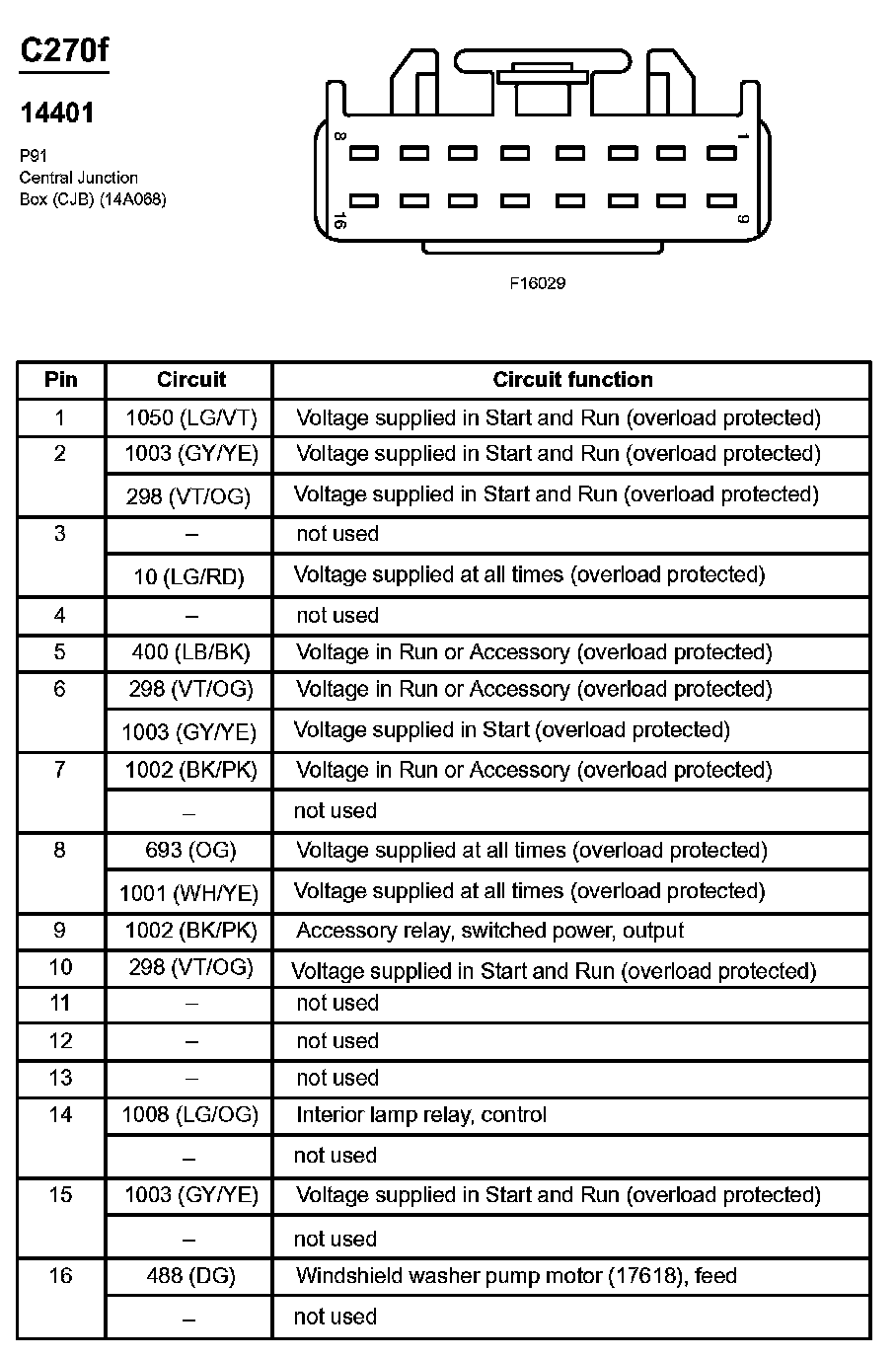

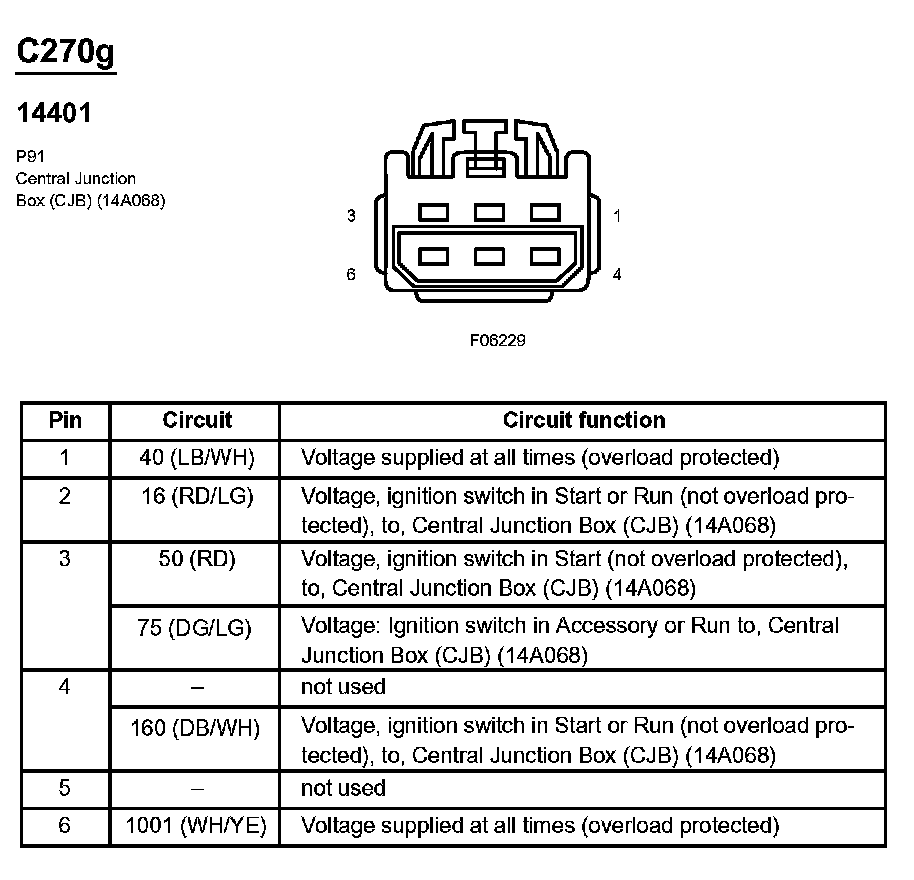

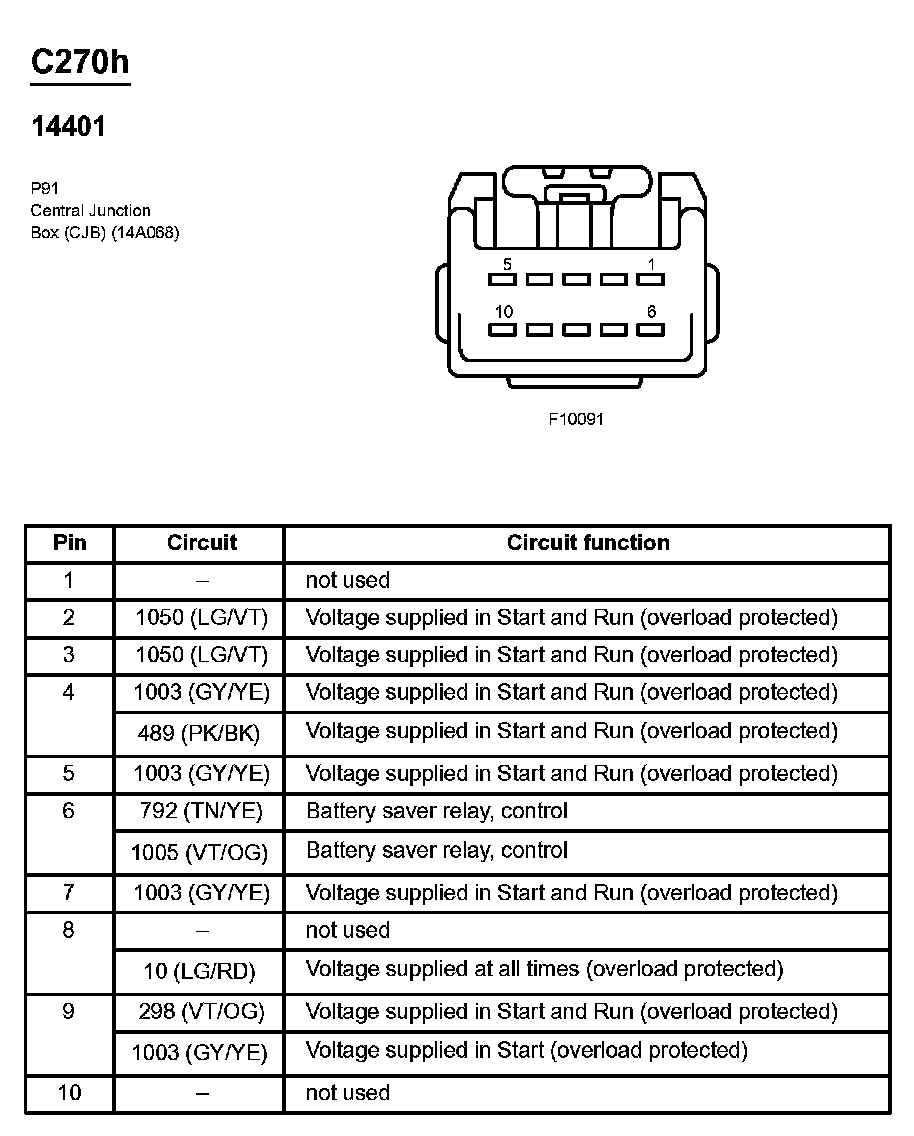

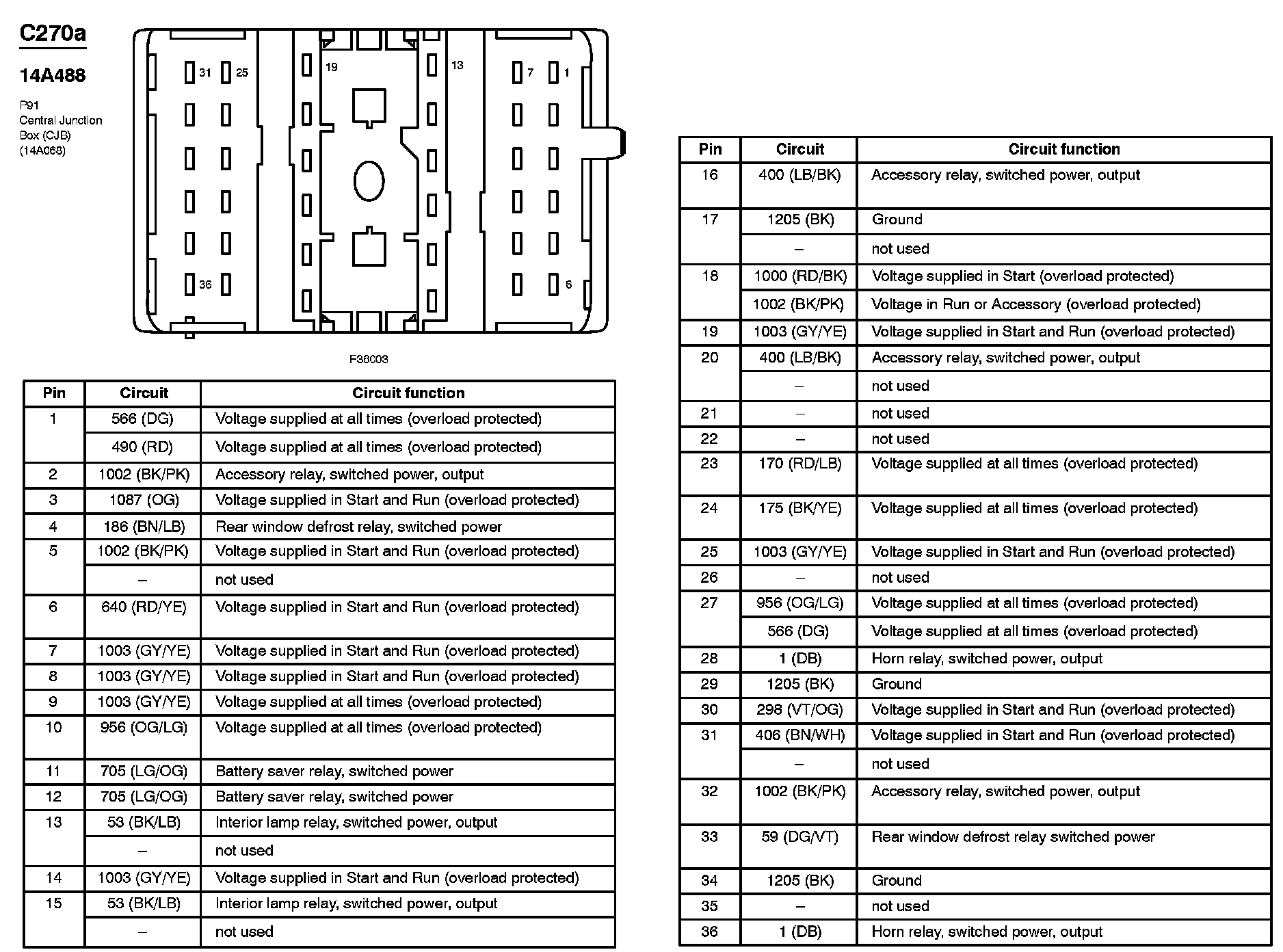

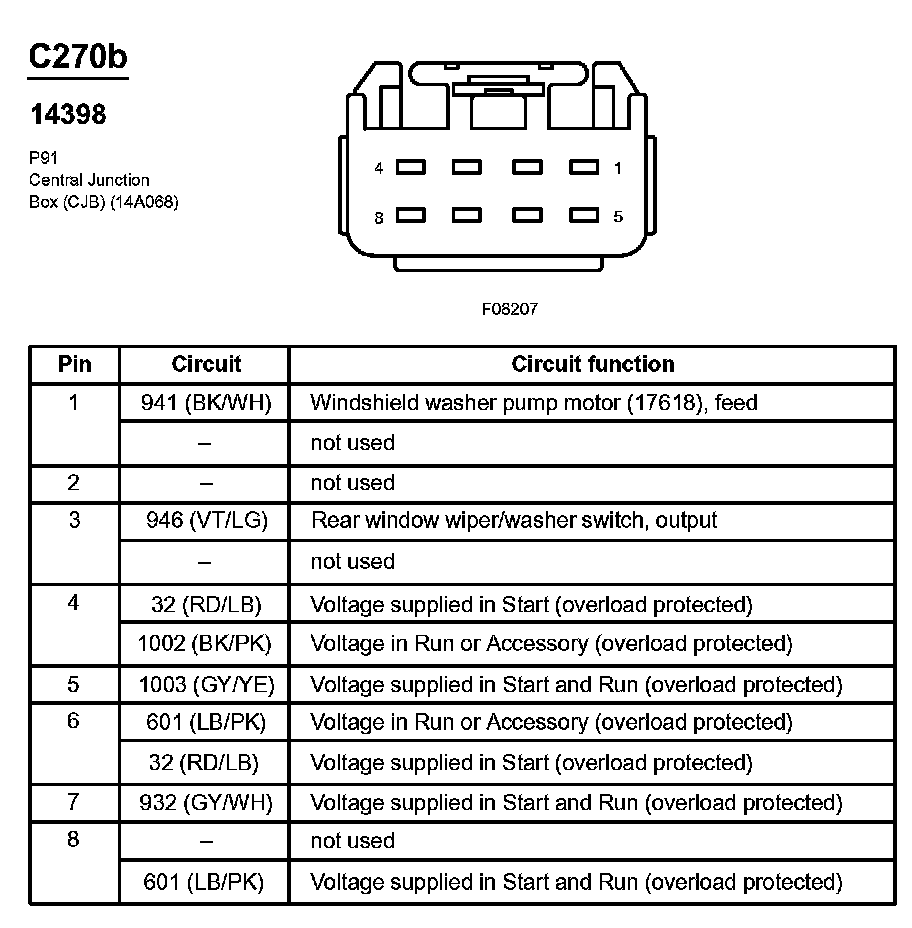

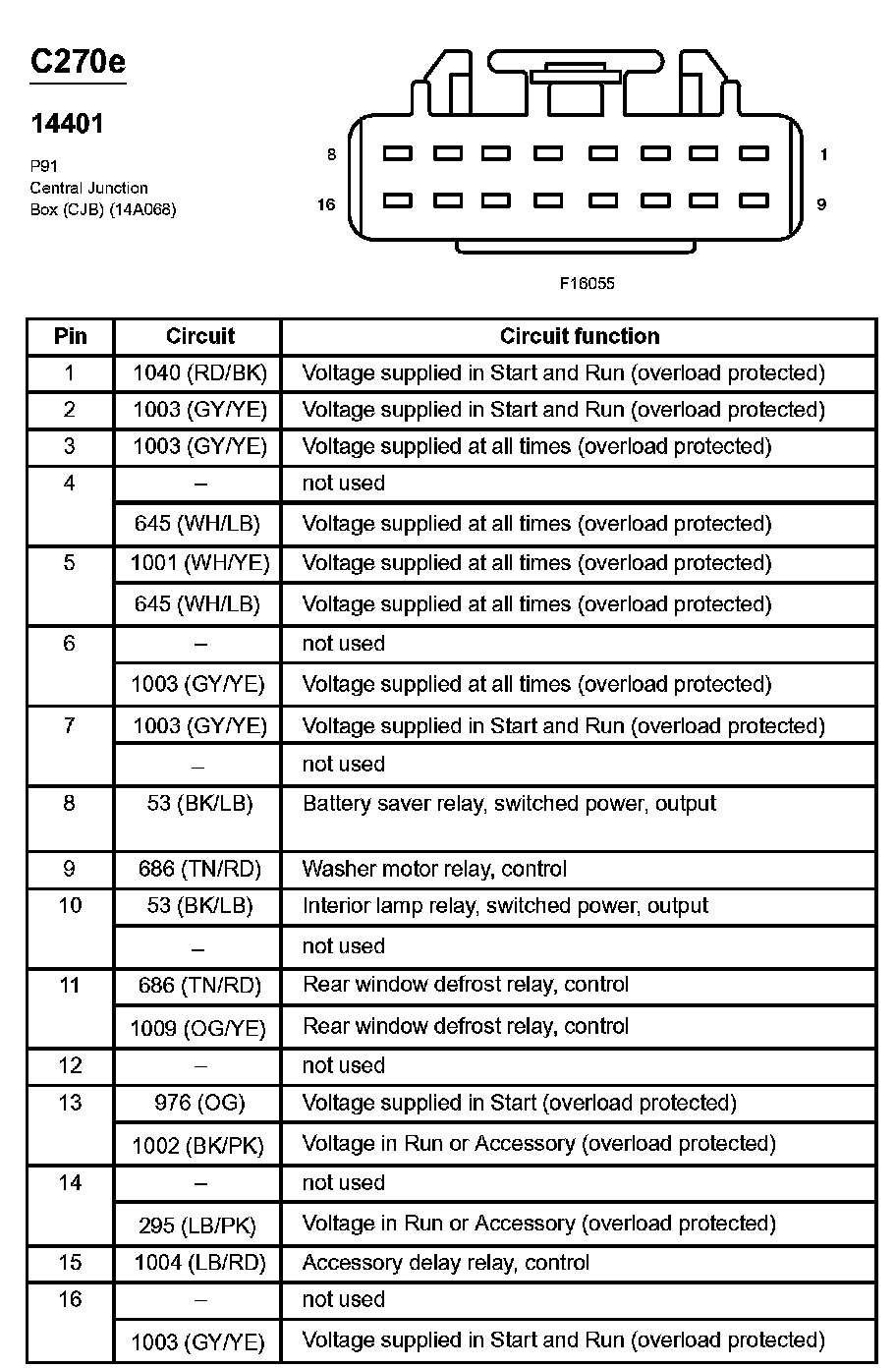

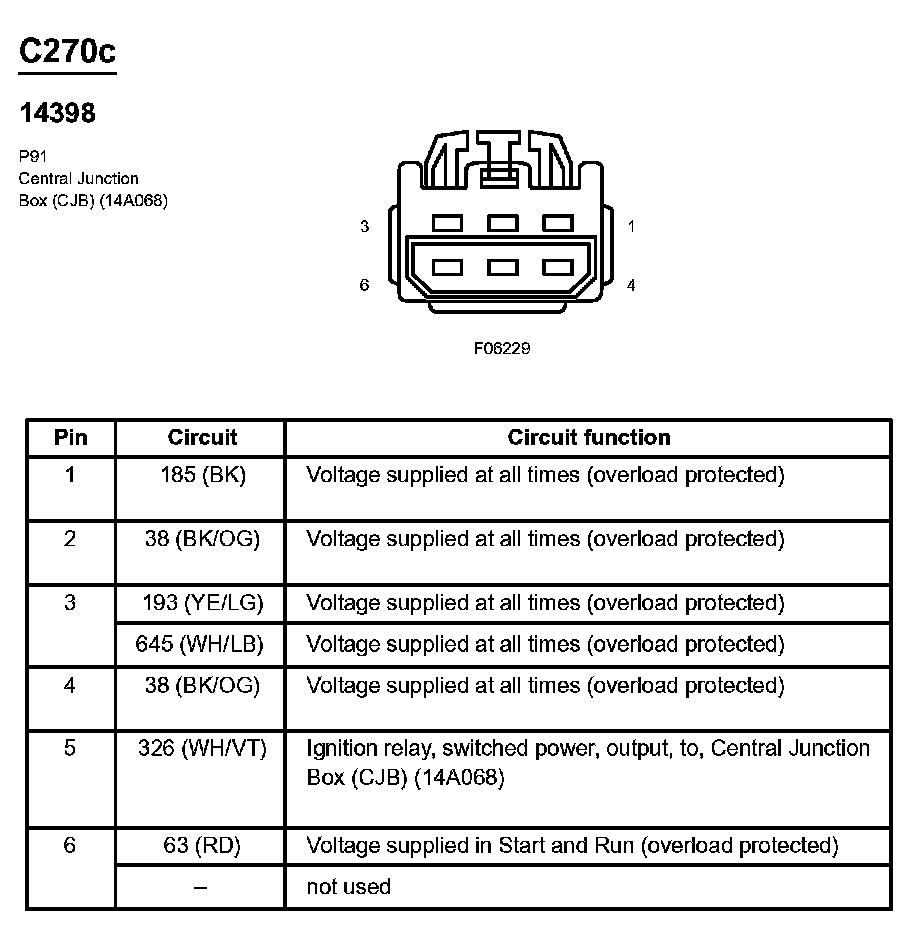

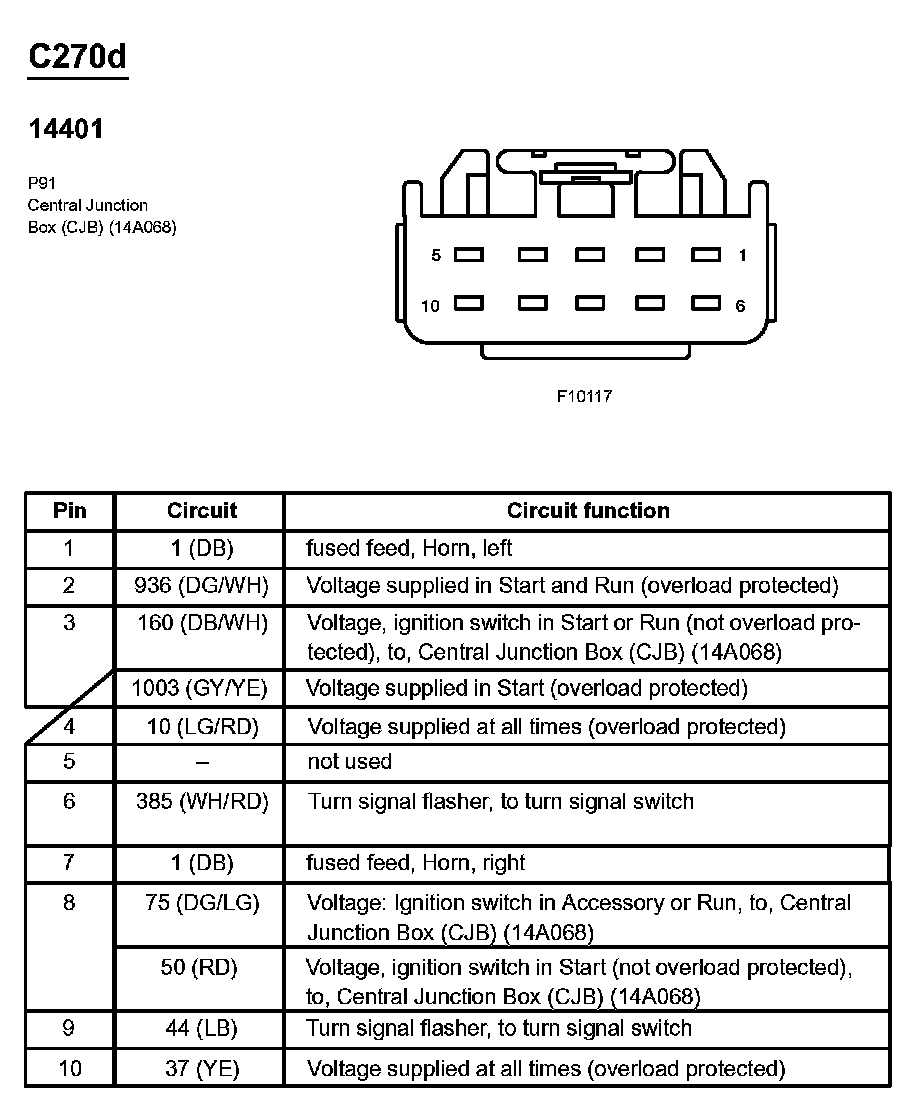

Central Junction Box (CJB)
