Item 59: Fluid Pump Assembly Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
    CAUTION: Make sure that the fluid pump inlet thrust washer (No. 1), selective thrust washer, fluid pump gasket and the fluid pump-to-case 0-ring seal remain in the correct position throughout this step.

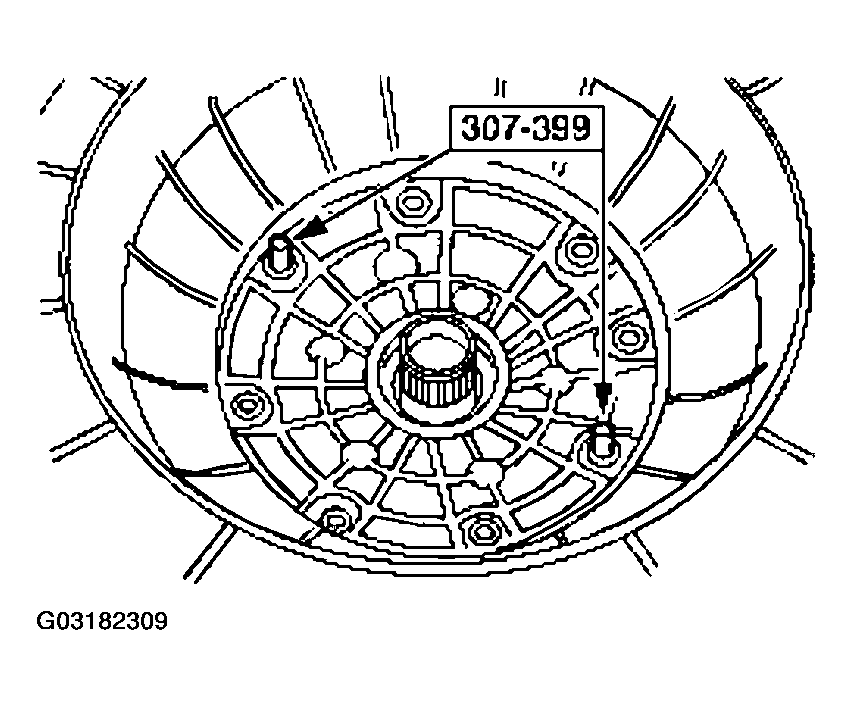

    Fig 1: Installing Fluid Pump
    G03182309Courtesy of FORD MOTOR CO.
  1. Install the fluid pump.
    2. CAUTION: The special tools must be used to correctly align the pump with the adapter plate to reduce gear noise, bushing failure and leakage.

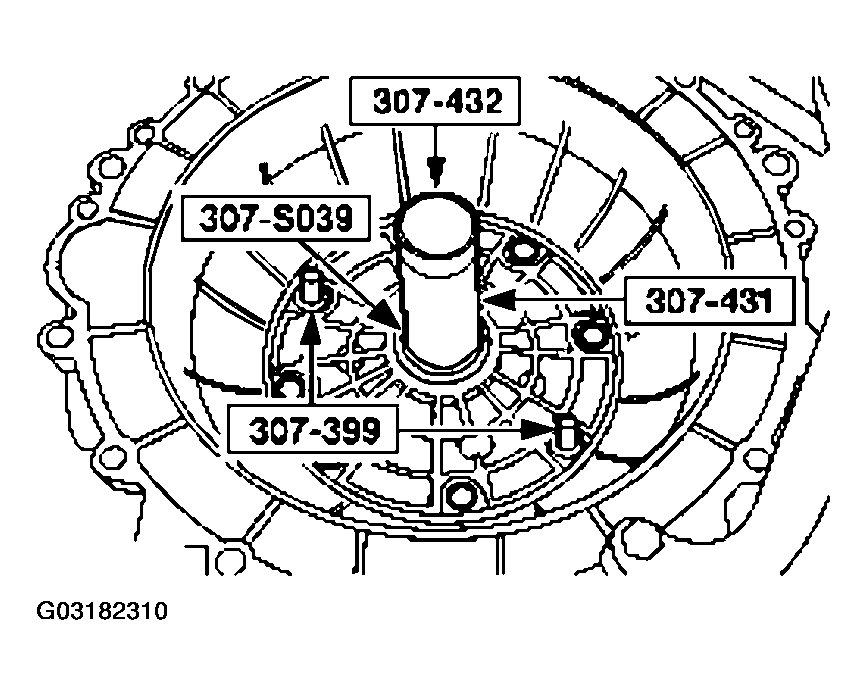

    Fig 2: Aligning Fluid Pump To Adapter Plate
    G03182310Courtesy of FORD MOTOR CO.
  2. Using the special tool, align the fluid pump to the adapter plate.
