Tests DM: Engine Coolant Temperature Sensor (ECT)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Tests DM: Engine Coolant Temperature Sensor (ECT)

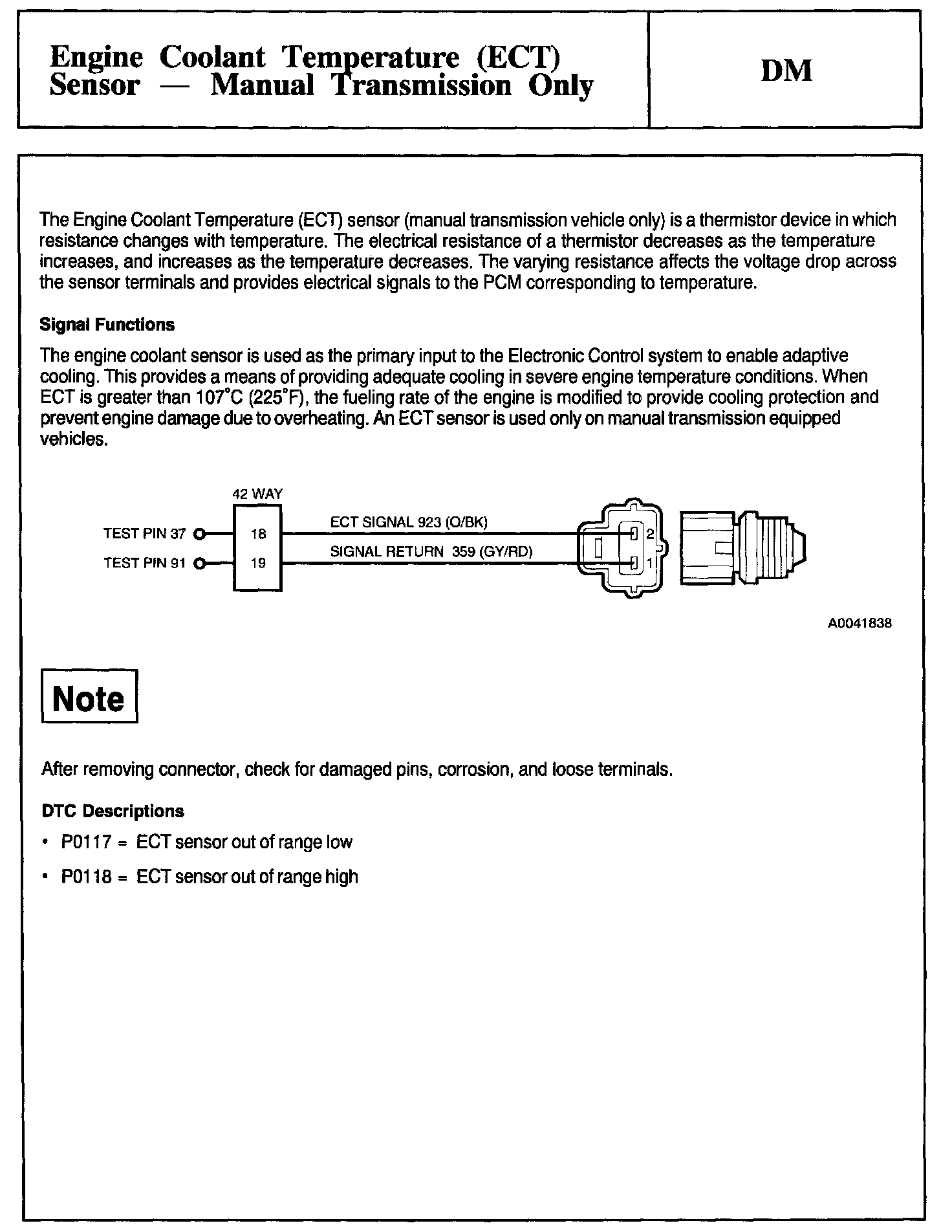

Description, Schematic and Note:

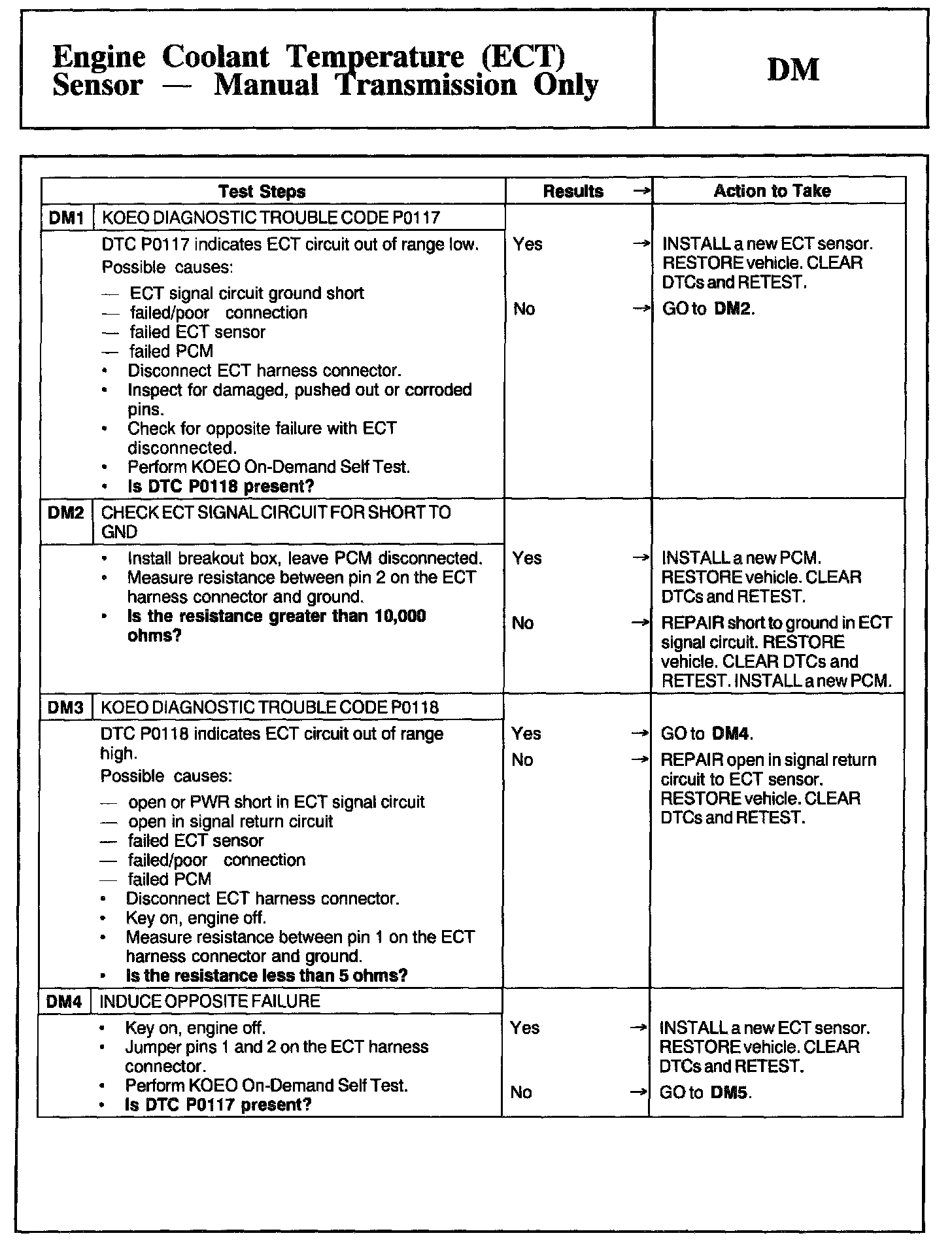

DM1 - DM4:

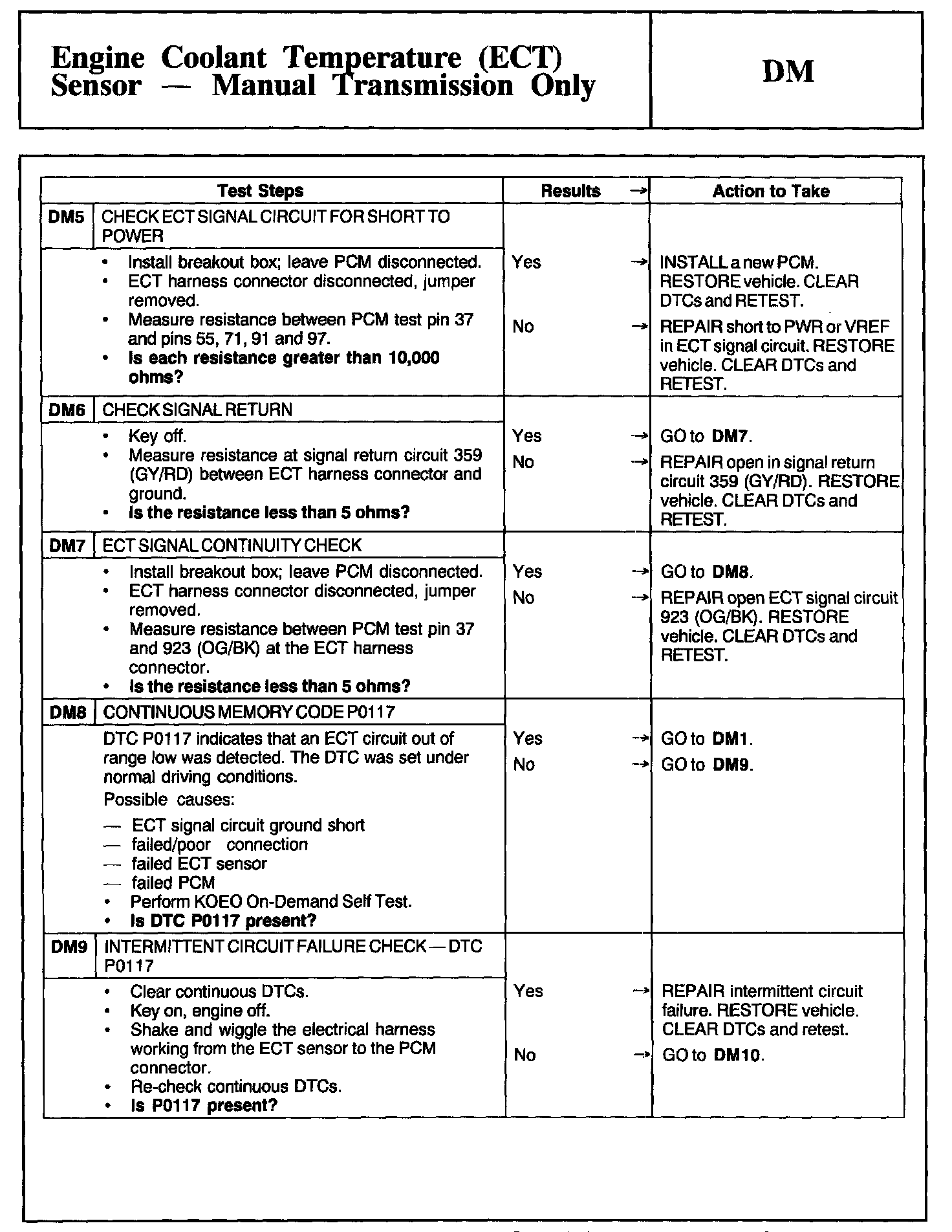

DM5 - DM9:

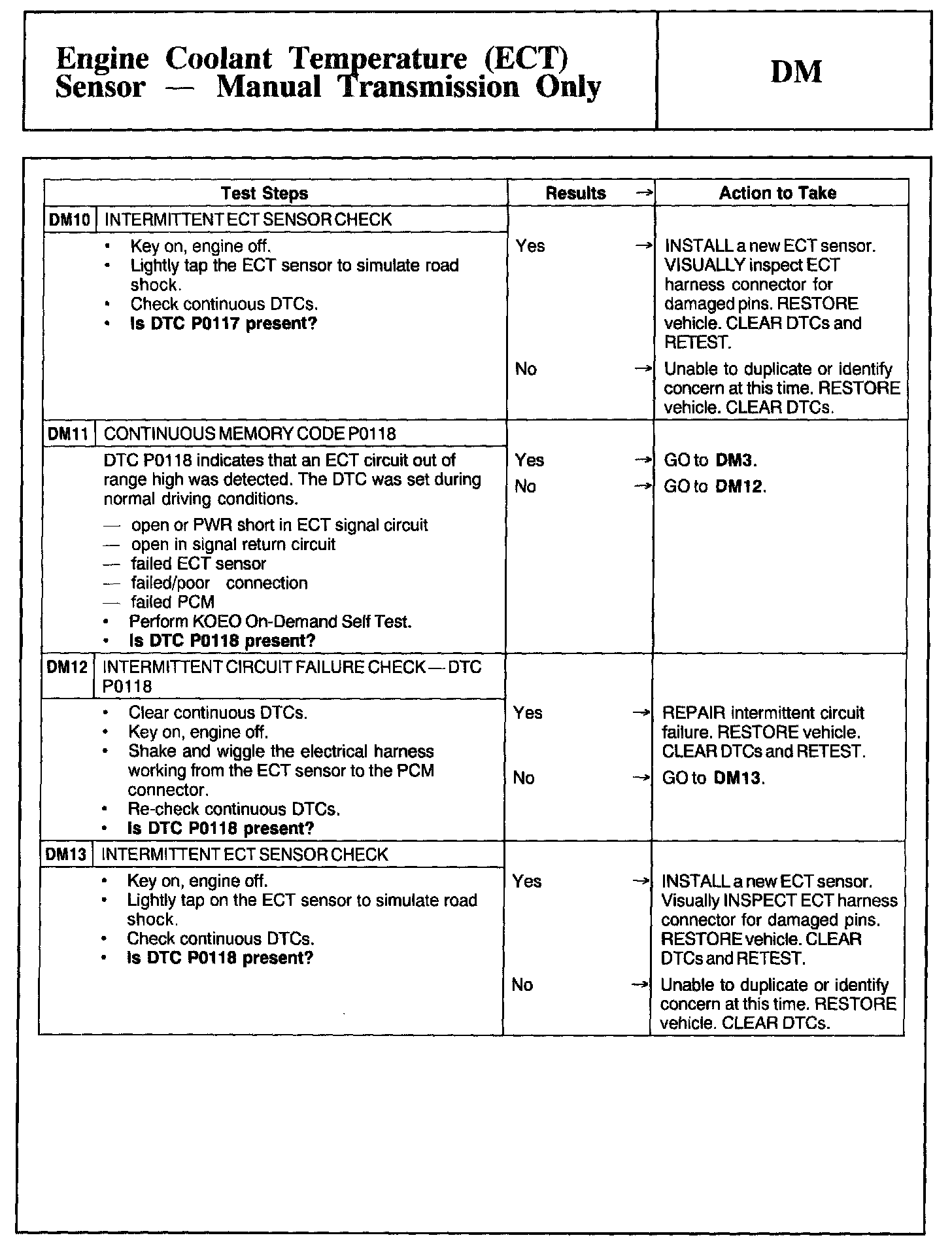

DM10 - DM13:
