LEMON Manuals
: Even more car manuals for everyone: 1960-2025
Home
>>
Ford
>>
2002
>>
Excursion 2WD V8-7.3L DSL Turbo VIN F
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Tests DA: Intake Air Temperature (IAT) Sensor
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Tests DA: Intake Air Temperature (IAT) Sensor

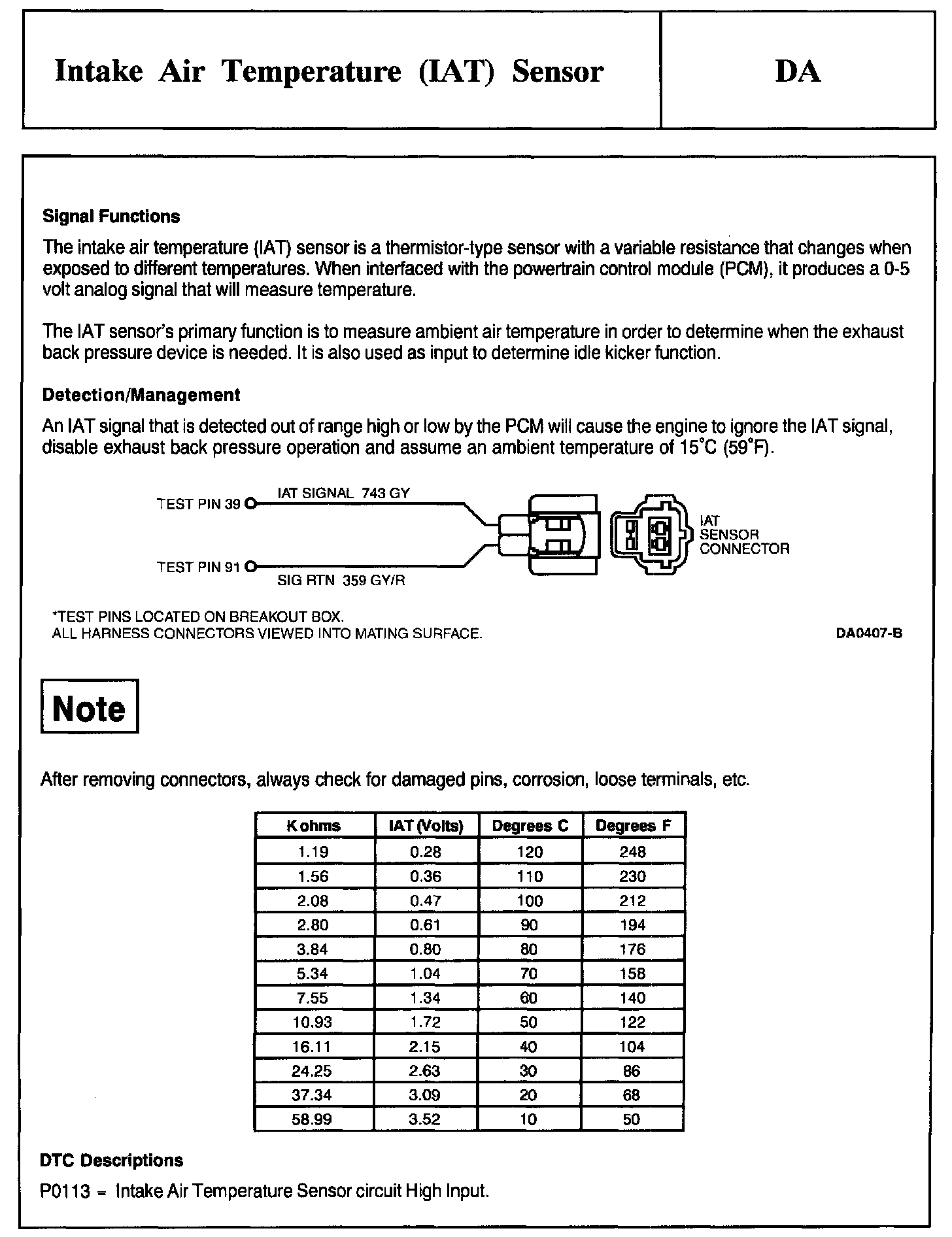

Description, Schematic, Note and Table:

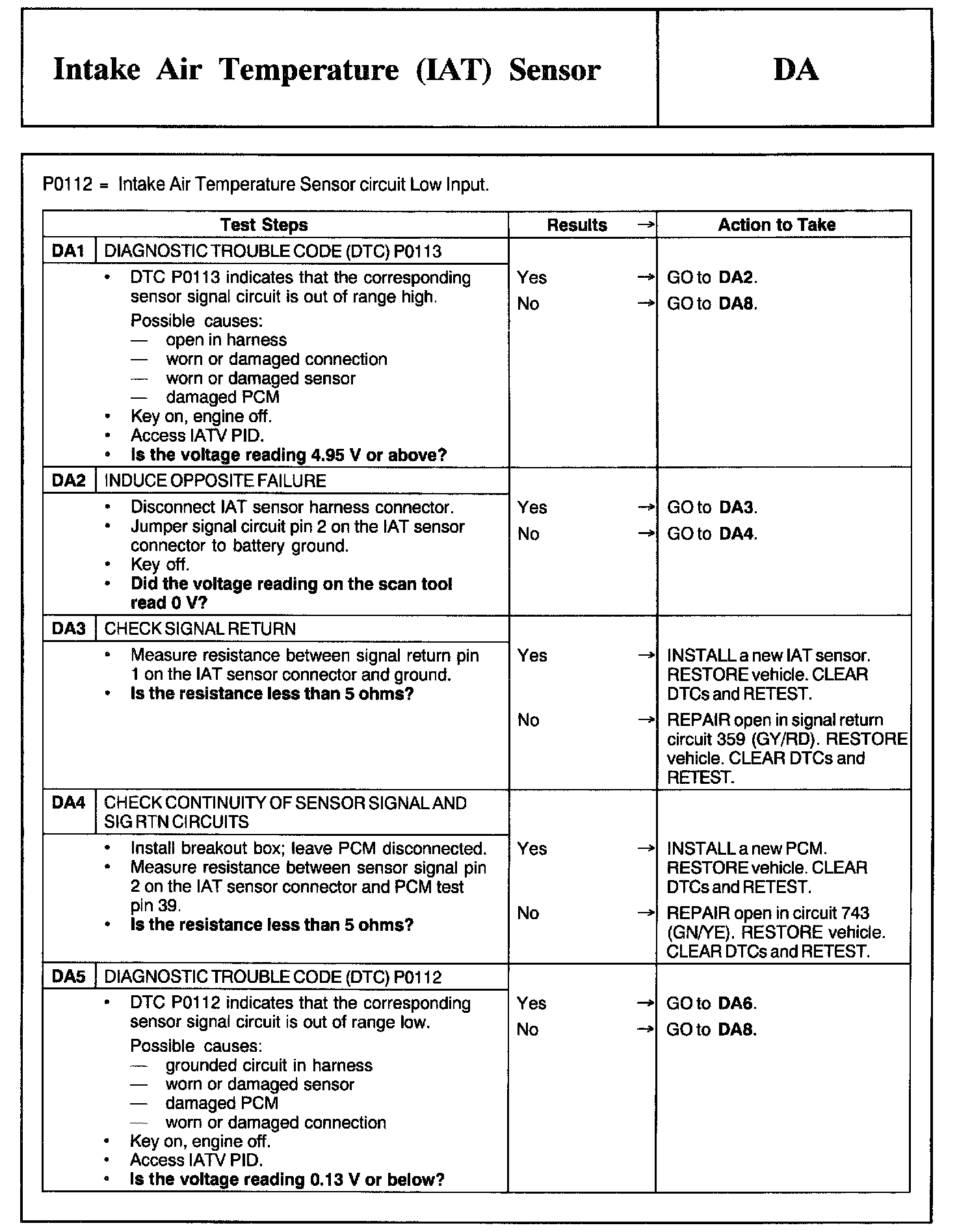

DA1 - DA5:

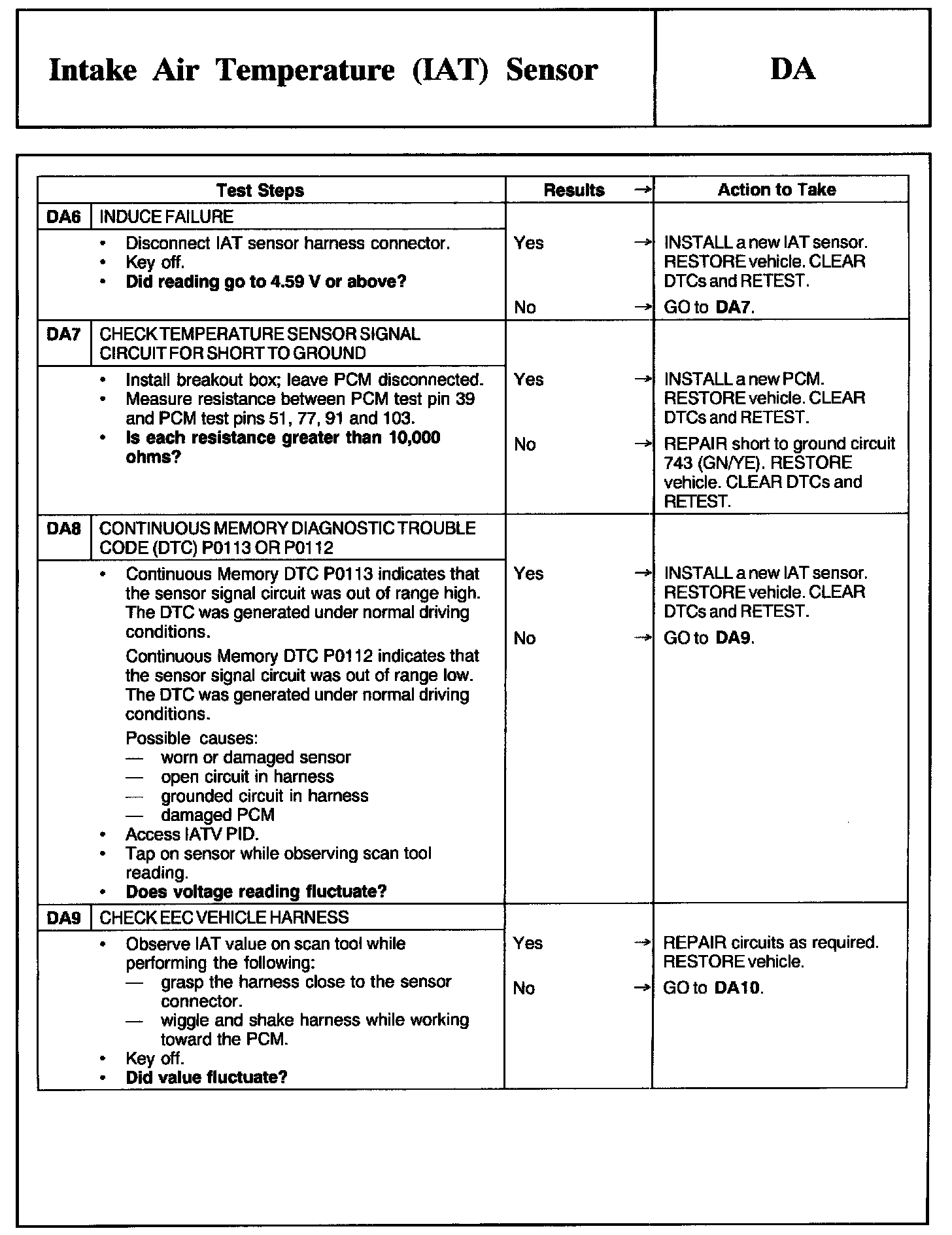

DA6 - DA9:

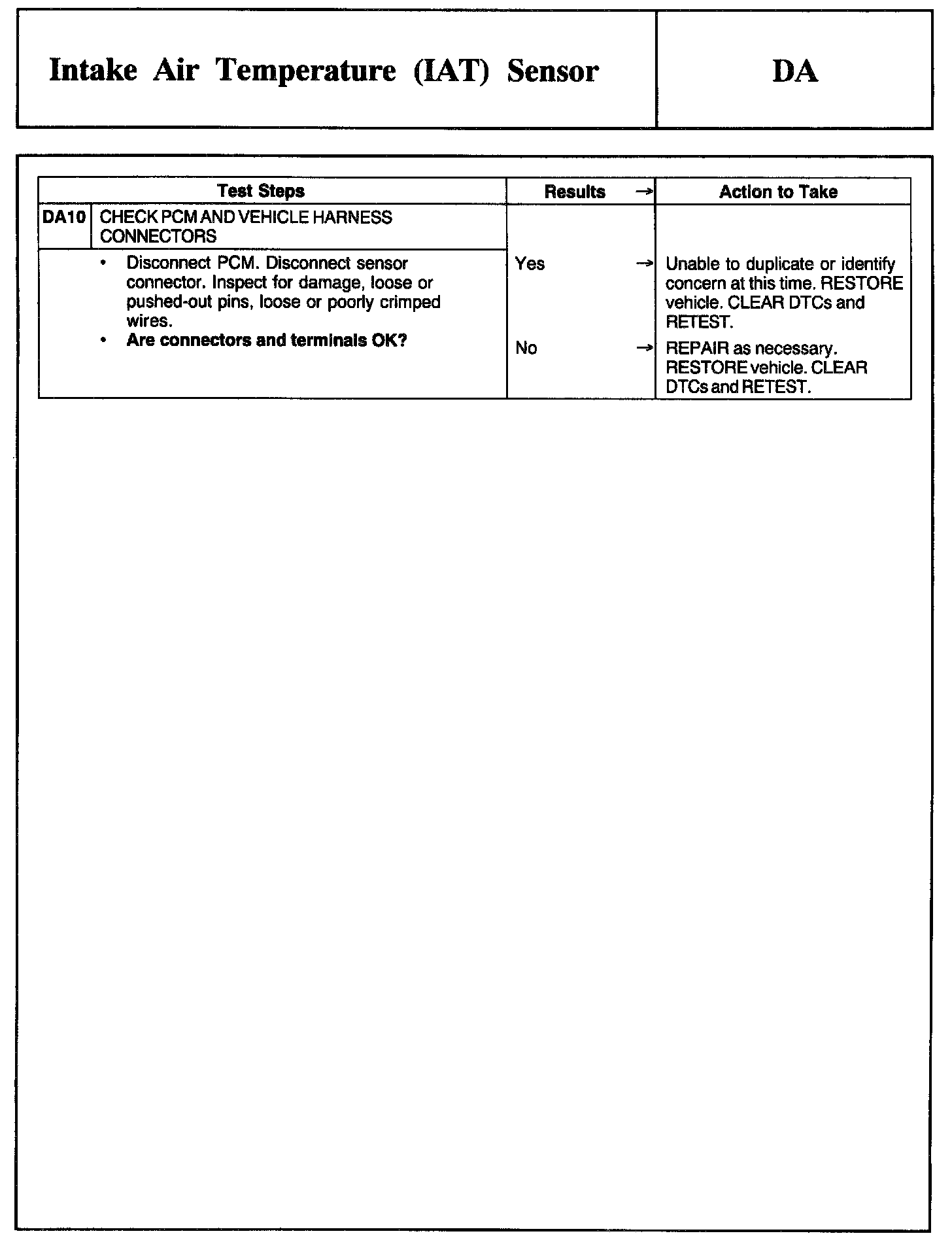

DA10:
