Electrical Diagrams

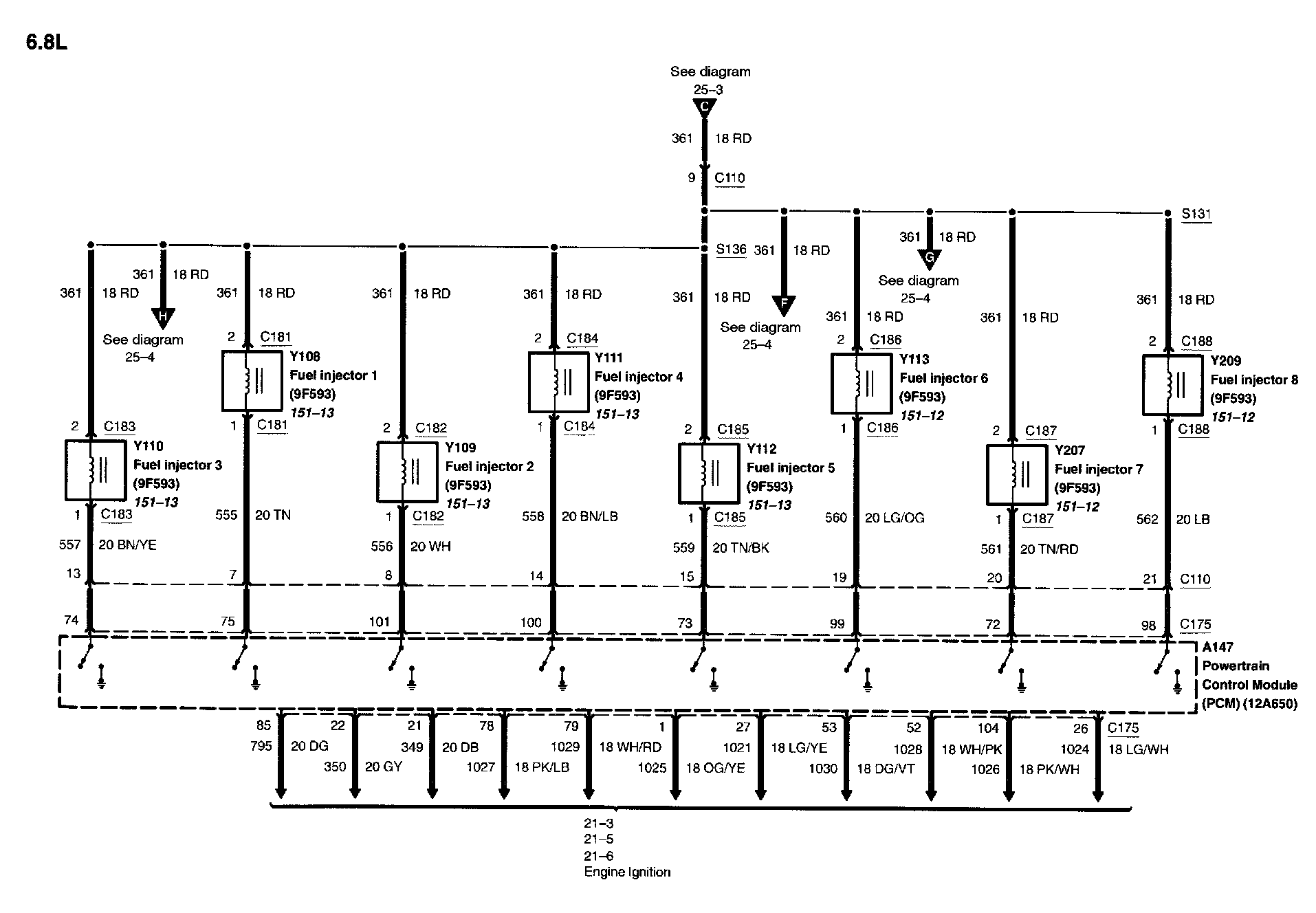

Diagram 25-1:

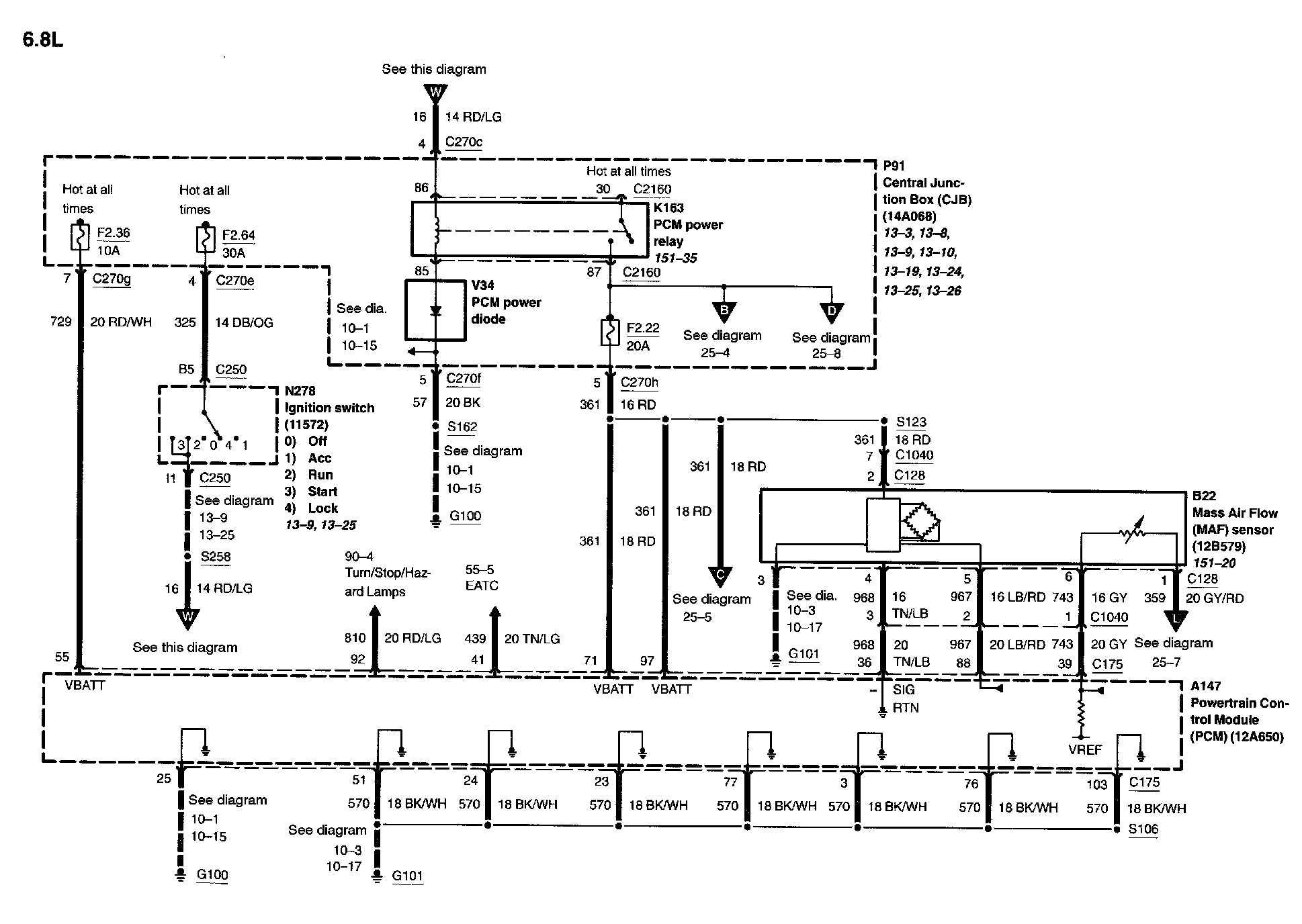

Diagram 25-2:

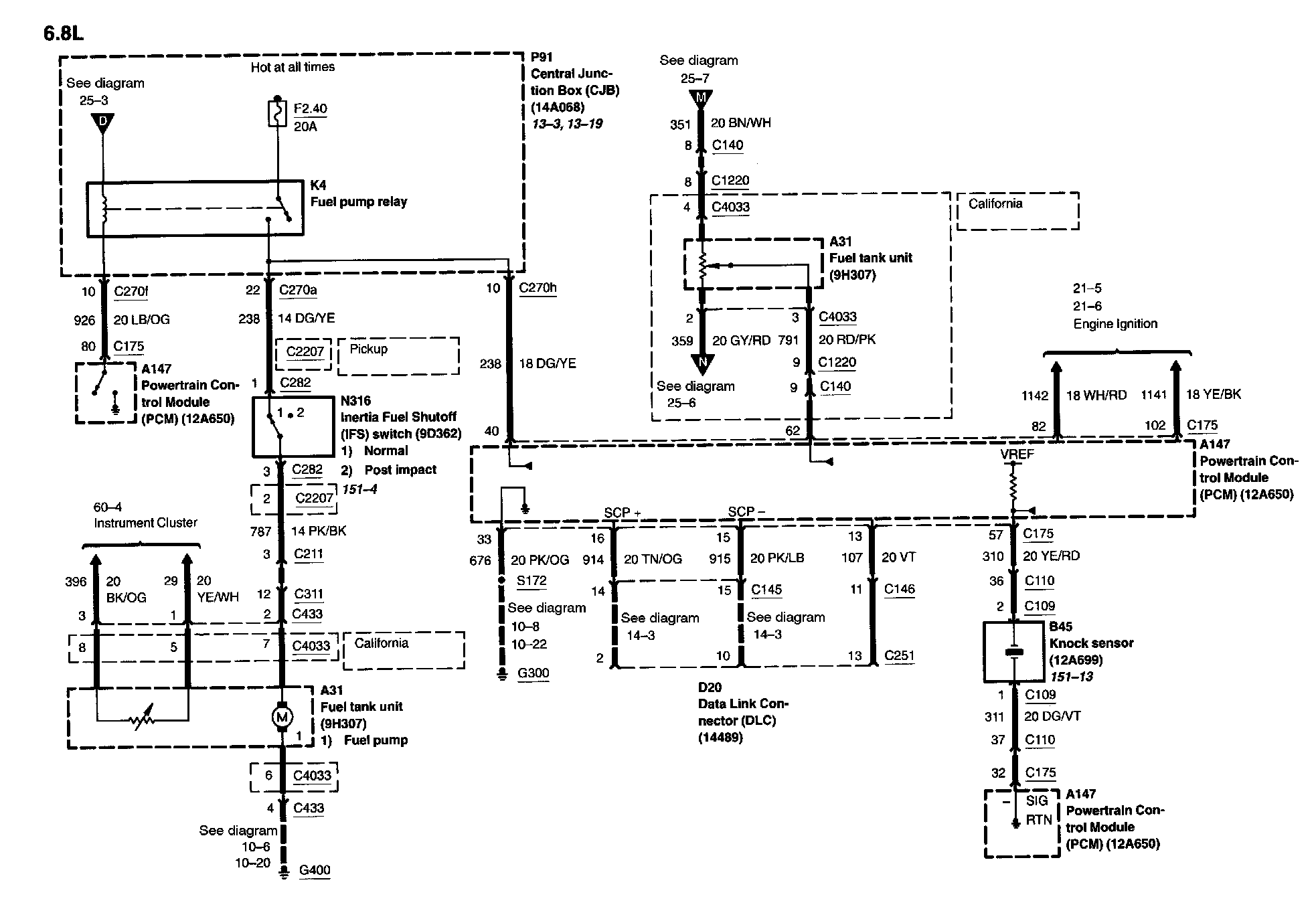

Diagram 25-3:

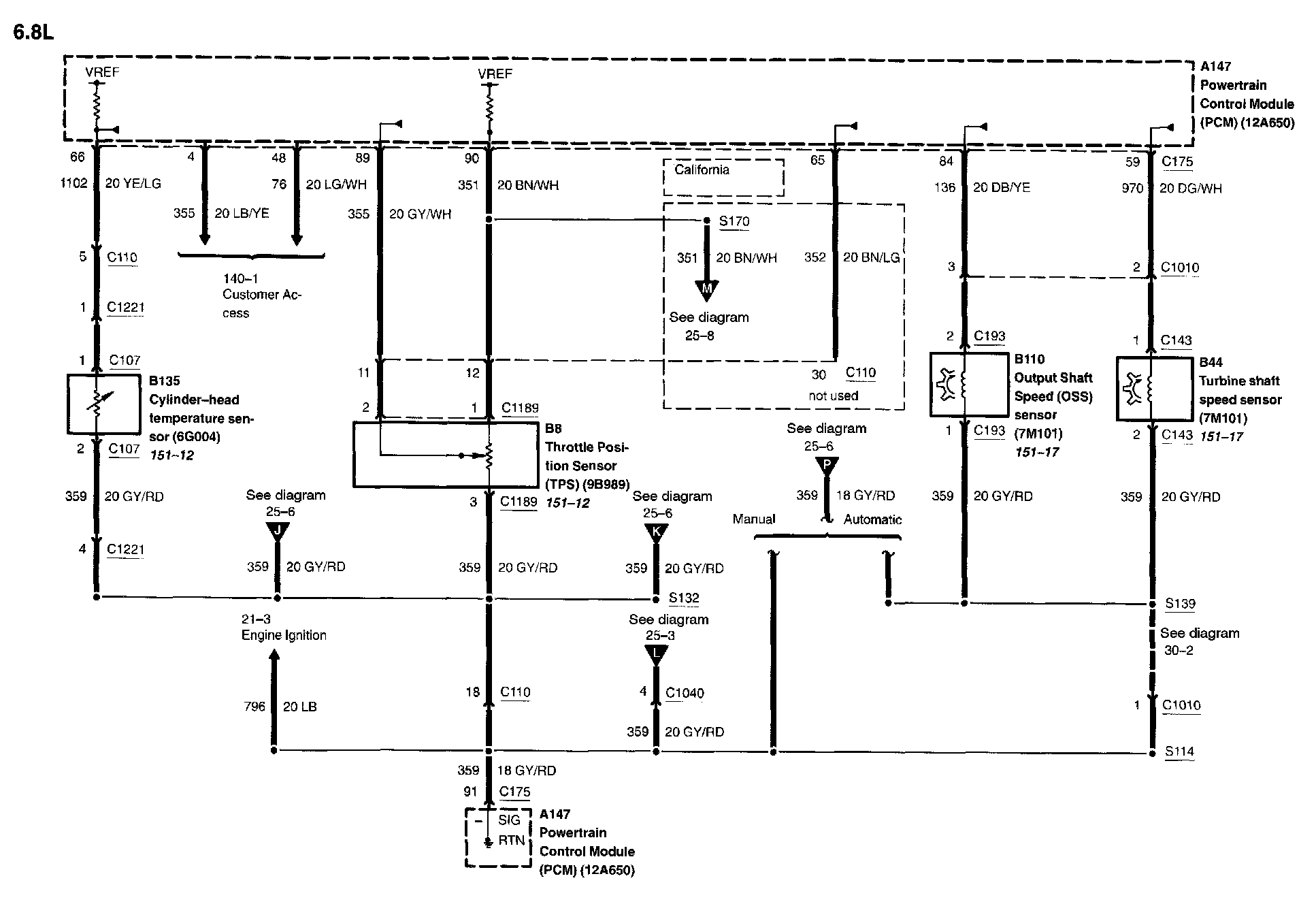

Diagram 25-4:

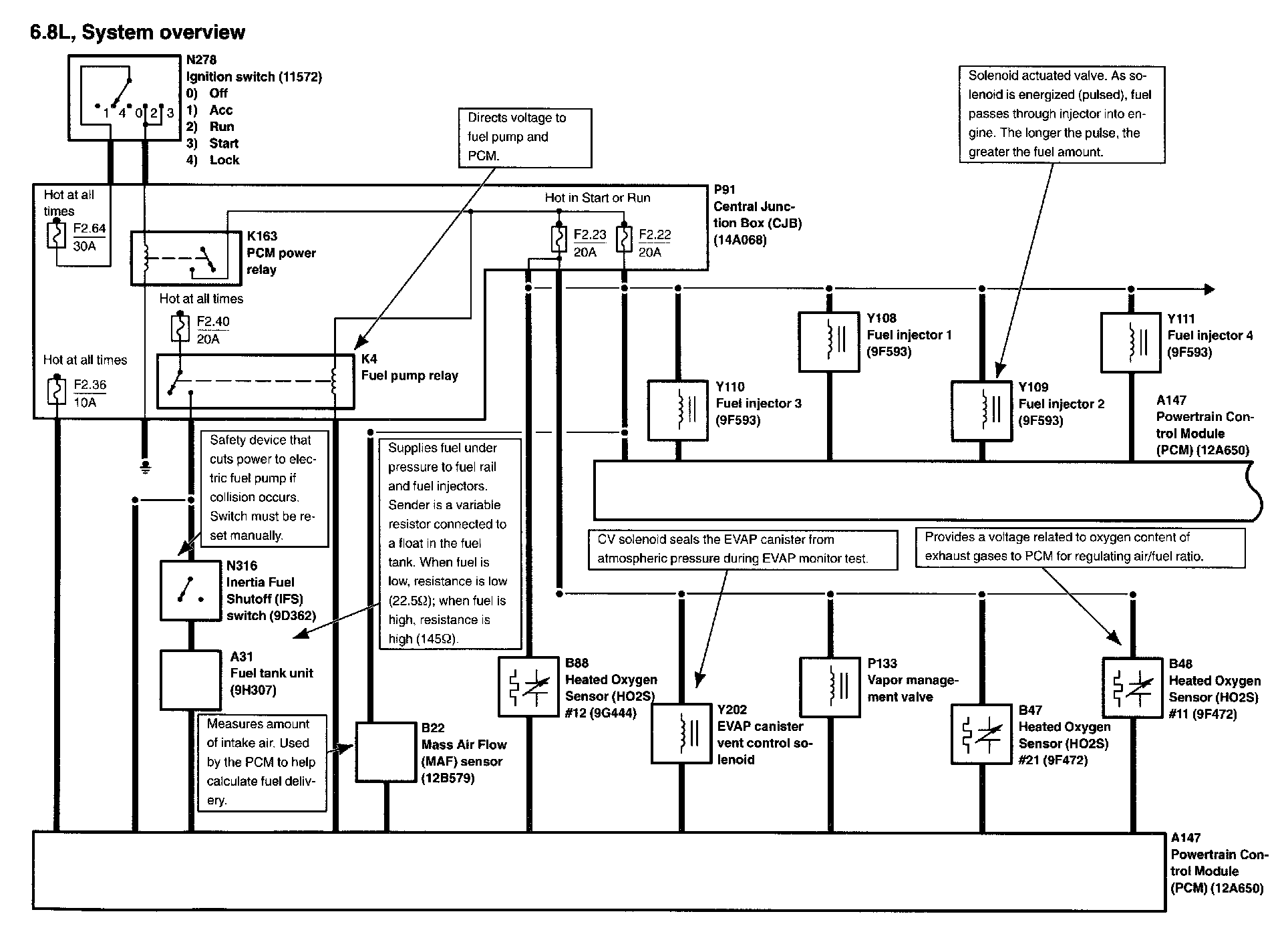

Diagram 25-5:

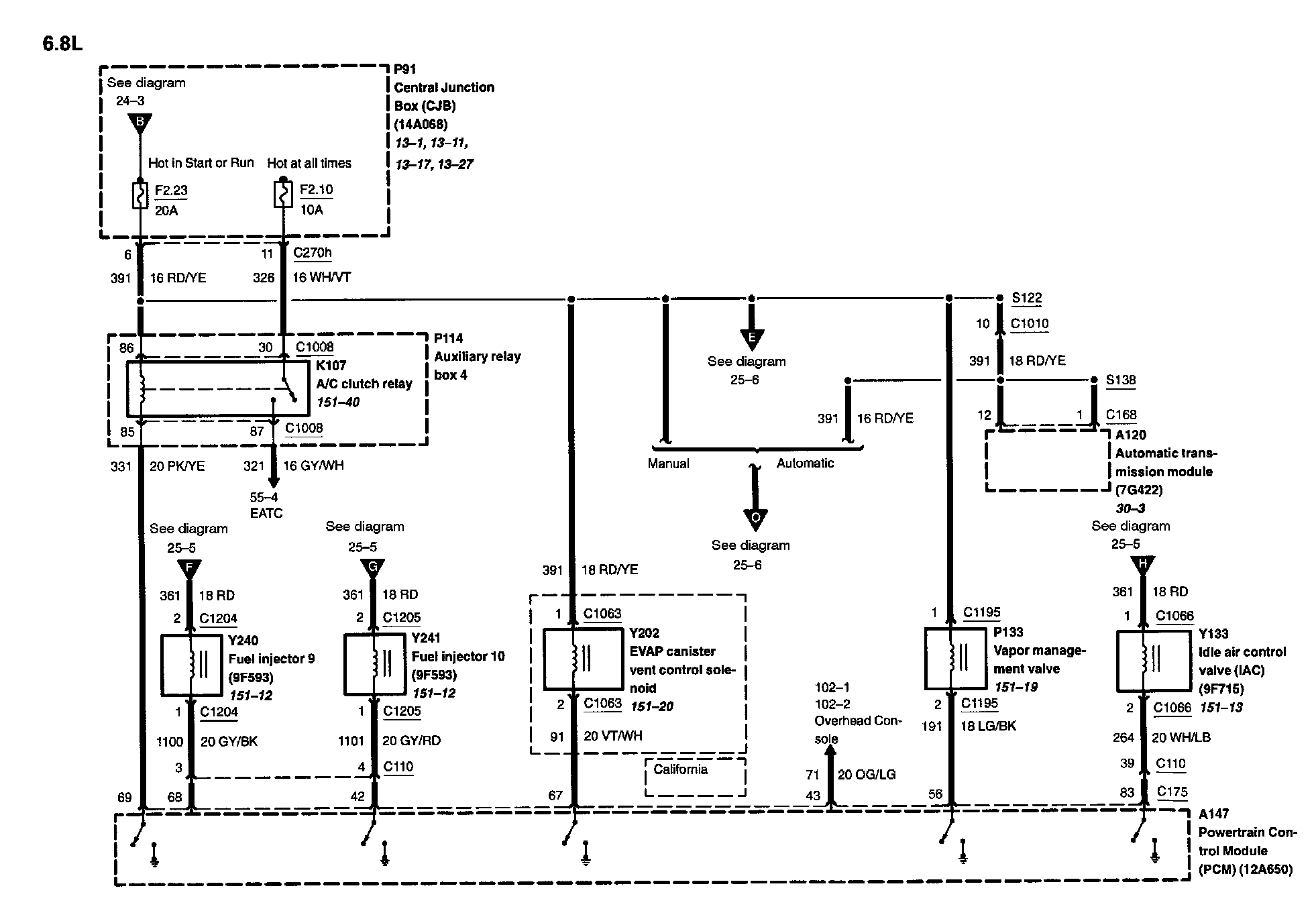

Diagram 25-6:

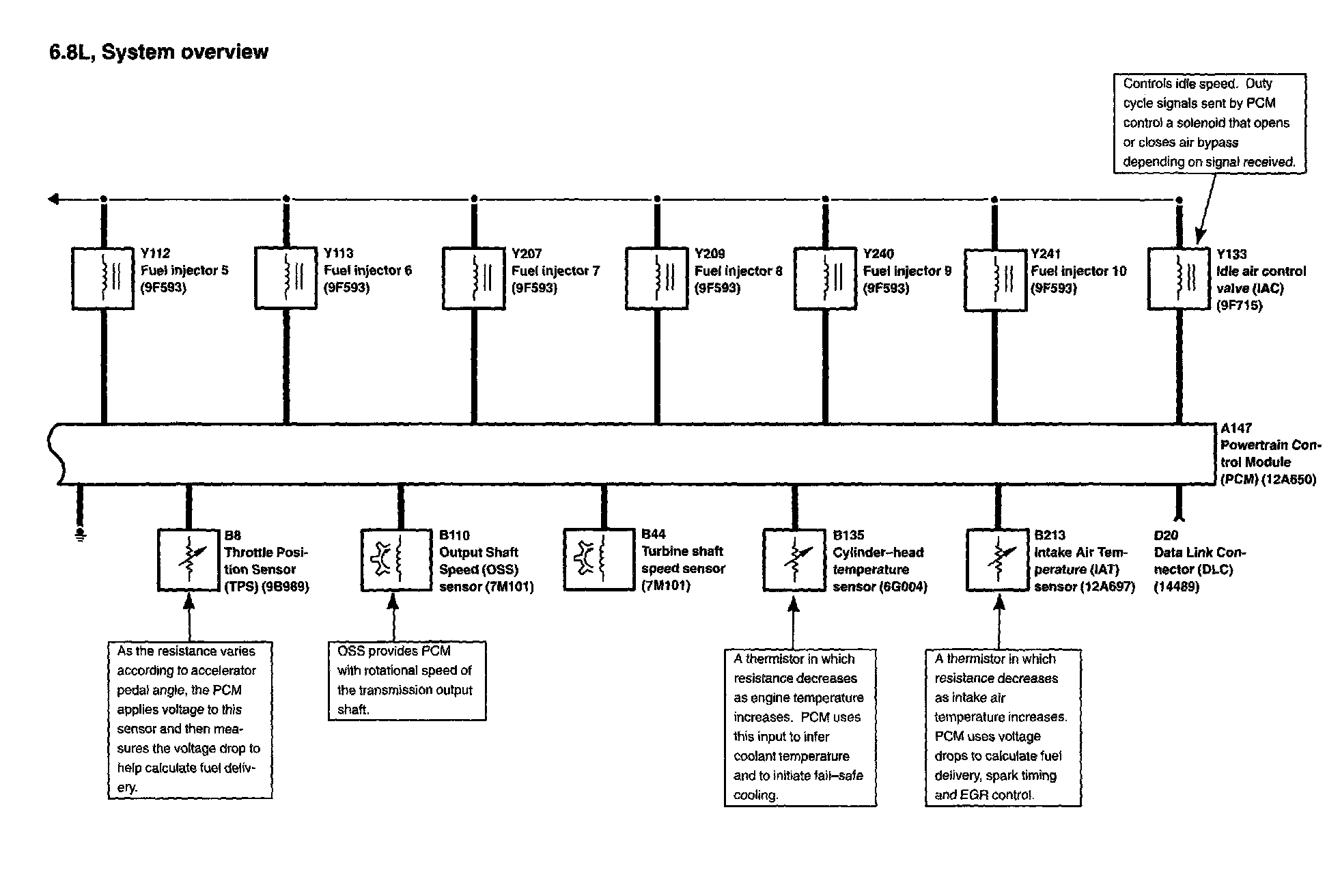

Diagram 25-7:

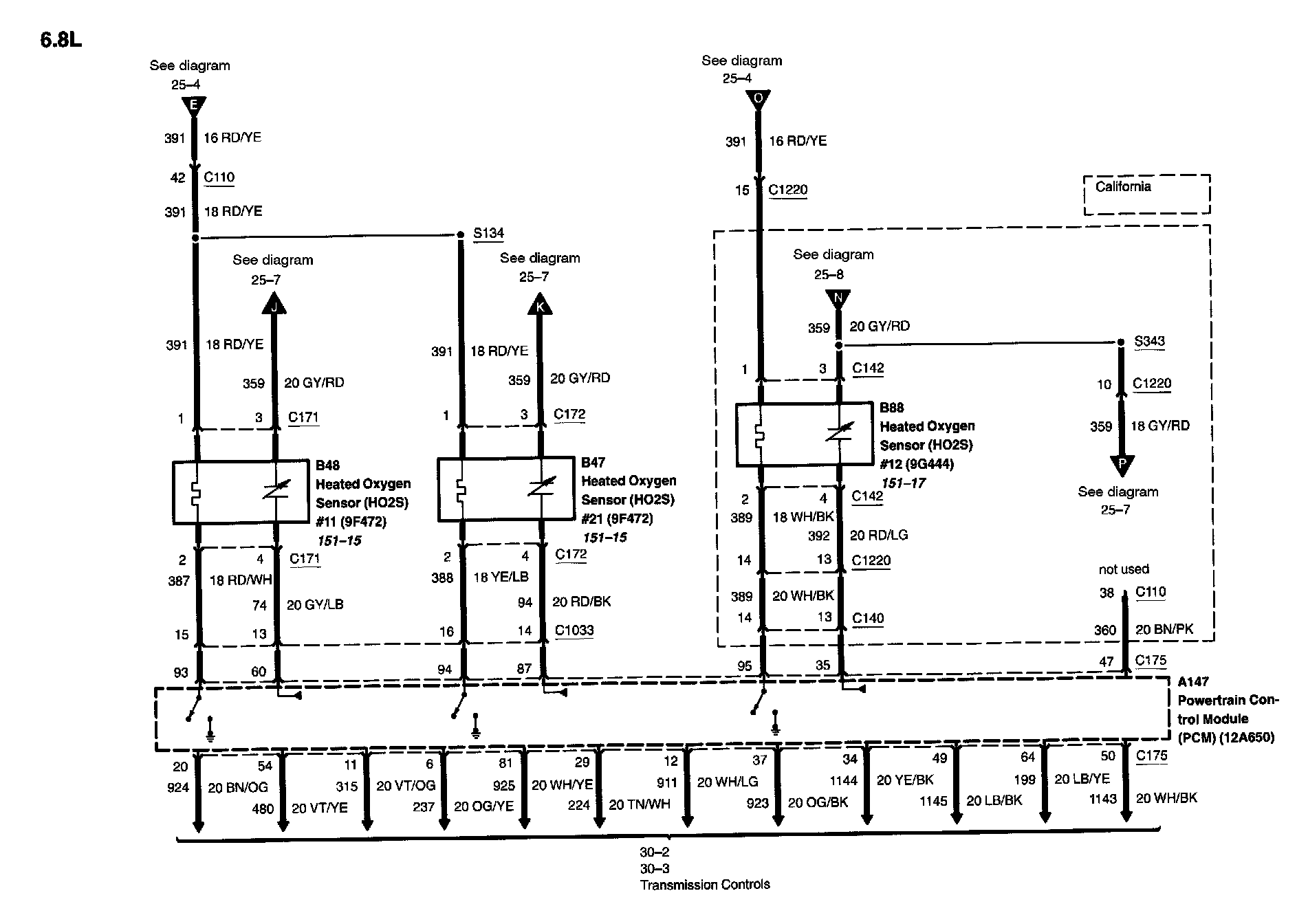

Diagram 25-8:
