Tests TJ: Output Shaft Speed (OSS) Sensor
Note, Schematics and Connectors:

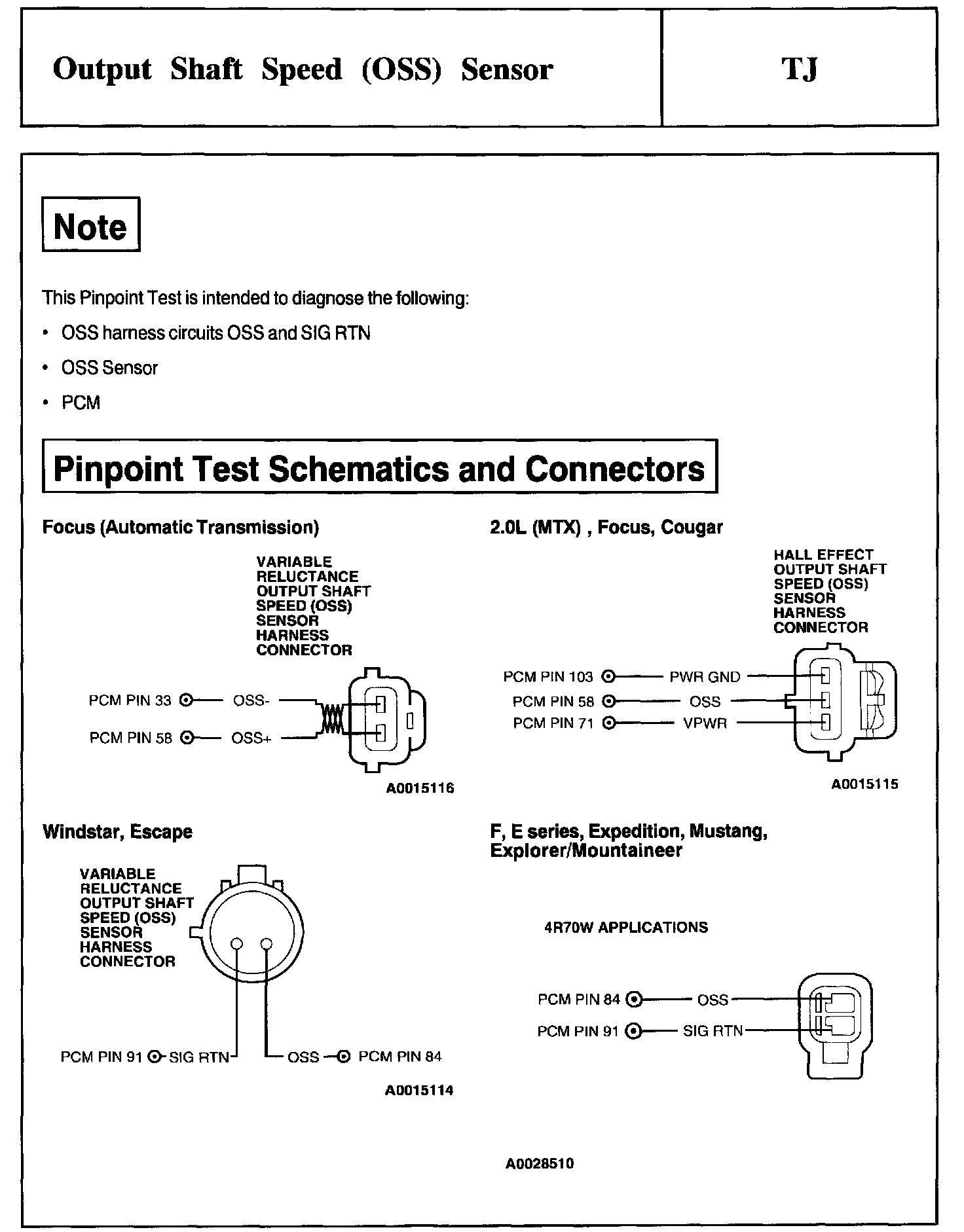

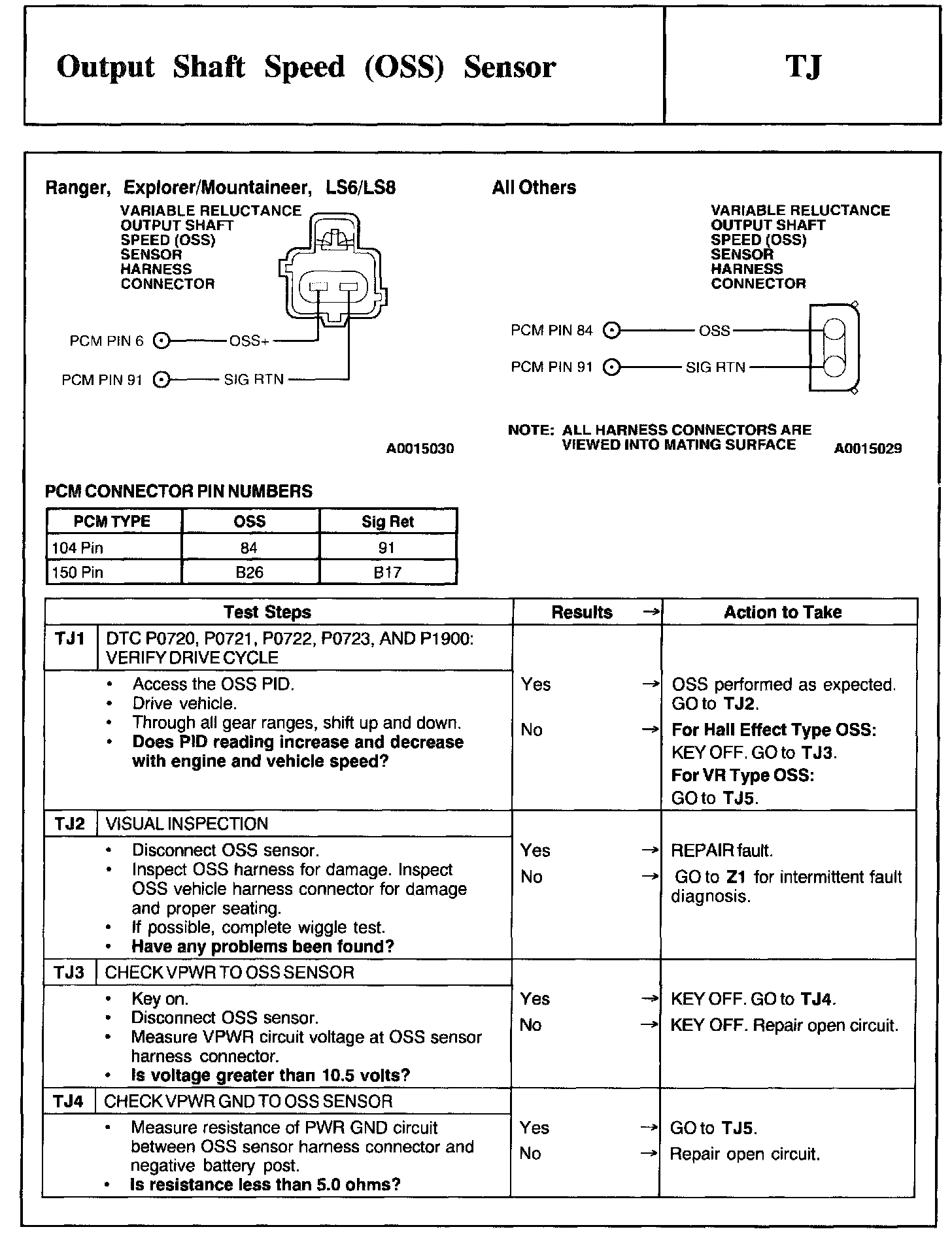

Schematic, Test TJ1 - TJ4:

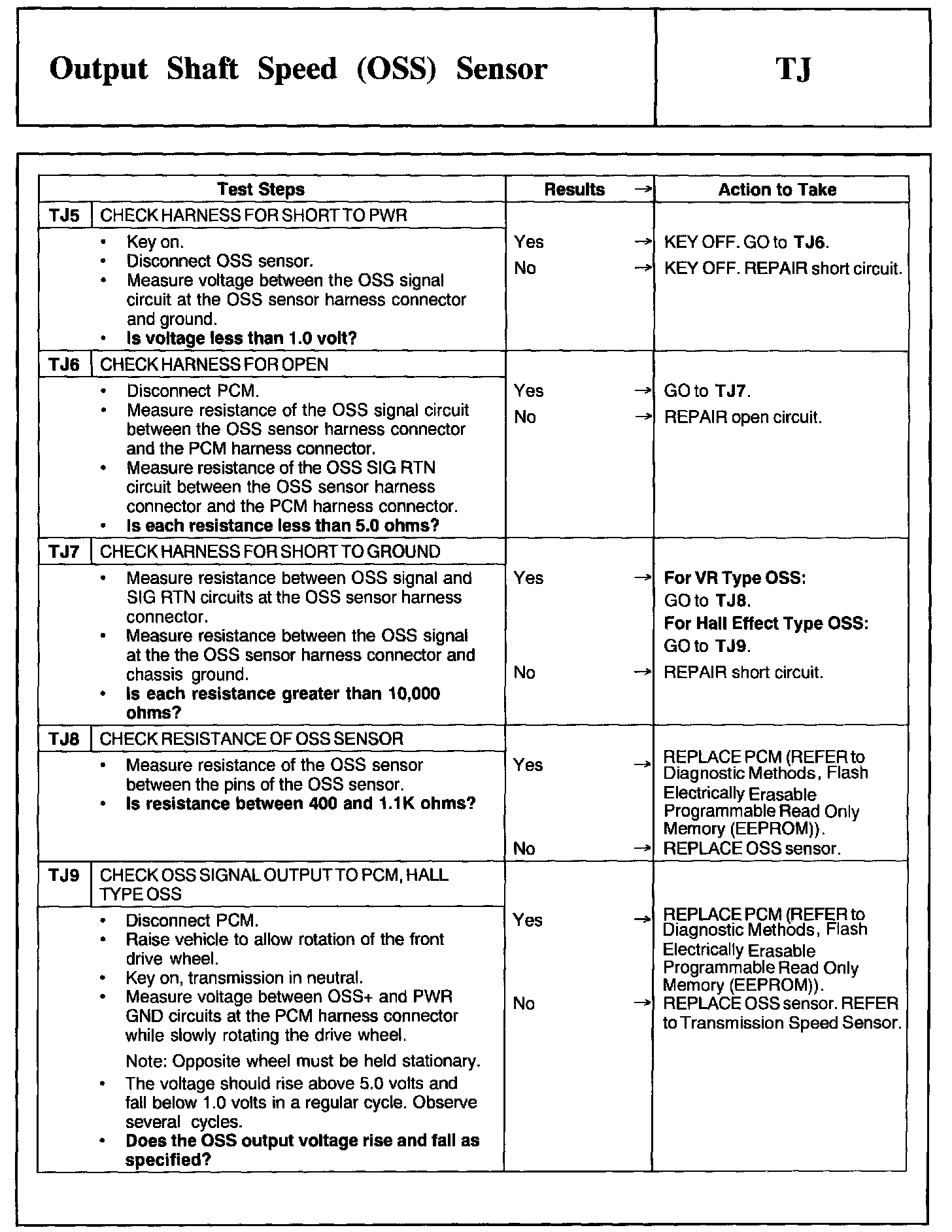

TJ5 - TJ9:
