Tests TB: Trans Control Switch/Trans Control Indicator Lamp

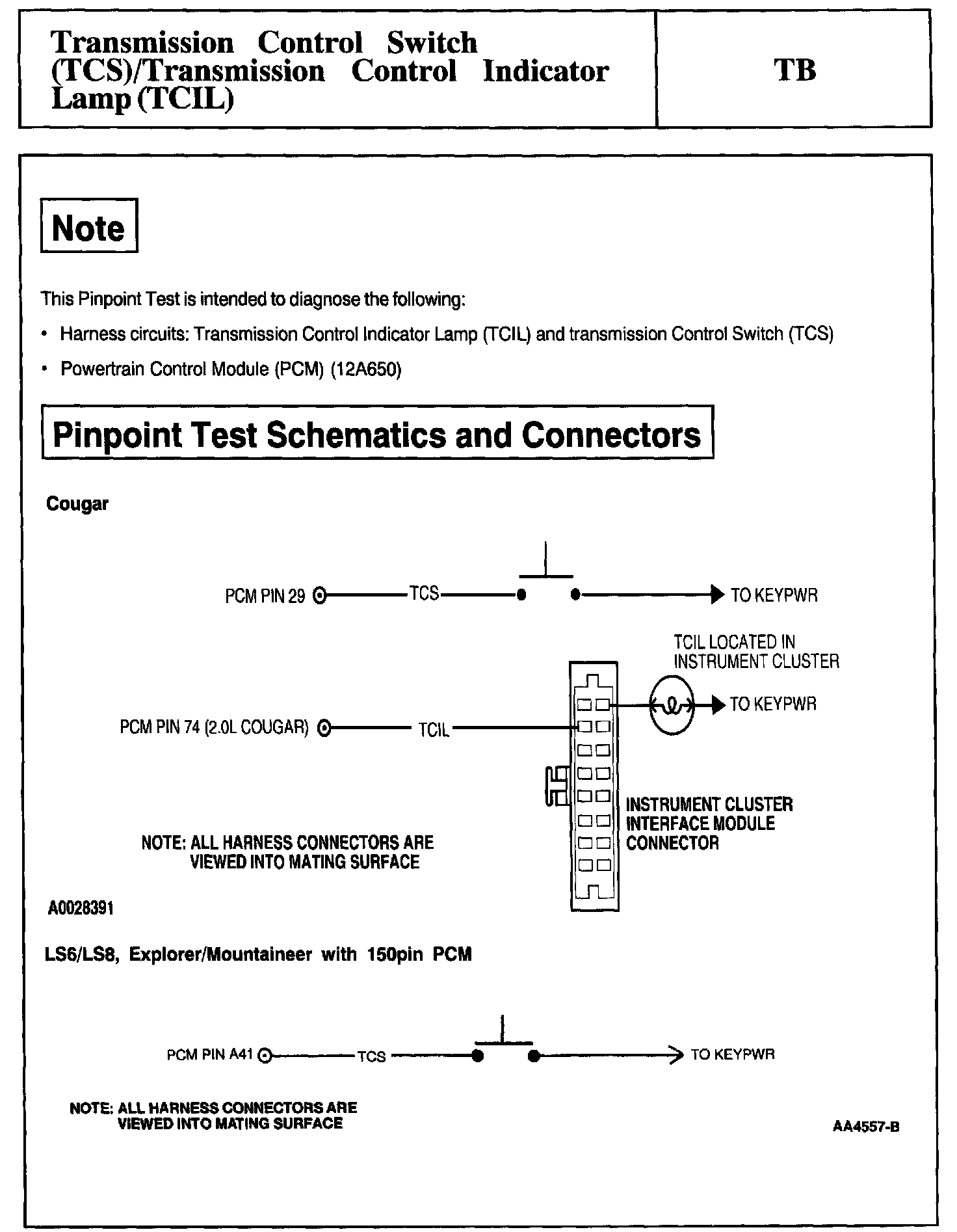

Note, Schematics and Connectors:

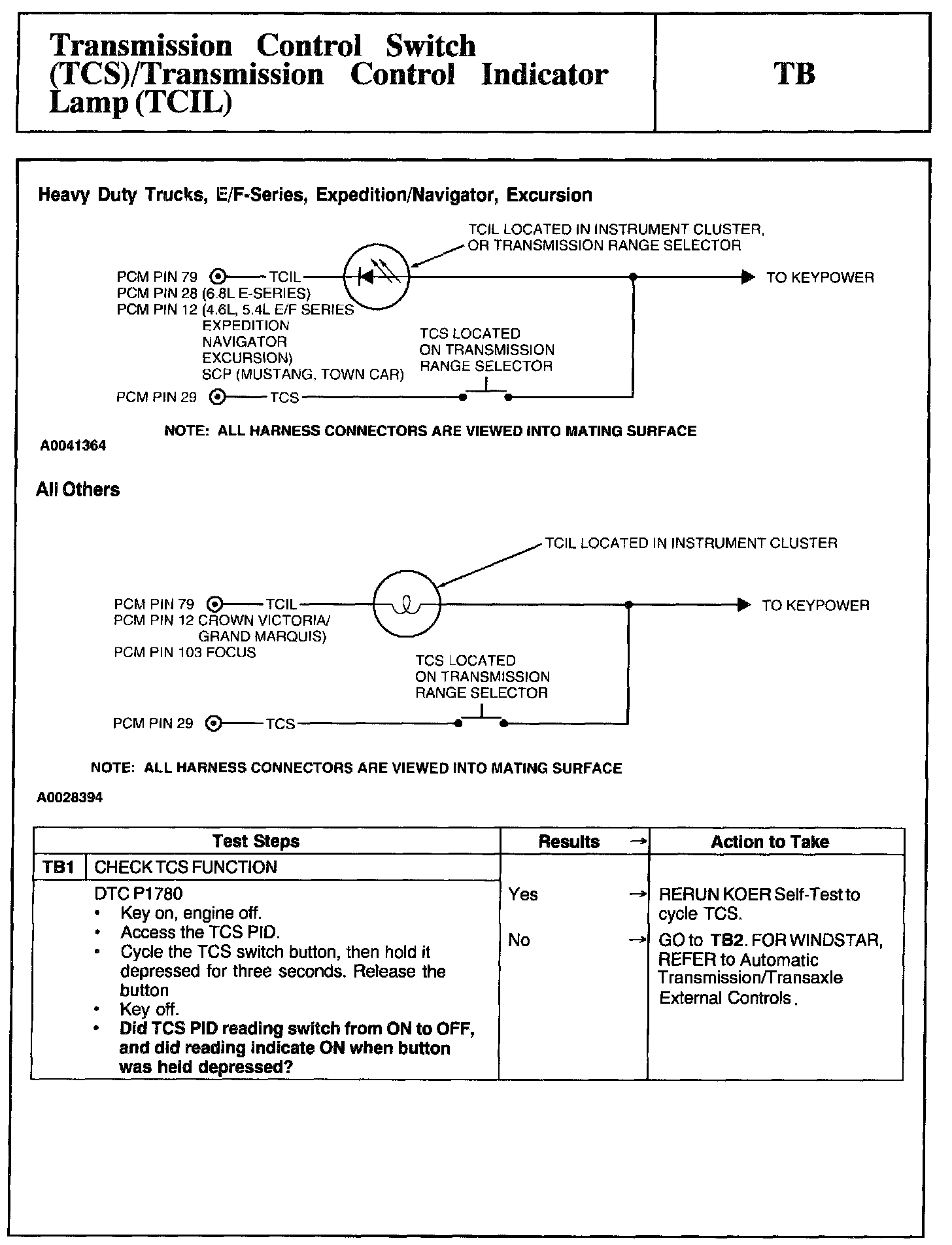

Schematic, Test TB1:

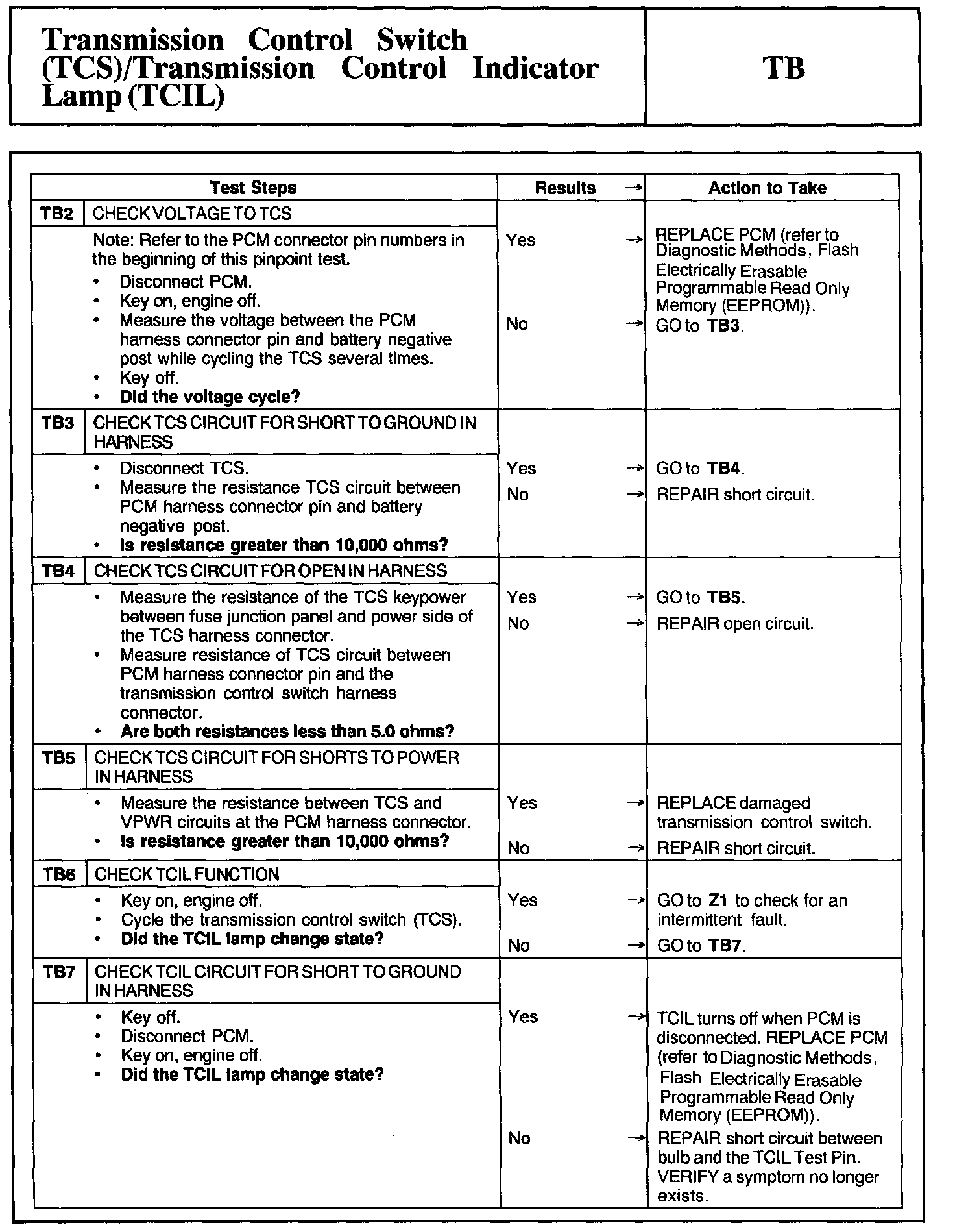

TB2 - TB7:

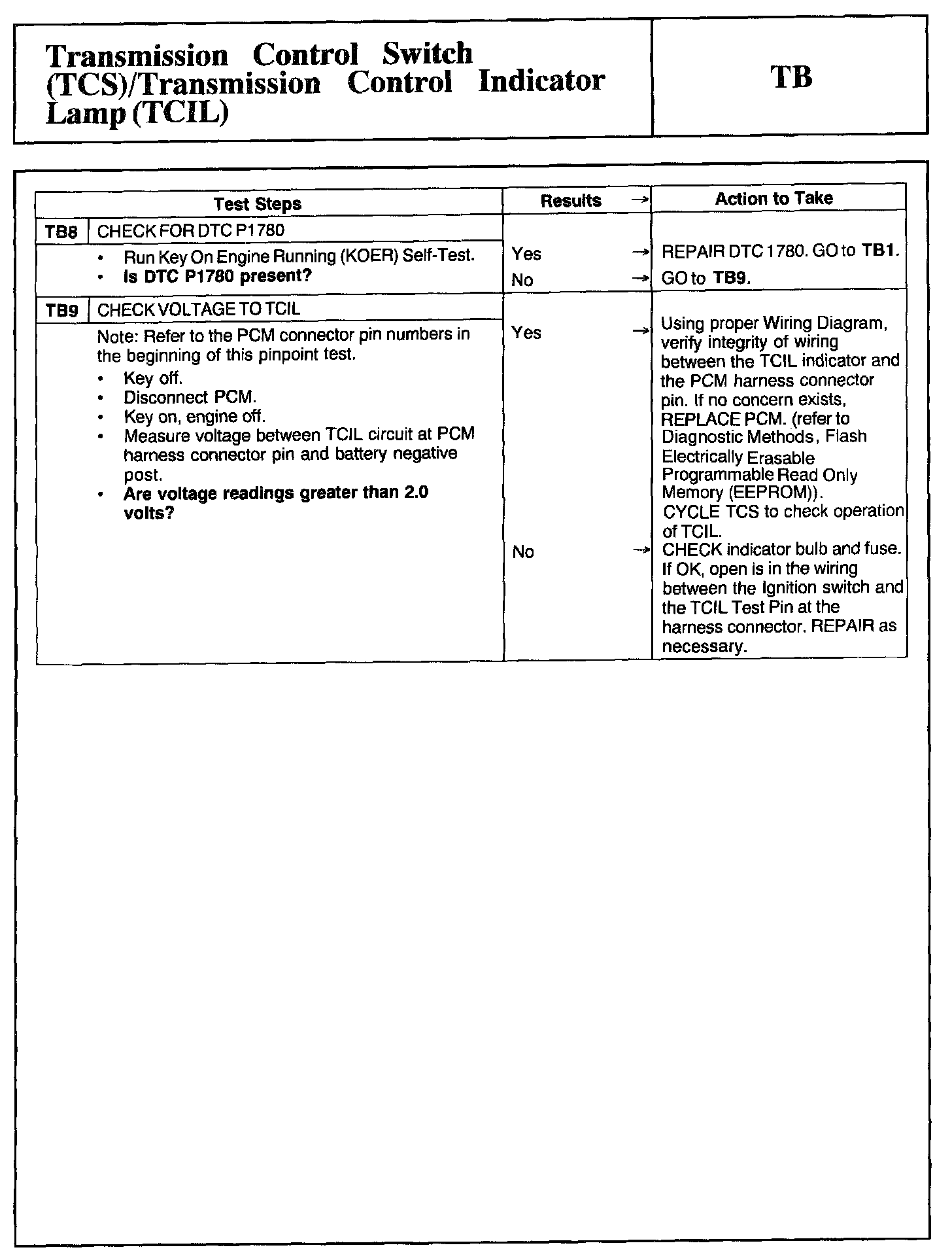

TB8 - TB9:
