Tests JB: Secondary Ignition

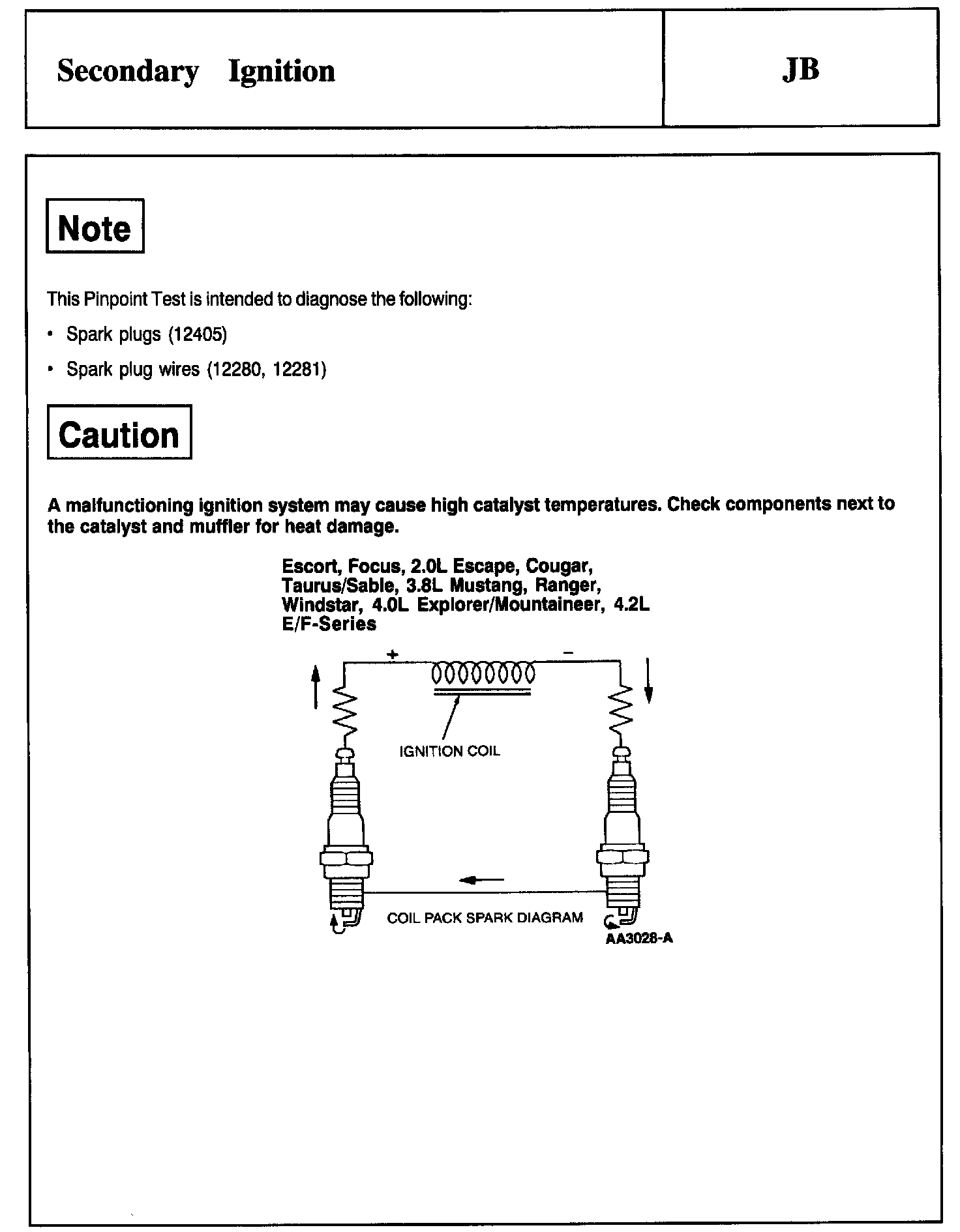

Note, Caution and Schematic:

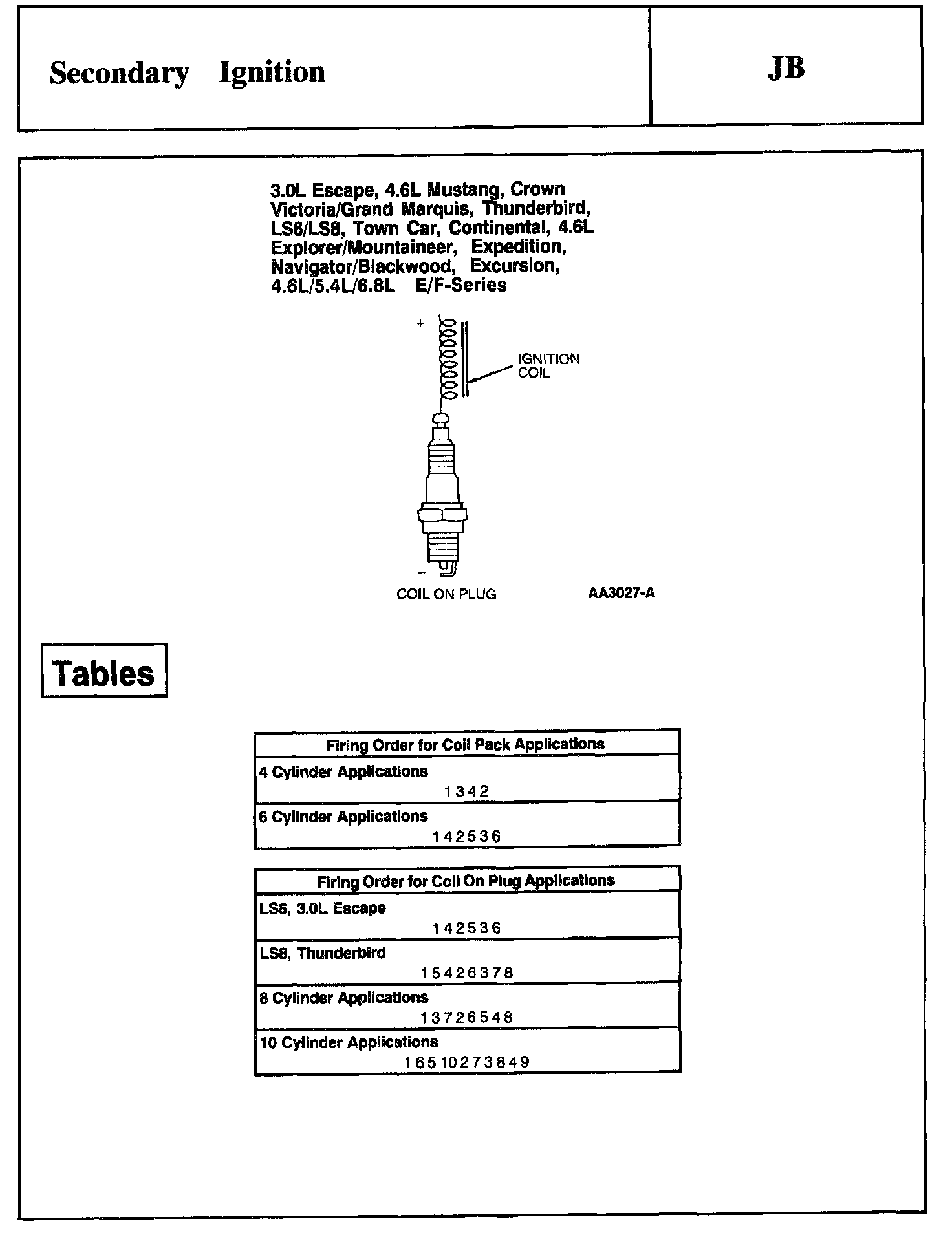

Schematic, Tables:

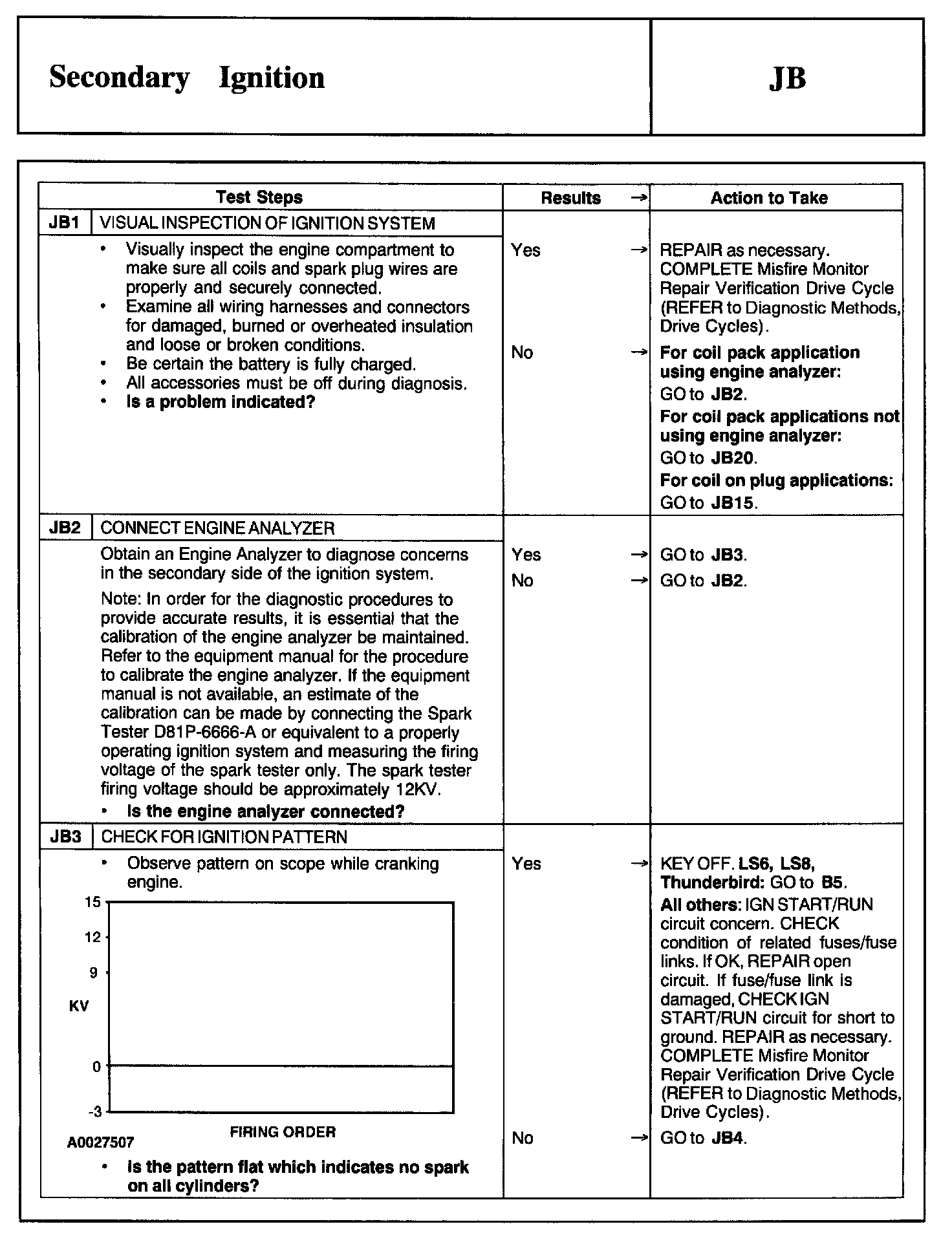

JB1 - JB3:

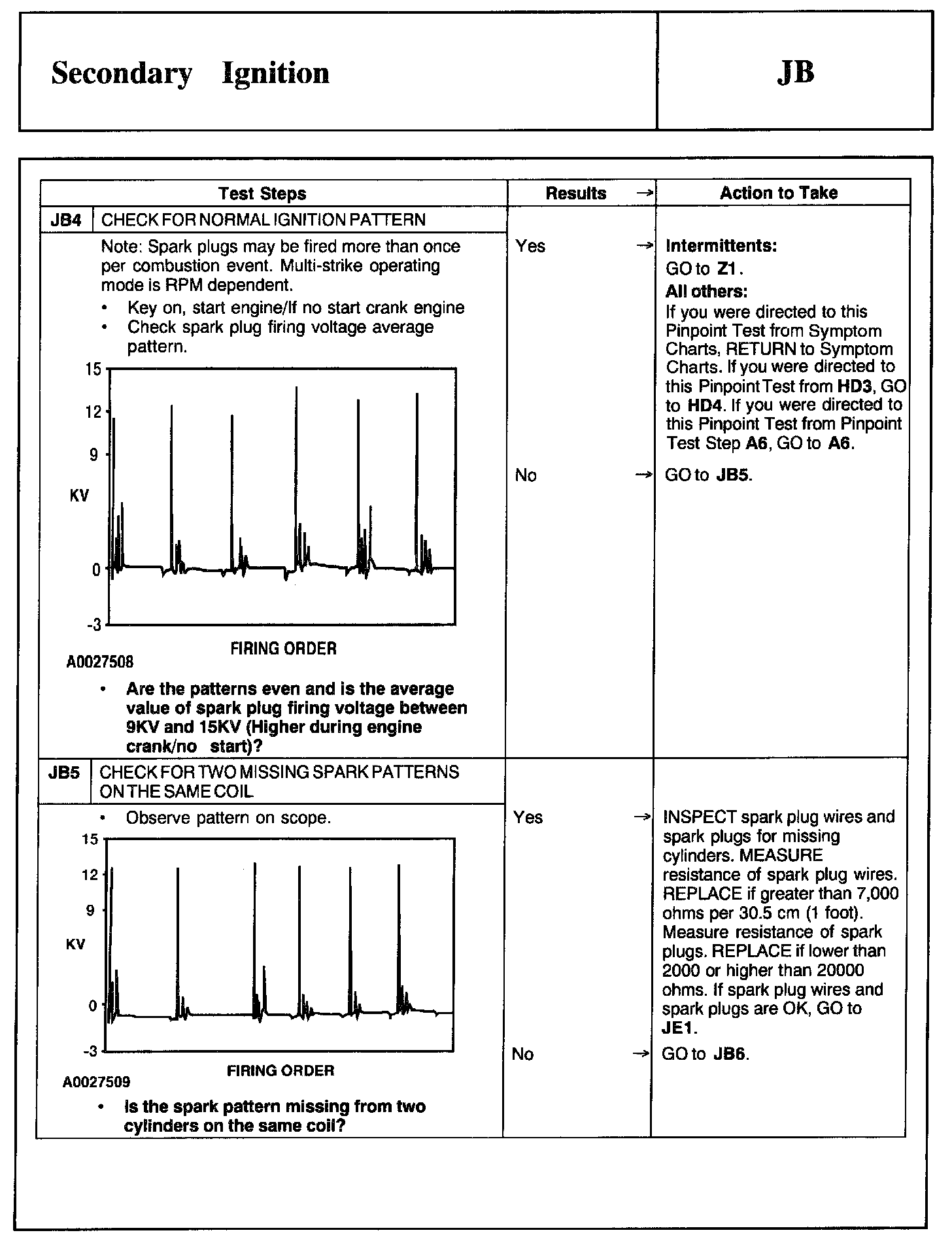

JB4 - JB5:

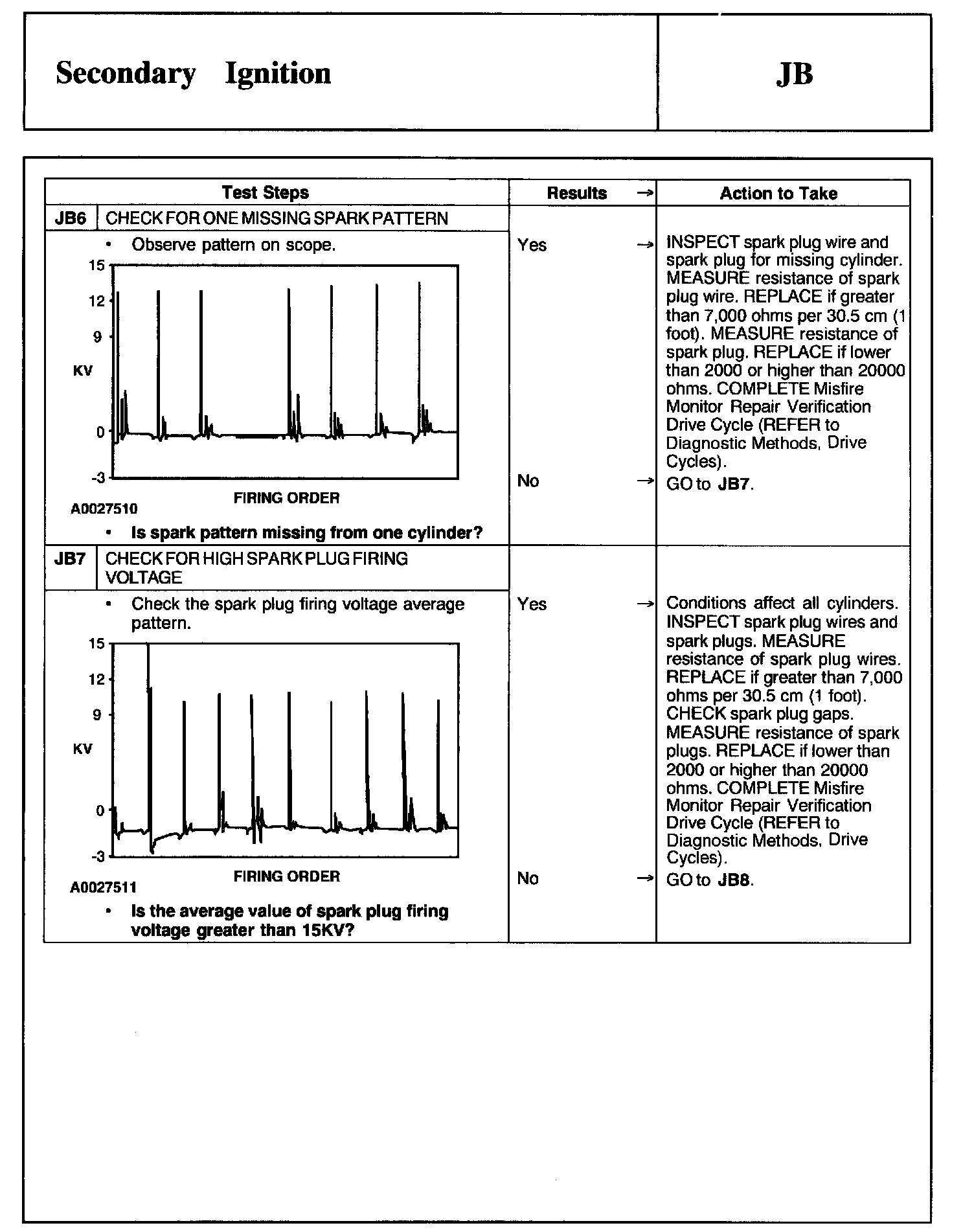

JB6 - JB7:

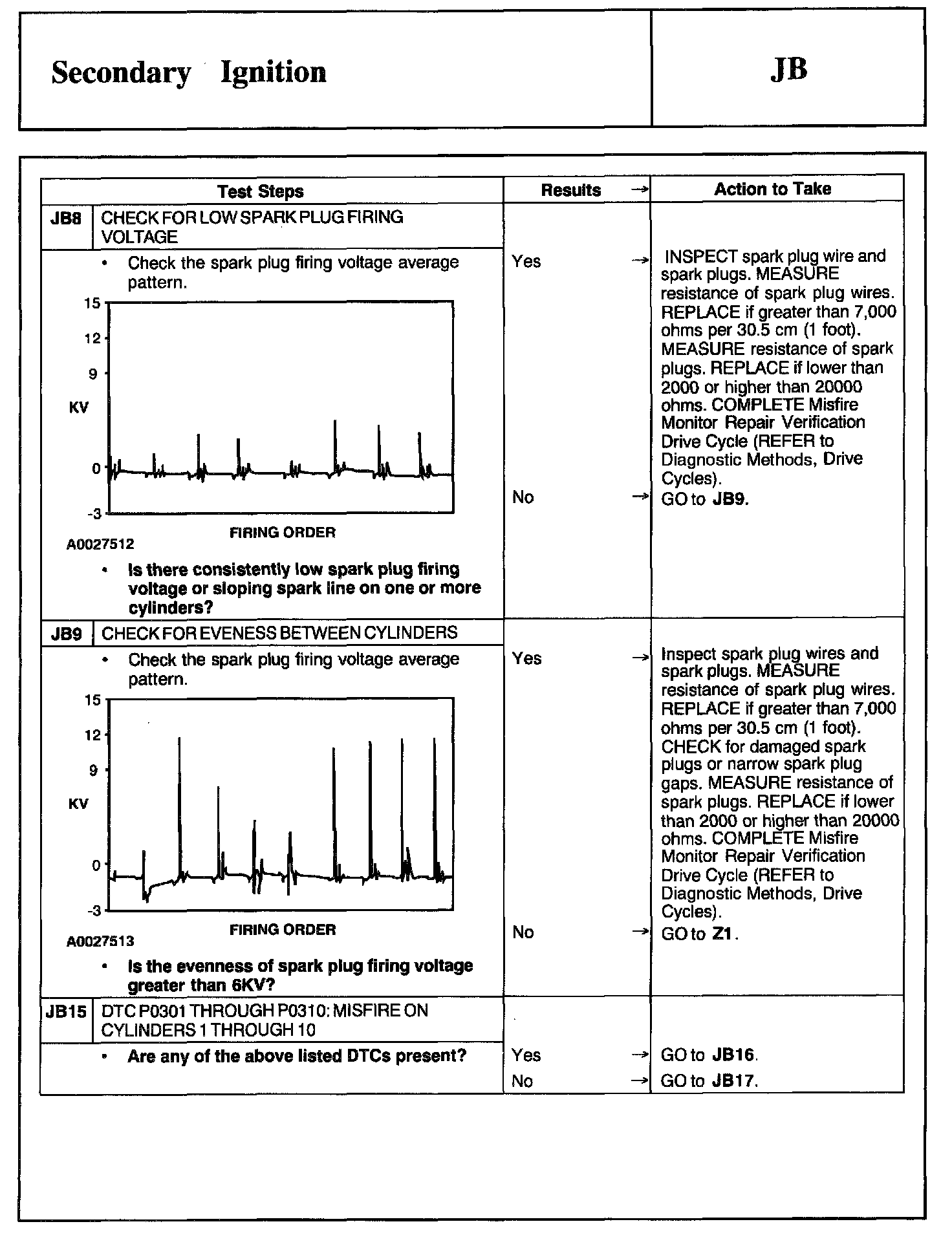

JB8 - JB15:

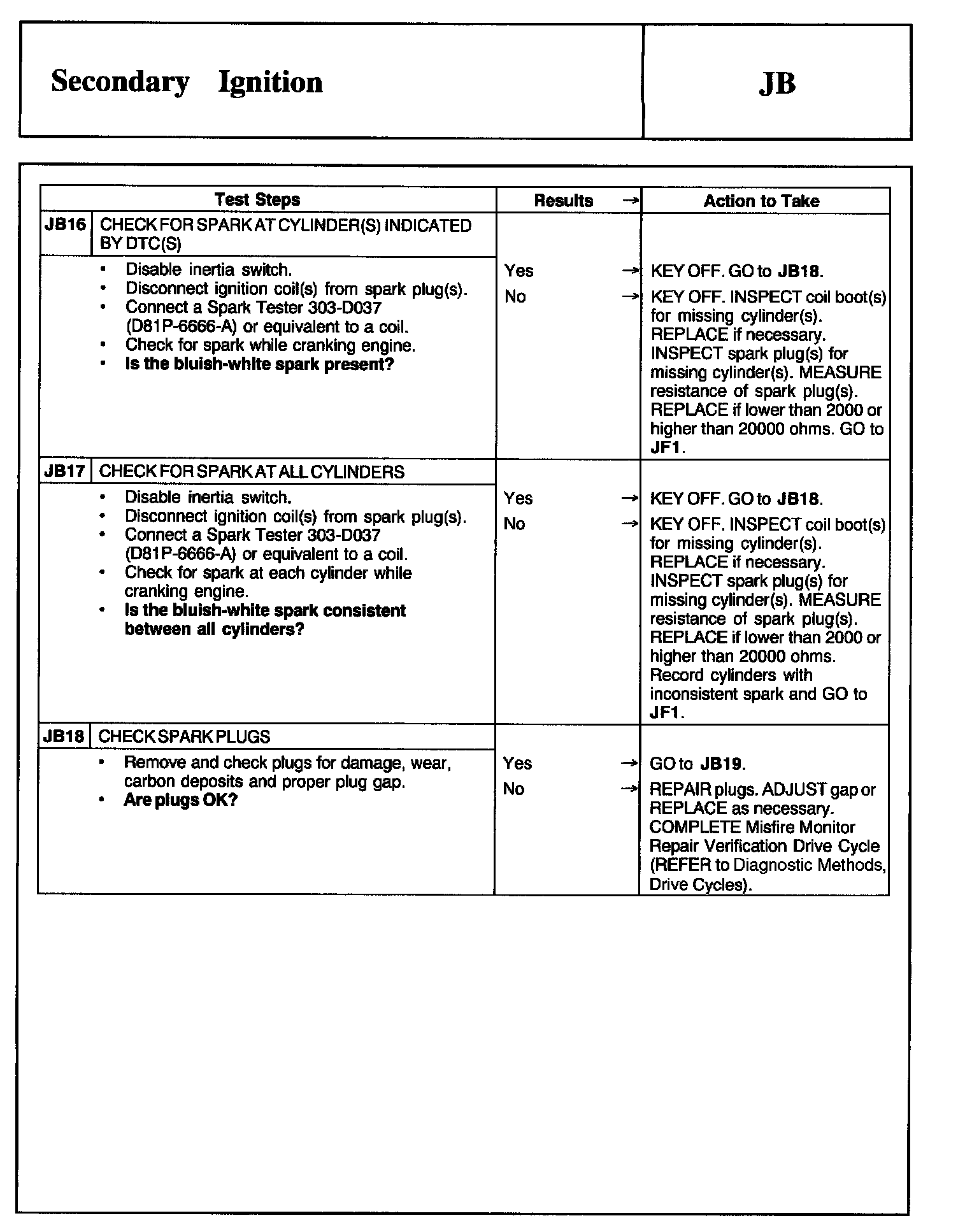

JB16 - JB18:

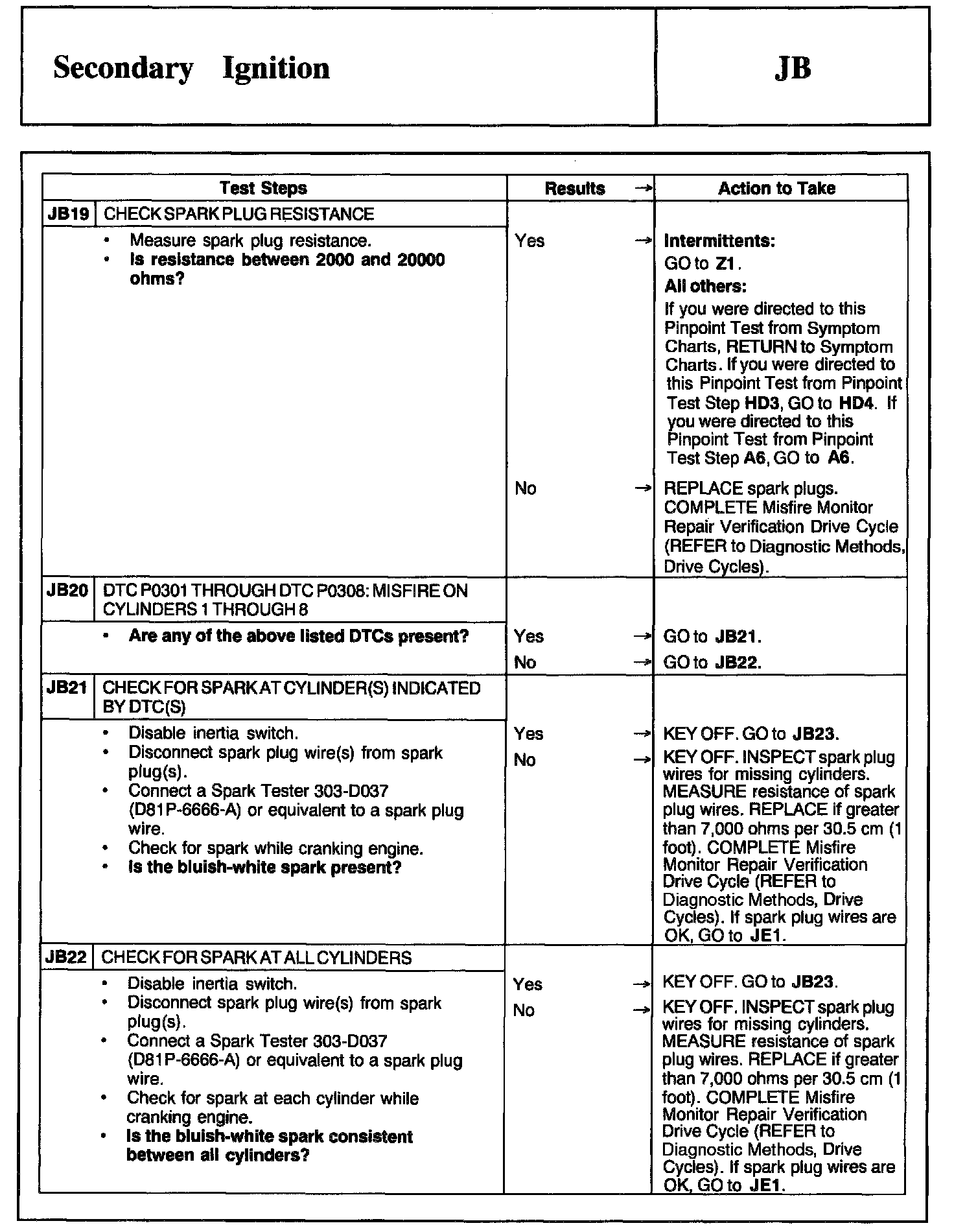

JB19 - JB22:

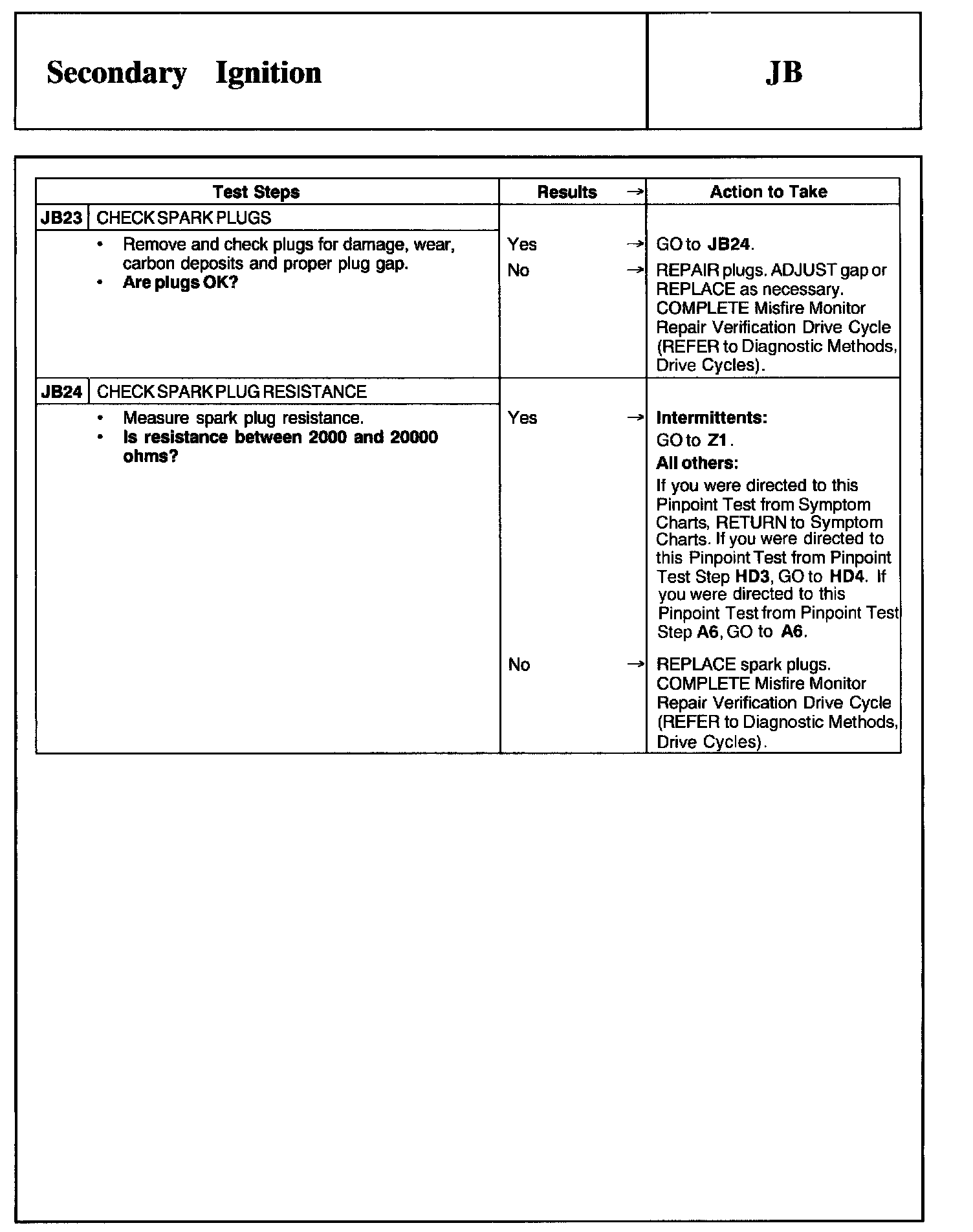

JB23 - JB24:
