Tests HY: Generator/Regulator System

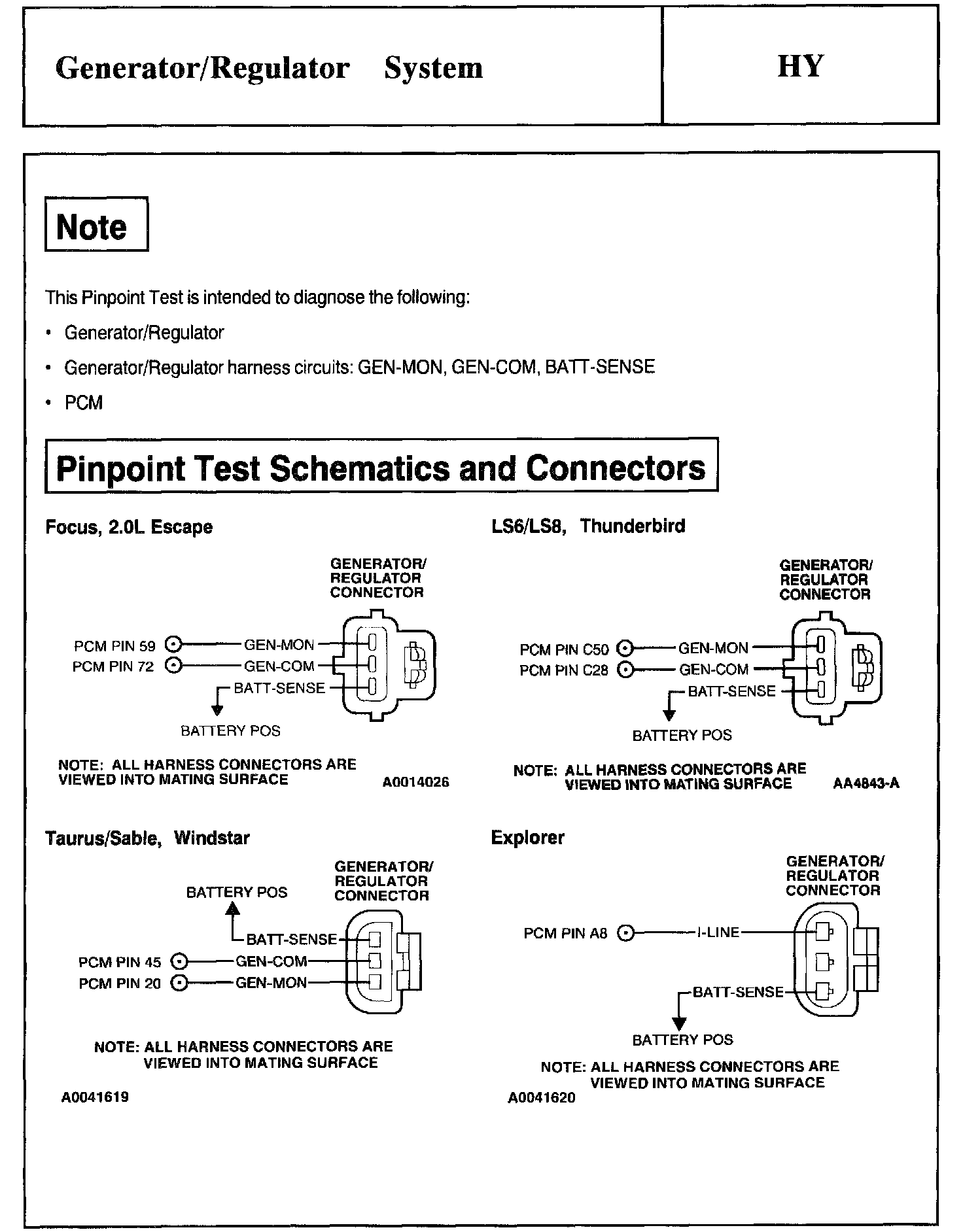

Note, Schematics and Connectors:

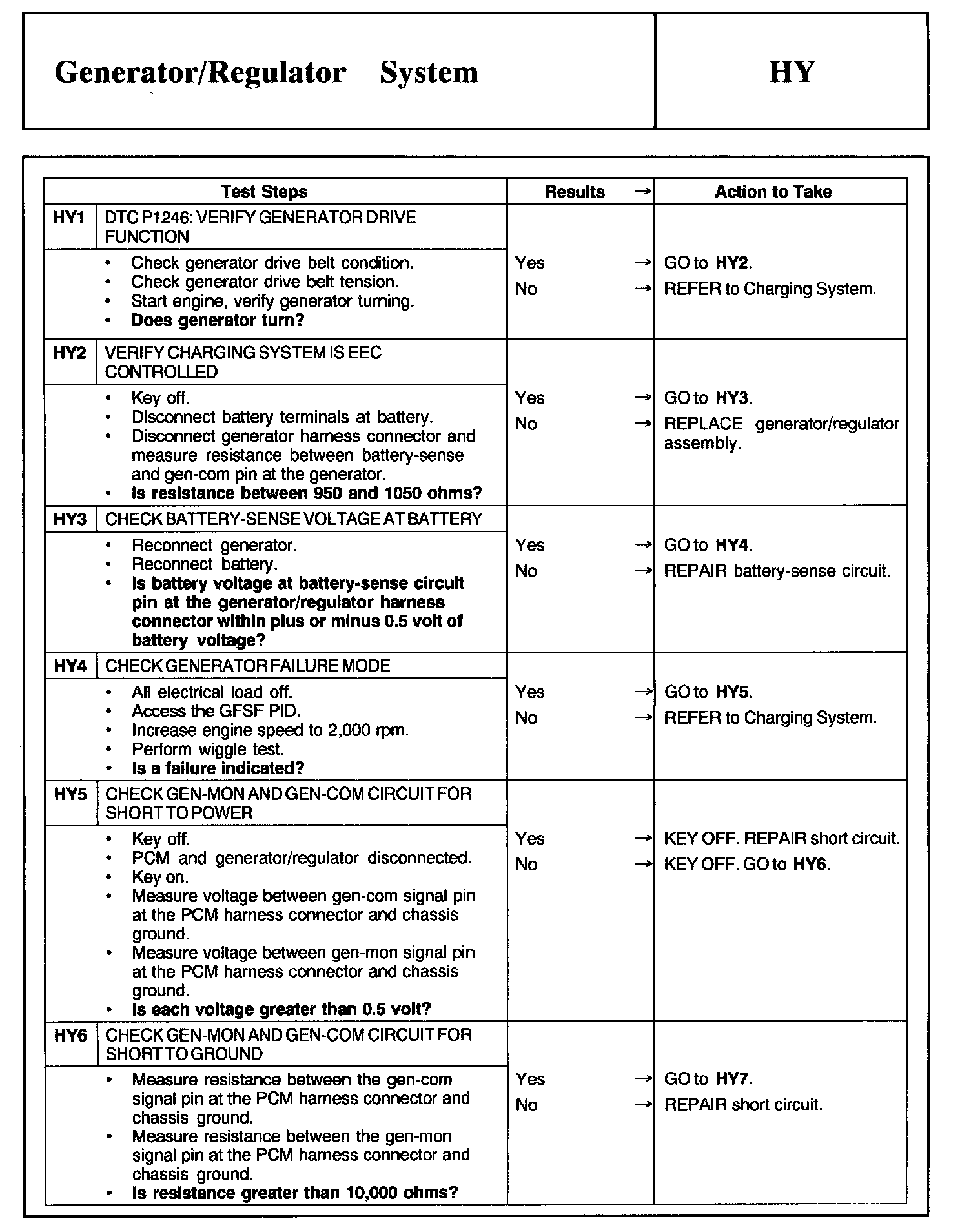

HY1 - HY6:

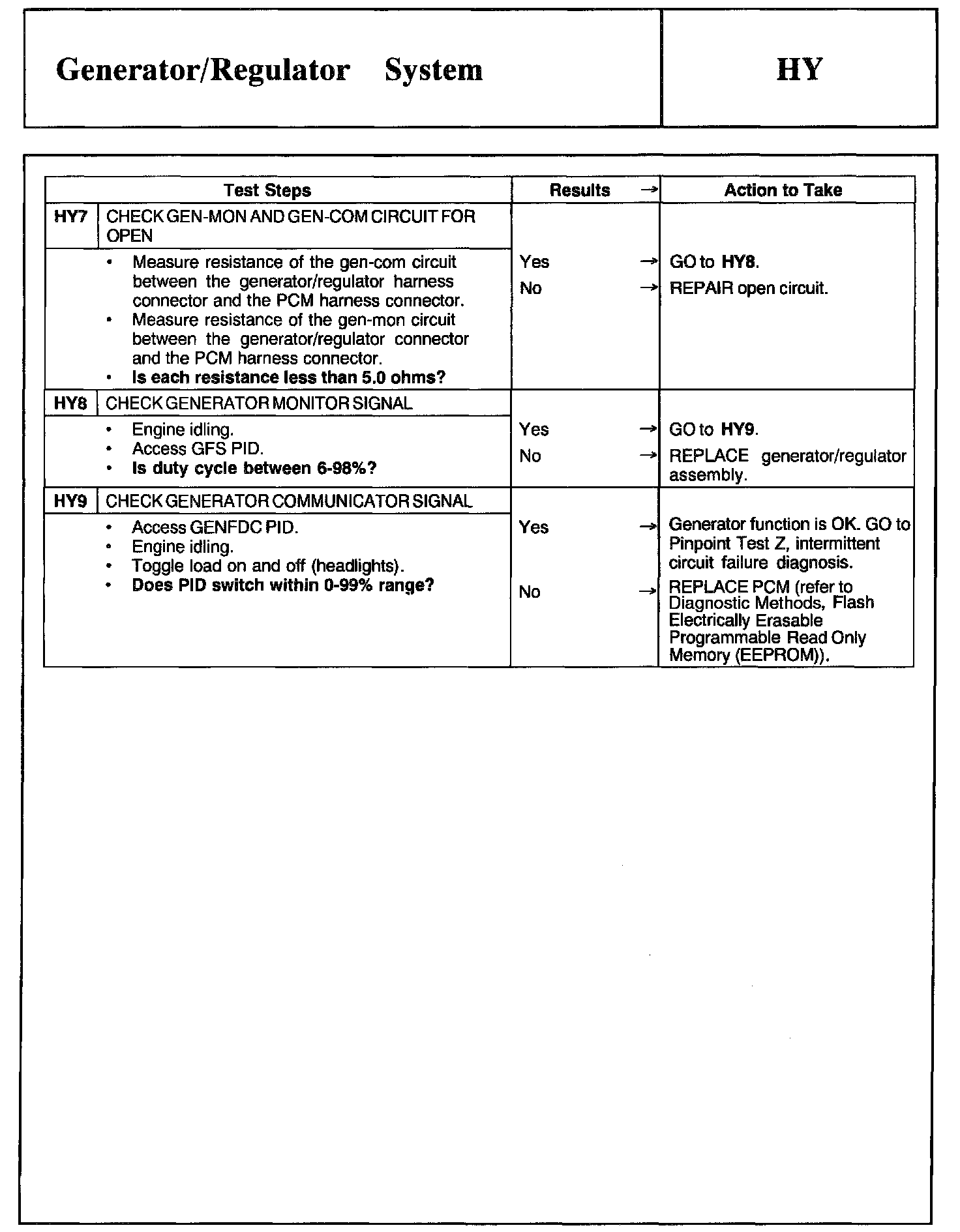

HY7 - HY9:

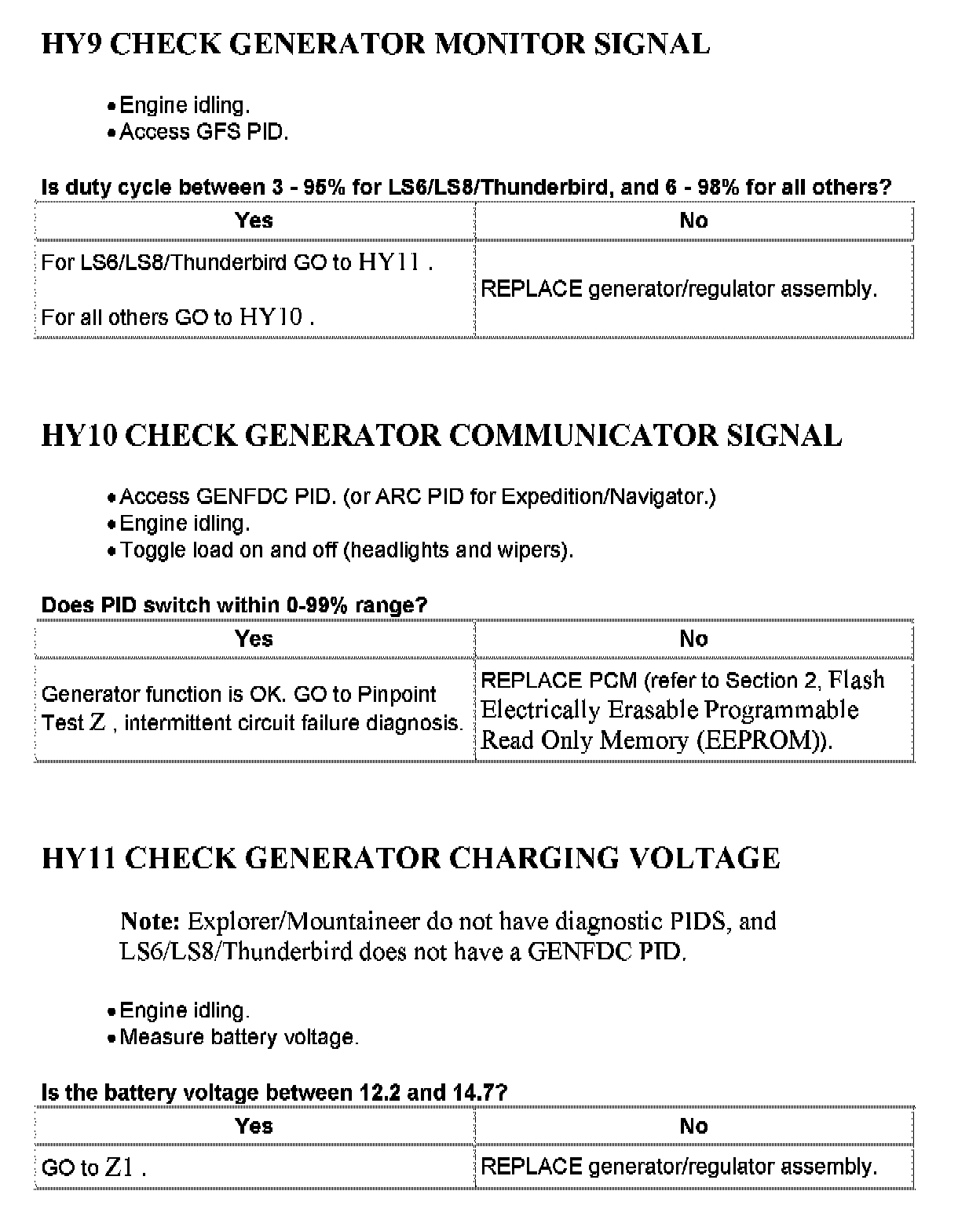

HY9 - HY11:
