Tests HU: Intake Air Systems

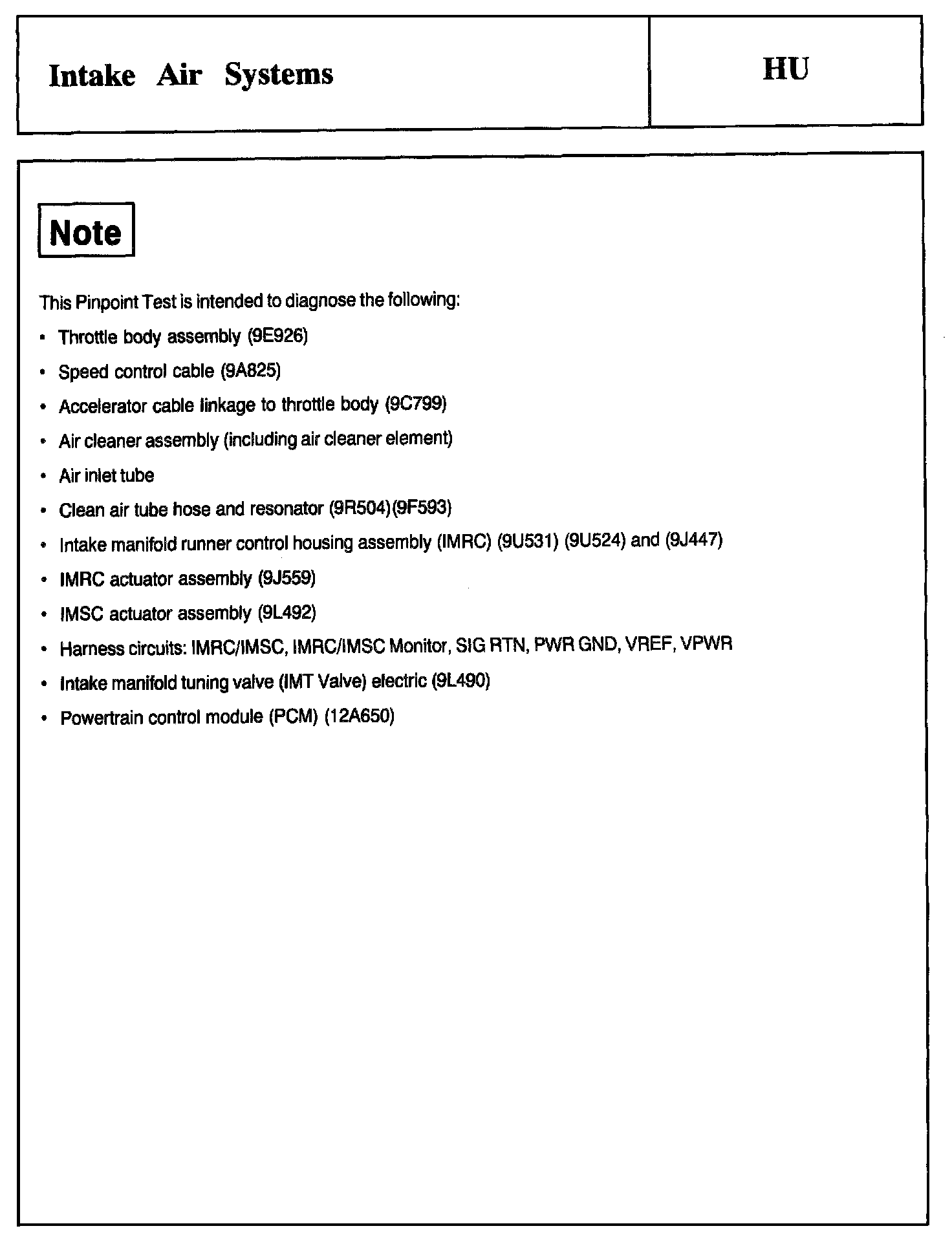

Test Note:

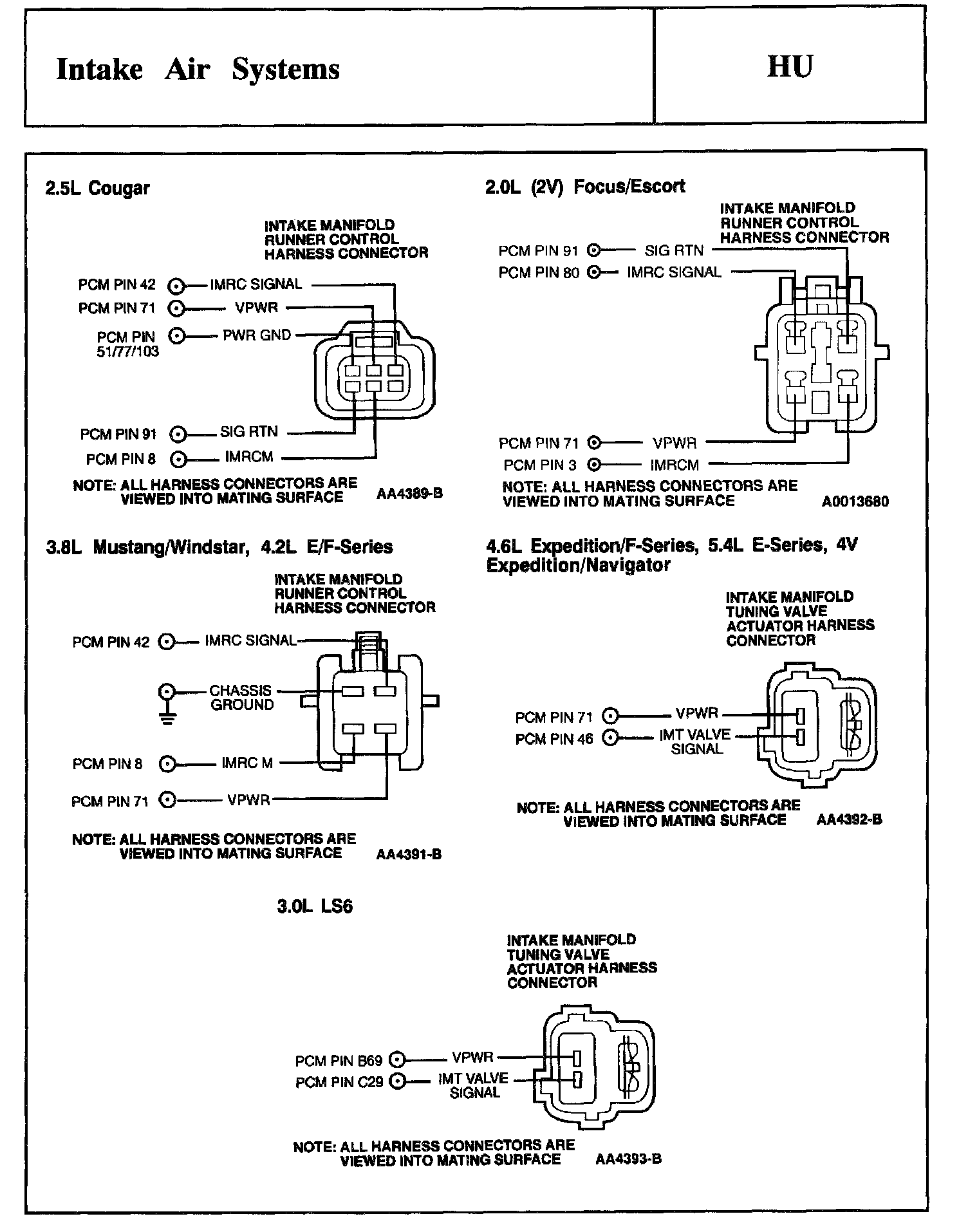

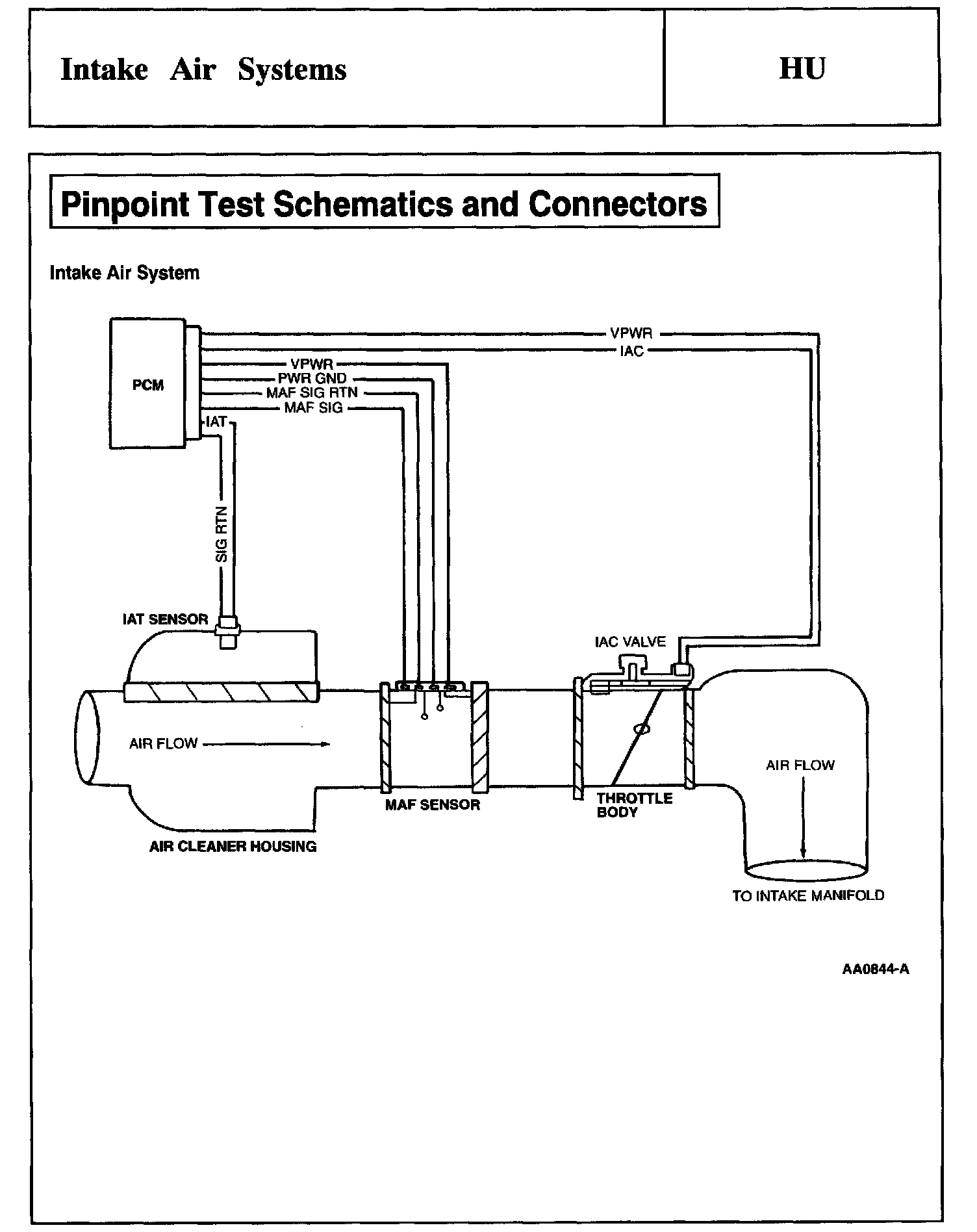

Schematics and Connectors:
Test Schematic:

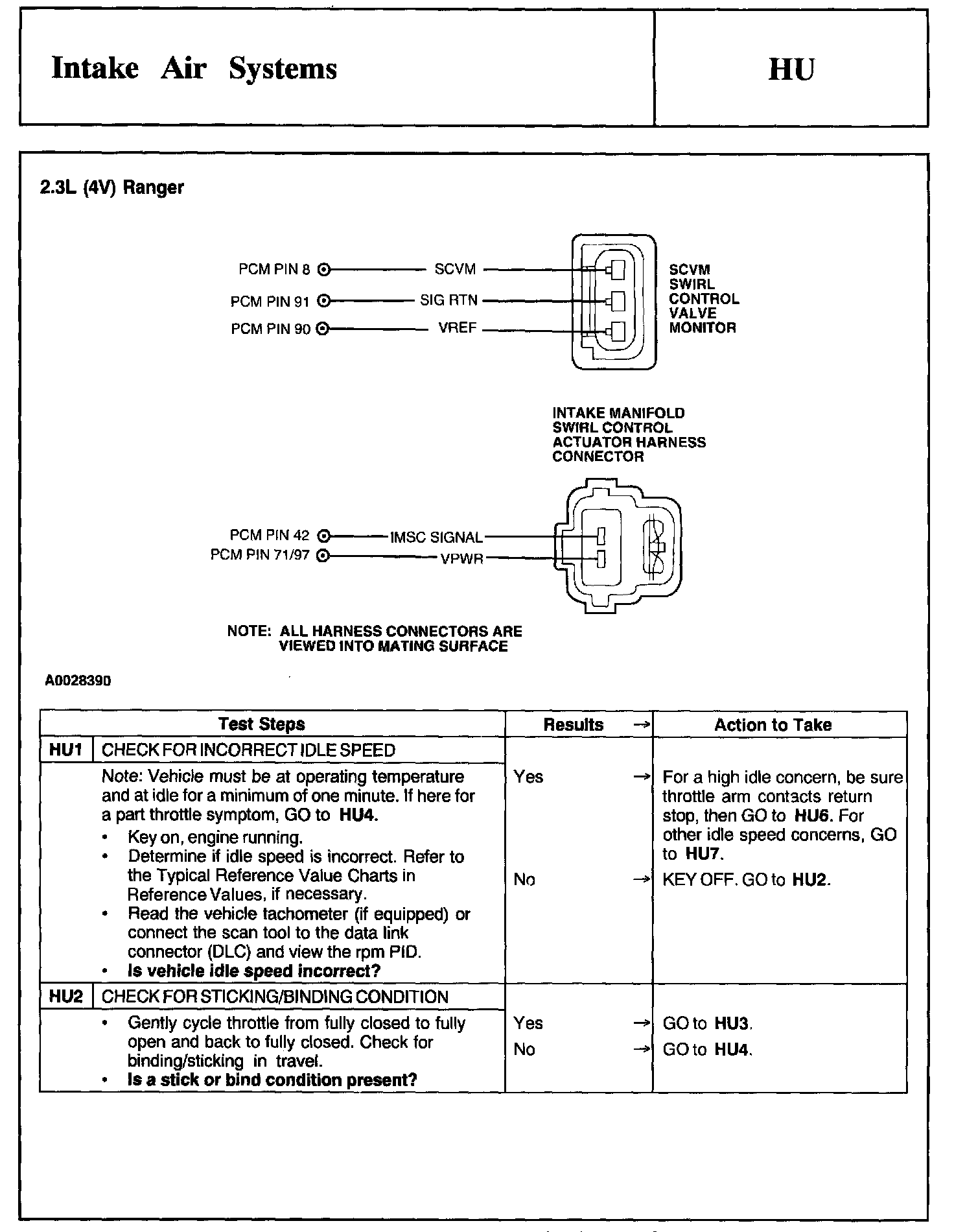

Schematic, Test HU1 - HU2:

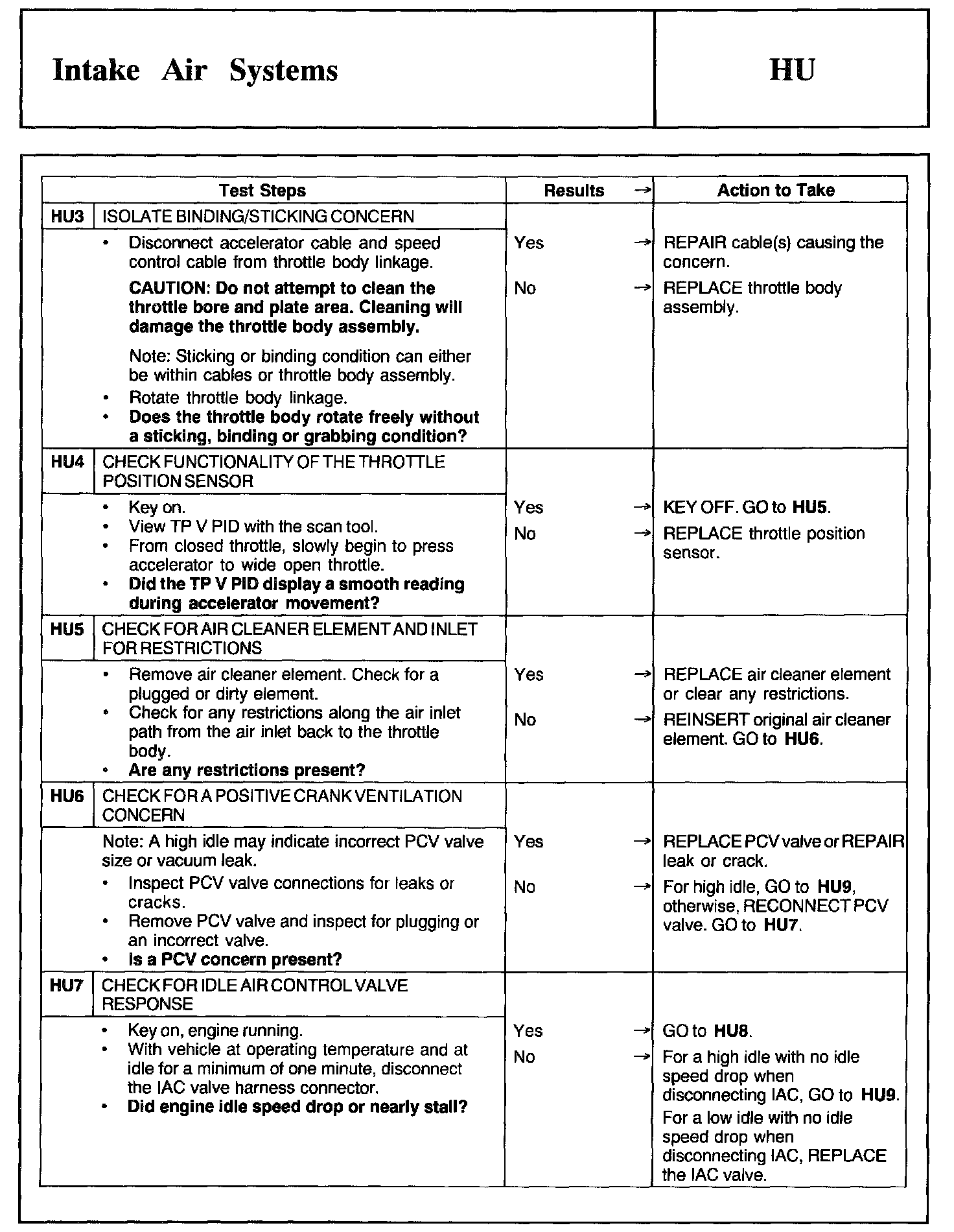

HU3 - HU7:

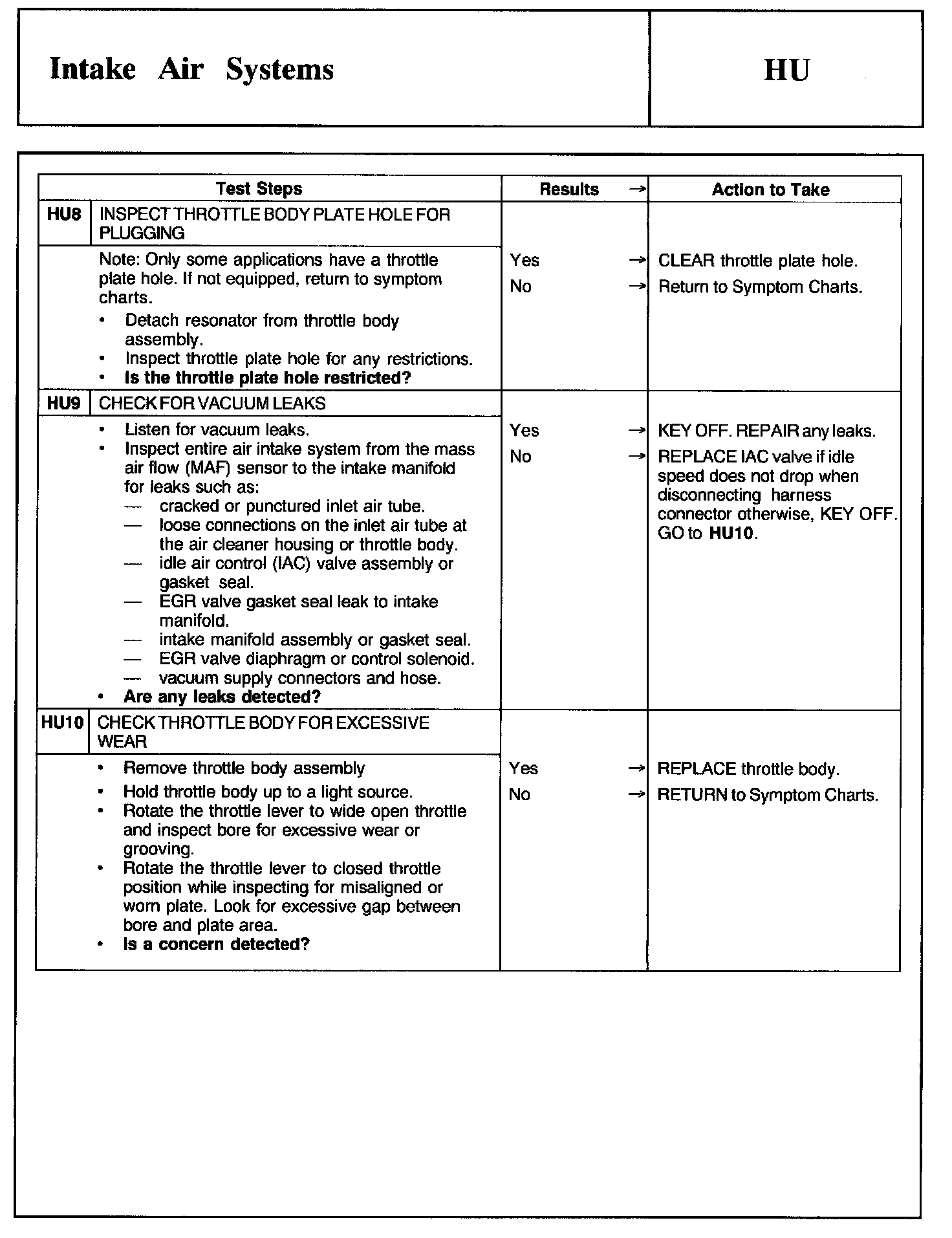

HU8 - HU10:

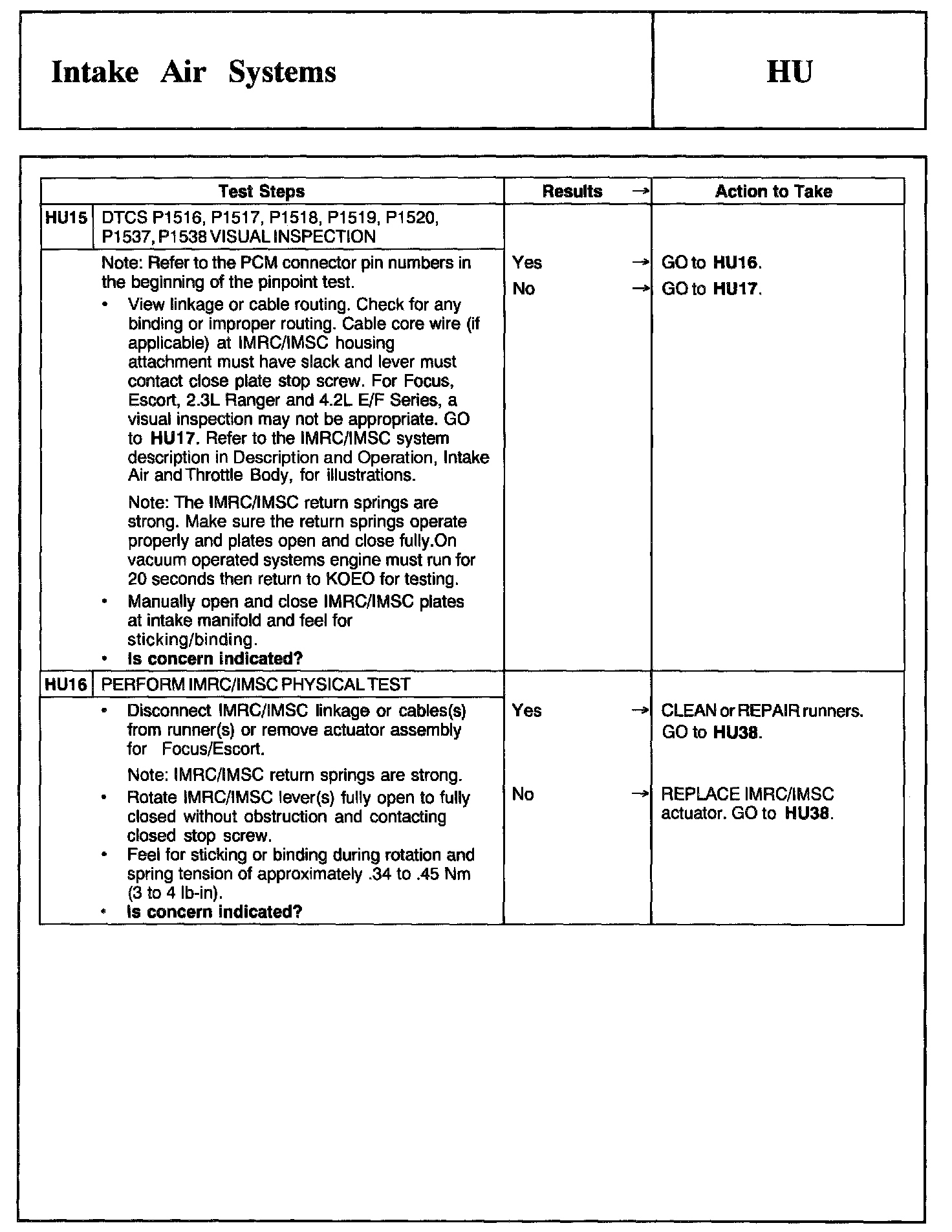

HU15 - HU16:

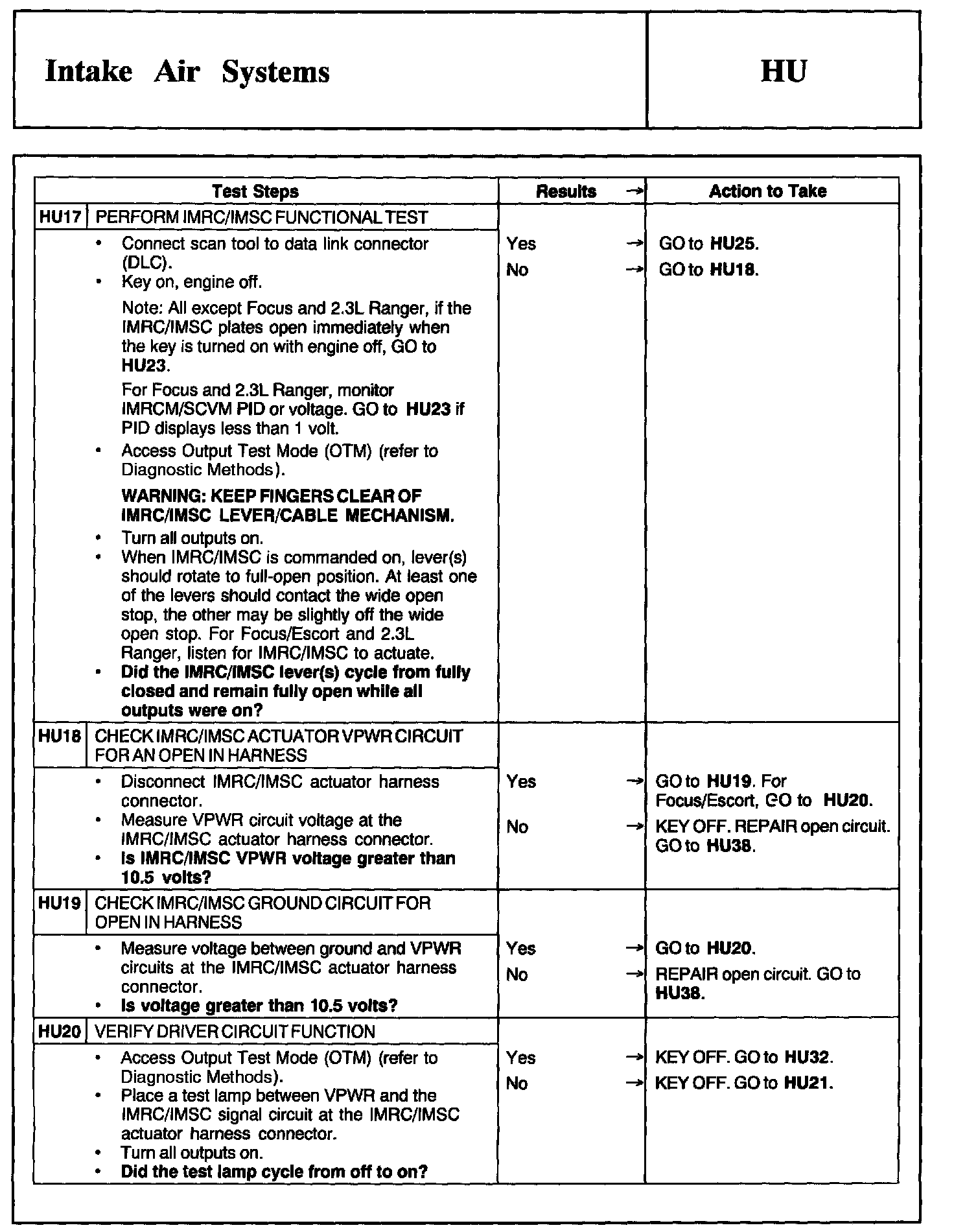

HU17 - HU20:

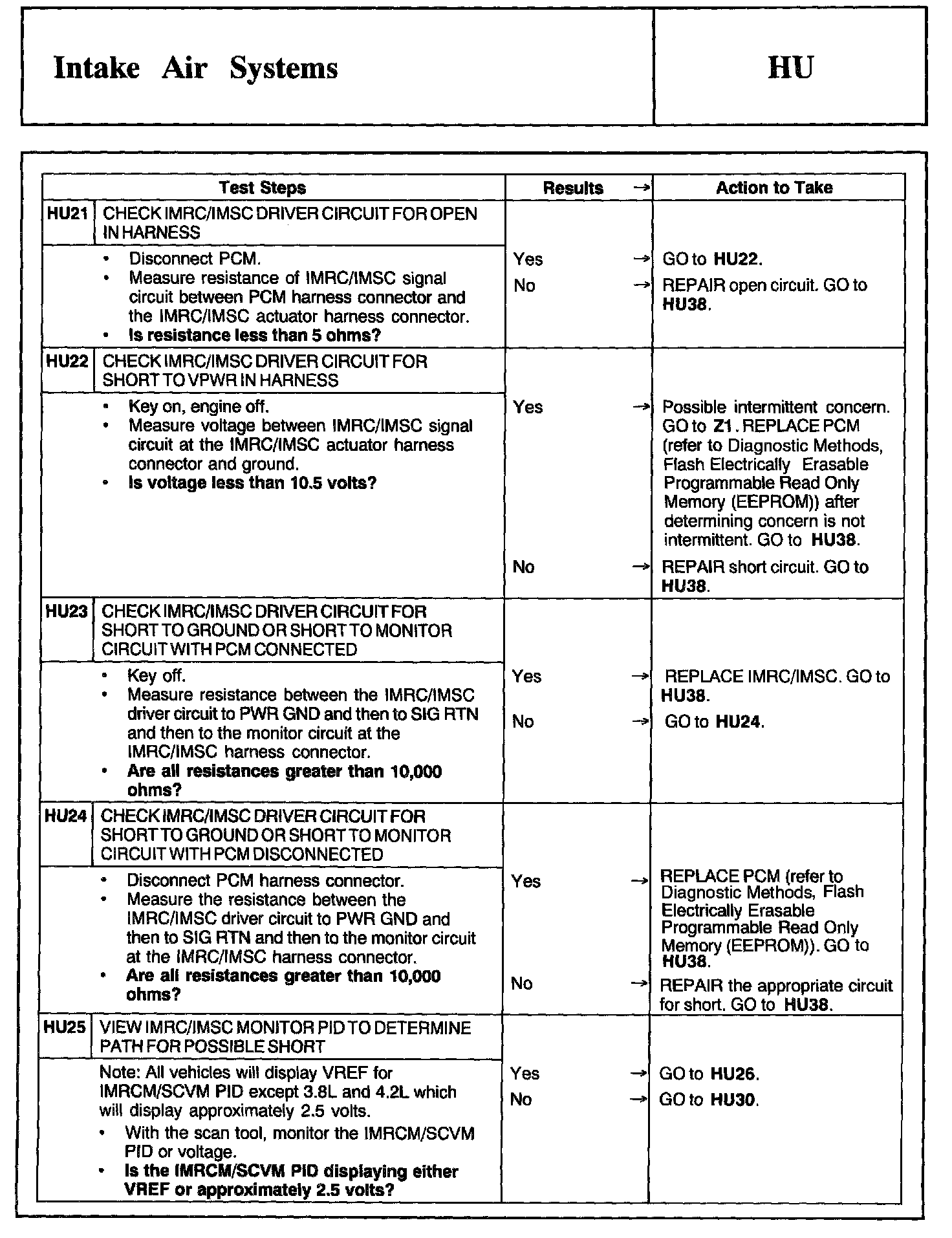

HU21 - HU25:

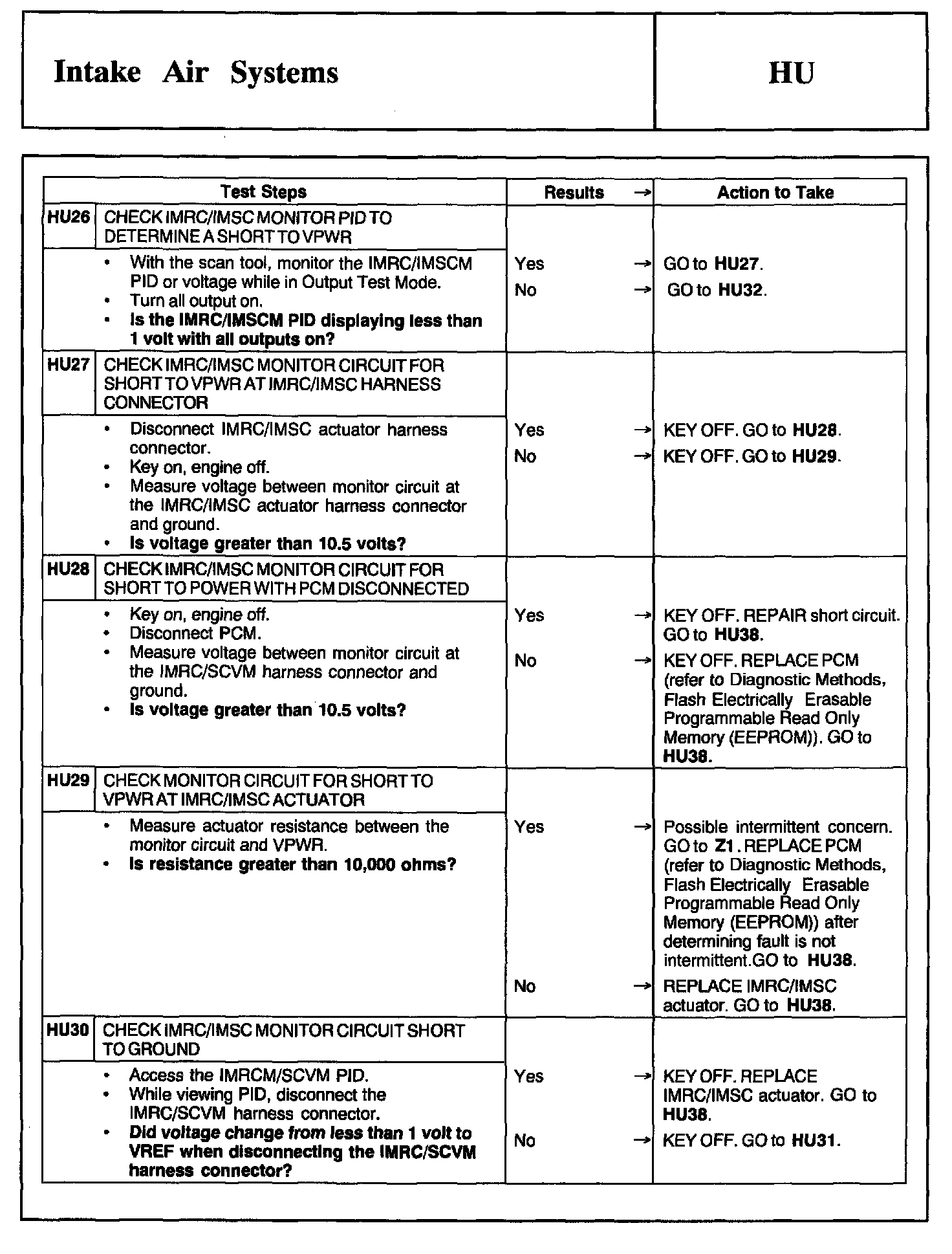

HU26 - HU30:

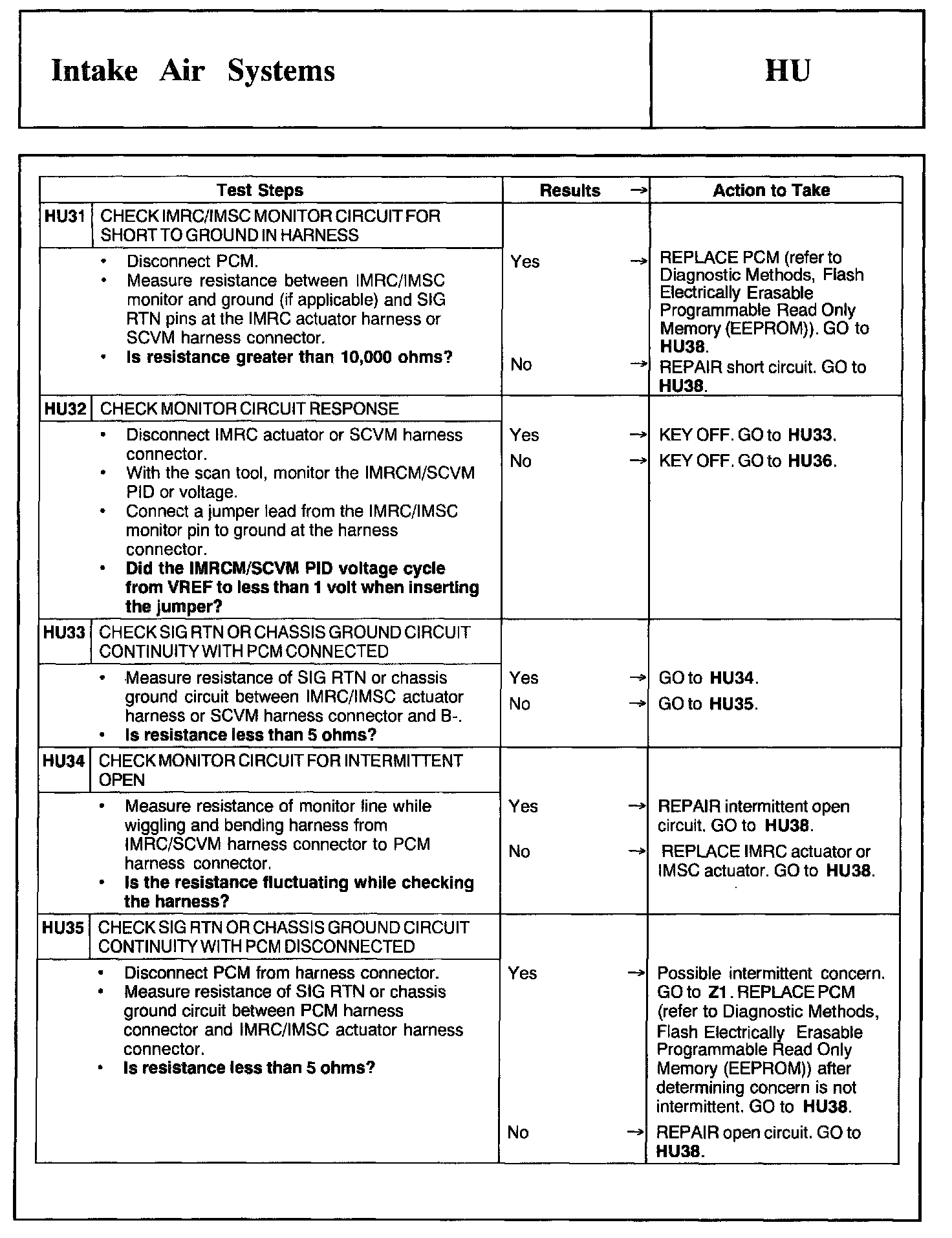

HU31 - HU35:

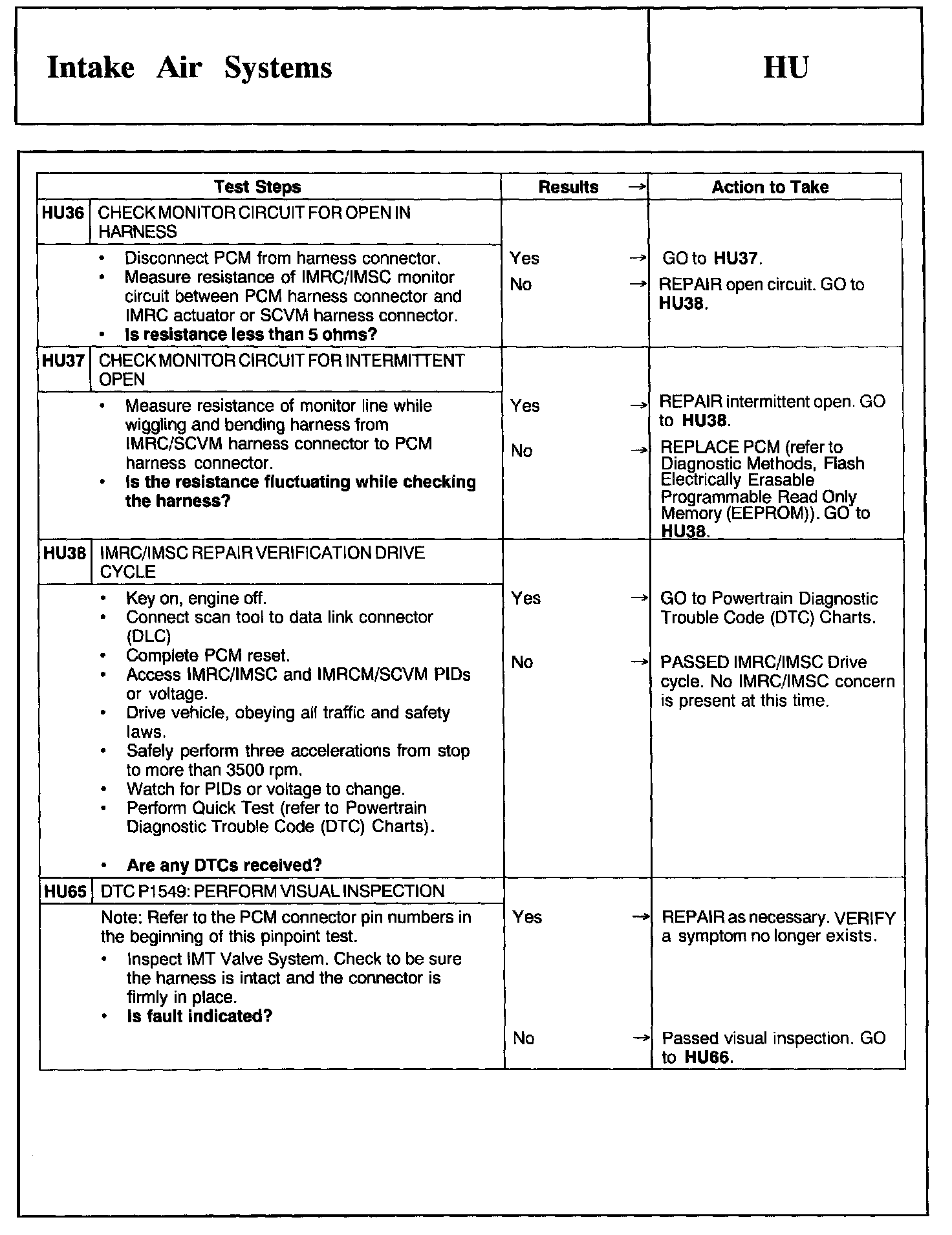

HU36 - HU65:

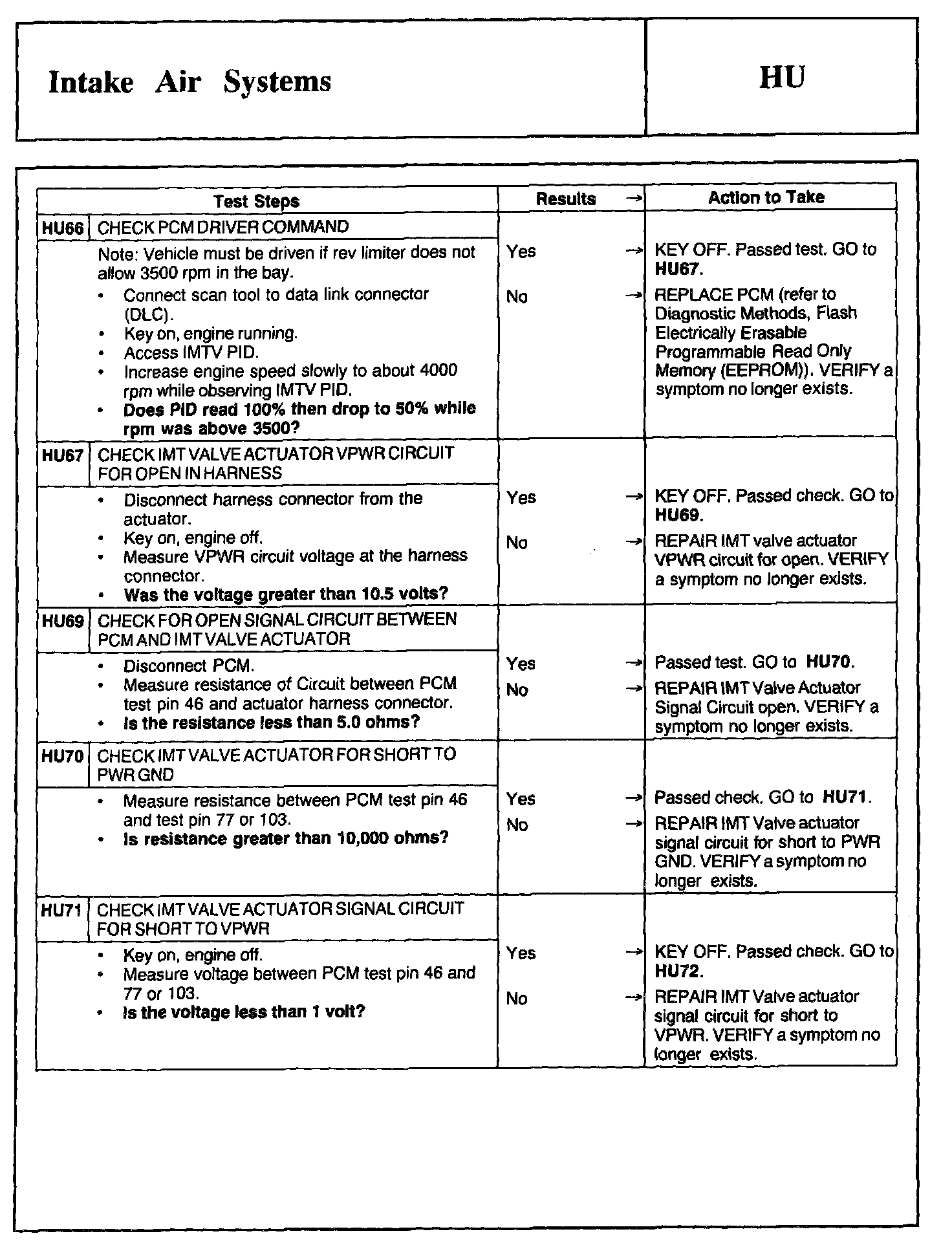

HU66 - HU71:

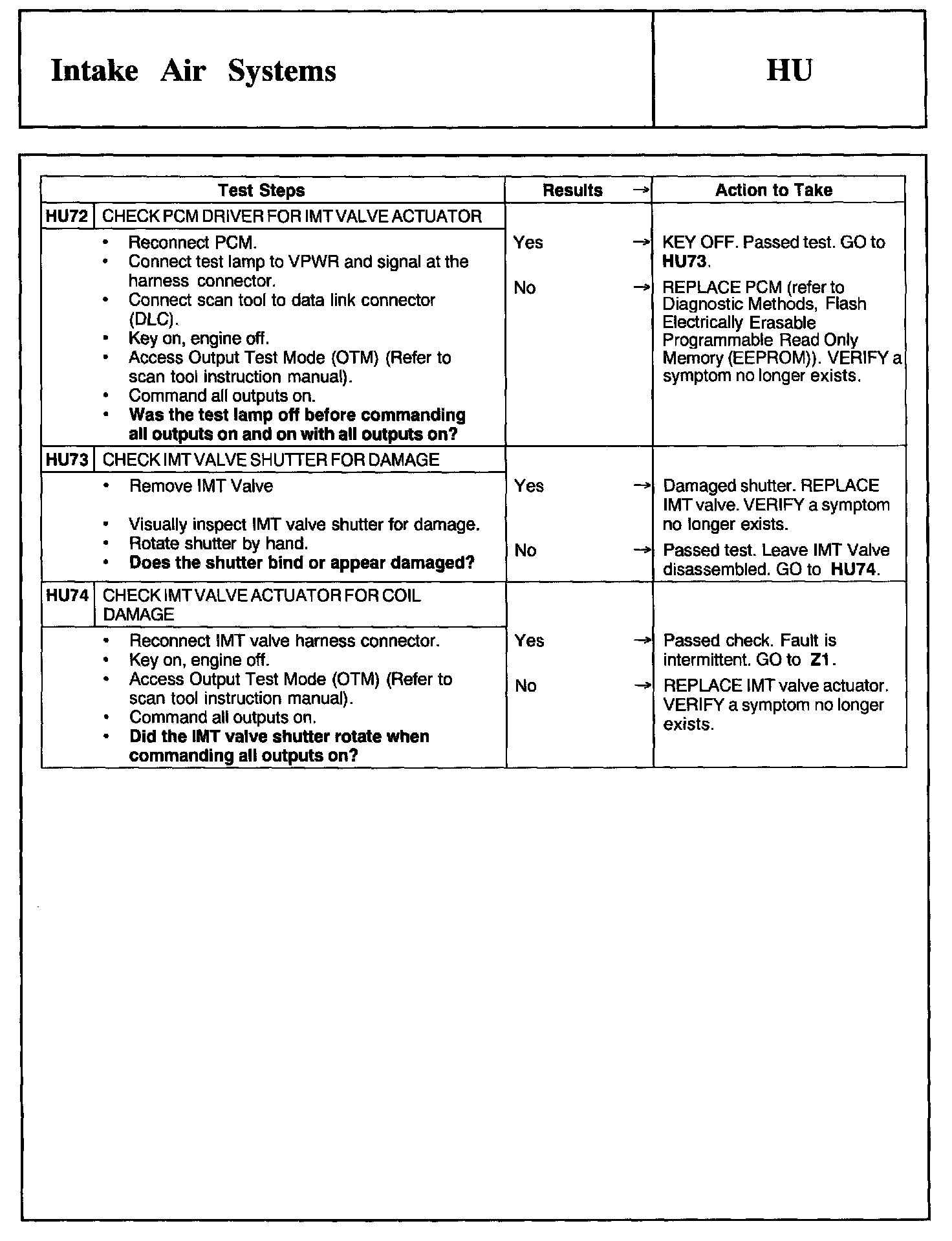

HU72 - HU74:
