Tests FB: Power Take Off (PTO)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Tests FB: Power Take Off (PTO)

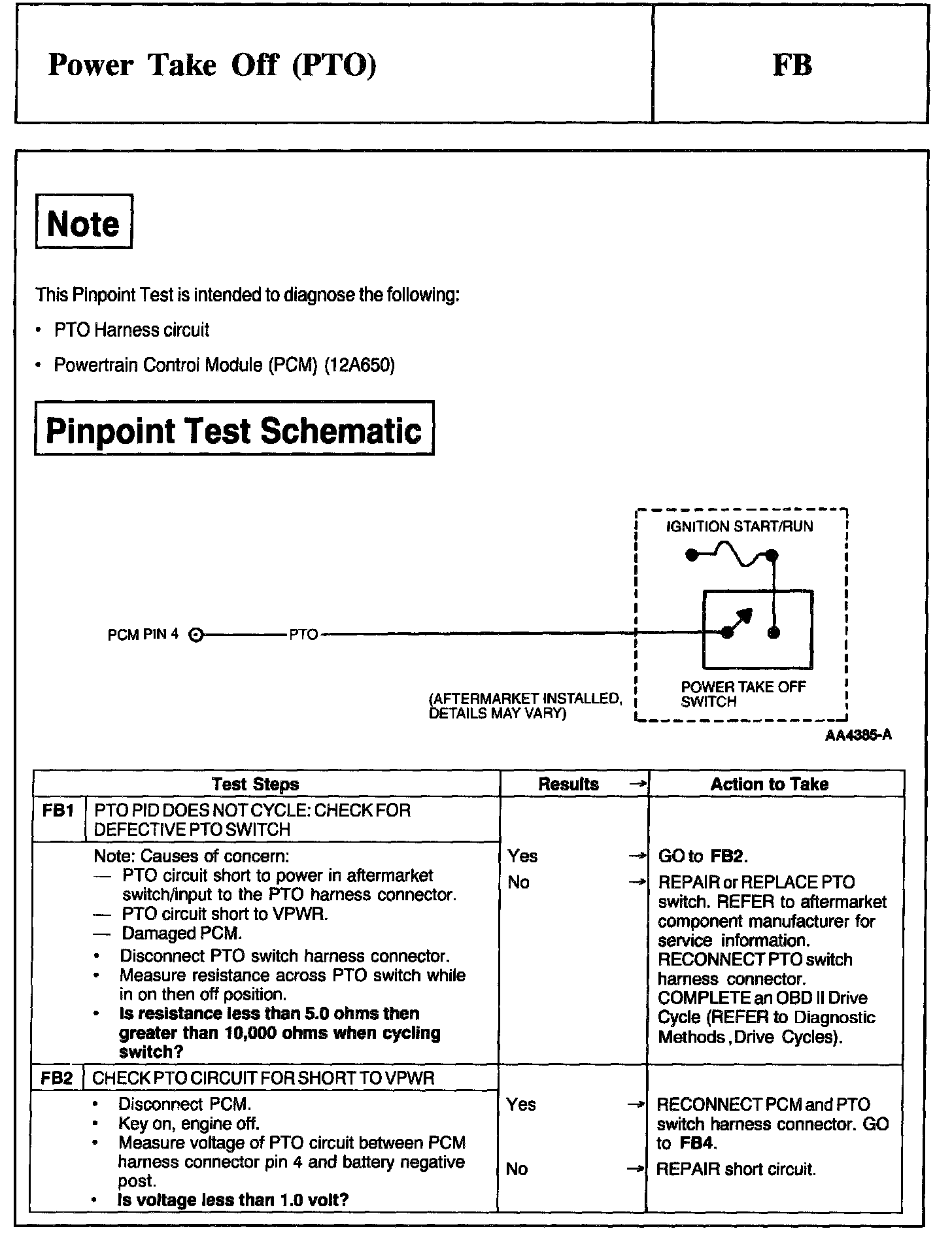

Note, Schematic and Test FB1 - FB2:

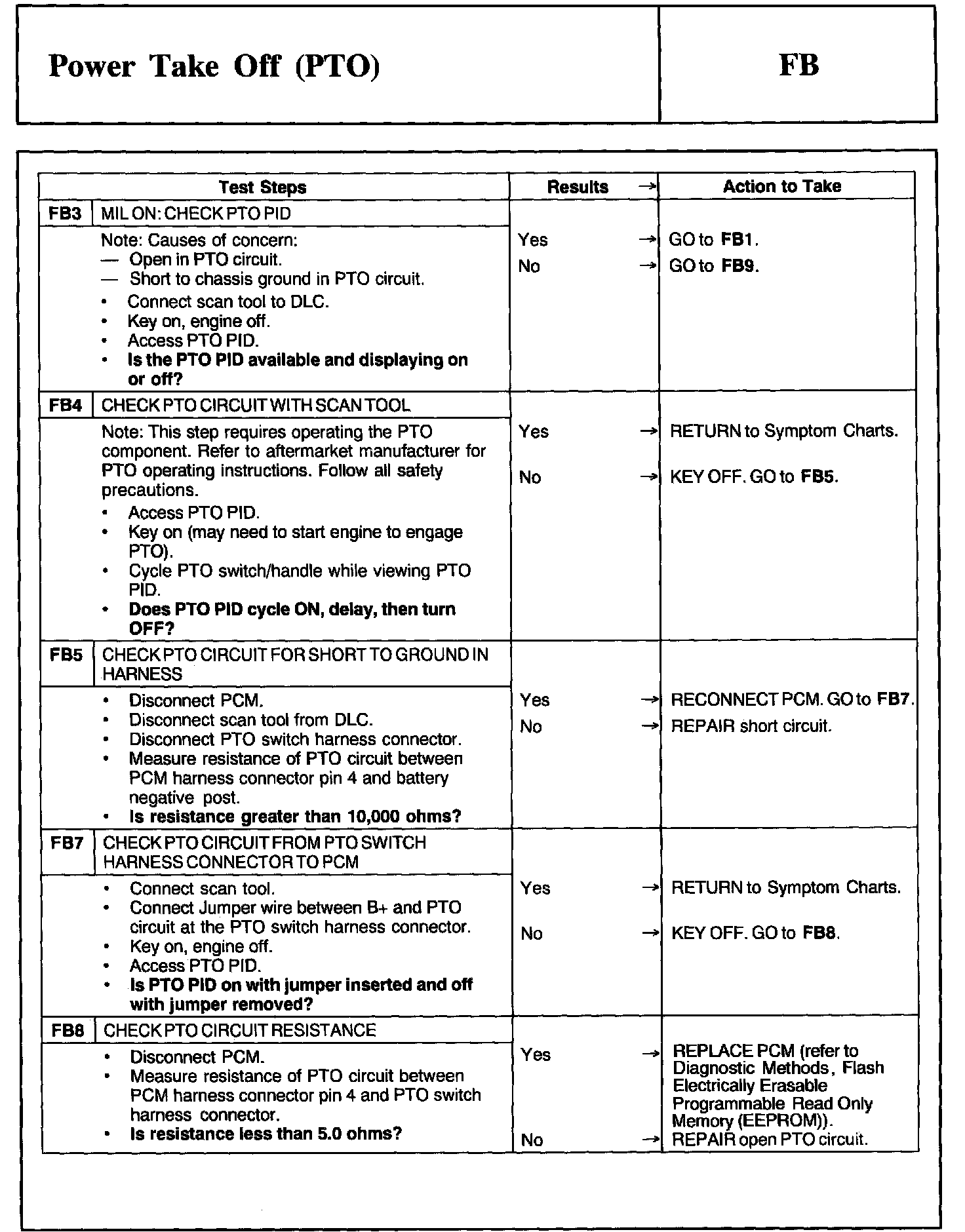

FB3 - FB8:

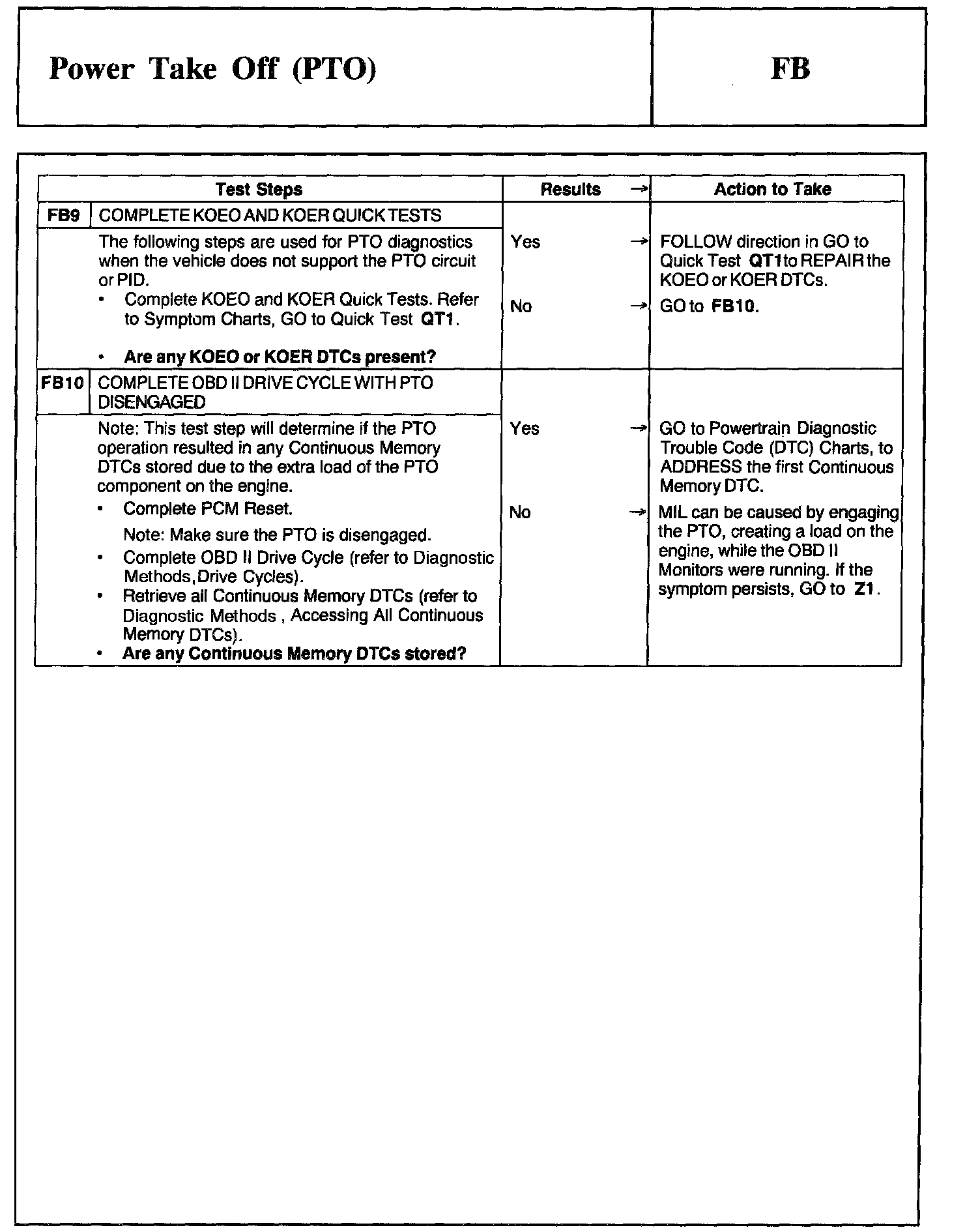

FB9 - FB10:
